Symptom Related Diagnostic Procedures

SYMPTOM CHART

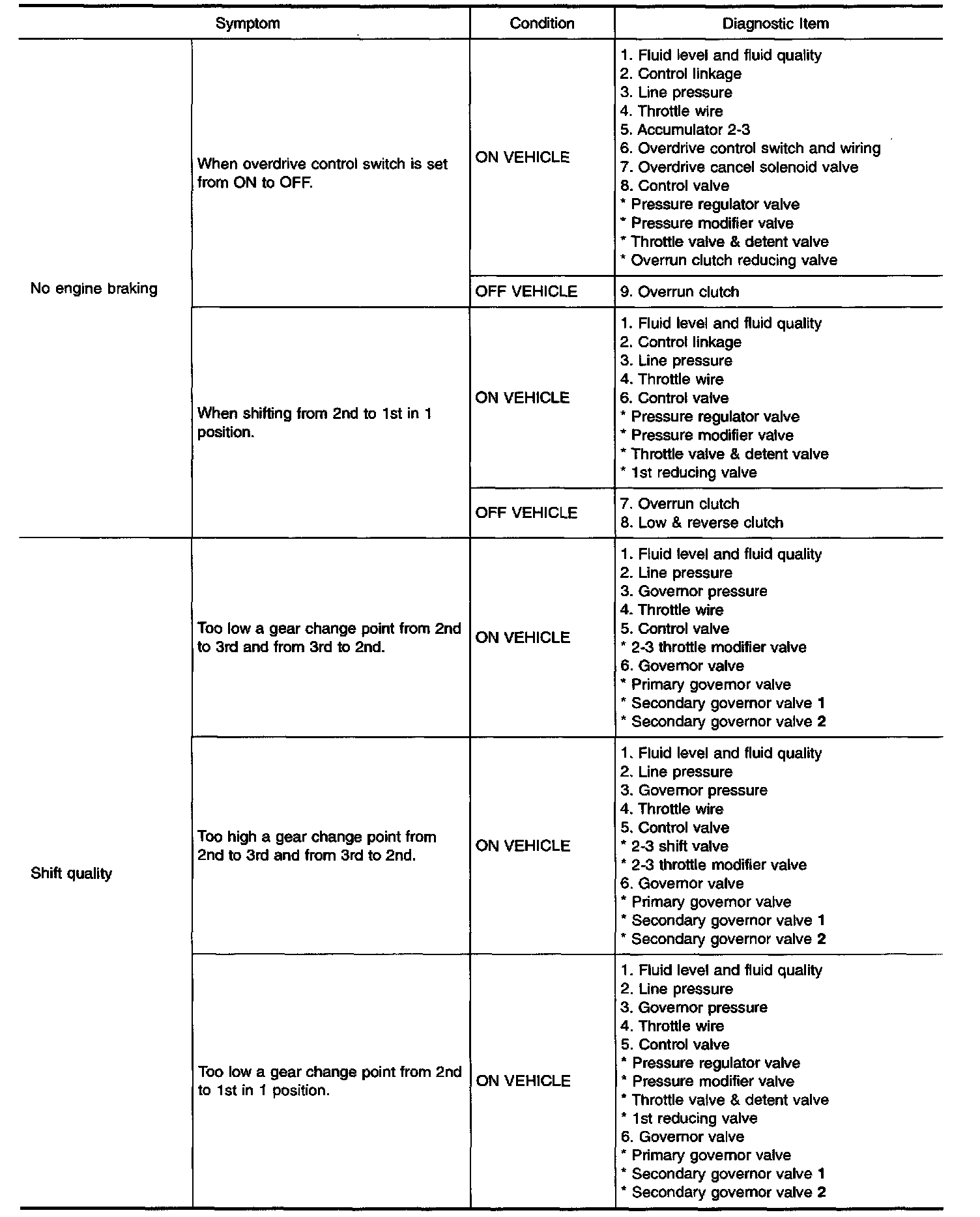

1 of 8

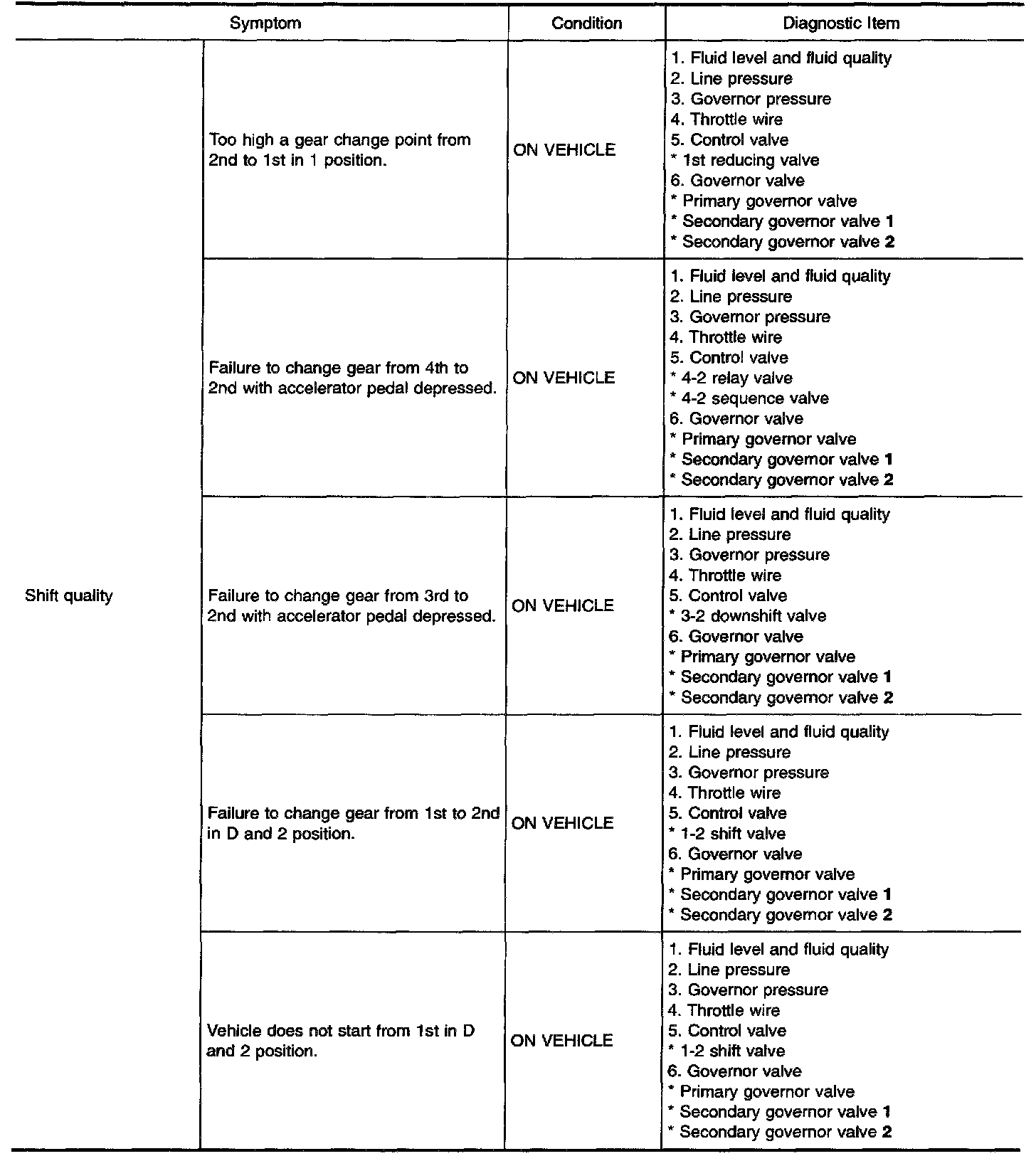

2 of 8

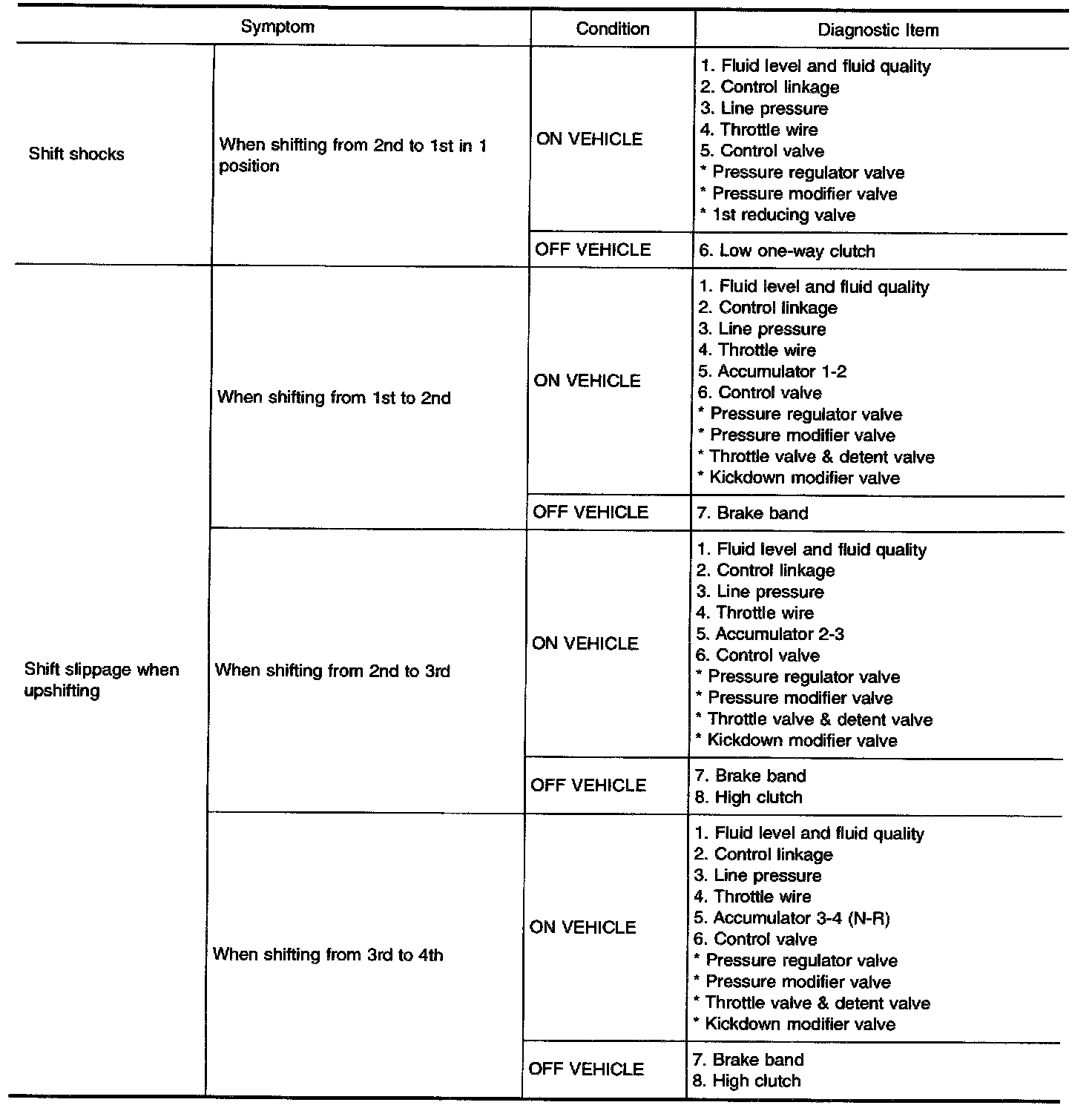

3 of 8

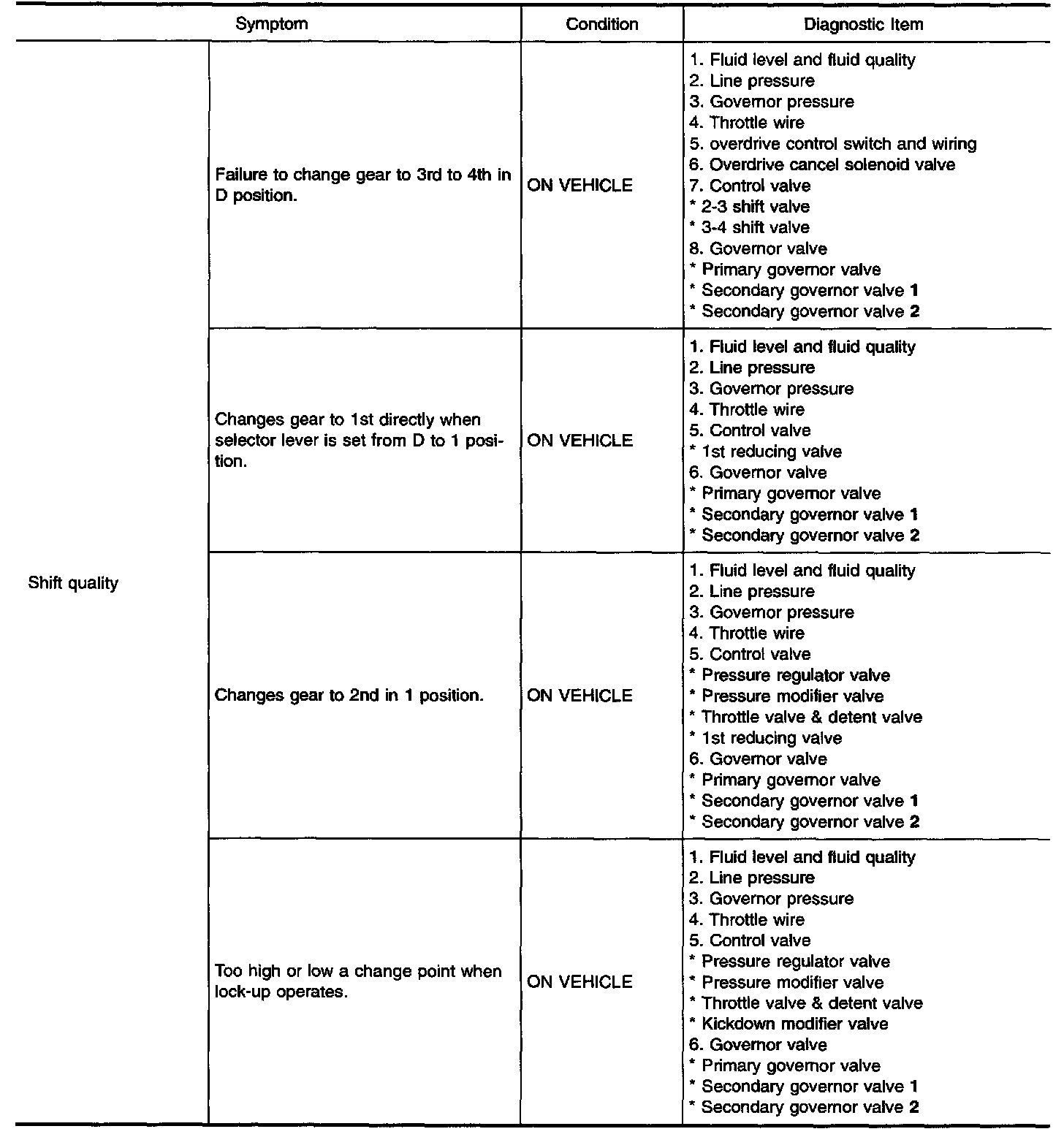

4 of 8

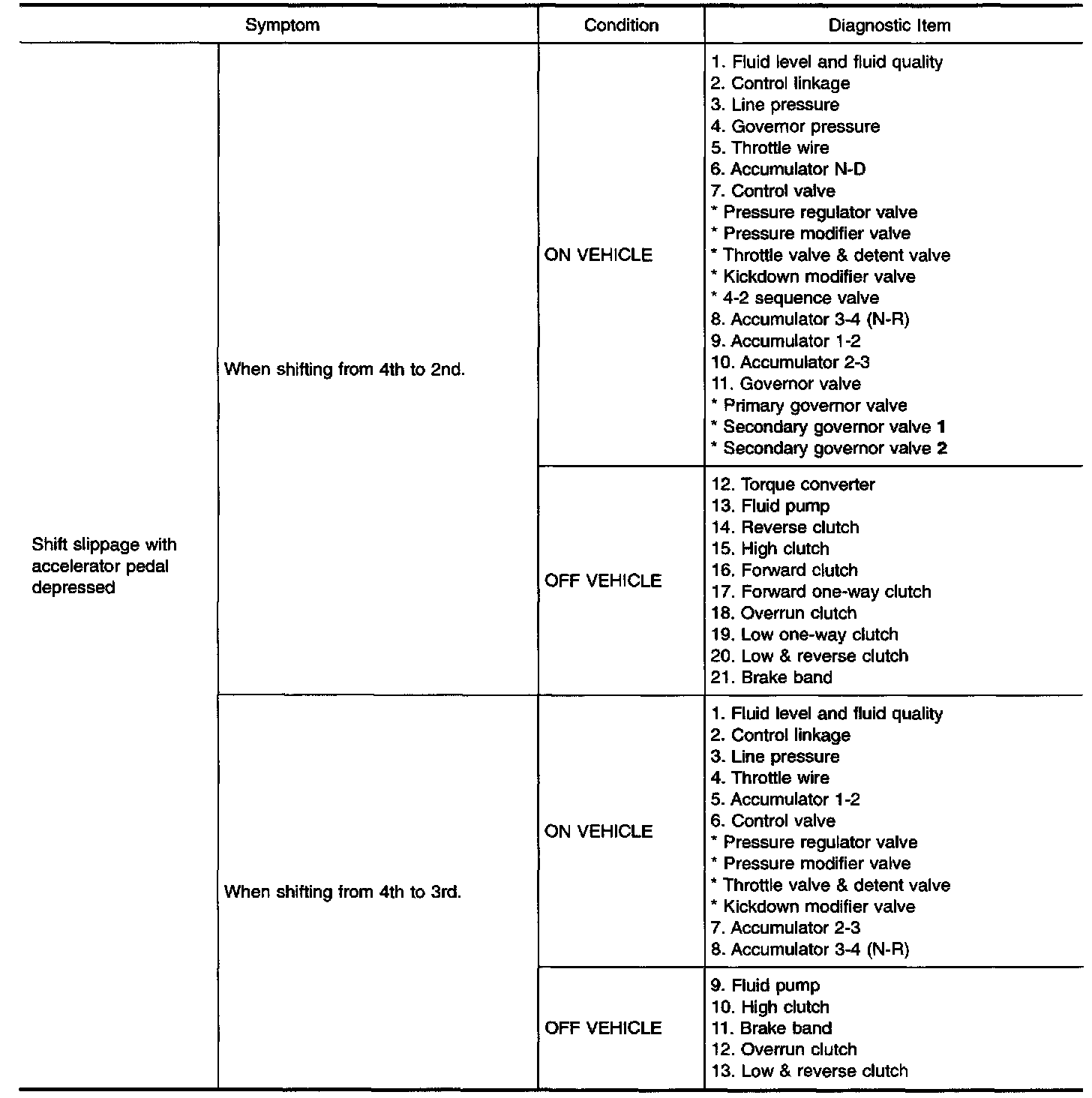

5 of 8

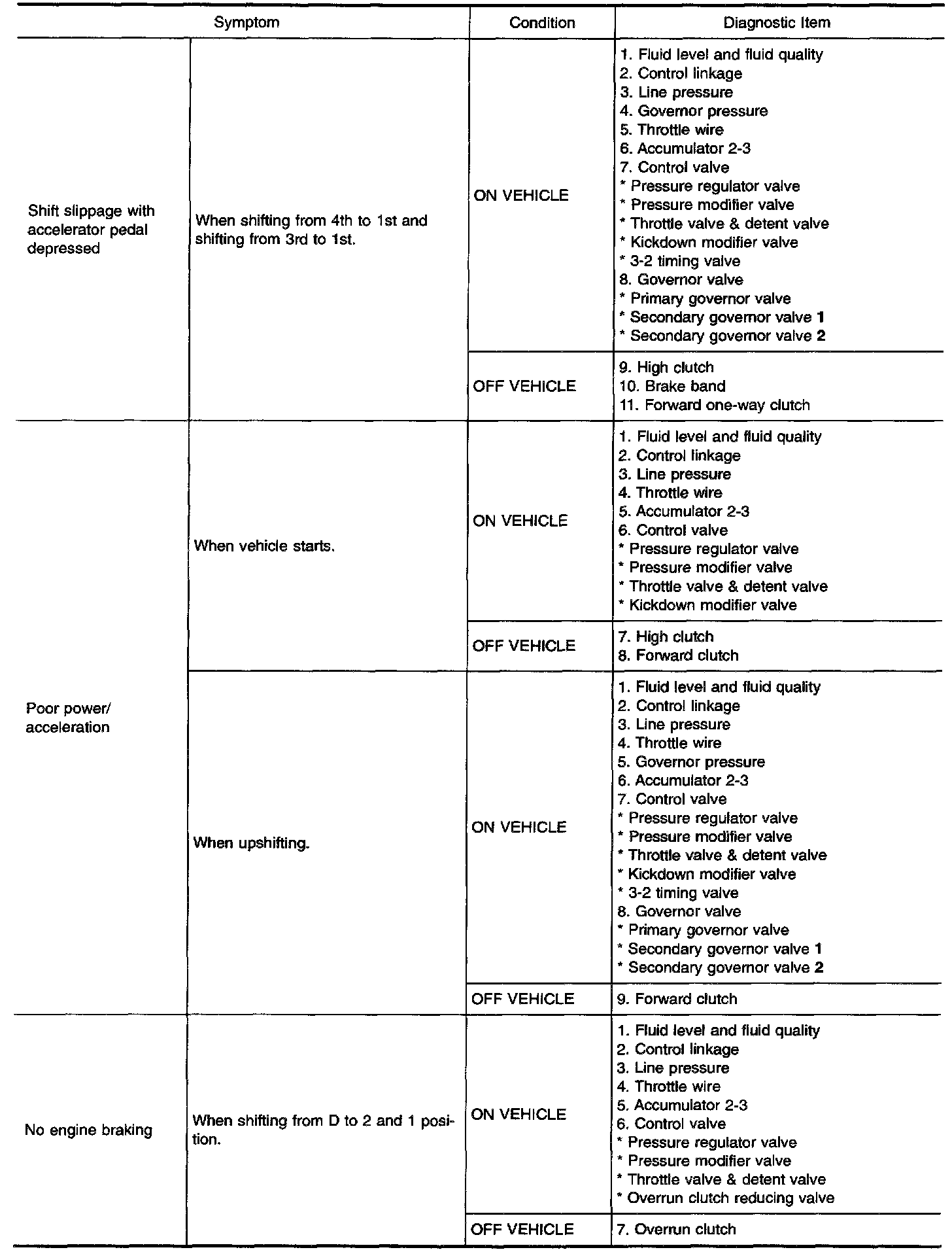

6 of 8

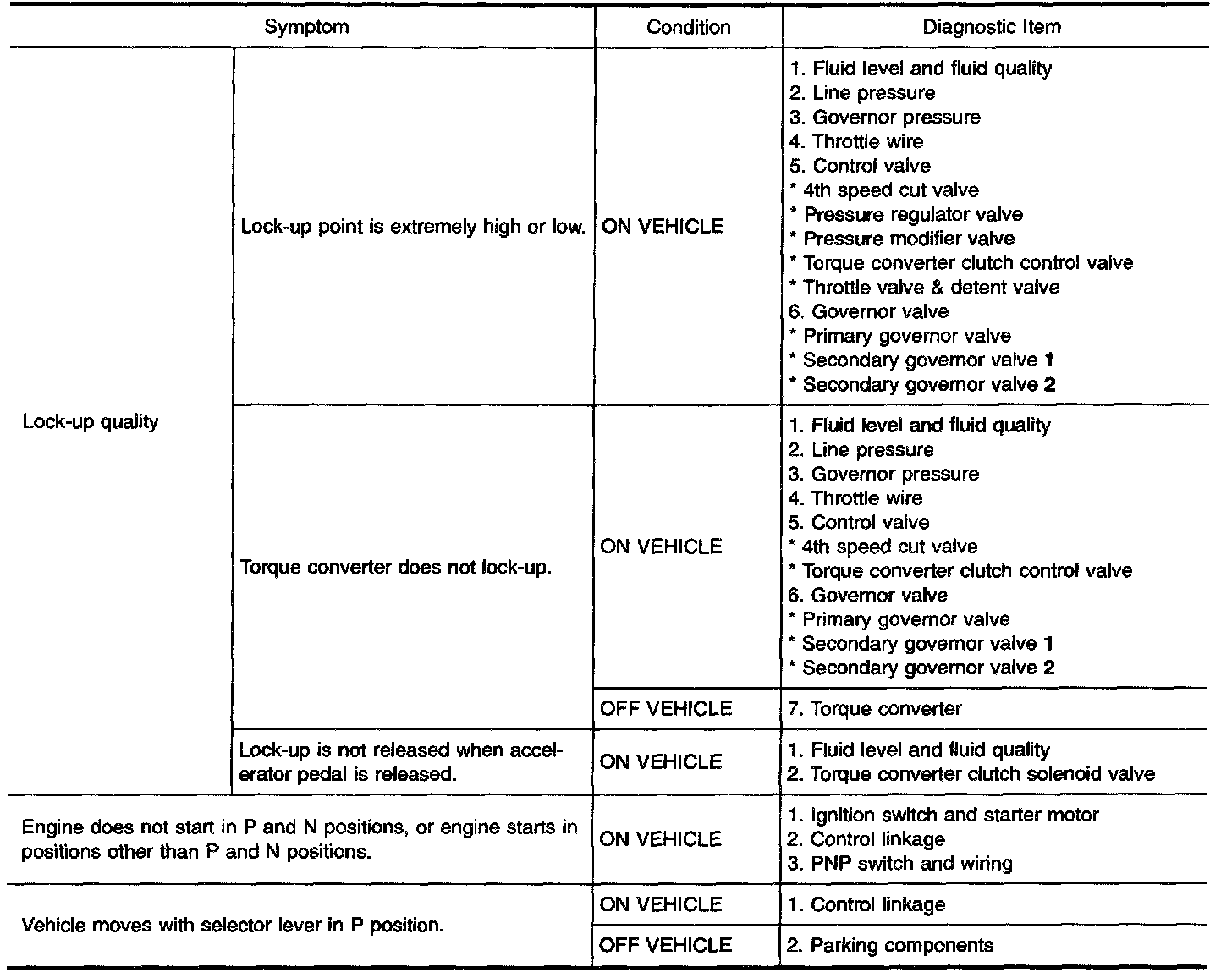

7 of 8

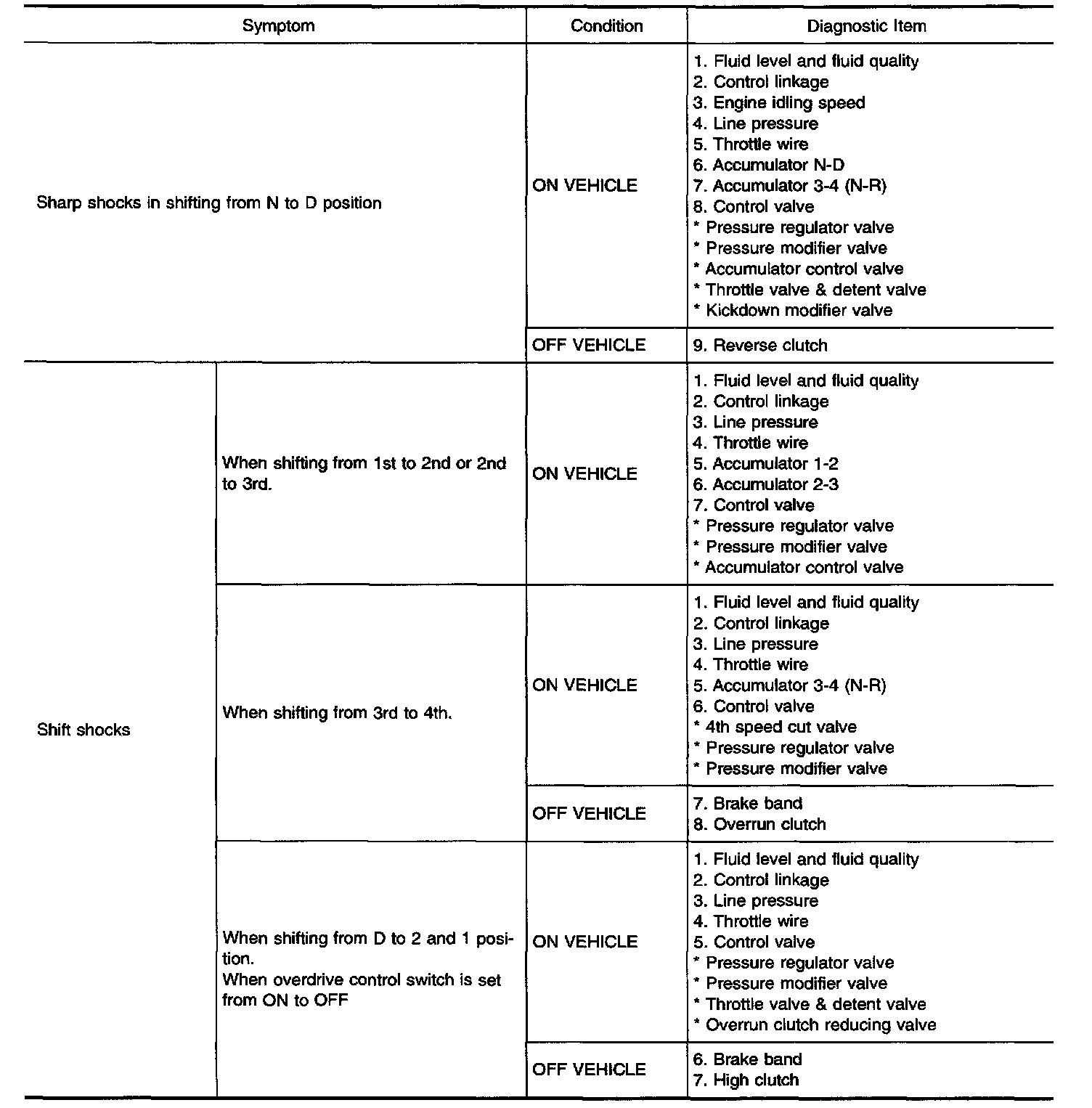

8 of 8

Numbers are arranged in order of the inspection.
Perform inspections starting with number one and work up.
Numbers in the OFF VEHICLE columns indicate that the transmission must be removed from the vehicle to perform the inspection.
Valve suspected to be malfunctioning
