System Specifications

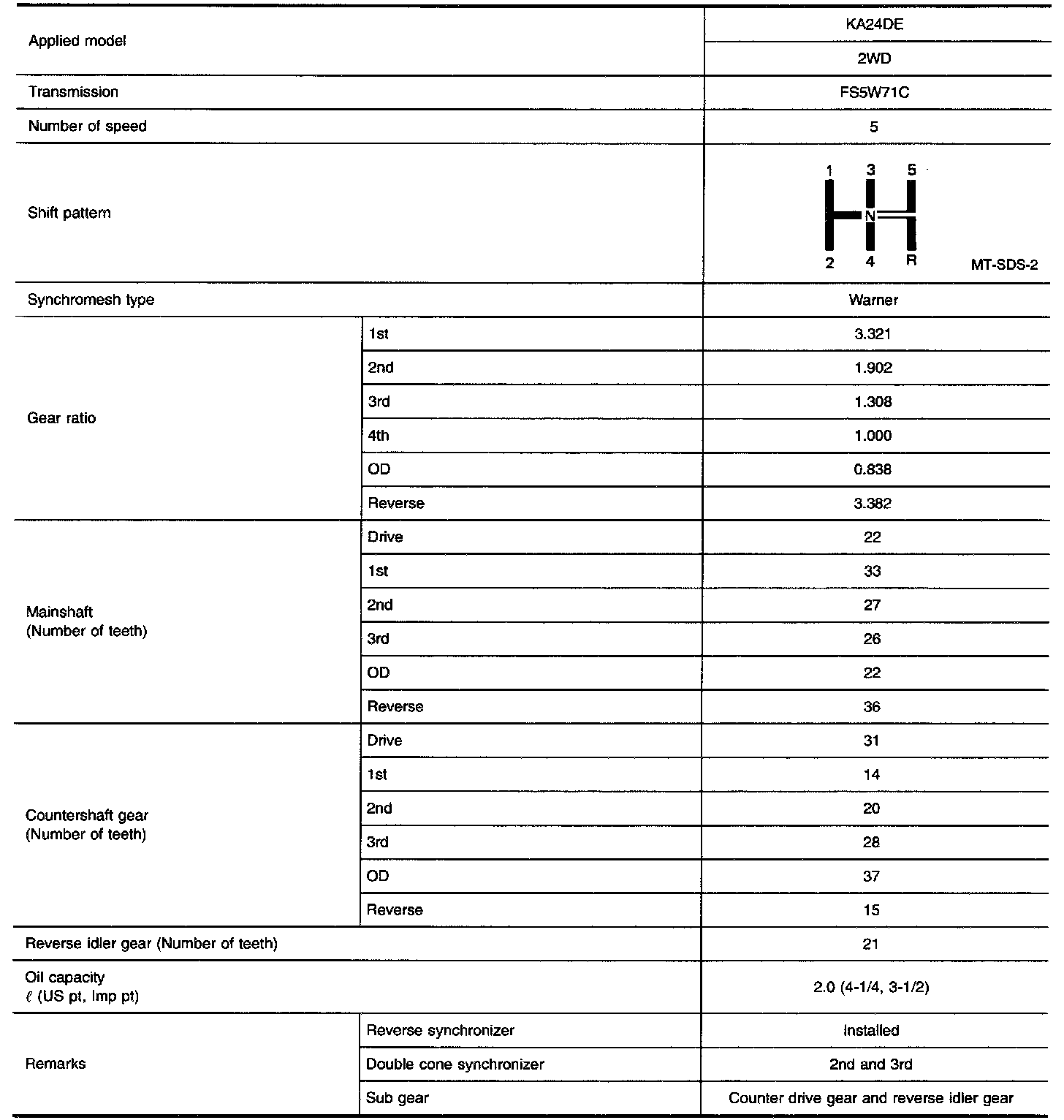

GENERAL SPECIFICATIONS
GEAR END PLAY
CLEARANCE BETWEEN BAULK RING AND GEAR
AVAILABLE SNAP RINGS
Main Drive Gear Bearing
Mainshaft Front
Counter Drive Gear
O/D Mainshaft Bearing
AVAILABLE SHIMS
Countershaft Front Bearing
