Trouble Diagnosis




SYMPTOM CHART

NOTE: Always check the remote controller battery before replacing remote controller.

Step 1:




REMOTE CONTROLLER BATTERY CHECK

Steps 1 - 2:




Step 3:




POWER SUPPLY AND GROUND CIRCUIT CHECK

Step 1:




Step 2:

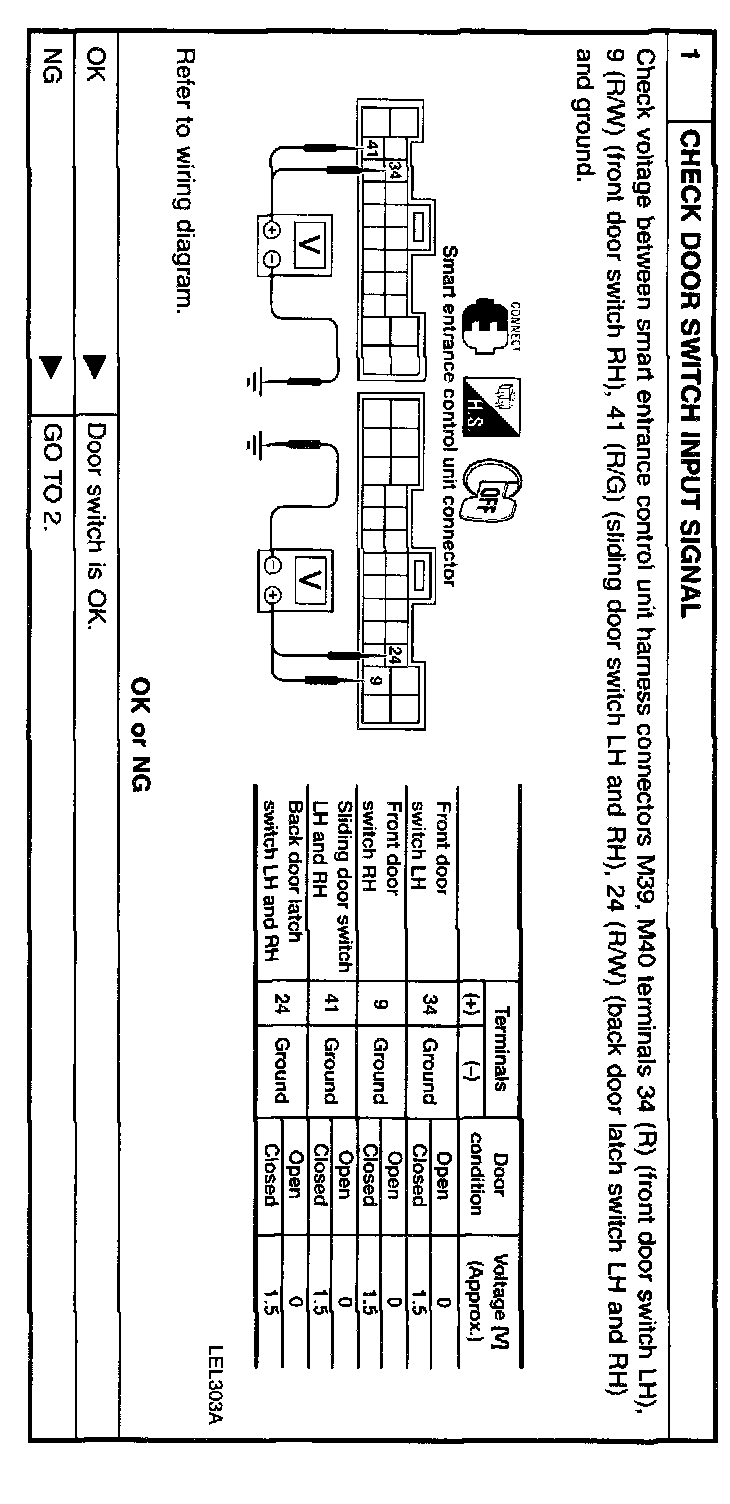

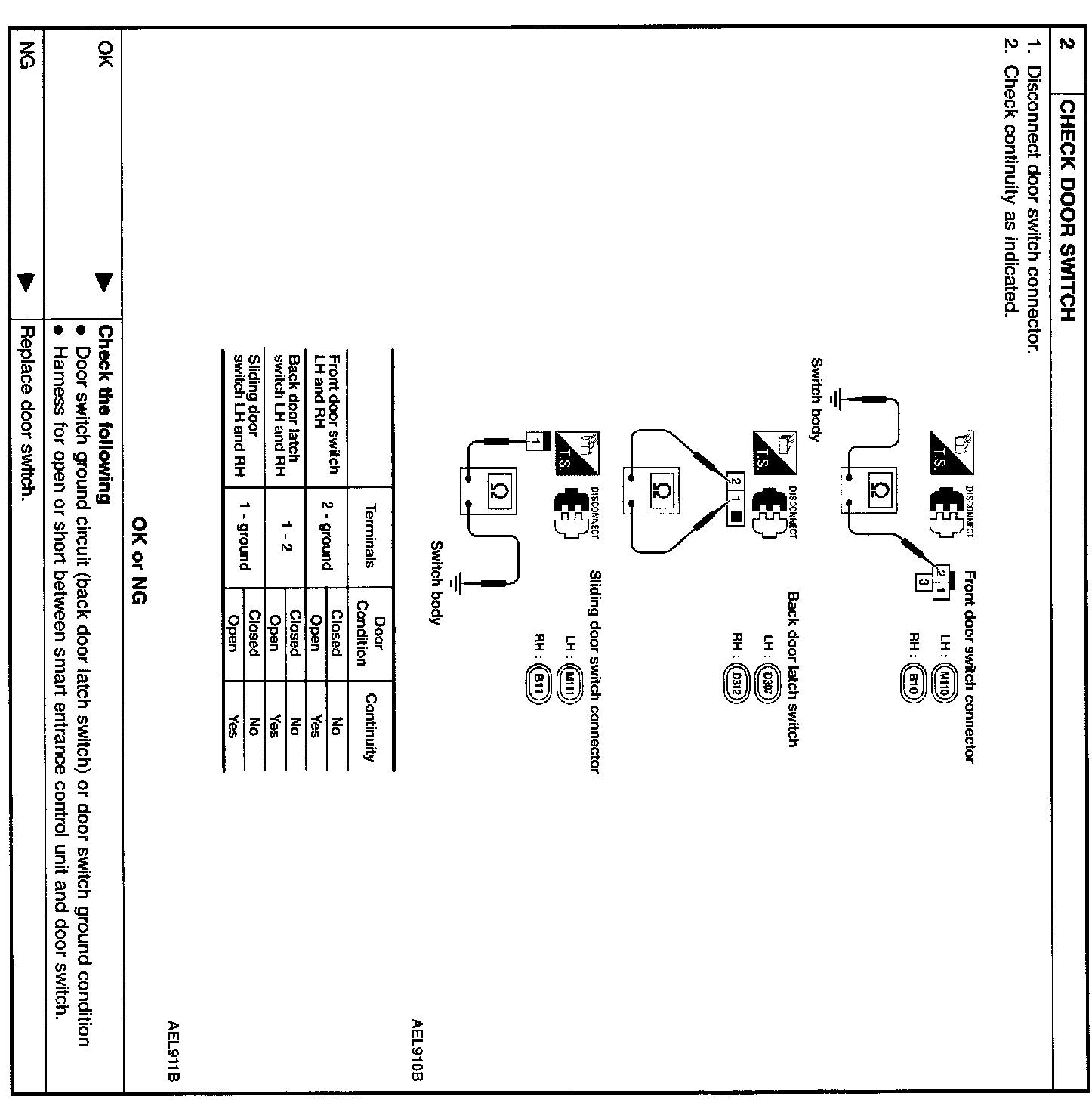

DOOR SWITCH CHECK

Steps 1 - 2:

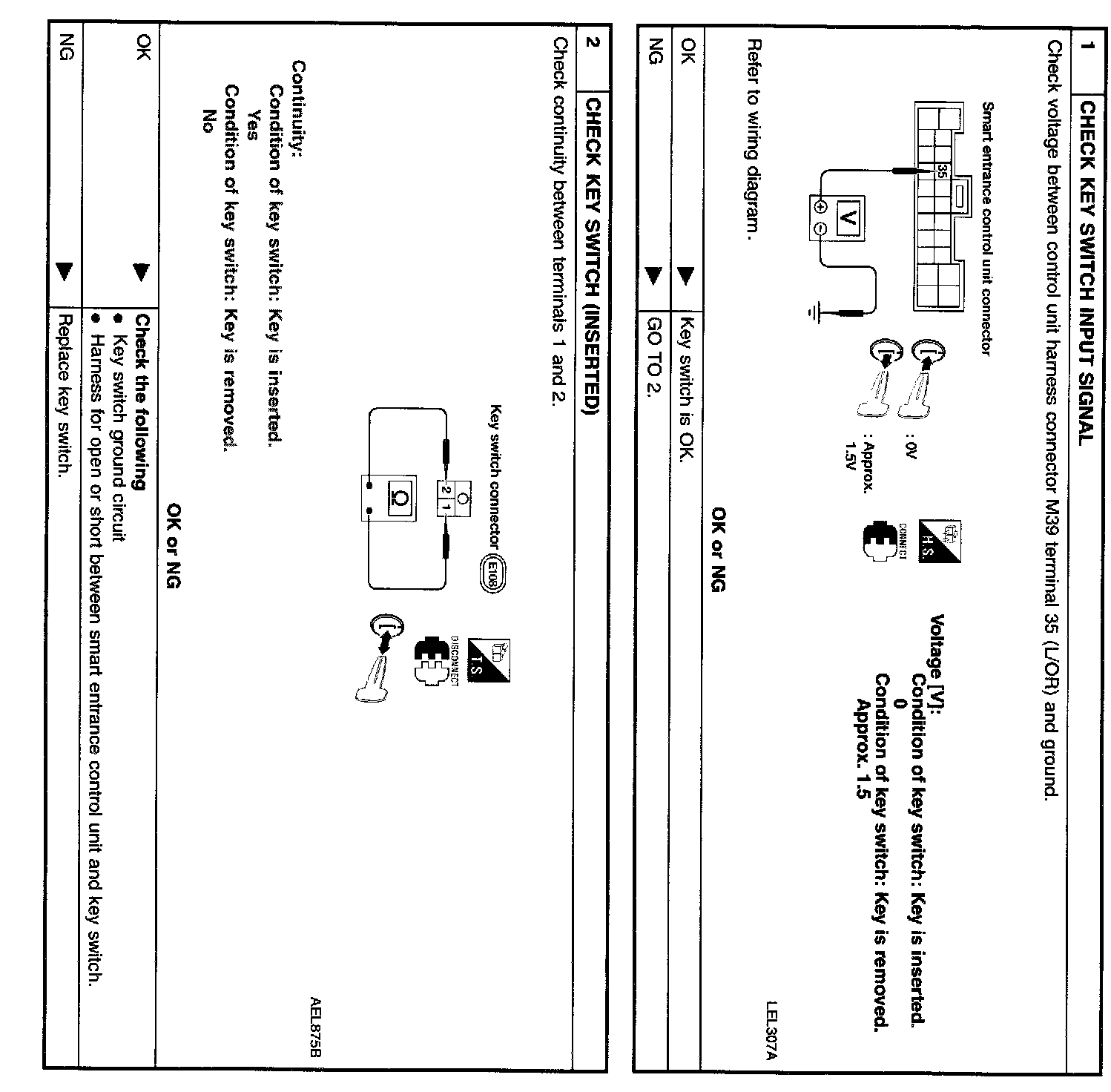

KEY SWITCH (INSERTED) CHECK

Steps 1 - 2:

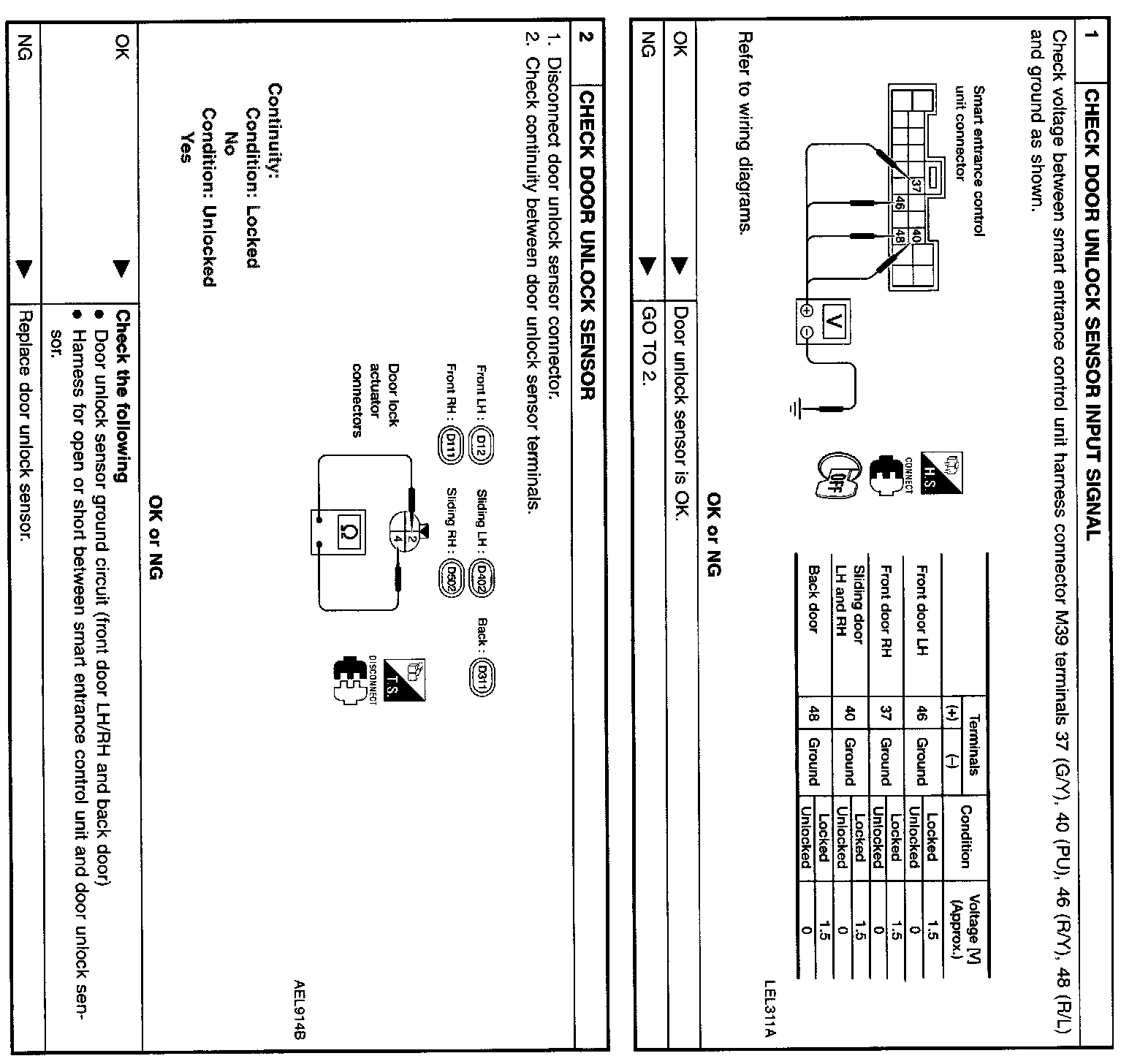

DOOR UNLOCK SENSOR CHECk

Steps 1 - 3:

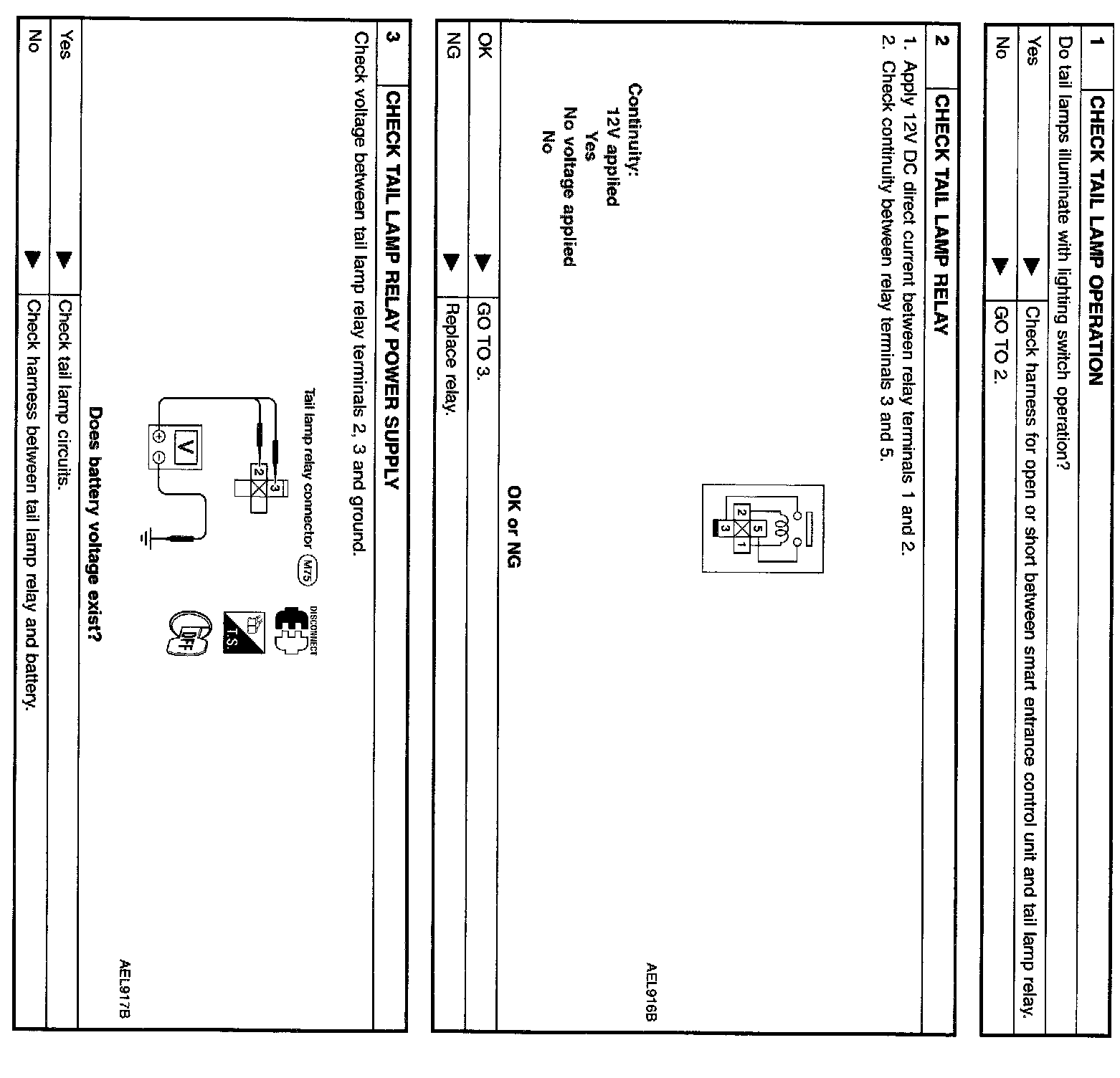

TAIL LAMP RELAY CHECK
