Start Signal

Consult-II Reference Value In Data Monitor Mode:






ECM Terminals And Reference Value:

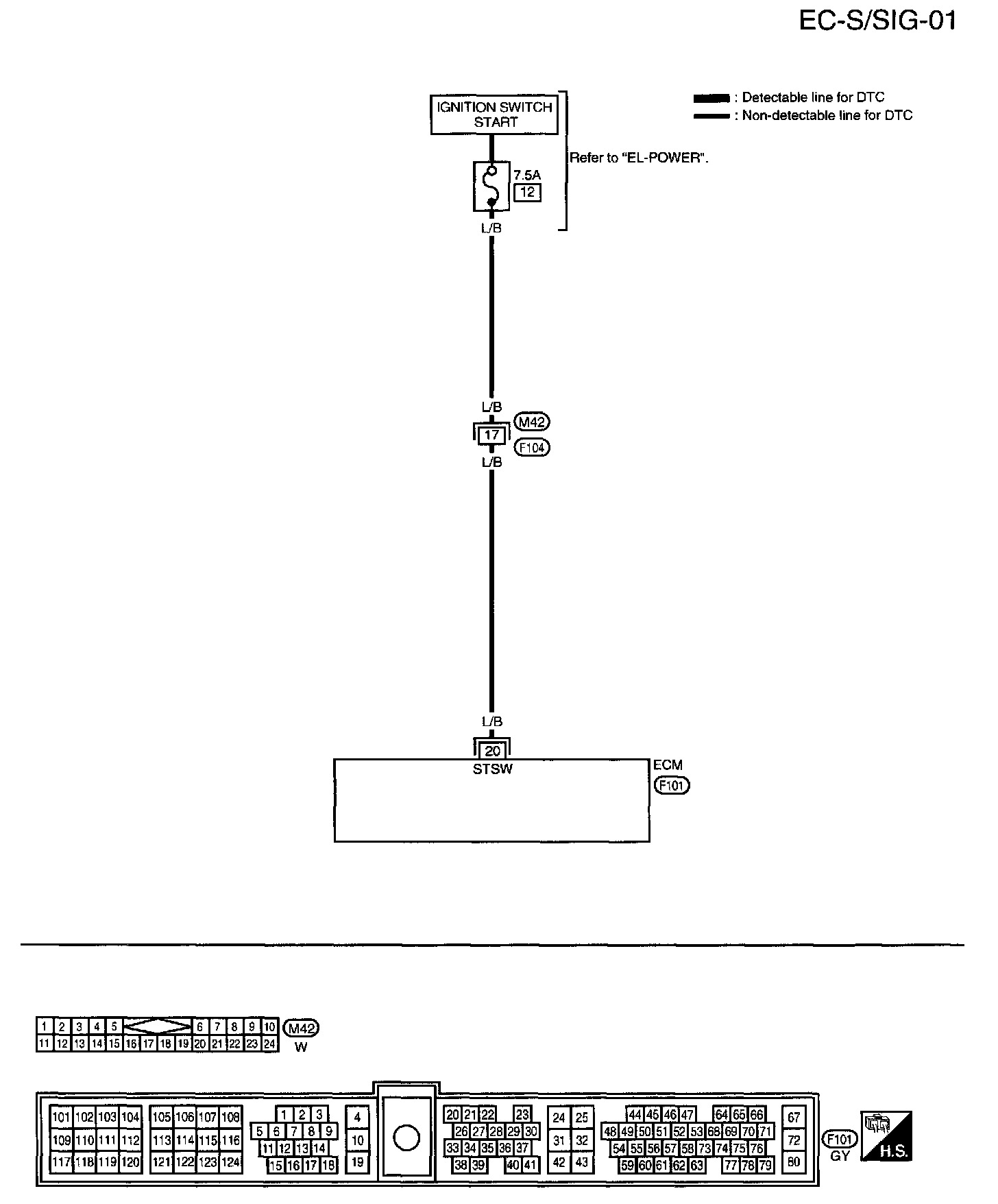

EC-S/SIG-01:




EC-S/SIG-01 Connector View:




WIRING DIAGRAM

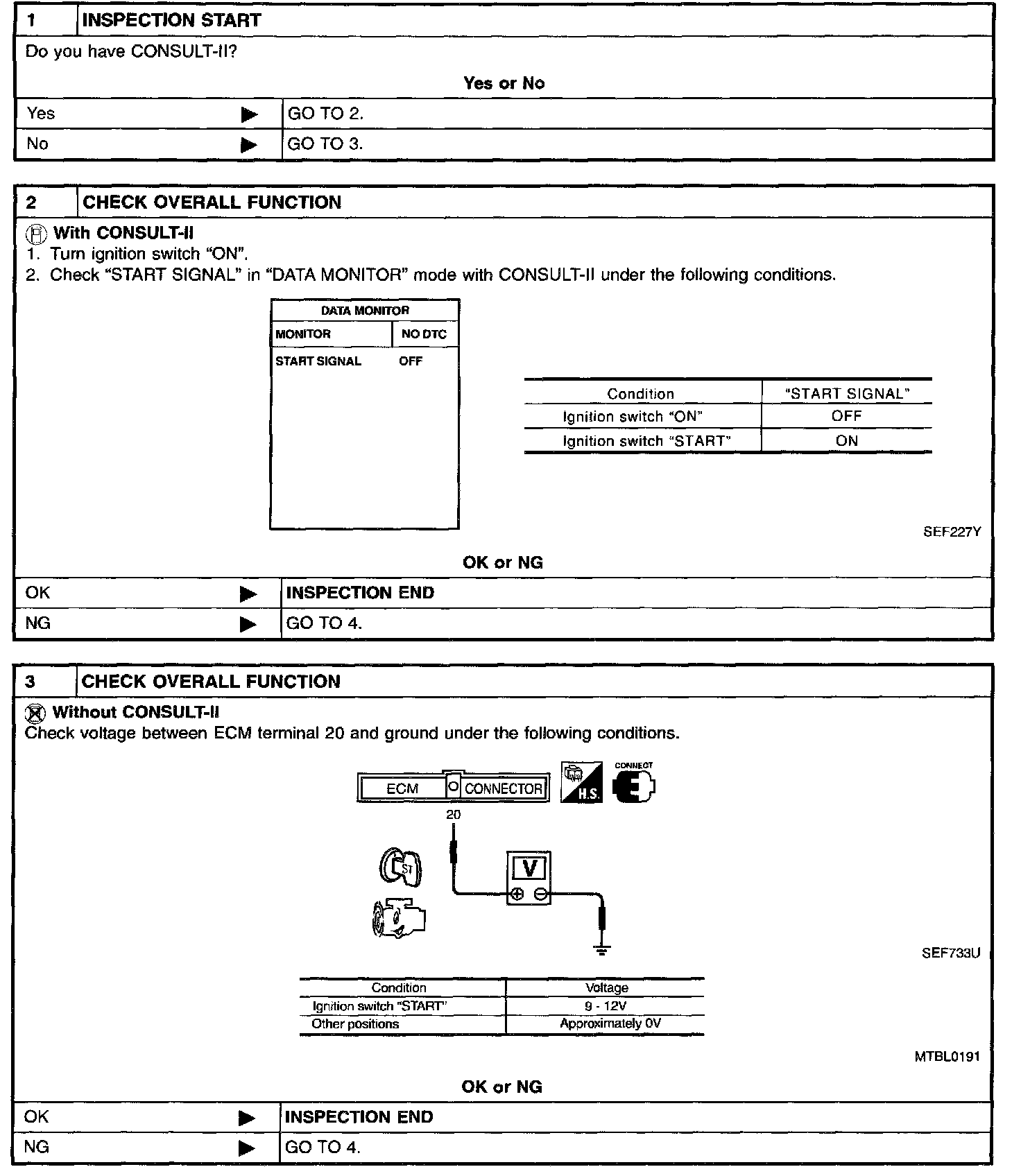

Steps 1 - 3:

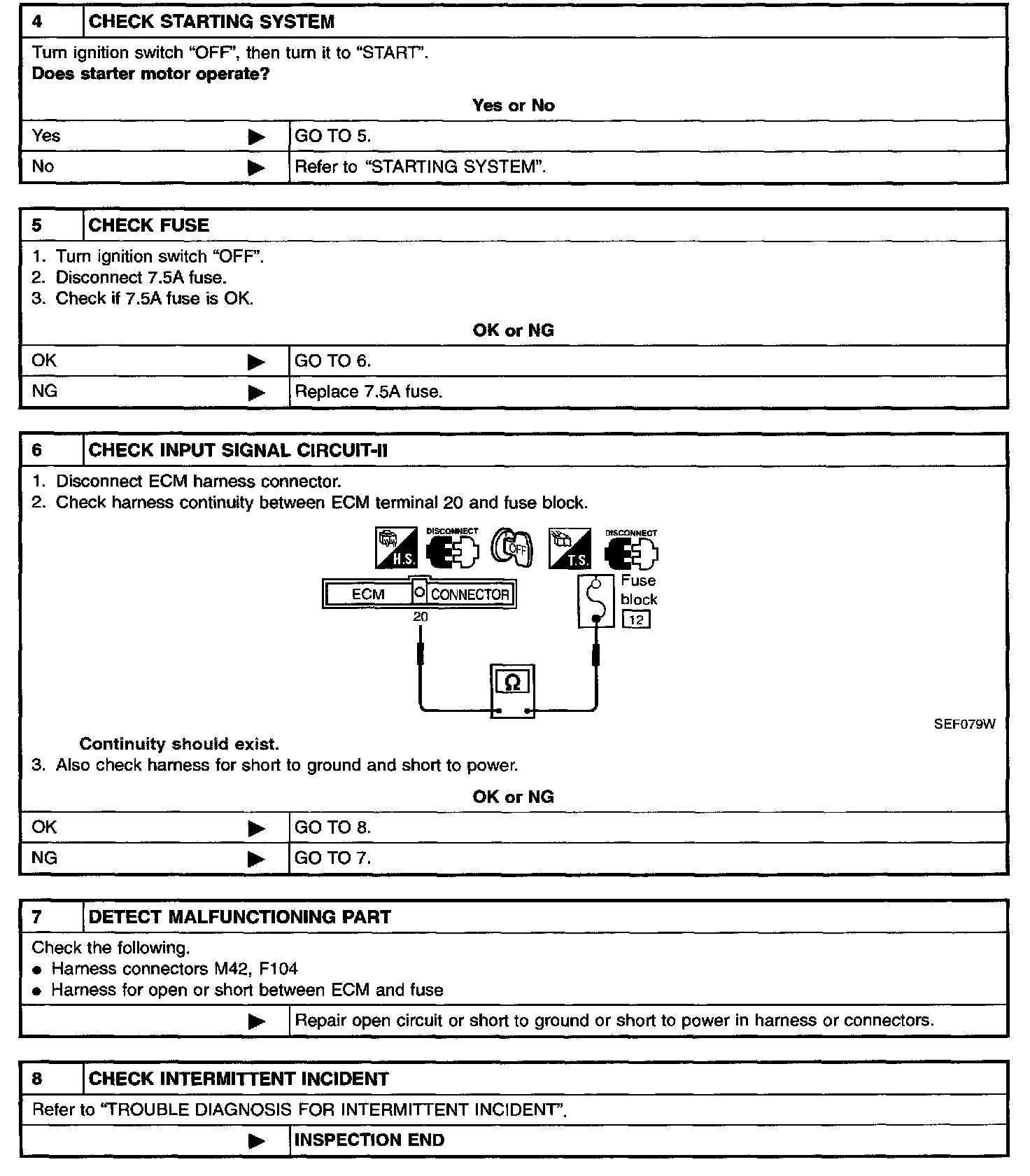

Steps 4 - 8:




Diagnostic Procedure
