Symptom Chart

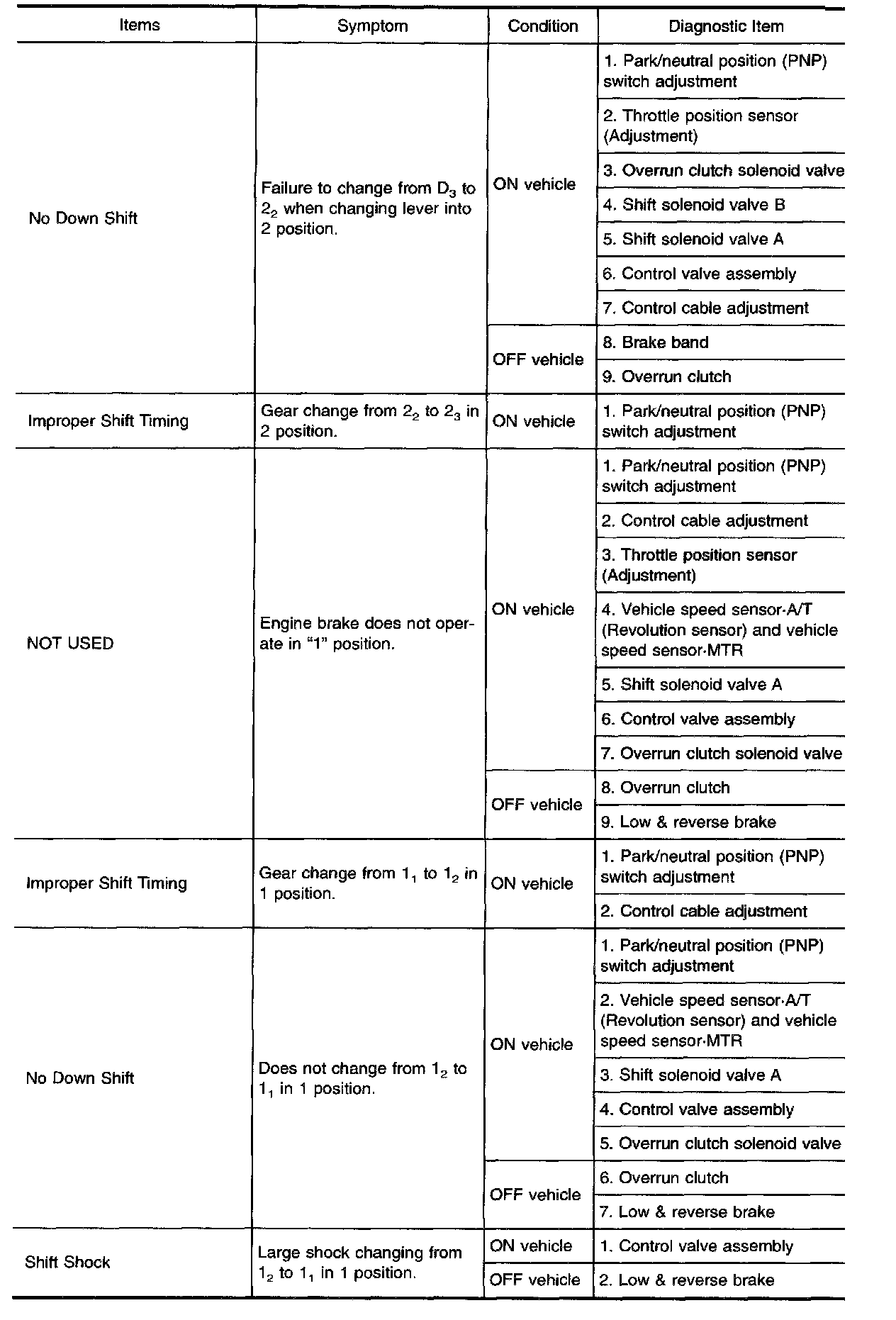

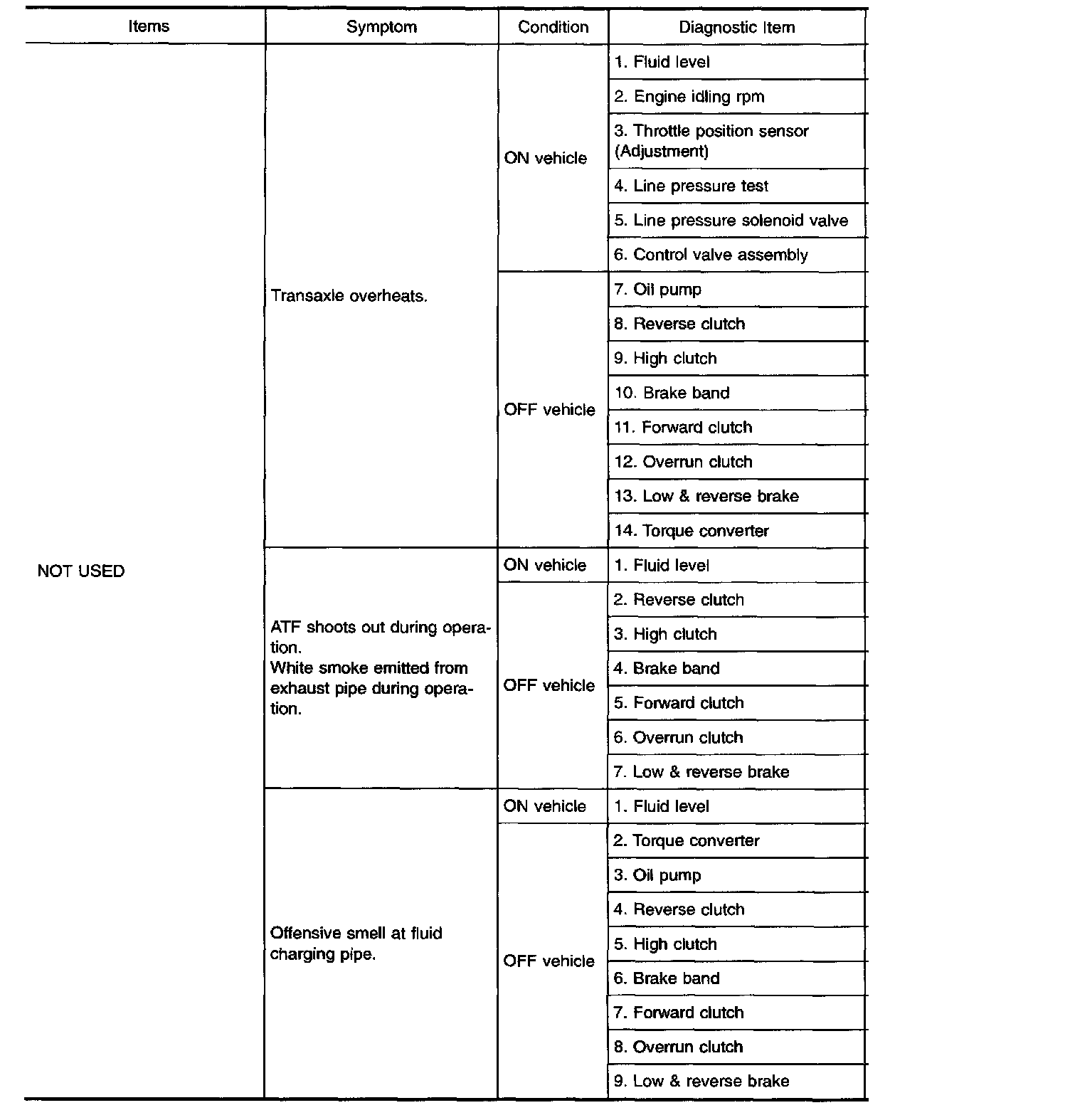

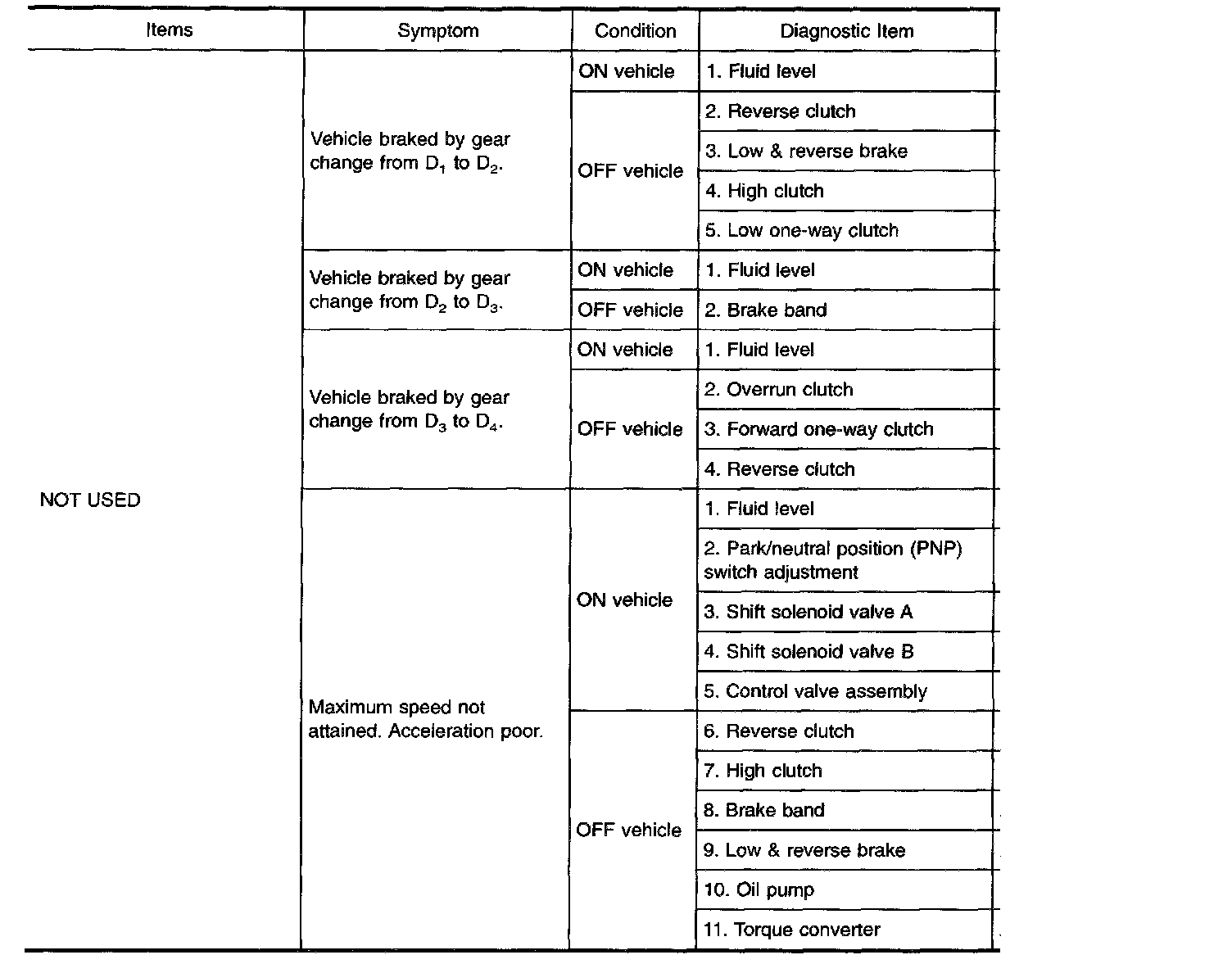

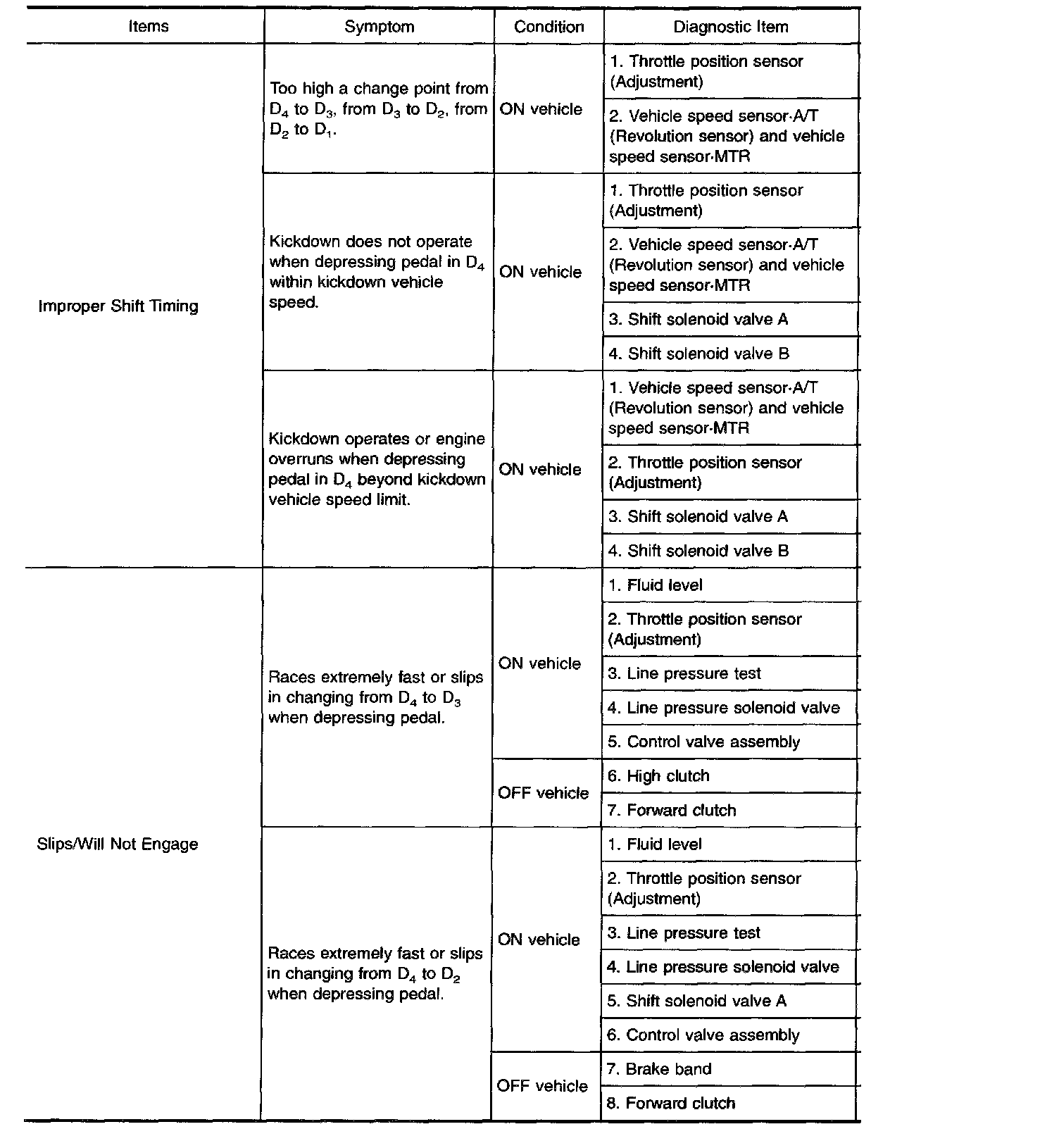

SYMPTOM CHART

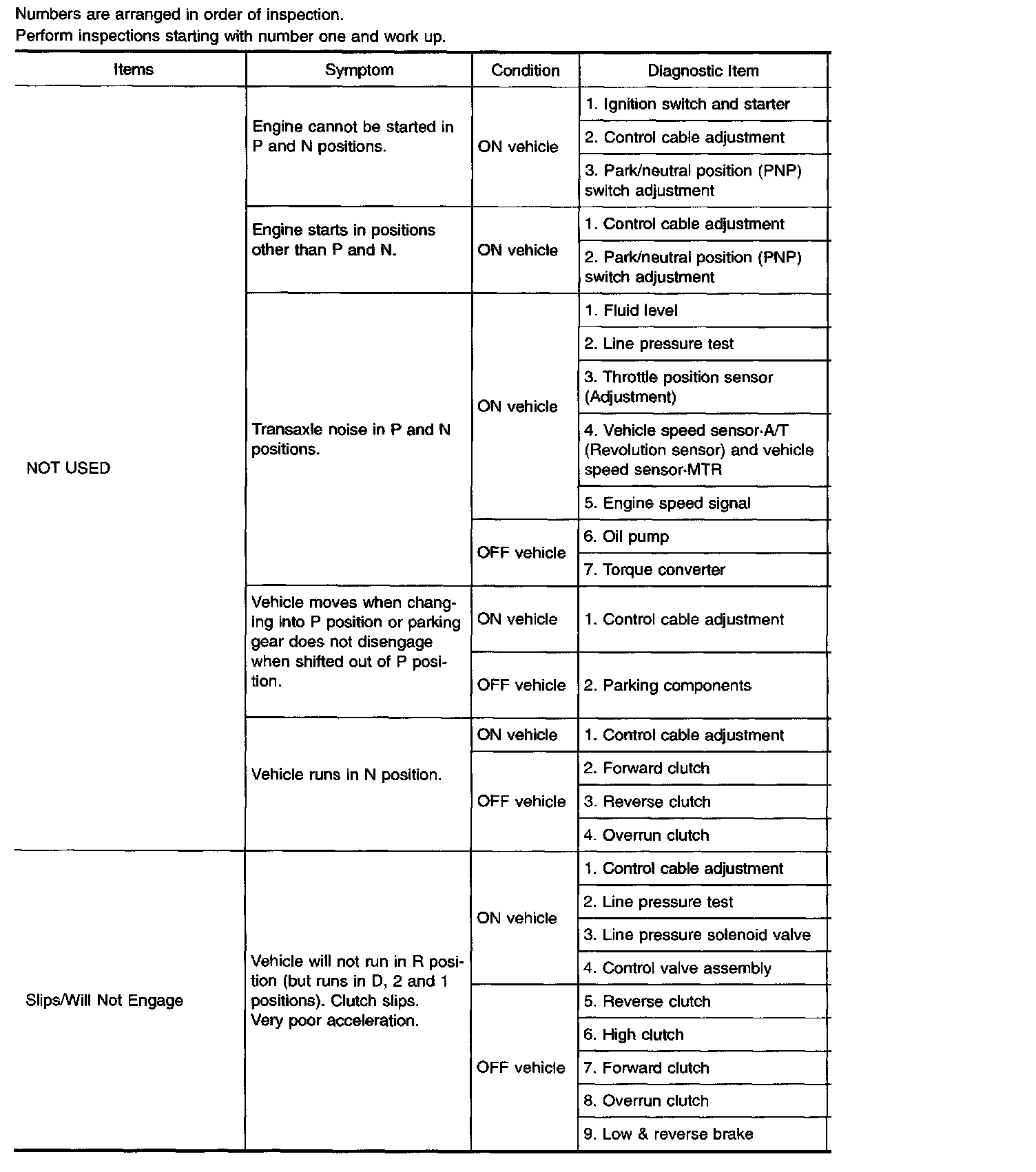

1 of 13

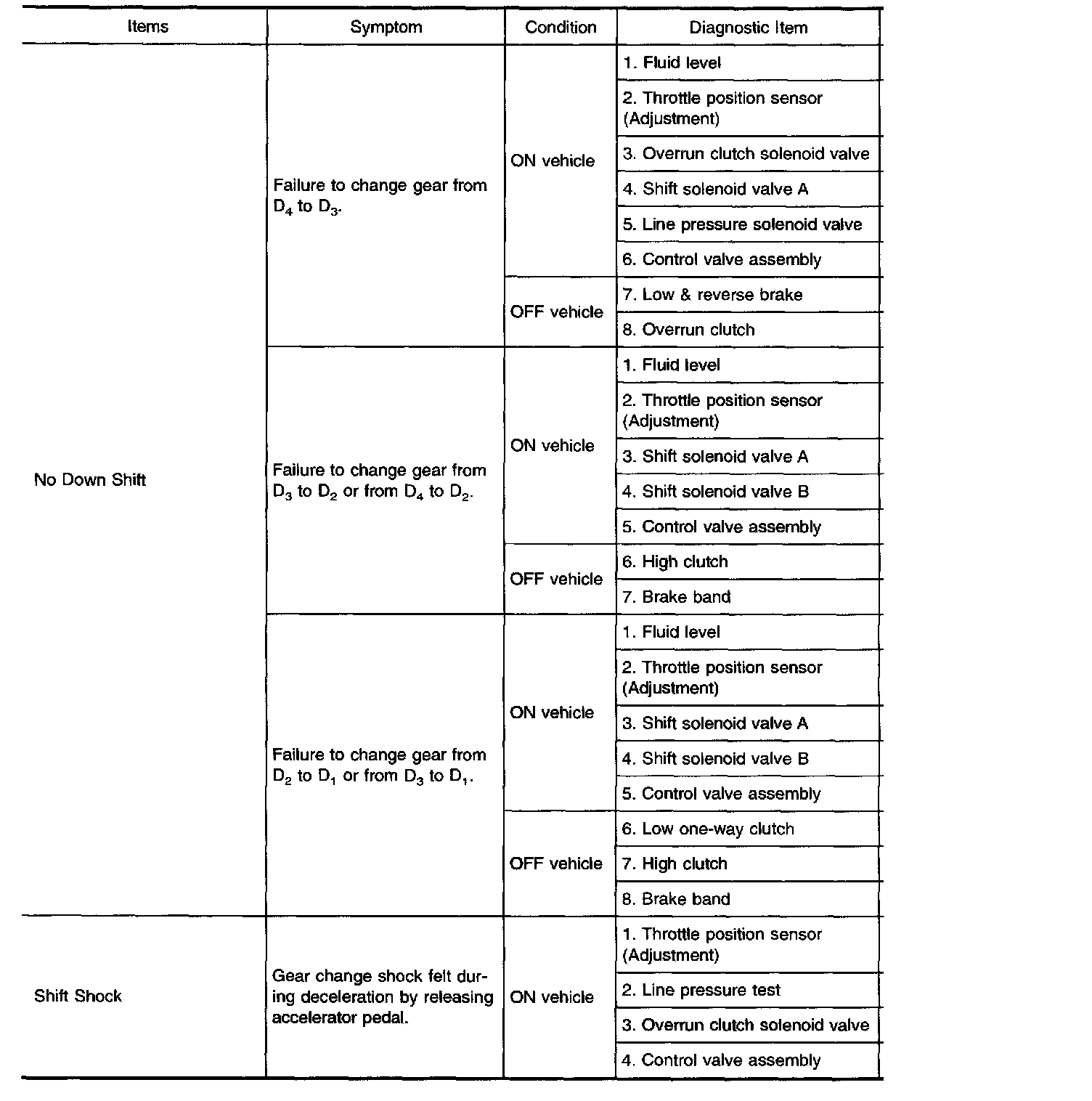

2 of 13

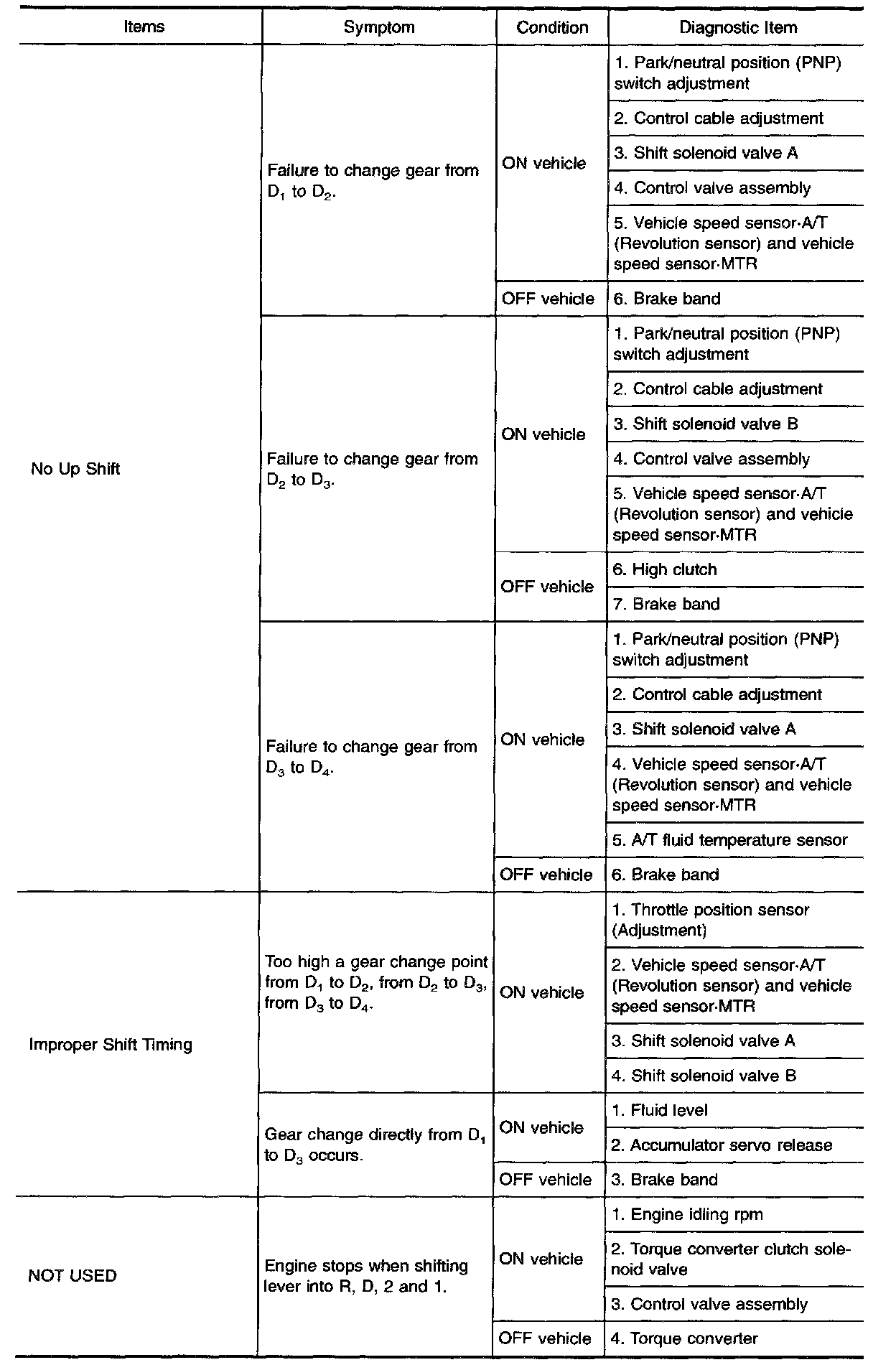

3 of 13

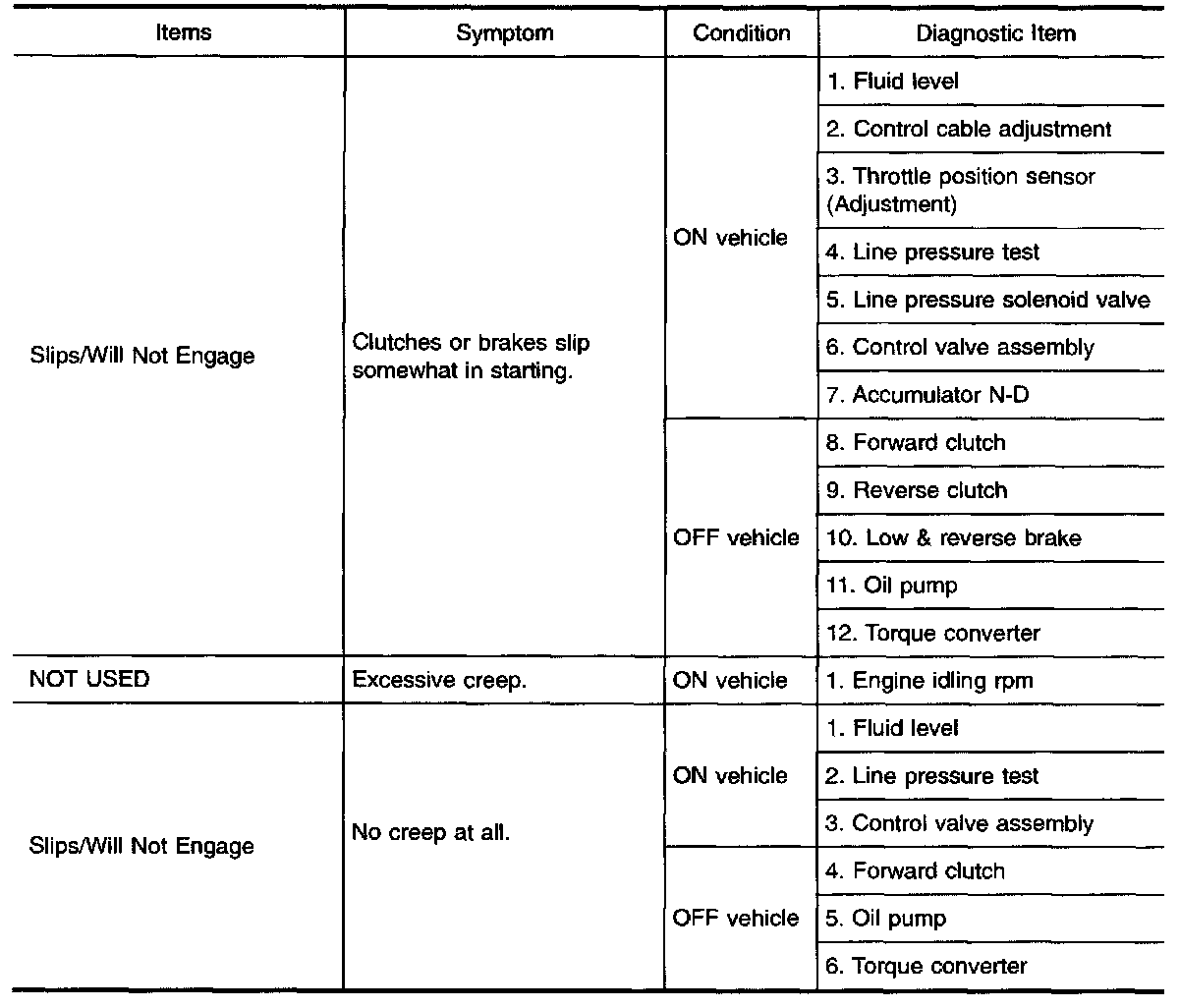

4 of 13

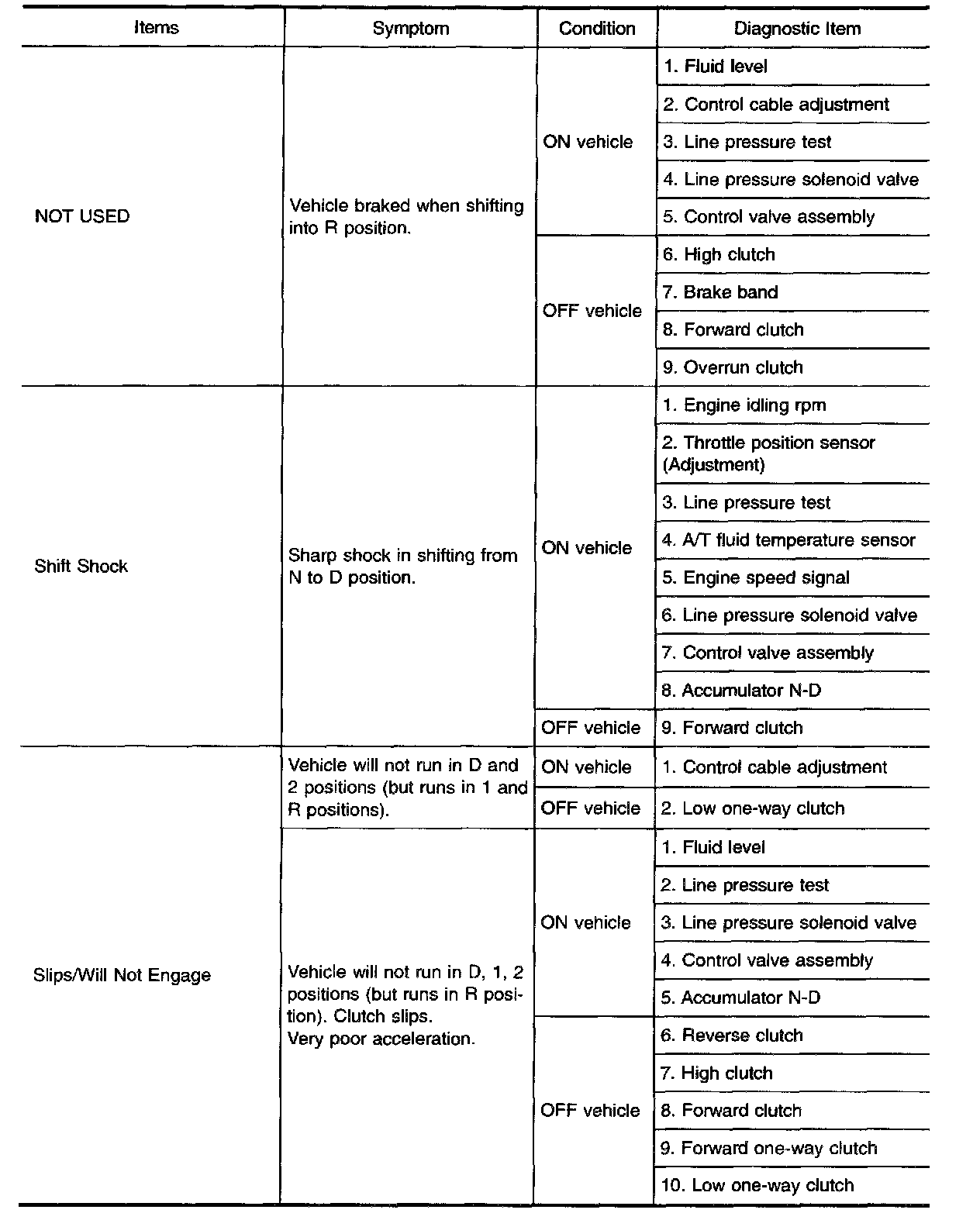

5 of 13

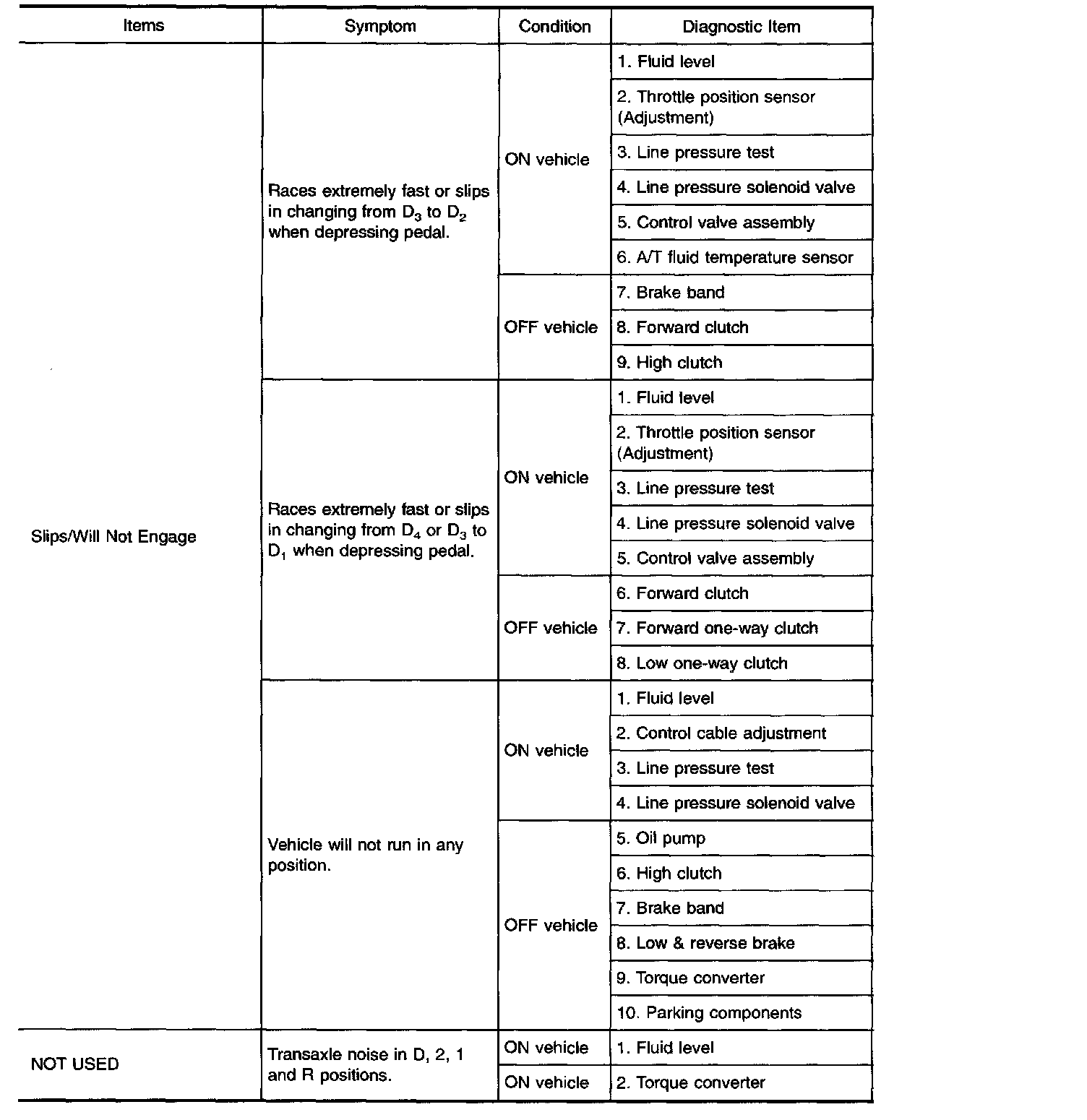

6 of 13

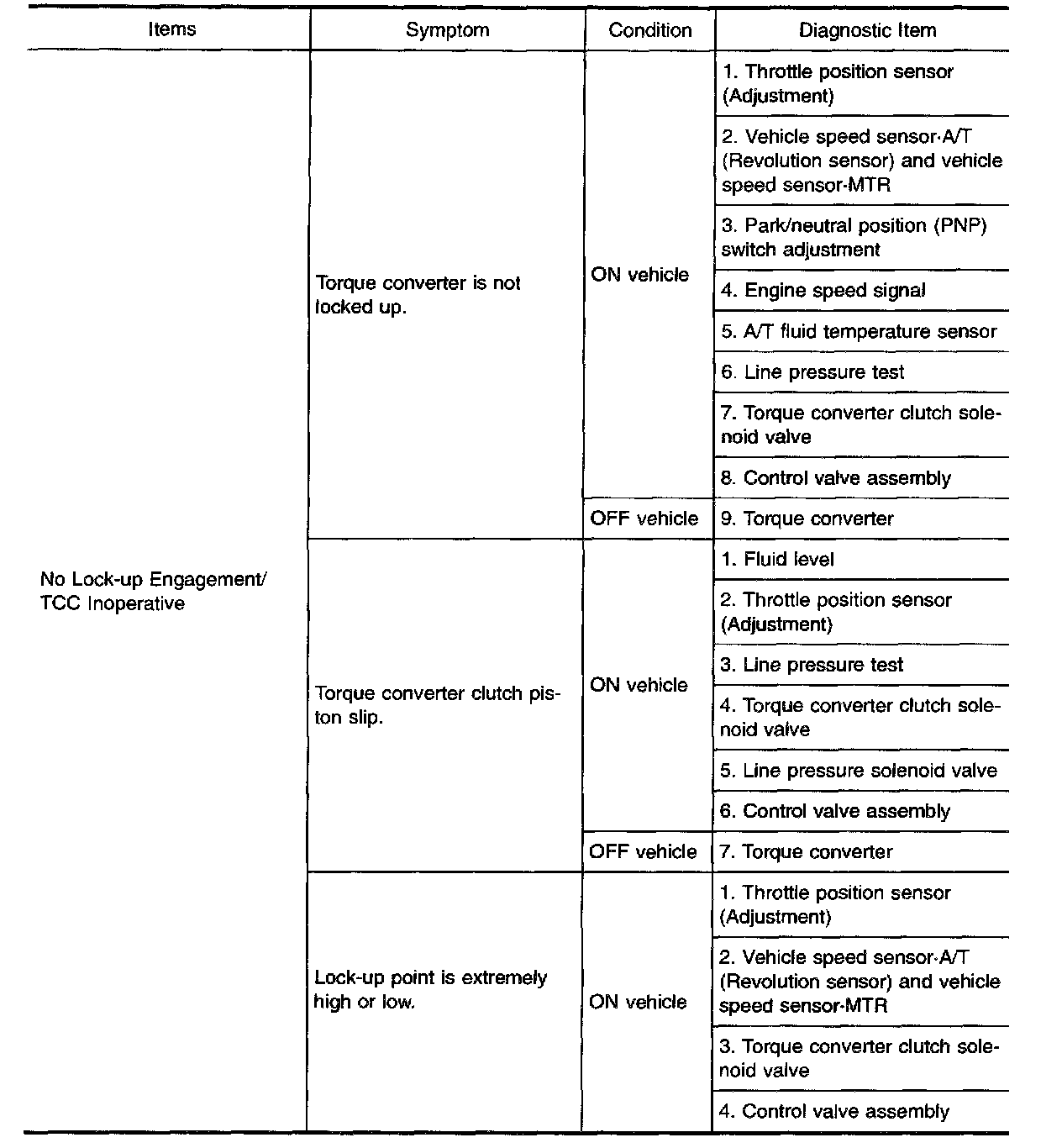

7 of 13

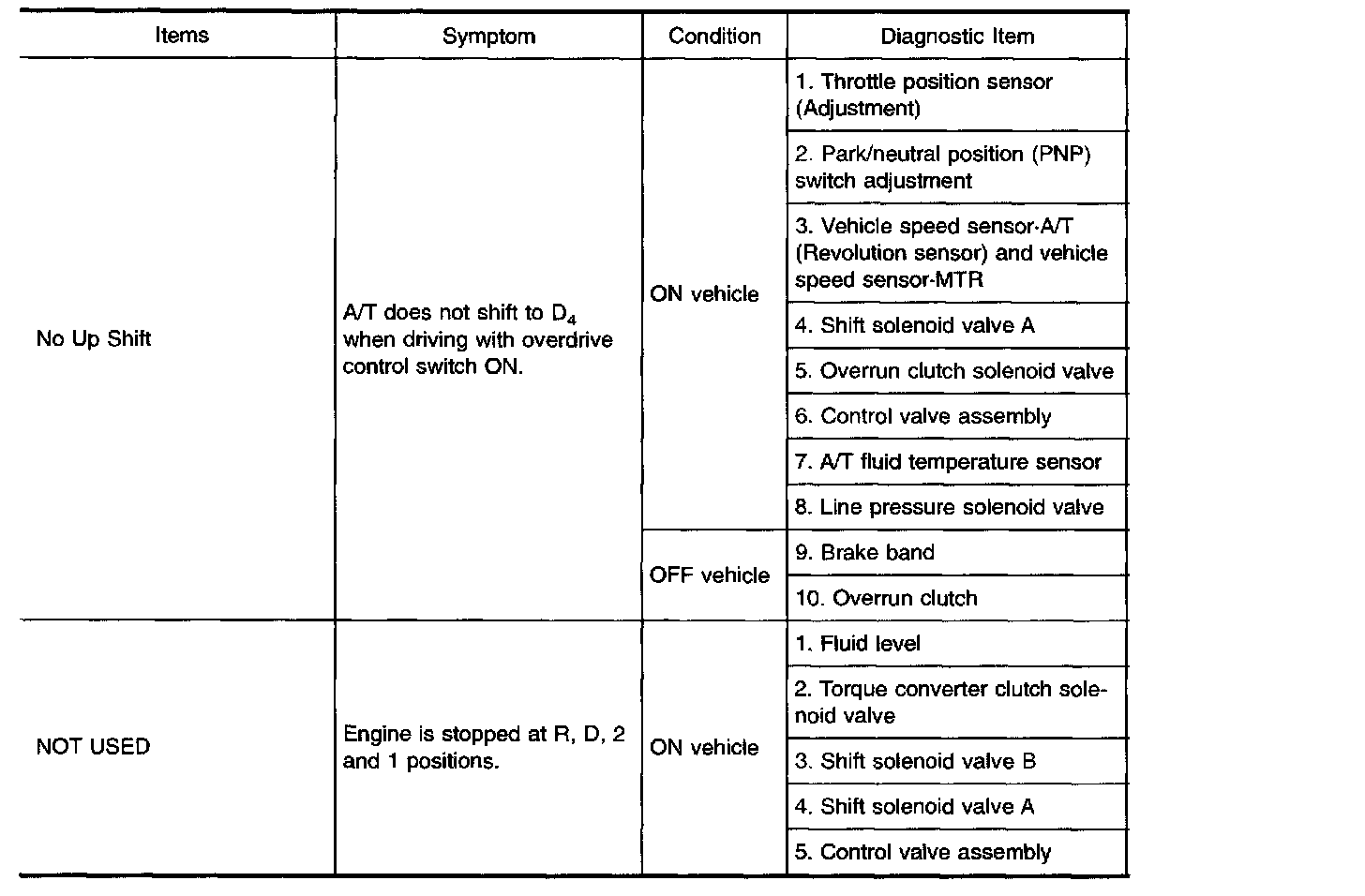

8 of 13





9 of 13





10 of 13





11 of 13





12 of 13





13 of 13

Numbers are arranged in the order of inspection.
Perform inspections starting with number one and work up.
