Outer Component Parts

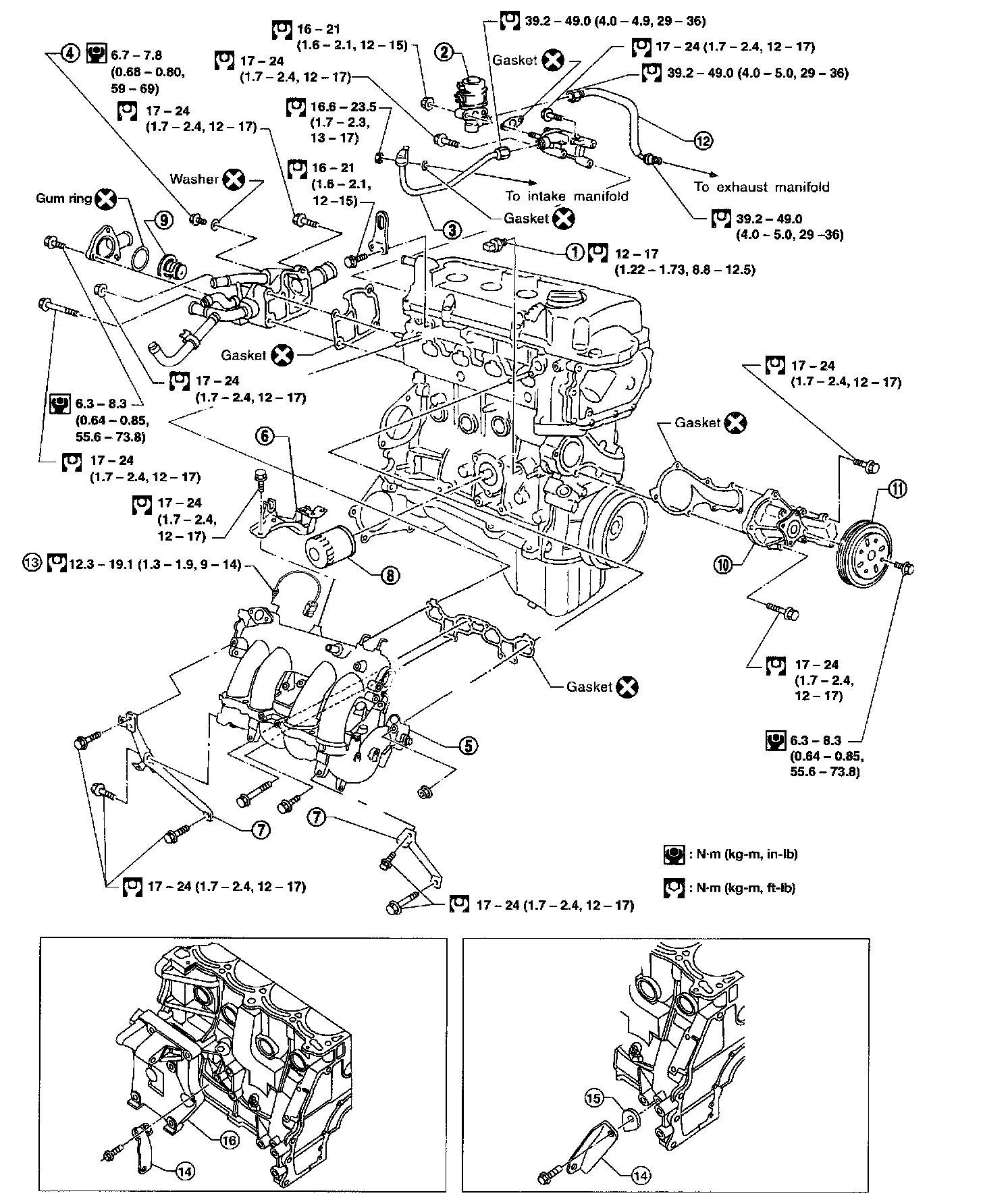

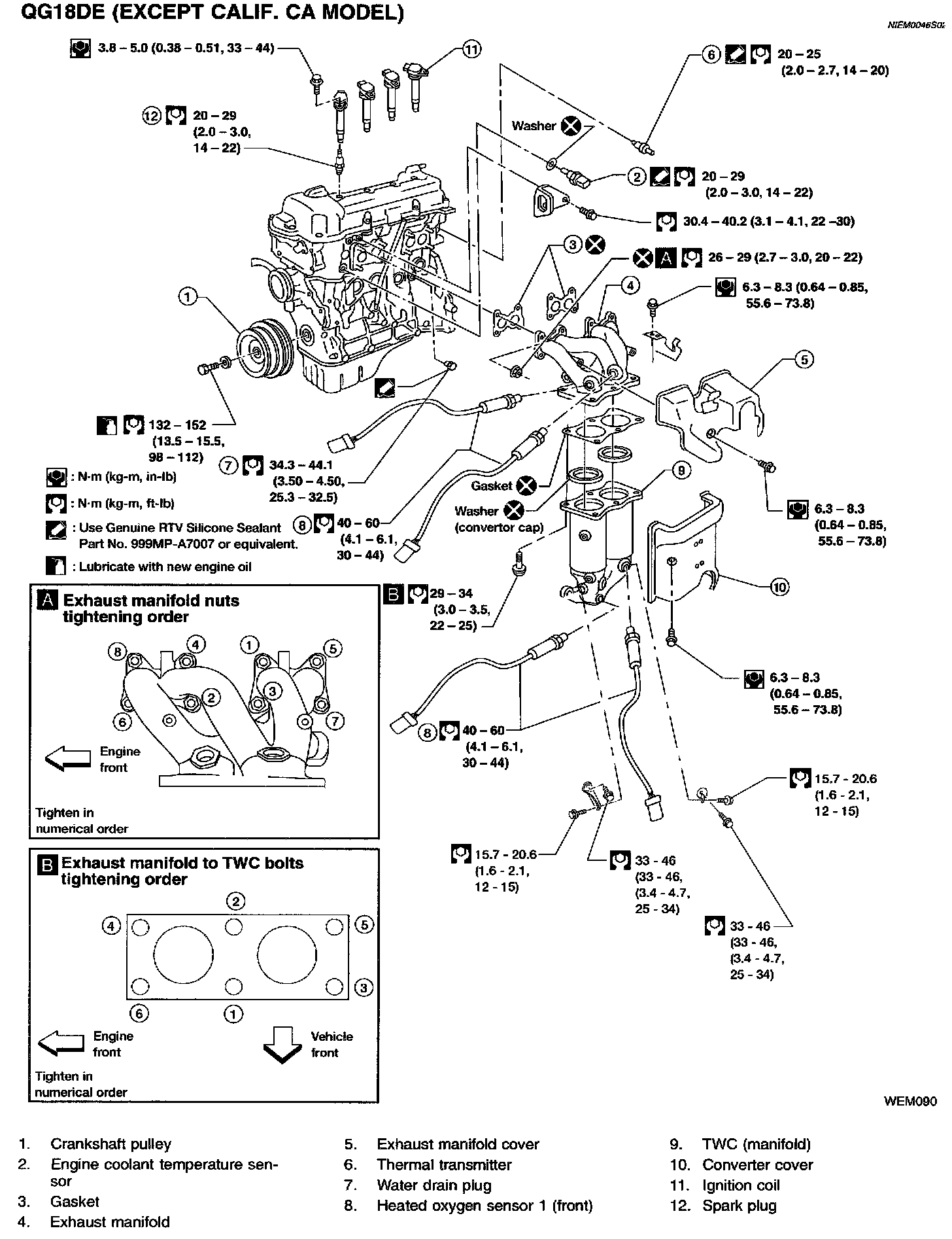

OUTER COMPONENT PARTS Part 1 of 3 Part 2 of 3 Part 3 of 3Except California CA Model:

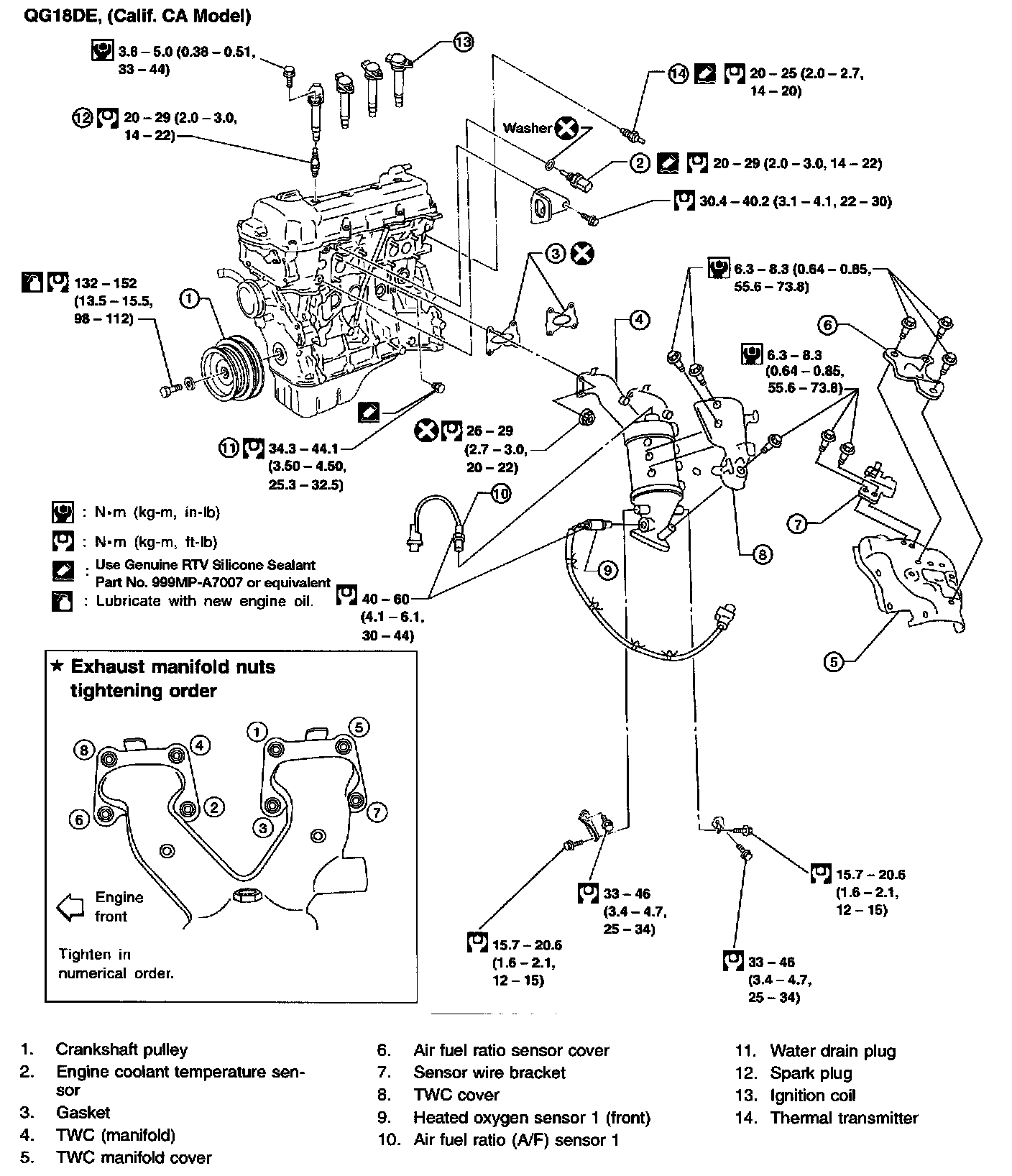

California CA Model:
CAUTION: If the California CA Model's TWC (manifold three way catalyst) or ADS-TWC (absorber pre-catalyst) replacement is necessary, always replace the TWC together with the ADS-TWC. Never replace these catalysts individually. The TWC and the ADS-TWC are only available together as a kit.
