Basic Service Procedure

PREPARATION
1. Make sure that the following parts are in good order.
- Battery
- Ignition system
- Engine oil and coolant levels
- Fuses
- ECM harness connector
- Vacuum hoses
- Air intake system
(Oil filler cap, oil level gauge, etc.)
- Fuel pressure
- Engine compression
- EGR valve operation
- Throttle valve
- EVAP system

2. On models equipped with air conditioner, checks should be carried out while the air conditioner is "OFF".
3. On models equipped with automatic transaxle, when checking idle speed, ignition timing and mixture ratio, checks should be carried out while shift lever is in "P" or "N" position.
4. When measuring "CO" percentage, insert probe more than 40 cm (15.7 in) into tail pipe.
5. Turn off headlamps, heater blower, rear window defogger.
6. Keep front wheels pointed straight ahead.
7. Make the check after the cooling fan has stopped.

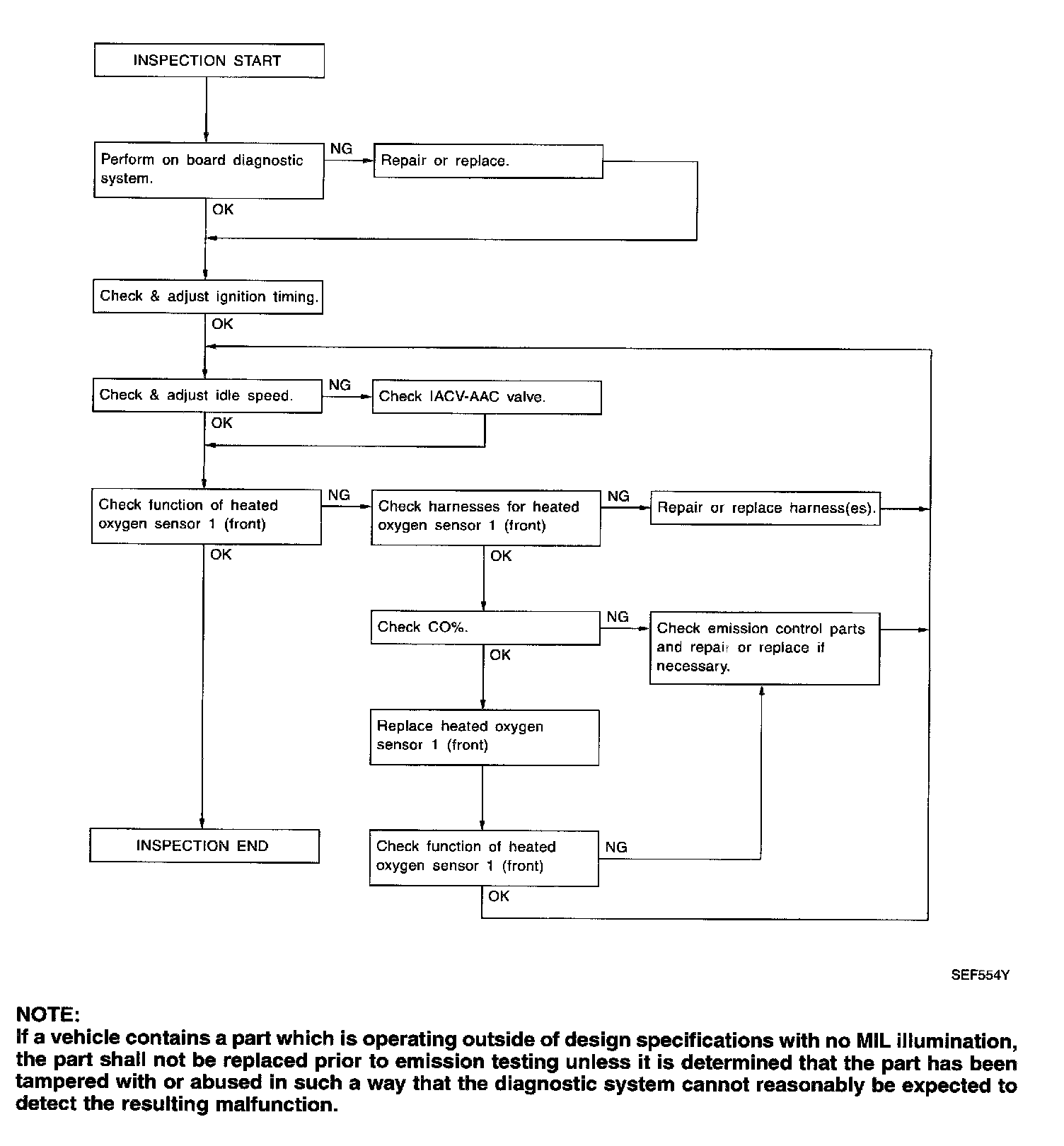

Overall Inspection Sequence:

INSPECTION PROCEDURE

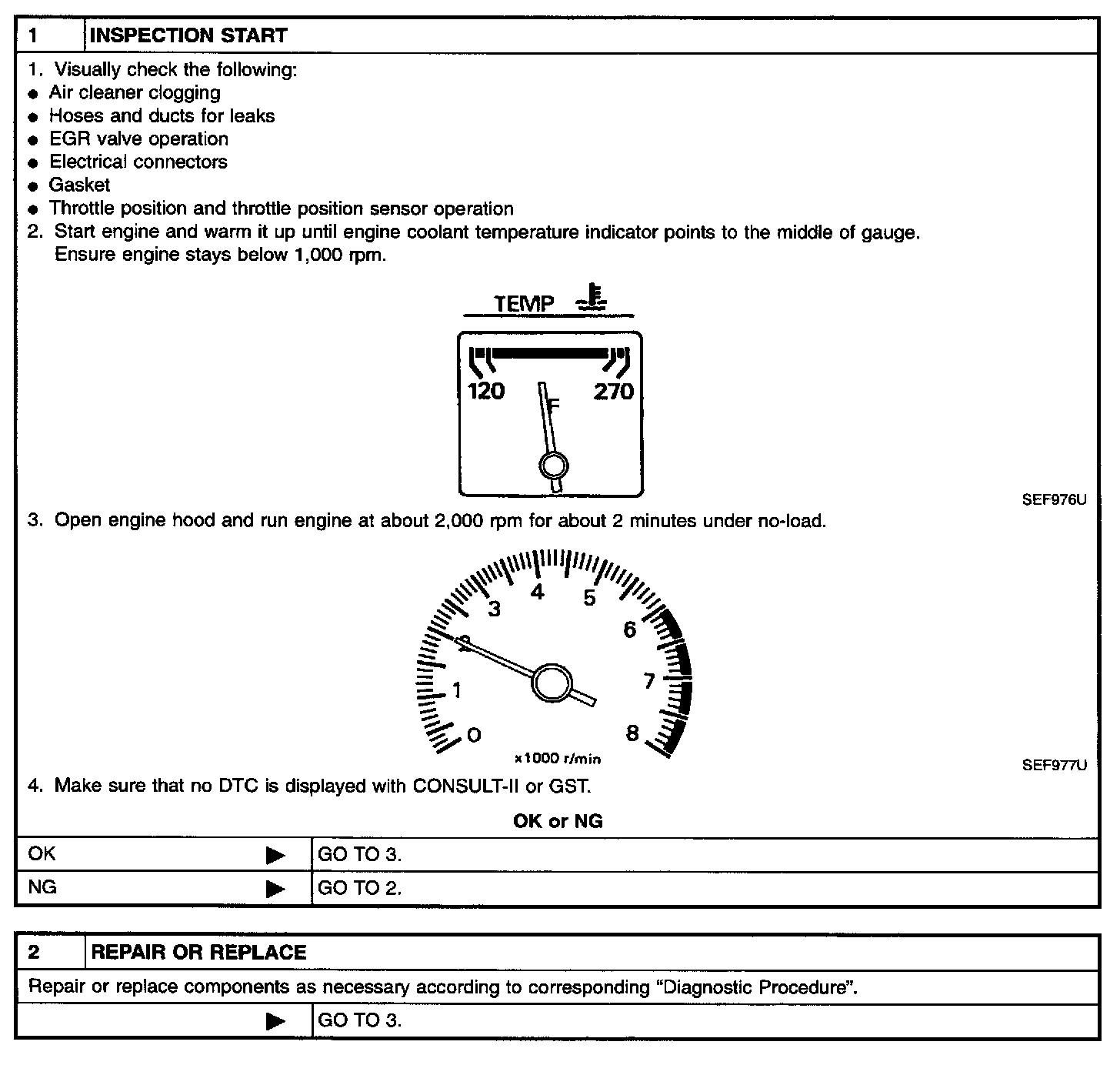

Steps 1 - 2:

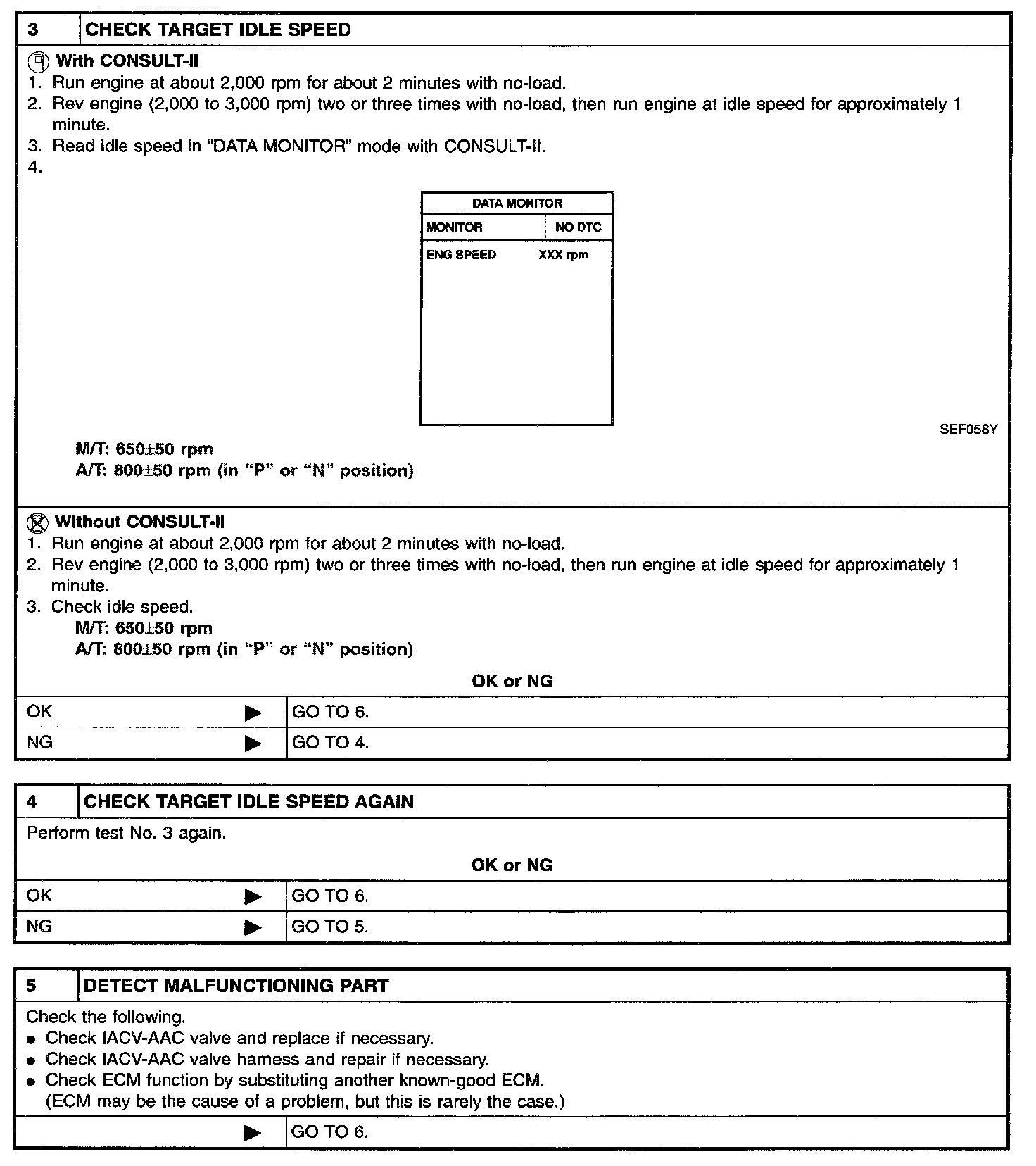

Steps 3 - 5:

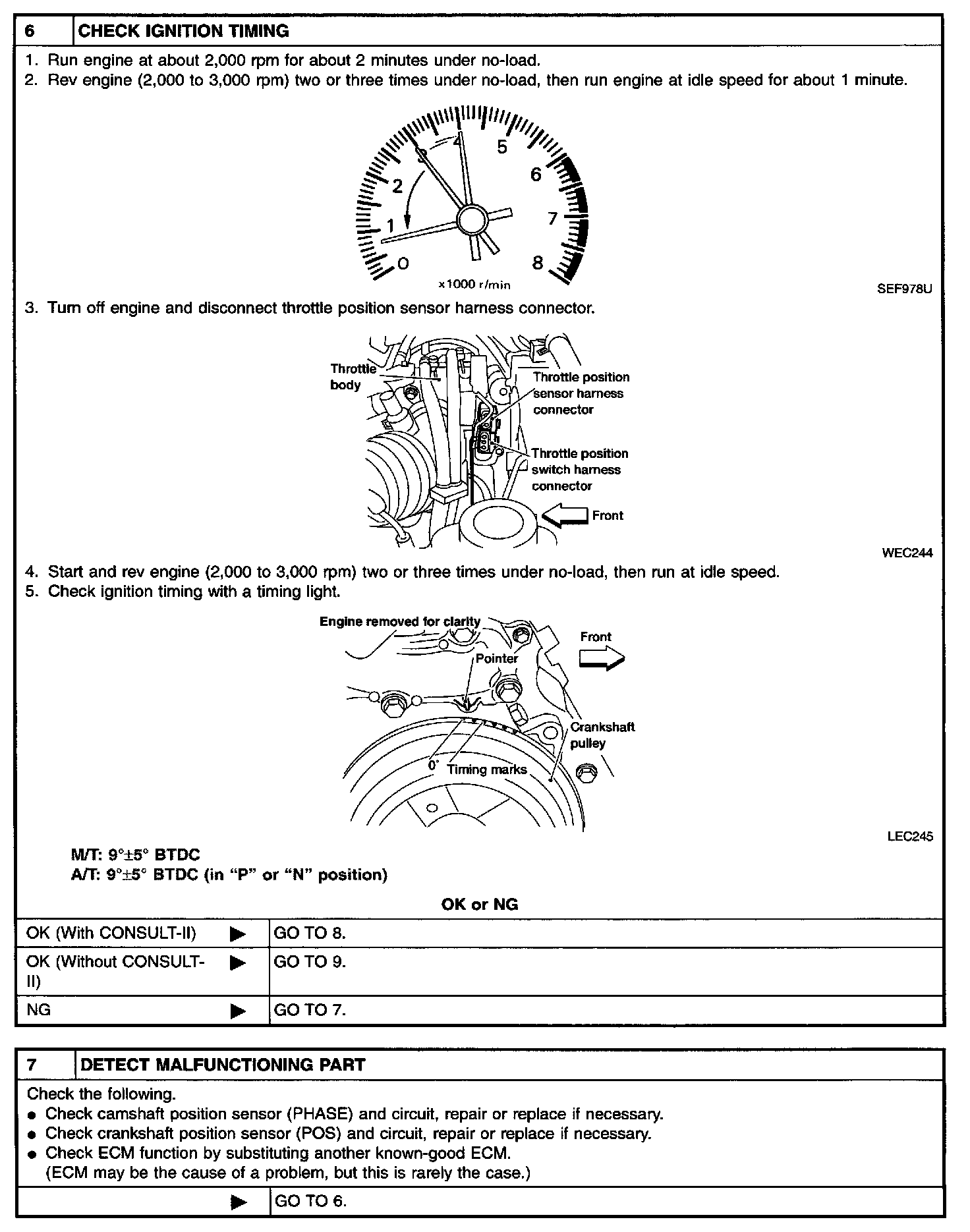

Steps 6 - 7:

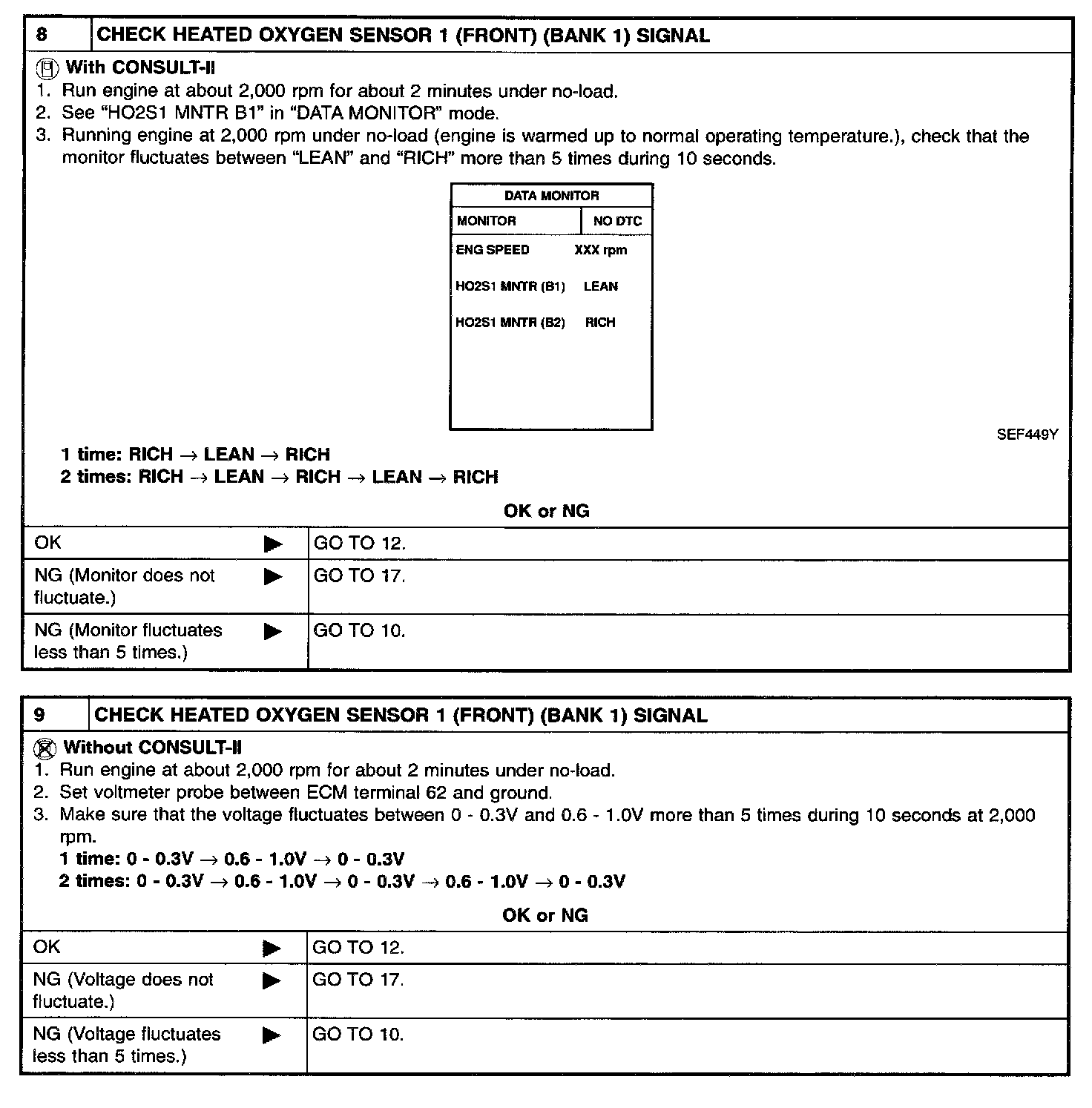

Steps 8 - 9:

Steps 10 - 11:

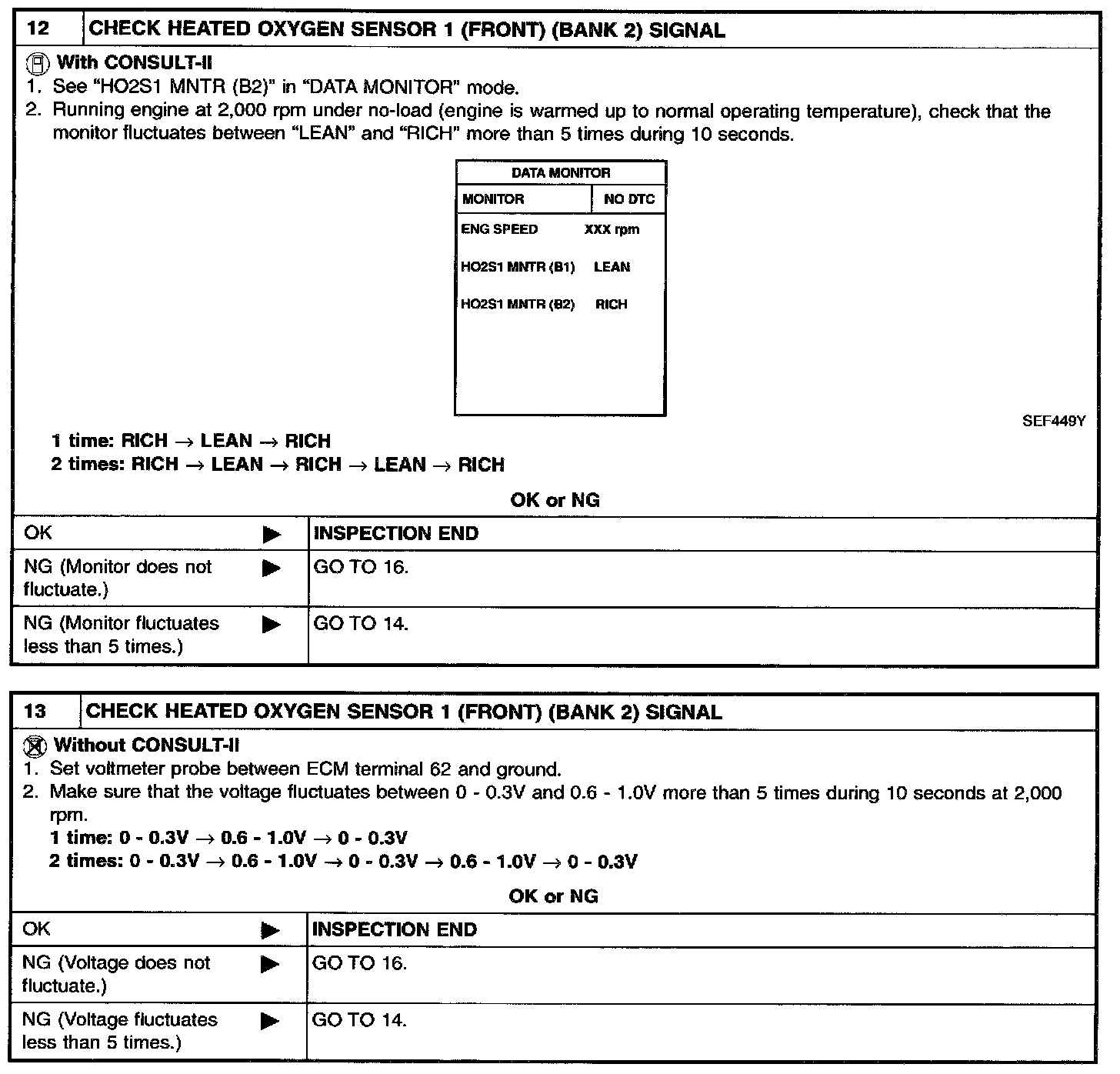

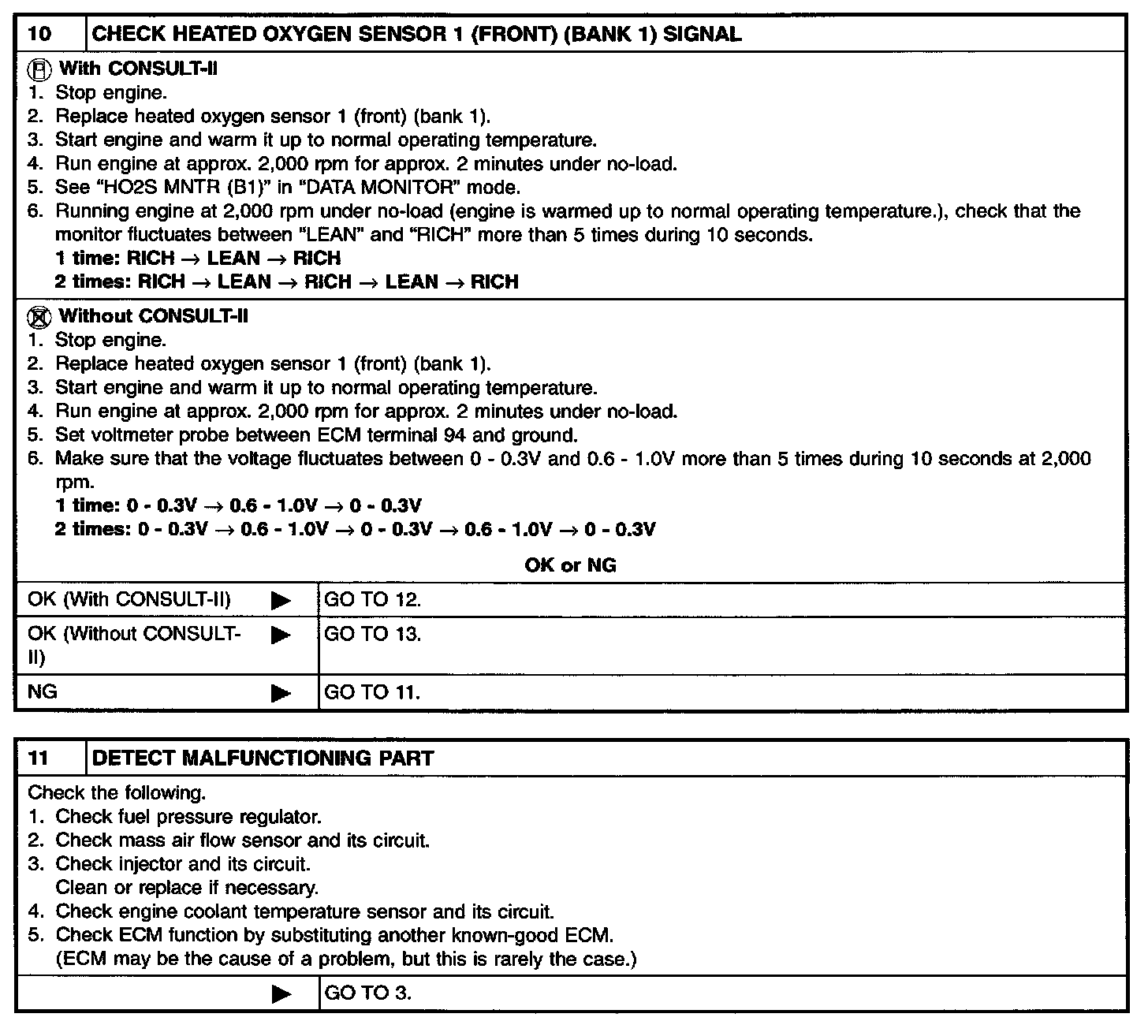

Steps 12 - 13:

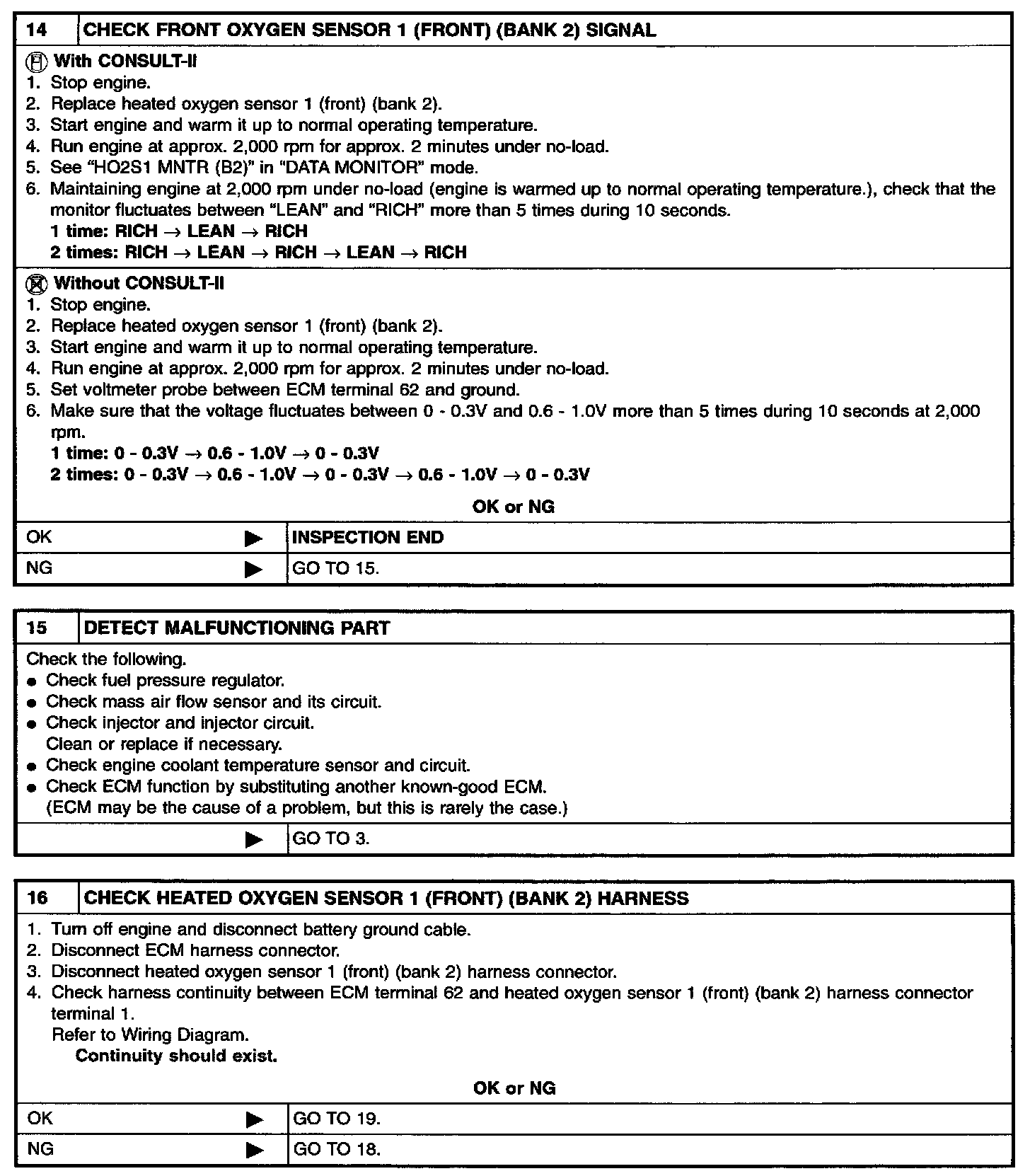

Steps 14 - 16:

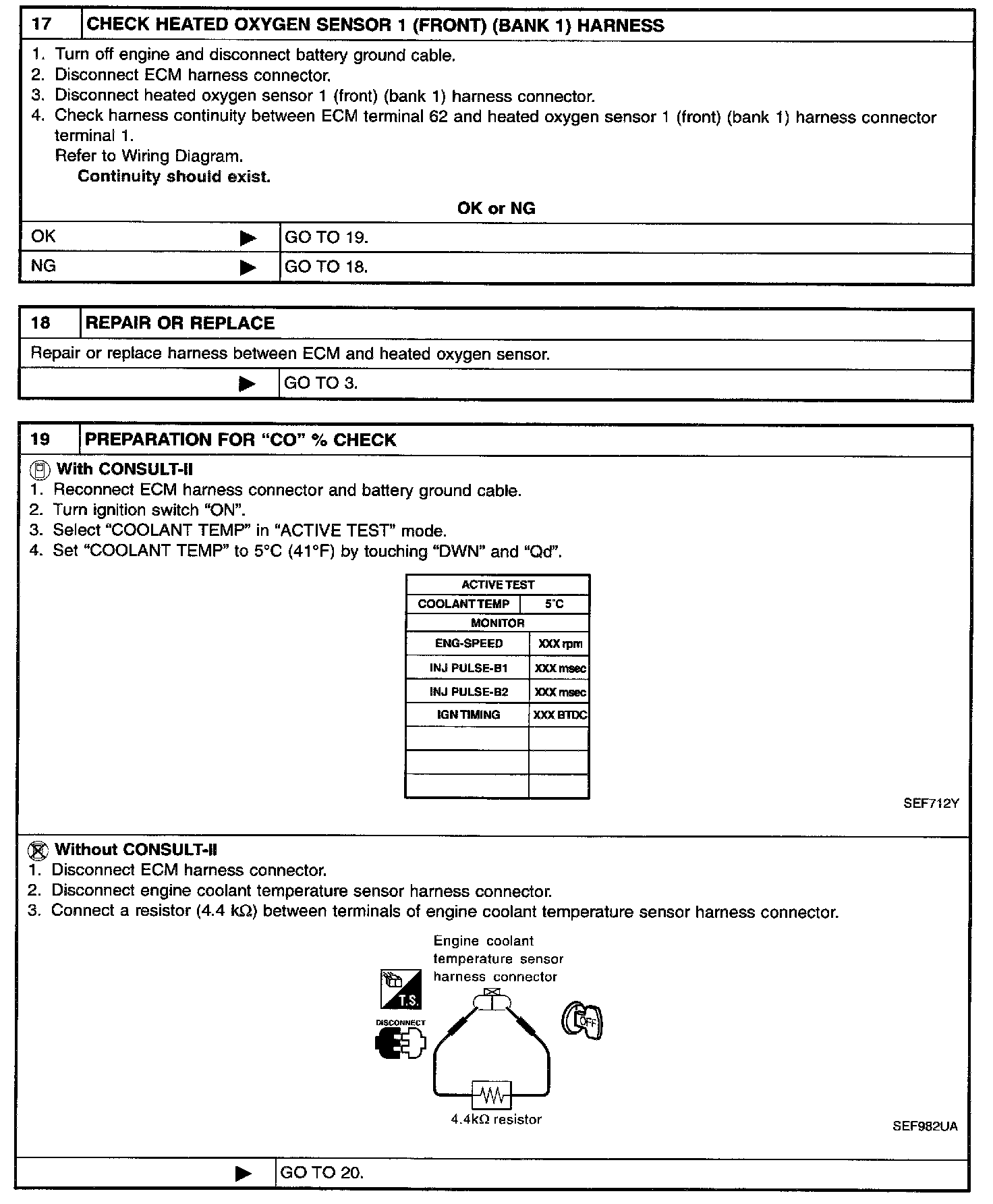

Steps 17 - 19:

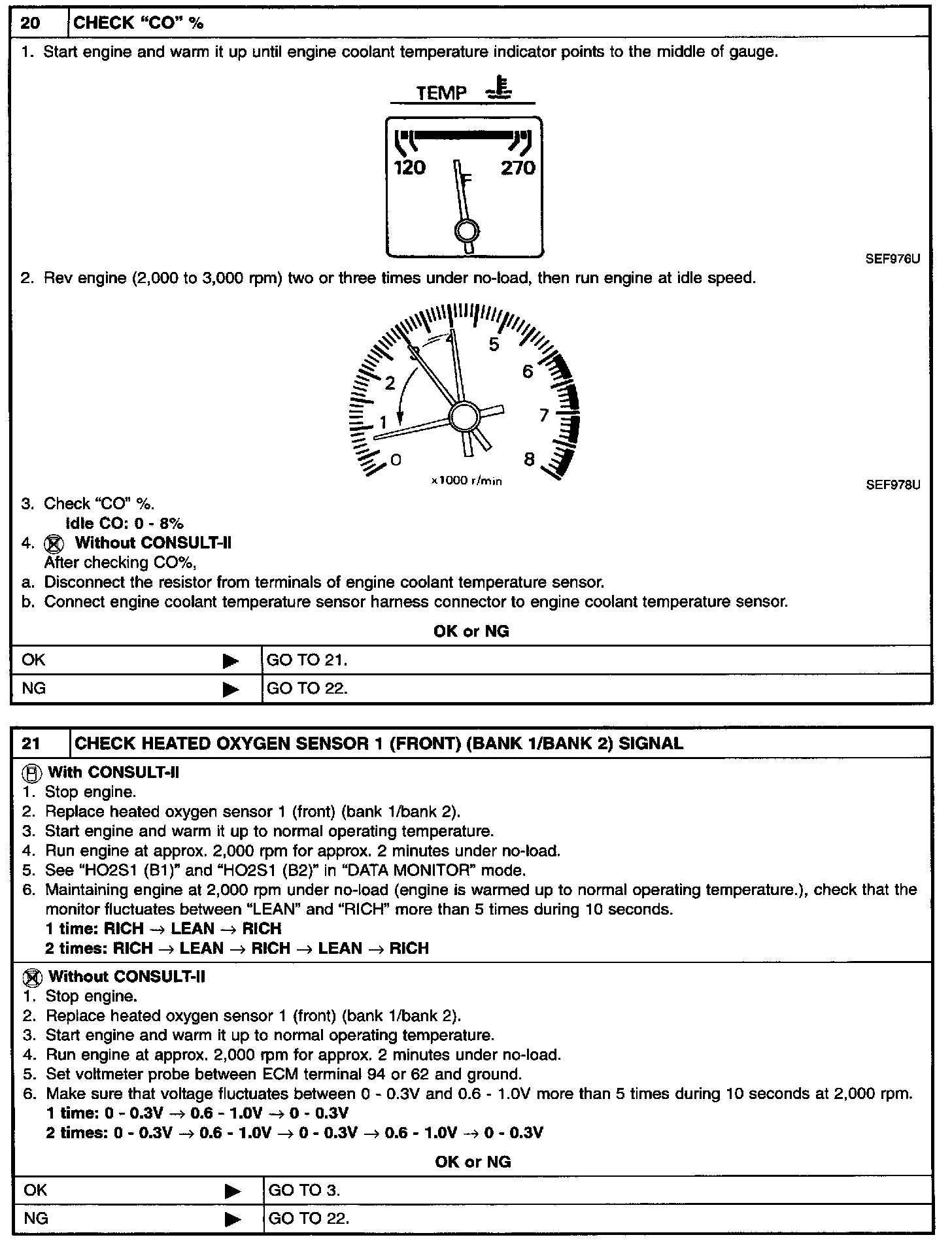

Steps 20 - 21:

Step 22:
