Shift Mechanism

Shift Mechanism

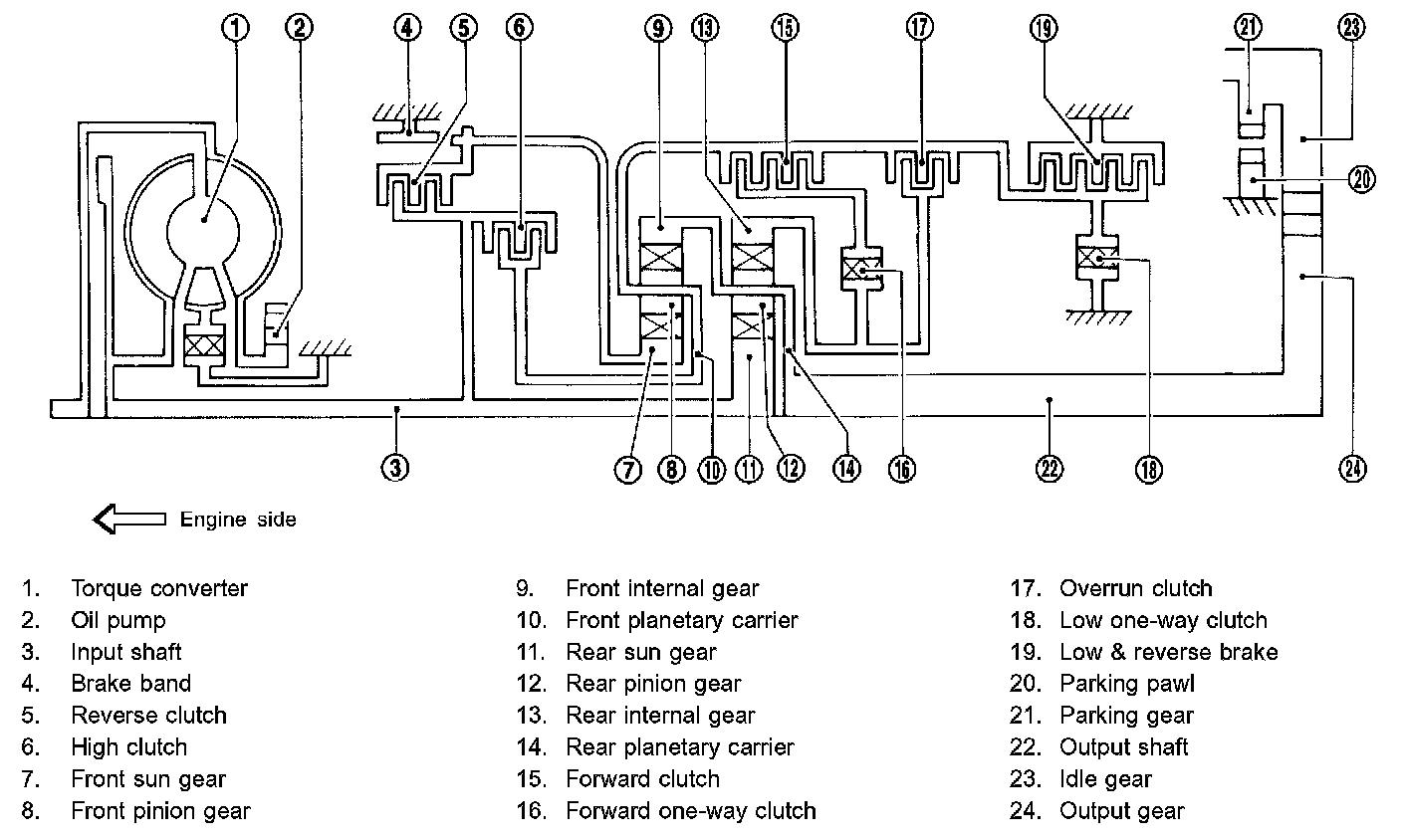

CONSTRUCTION





FUNCTION OF CLUTCH AND BRAKE

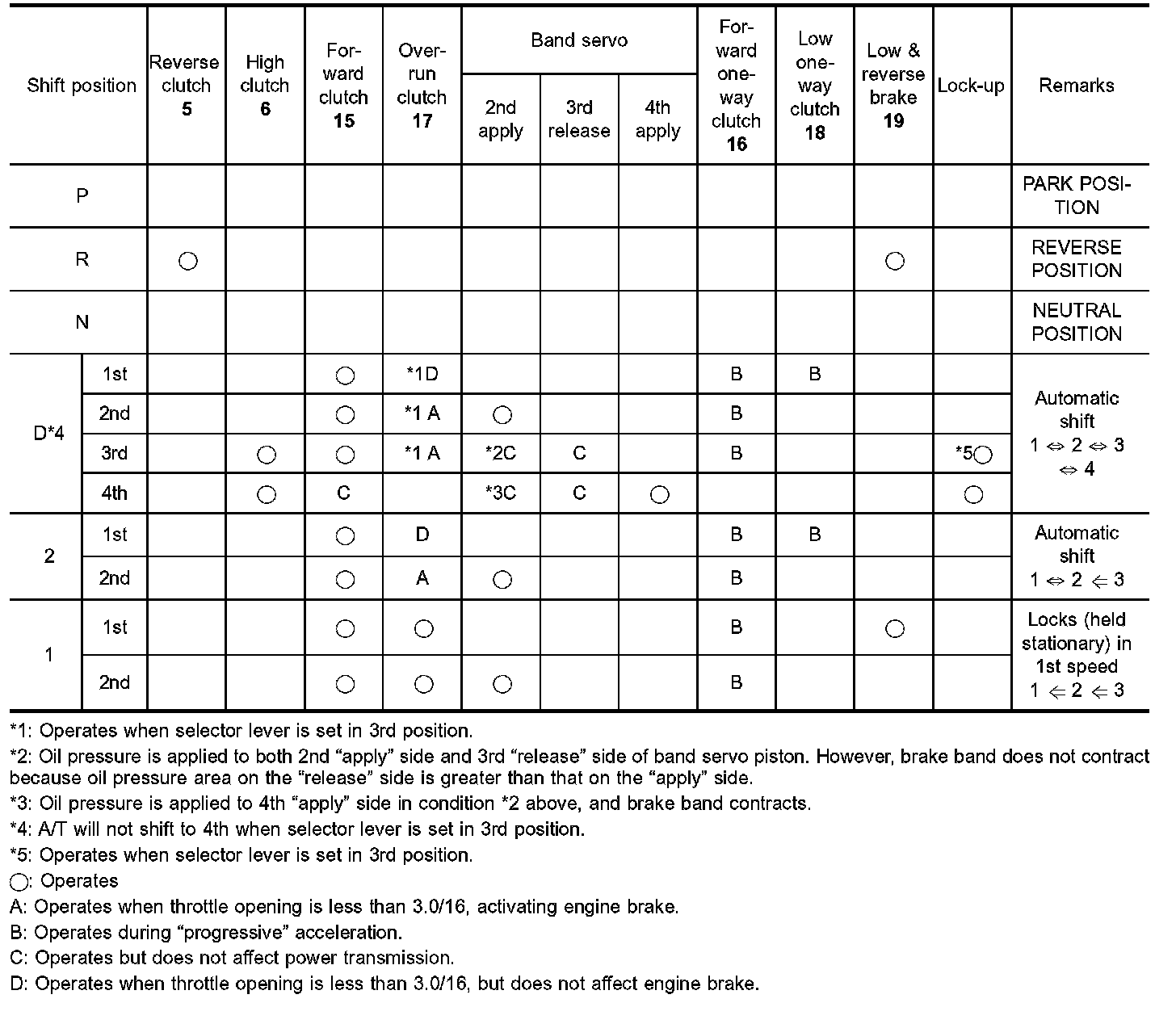

CLUTCH AND BAND CHART
*1: Operates when selector lever is set in 3rd position.
*2: Oil pressure is applied to both 2nd "apply" side and 3rd "release" side of band servo piston. However, brake band does not contract because oil pressure area on the "release" side is greater than that on the "apply" side.
*3: Oil pressure is applied to 4th "apply" side in condition *2 above, and brake band contracts.
*4: A/T will not shift to 4th when selector lever is set in 3rd position.
*5: Operates when selector lever is set in 3rd position.
O: Operates
A: Operates when throttle opening is less than 3.0/16, activating engine brake.
B: Operates during "progressive" acceleration.
C: Operates but does not affect power transmission.
D: Operates when throttle opening is less than 3.0/16, but does not affect engine brake.

POWER TRANSMISSION





P and N Positions

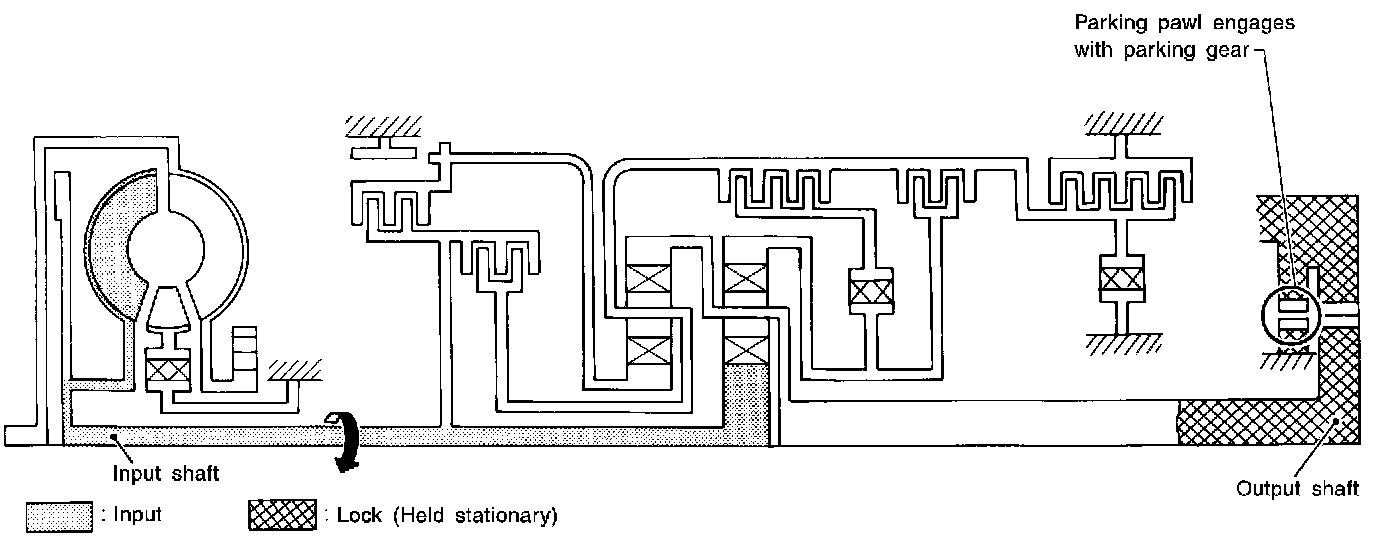

- P position
Similar to the N position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the power train is locked.
- N position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.

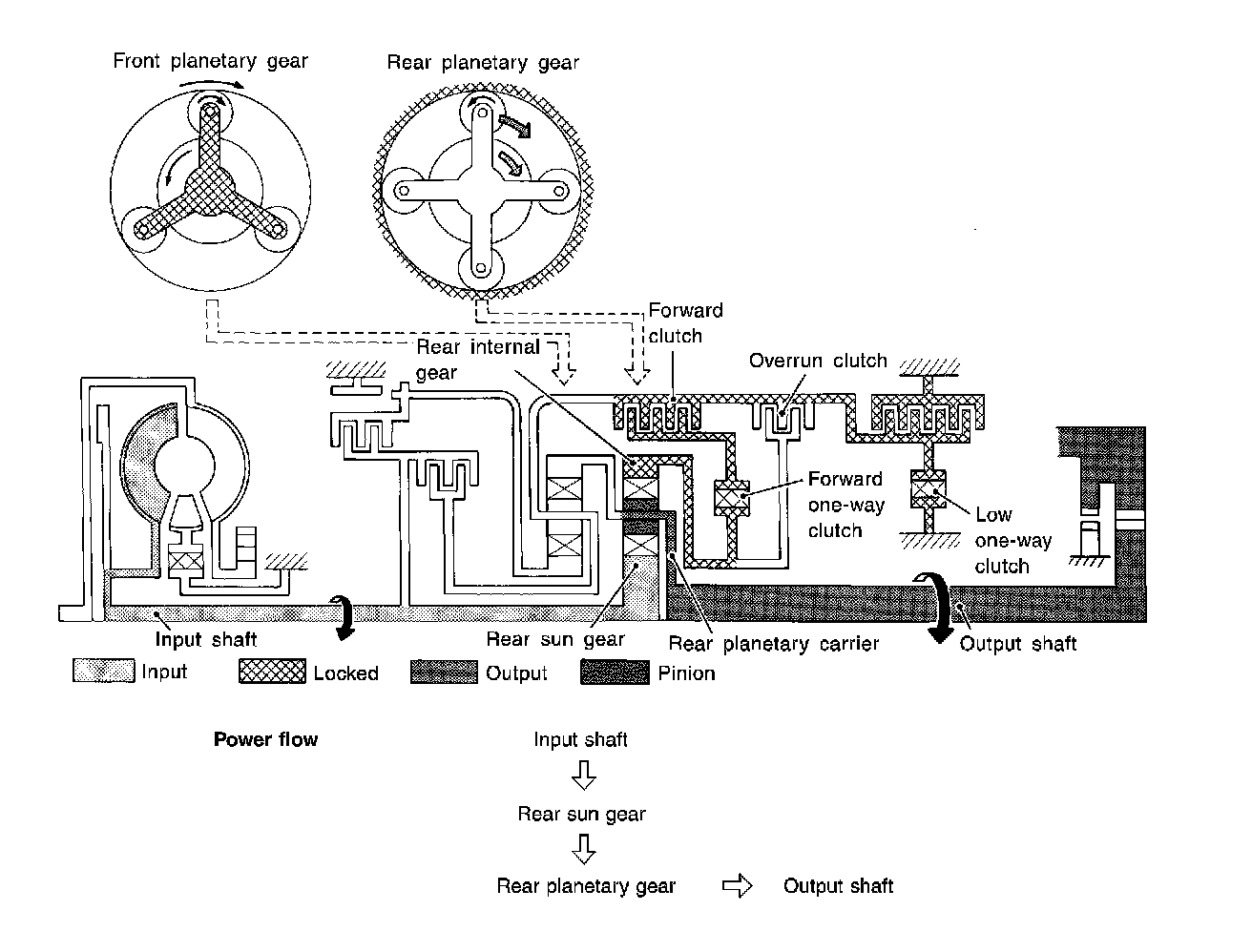

1(1) Position

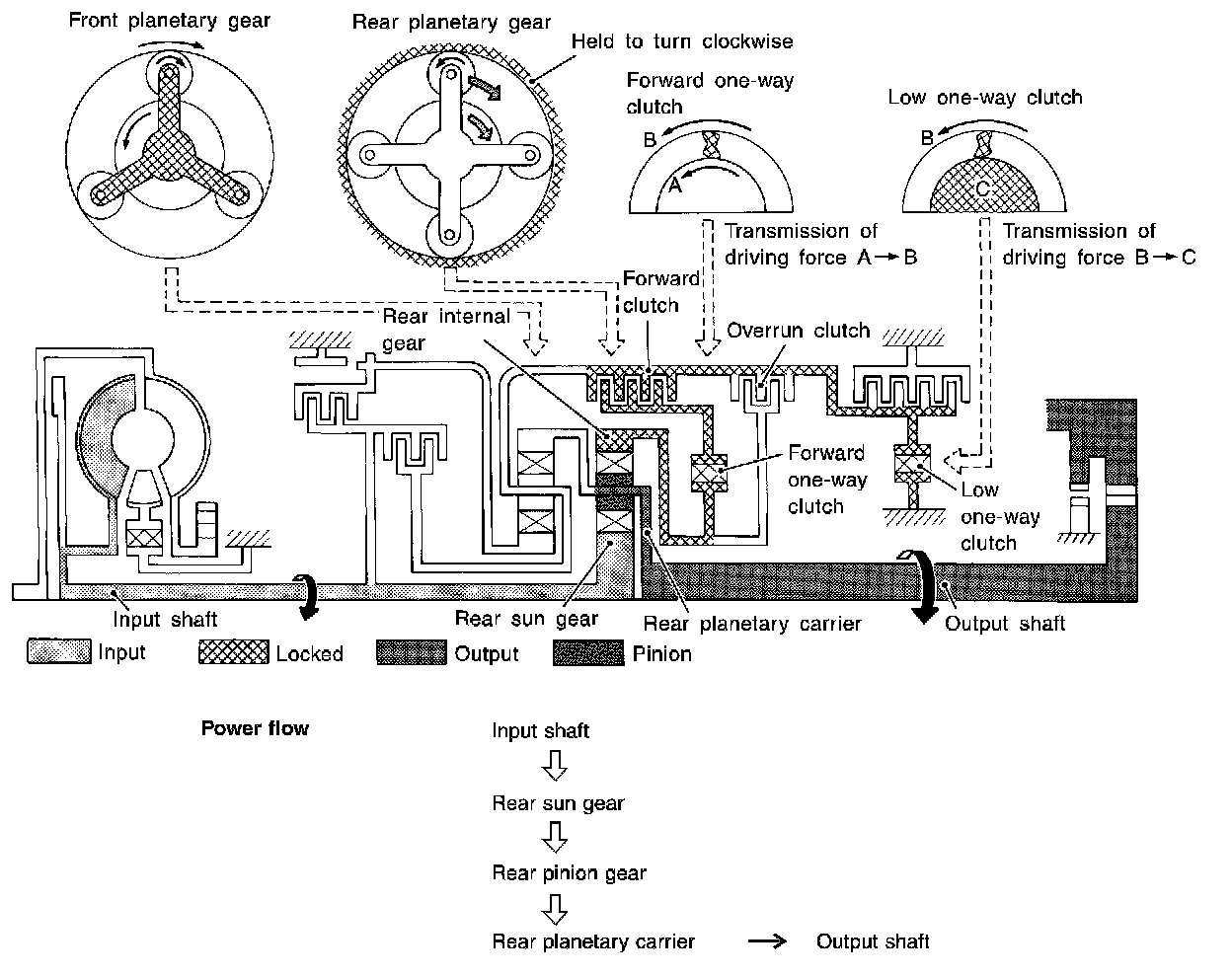

D1 and 2(1) Positions

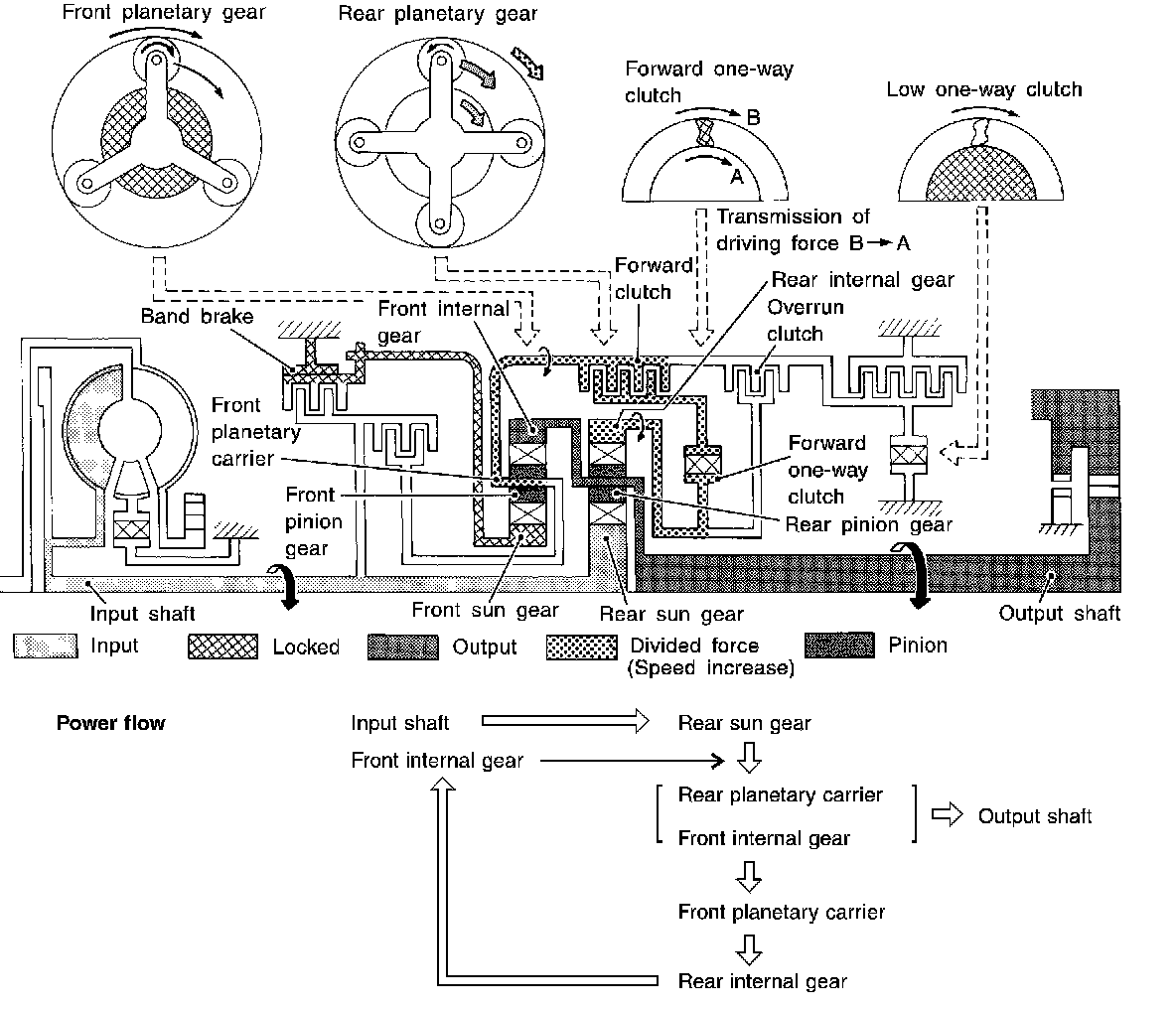

D2, 2(2), 3(2) and 1(2) Positions

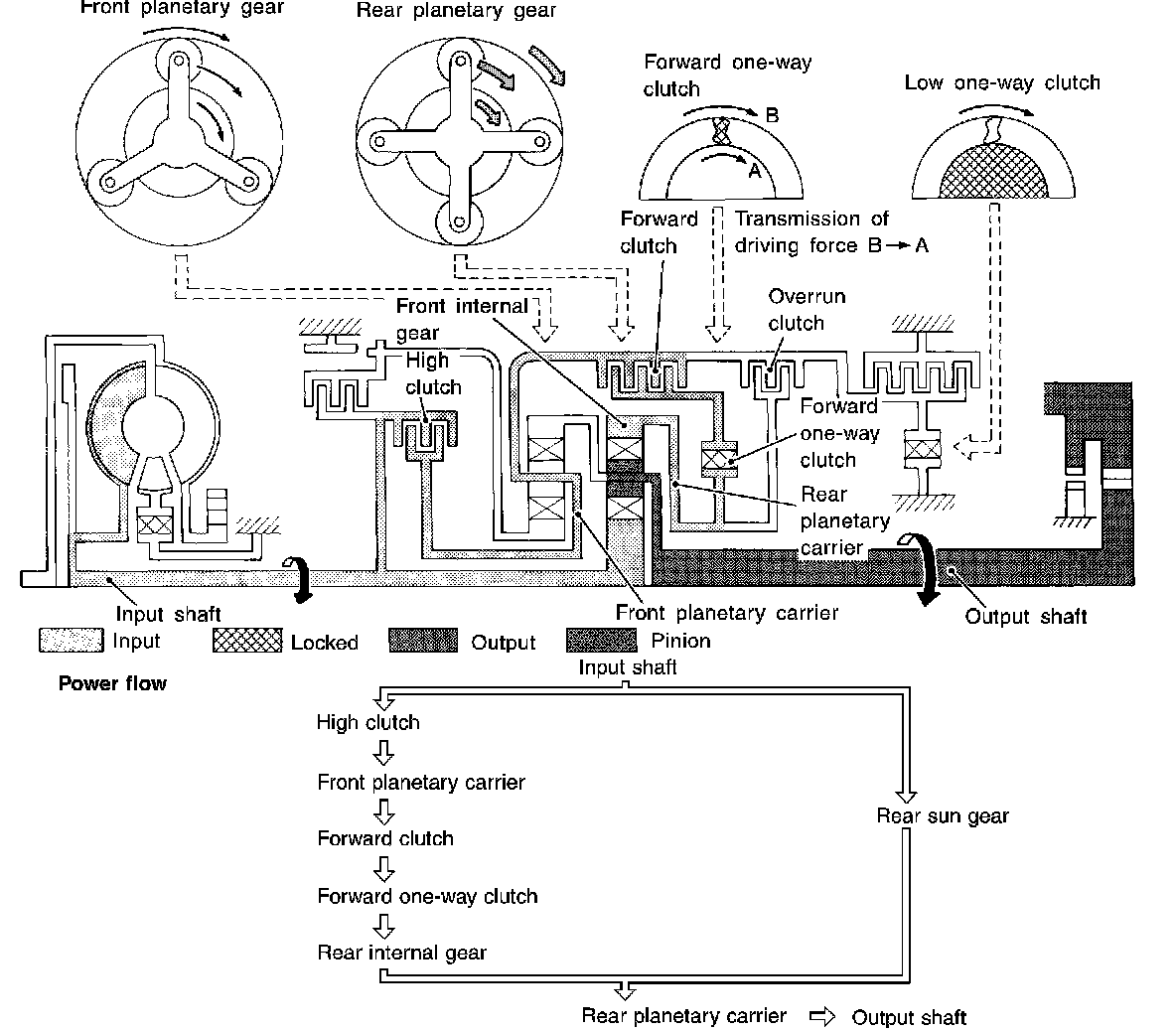

D3, 3(3) Position








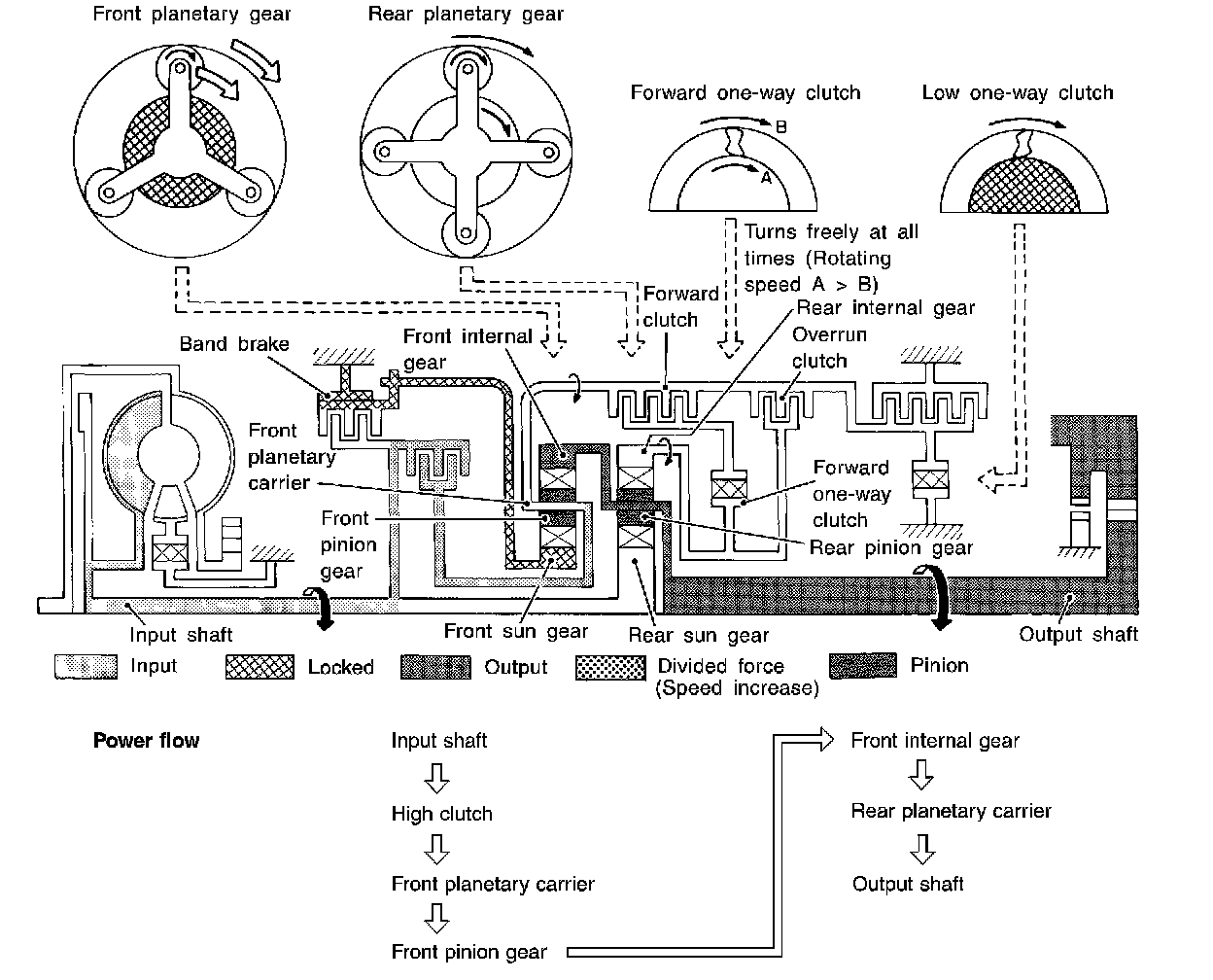

D4 Position

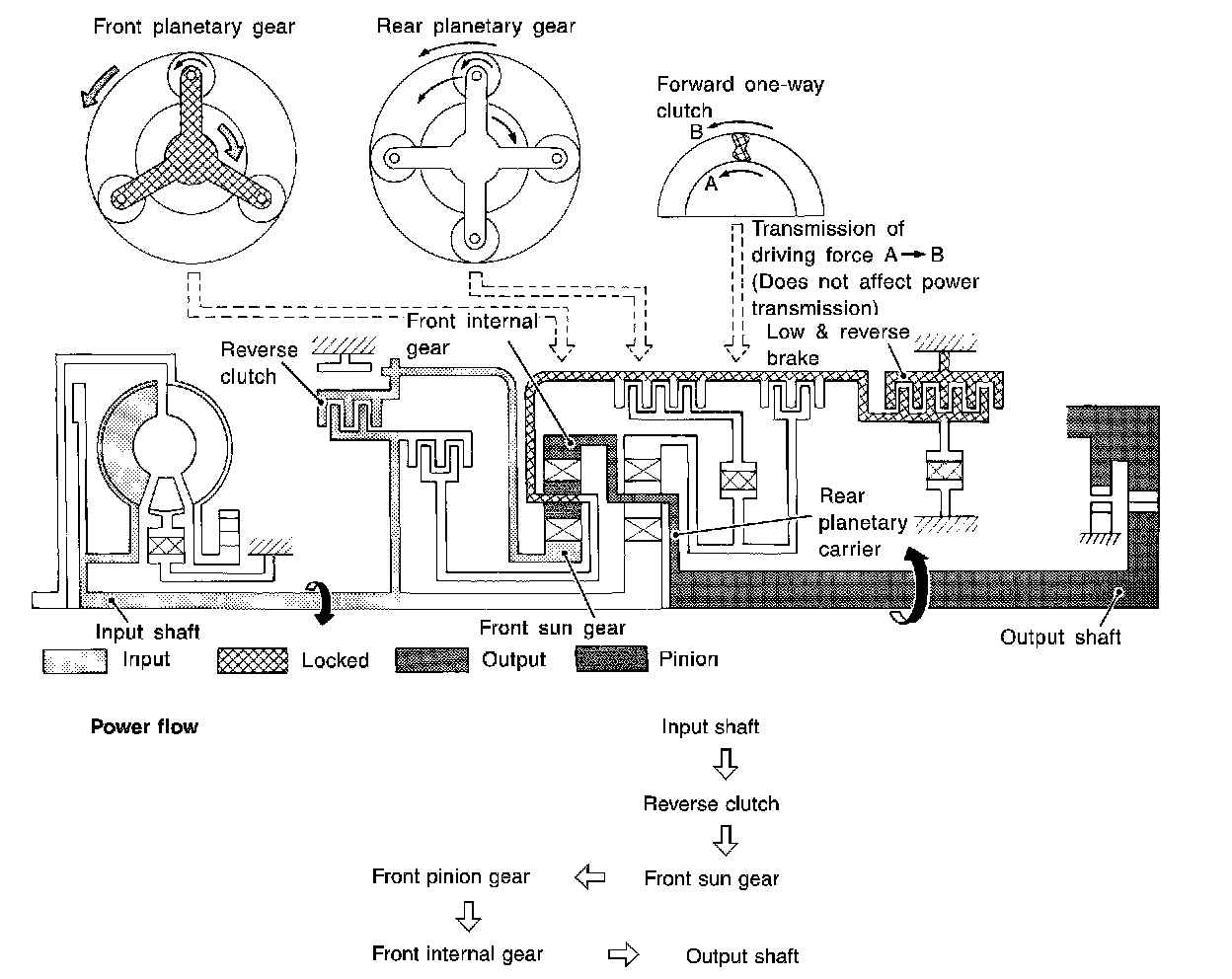

R Position
