Maintenance of Lubricant Quantity in CompressorThe lubricant in the compressor circulates through the system with the refrigerant. Add lubricant to compressor when replacing any component or after a large refrigerant leak has occurred. It is important to maintain the specified amount.
If lubricant quantity is not maintained properly, the following malfunctions may result:
- Lack of lubricant: May lead to a seized compressor
- Excessive lubricant: Inadequate cooling (thermal exchange interference)
LUBRICANT
Name: NISSAN A/C System Oil Type F
Part numbers*: KLH00-PAGQU and KLH00-PAGQF
*: Always check with the Parts Department for the latest parts information

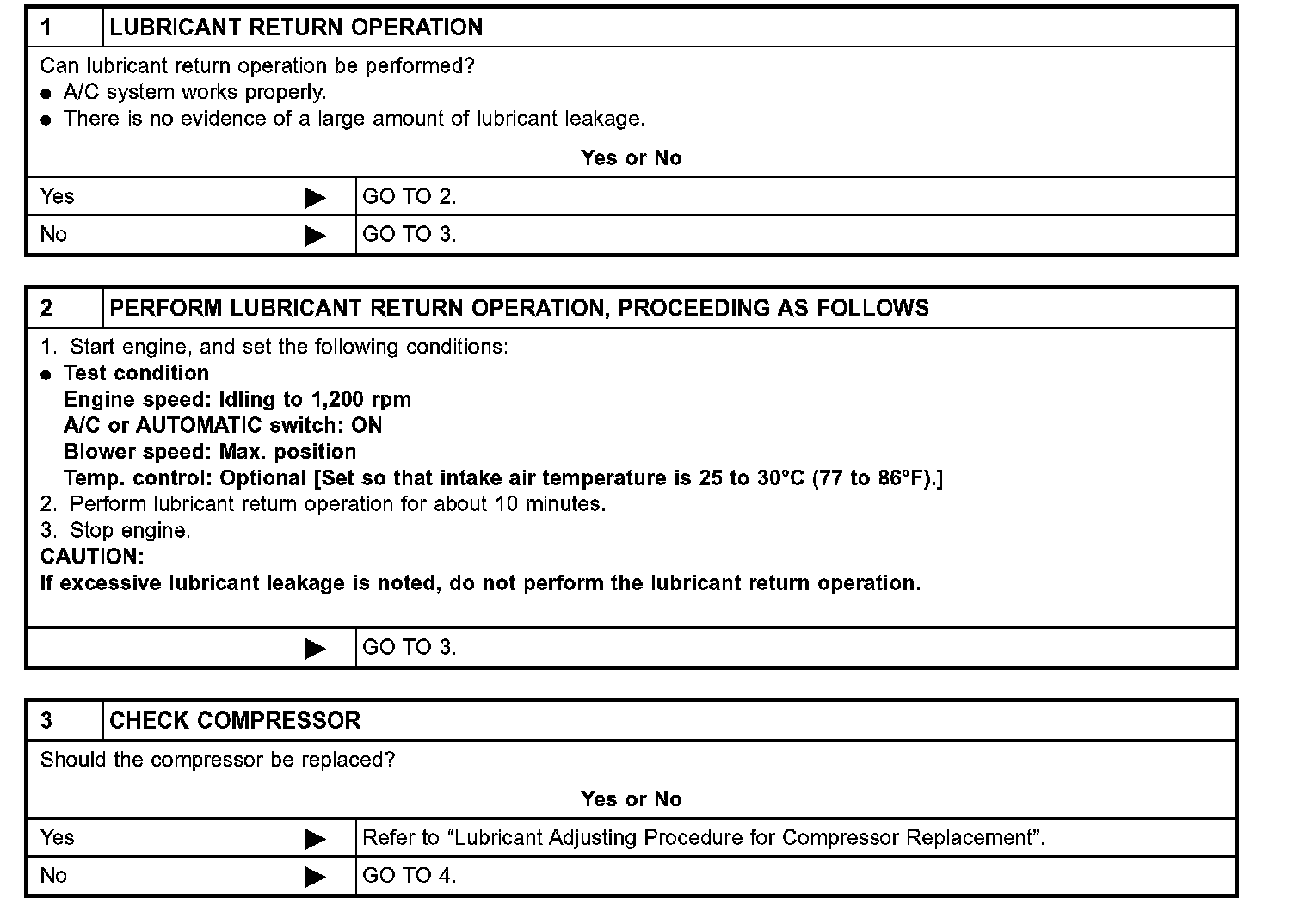

Step 1 - 3:
Step 4:
CHECKING AND ADJUSTING
Adjust the lubricant quantity according to the flowchart shown above.
Lubricant Adjusting Procedure for Components Replacement Except Compressor
After replacing any of the following major components, add the correct amount of lubricant to the system.
Amount Of Lubricant To Be Added:
Amount of lubricant to be added
Lubricant Adjusting Procedure for Compressor Replacement
1. Before connecting ACR4 to vehicle, check ACR4 gauges. No refrigerant pressure should be displayed, recover refrigerant from equipment lines and then check refrigerant purity.
2. Confirm refrigerant purity in supply tank using ACR4 and refrigerant identifier. If NG, Refer to "Contaminated Refrigerant"
3. Confirm refrigerant purity in vehicle A/C system using ACR4 and refrigerant identifier. If NG, Refer to "Contaminated Refrigerant"
4. Discharge refrigerant into the refrigerant recovery/recycling equipment. Measure lubricant discharged into the recovery/ recycling equipment.
5. Remove the drain plug of the "old" (removed) compressor. Drain the lubricant into a graduated container and record the amount of drained lubricant.
6. Remove the drain plug and drain the lubricant from the "new" compressor into a separate, clean container.
7. Measure an amount of new lubricant installed equal to amount drained from "old" compressor. Add this lubricant to "new" compressor through the suction port opening.
8. Measure an amount of new lubricant equal to the amount recovered during discharging. Add this lubricant to "new" compressor through the suction port opening.
9. Torque the drain plug.
Ford Model FS10 compressor: 18 - 19 N.m (1.8 - 1.9 kg-m, 13 - 14 ft-lb)
10. If the accumulator also needs to be replaced, add an additional 5 ml (0.2 US fl oz, 0.2 Imp fl oz) of lubricant at this time.
Do not add this 5 ml (0.2 US fl oz, 0.2 Imp fl oz) of lubricant if only replacing the compressor.
