Camshaft Position Sensor: Testing and Inspection
Component InspectionCAMSHAFT POSITION SENSOR 1.
Install any removed parts.
2.
Start engine.
3.

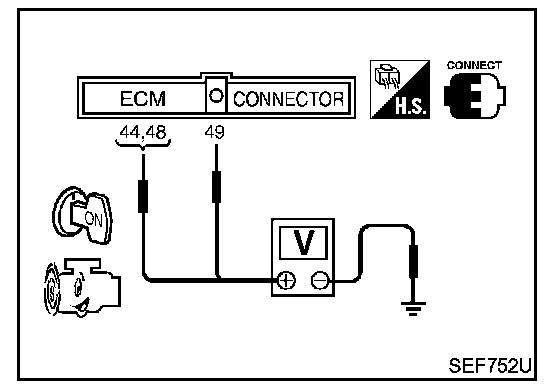

Check voltage between ECM terminals 44, 48 and ground, ECM terminal 49 and ground with DC range.

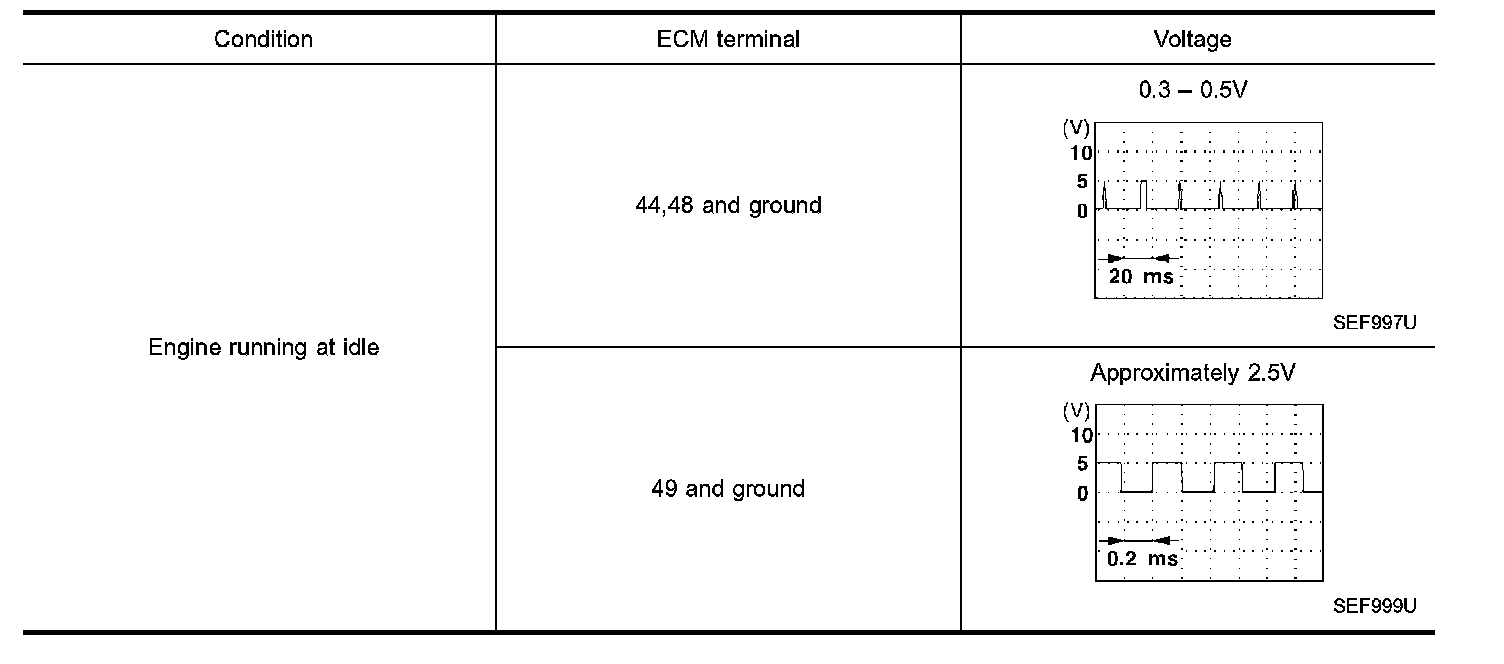

Part 1:

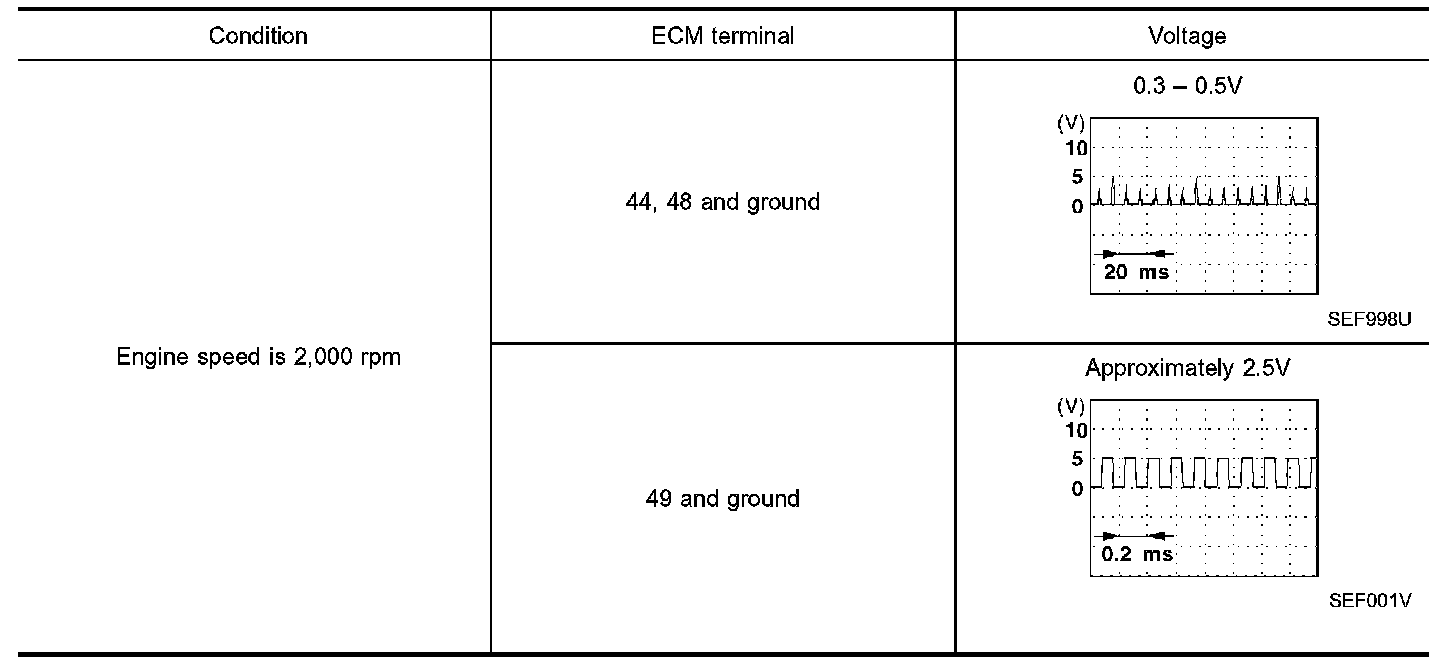

Part 2:
If NG, replace distributor assembly with
camshaft position sensor.
