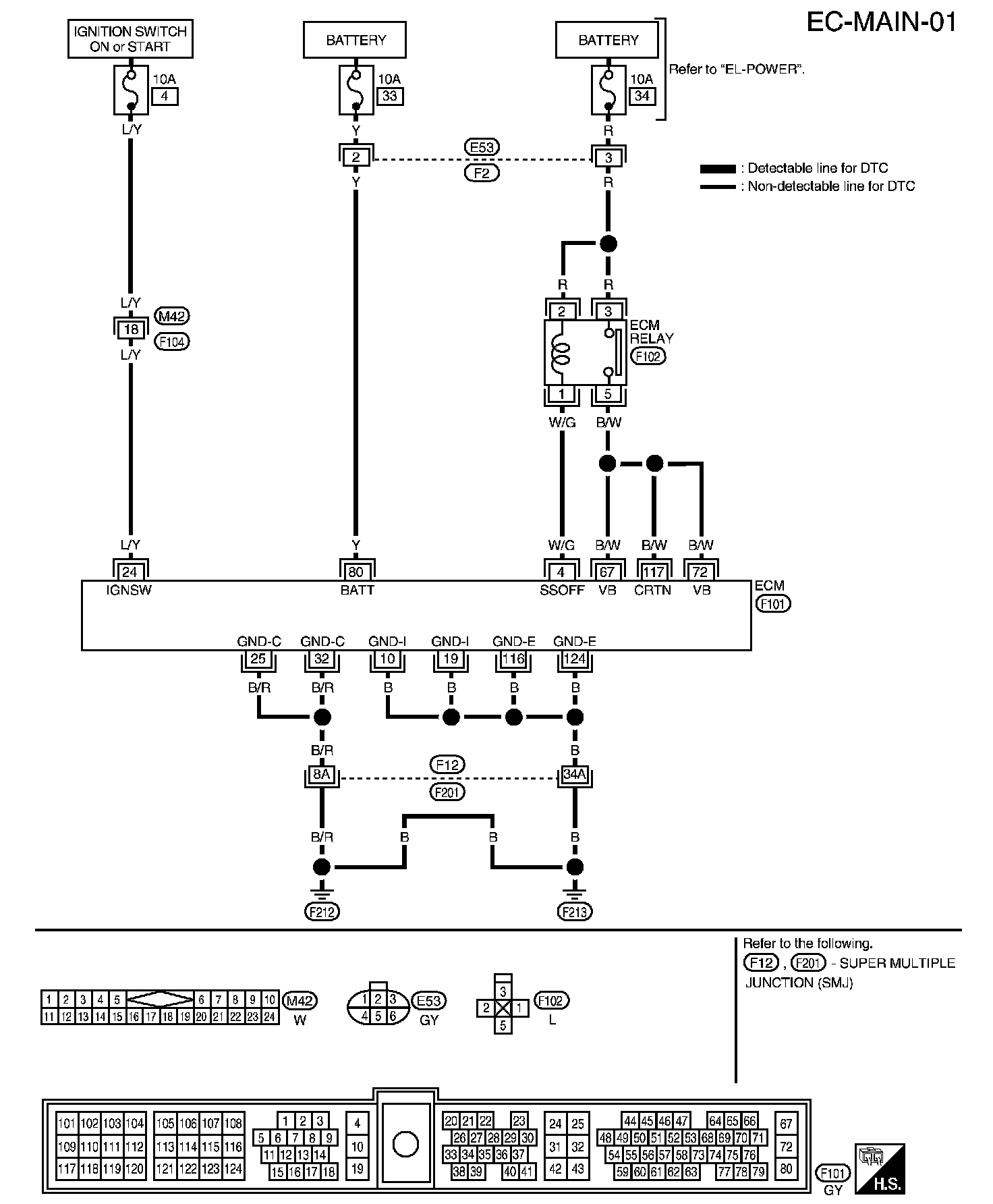

EC-MAIN-01:

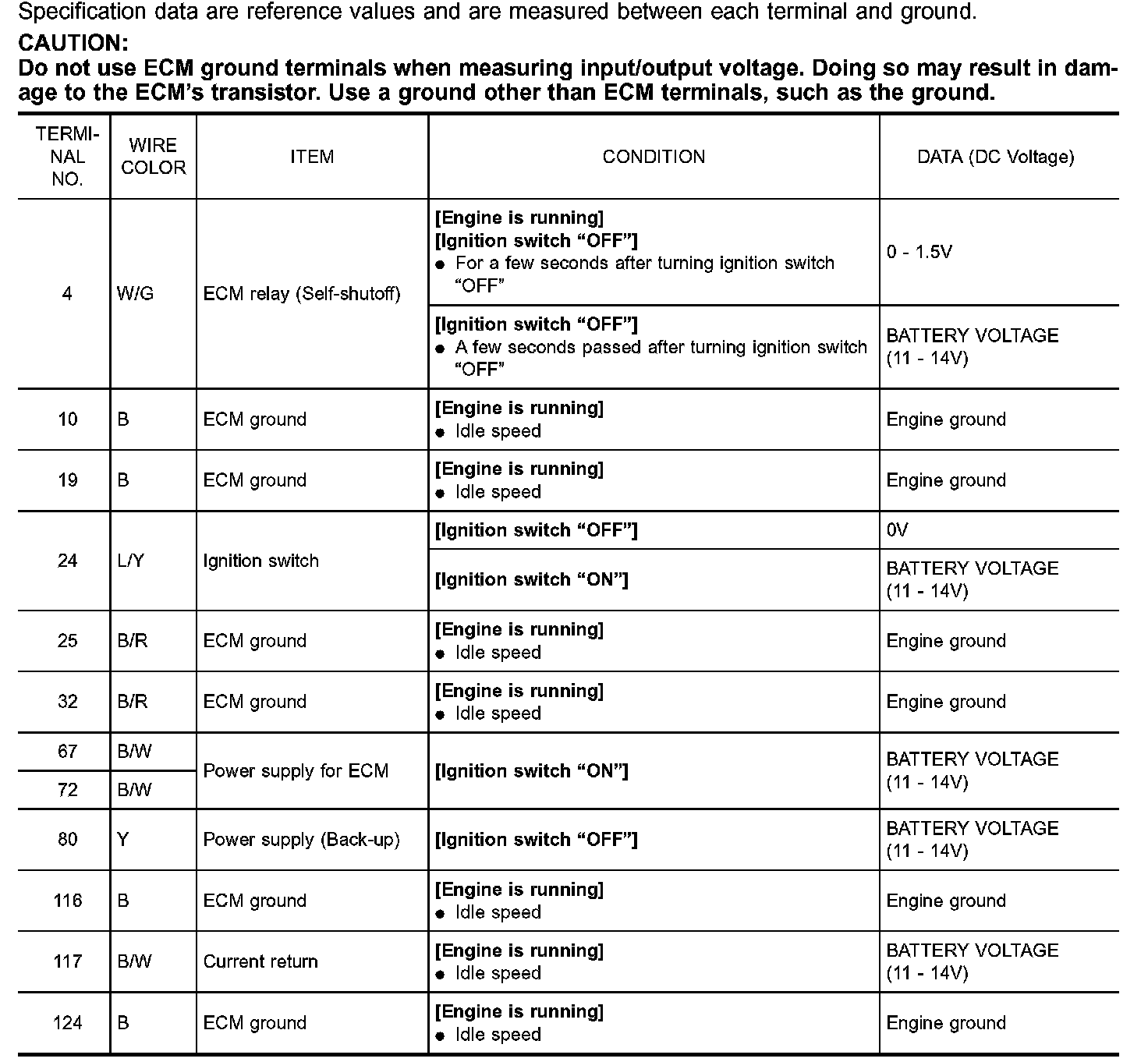

ECM Terminals And Reference Value:

Step 1:

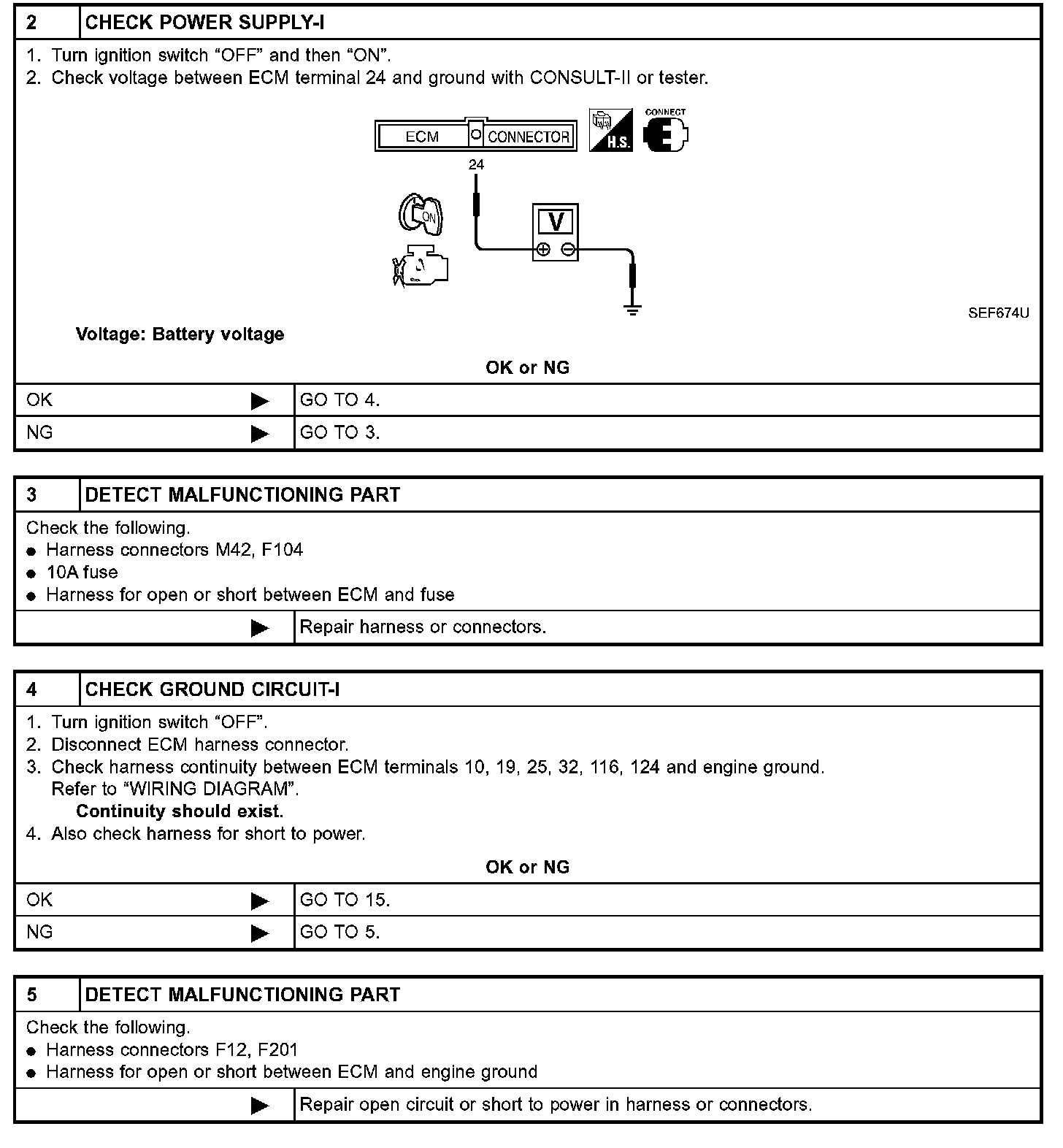

Step 2 - 5:

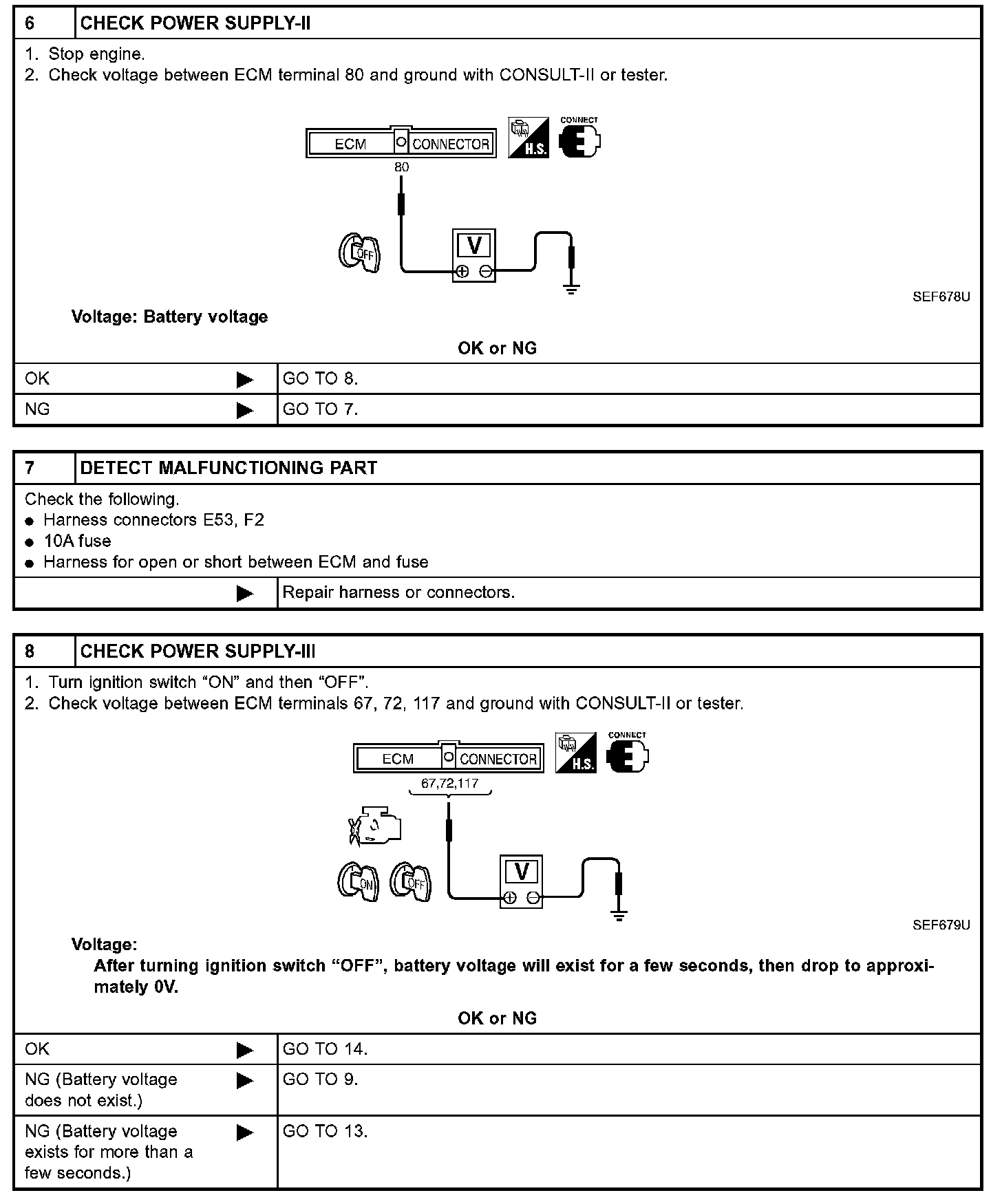

Step 6 - 8:

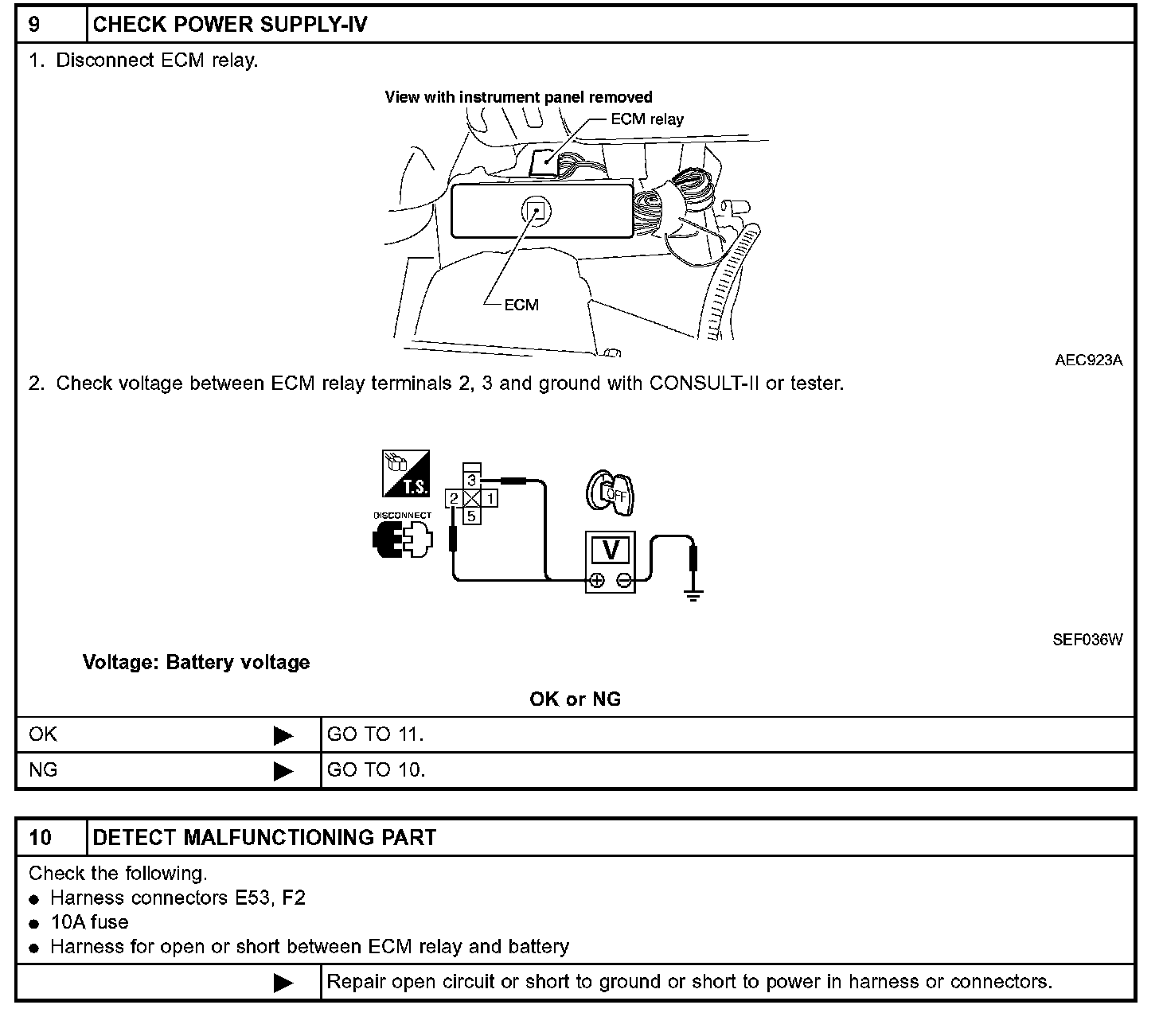

Step 9 - 10:

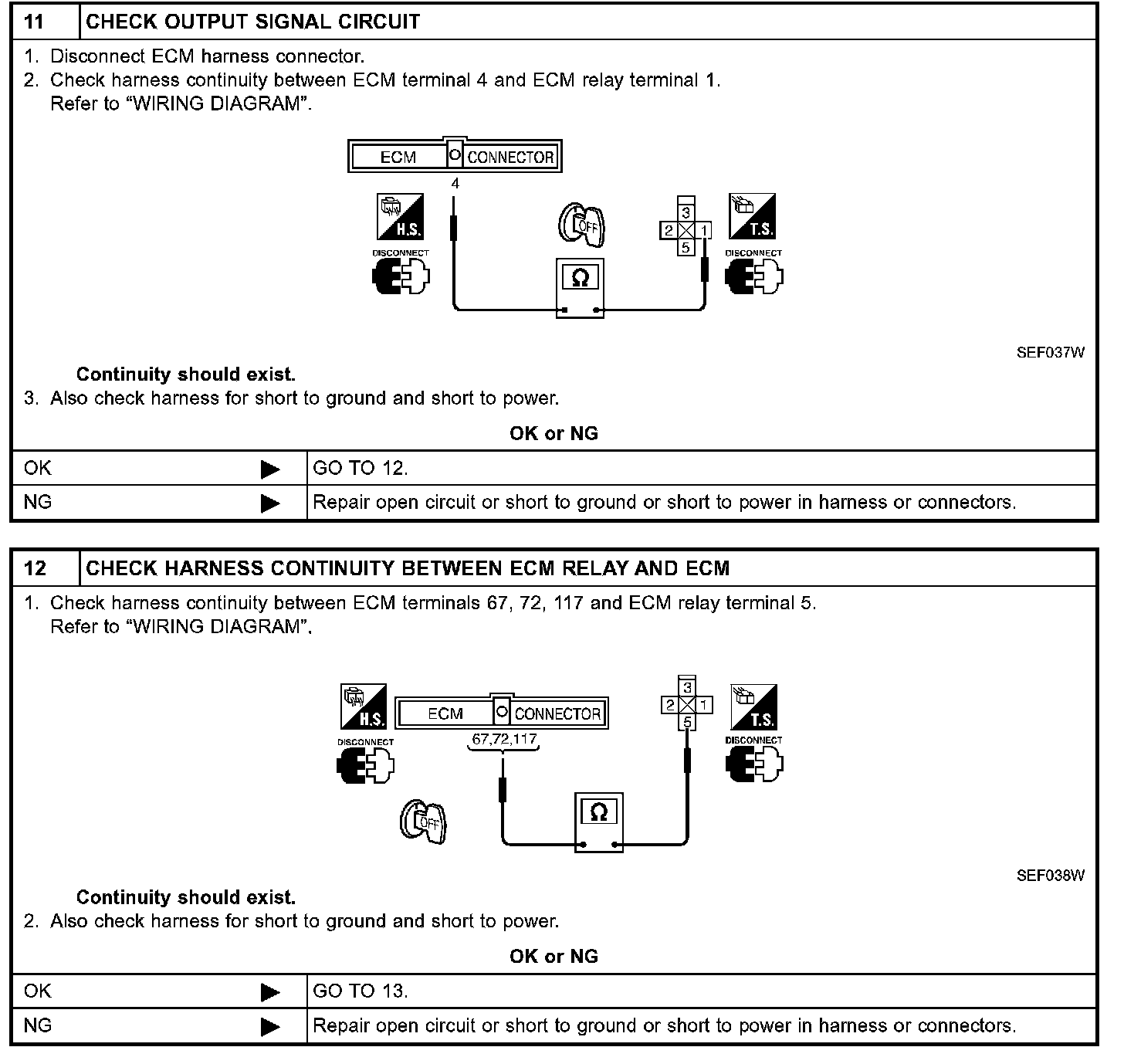

Step 11 - 12:

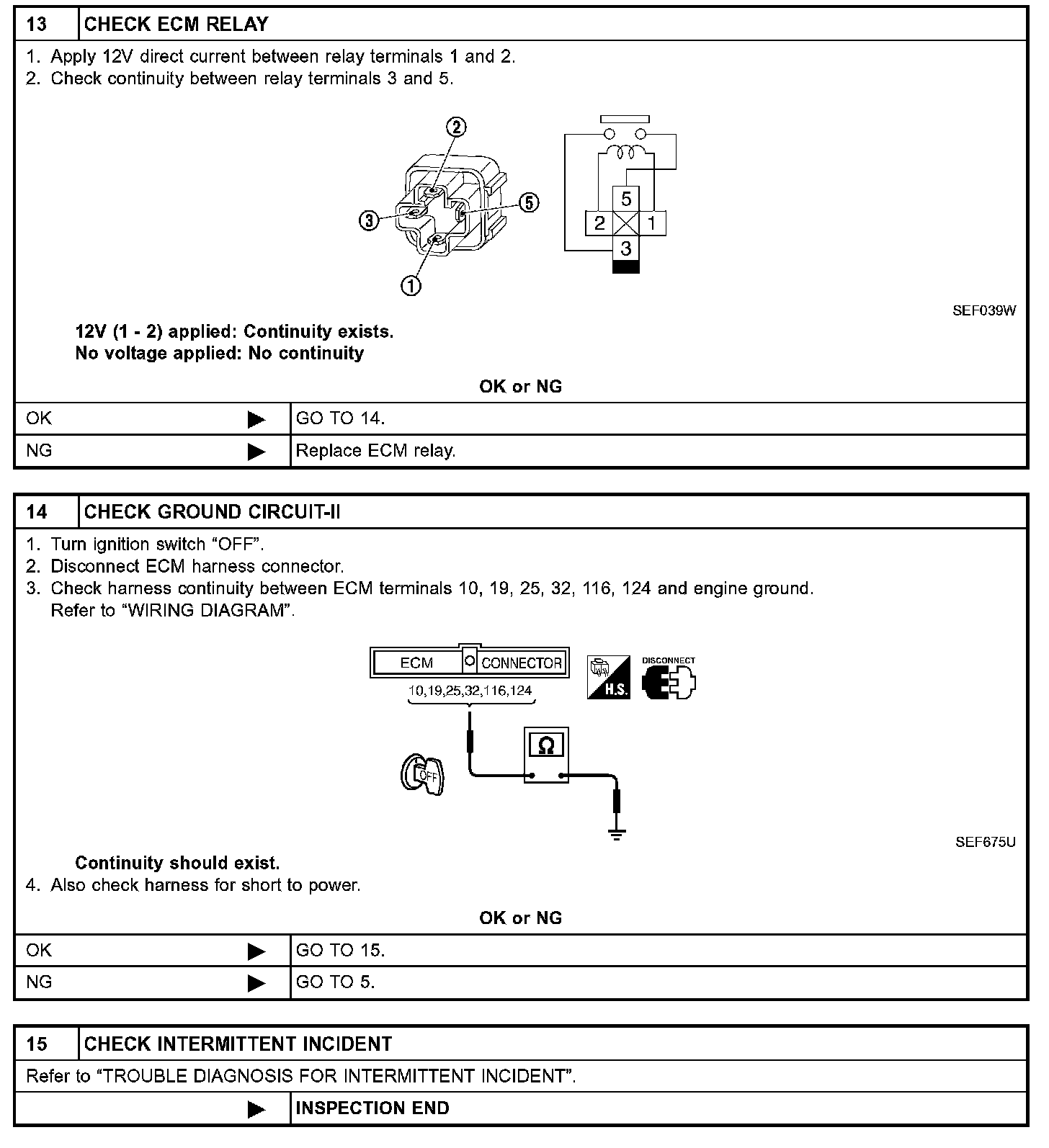

Step 13 - 15:
