DTC VEHICLE SPEED SENSOR-MTR
Description






The vehicle speed sensor-MTR is built into the speedometer assembly. The sensor functions as an auxiliary device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle speed sensor.MTR.

TCM TERMINALS AND REFERENCE VALUE:

ON BOARD DIAGNOSIS LOGIC:

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.
If conducting this "DTC CONFIRMATION PROCEDURE" again, always turn ignition switch OFF and wait at least 5 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.



With CONSULT-II












1. Turn ignition switch ON and select "DATA MONITOR" mode for "A/T". with (CONSULT-II

2. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16 MPH).


Without CONSULT-II
1. Start engine.

2. Drive vehicle under the following conditions:
Selector lever in D and vehicle speed higher than 25 km/h (16 MPH) .

3. Perform self-diagnosis.
Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)".
O/D Off Indicator Lamp

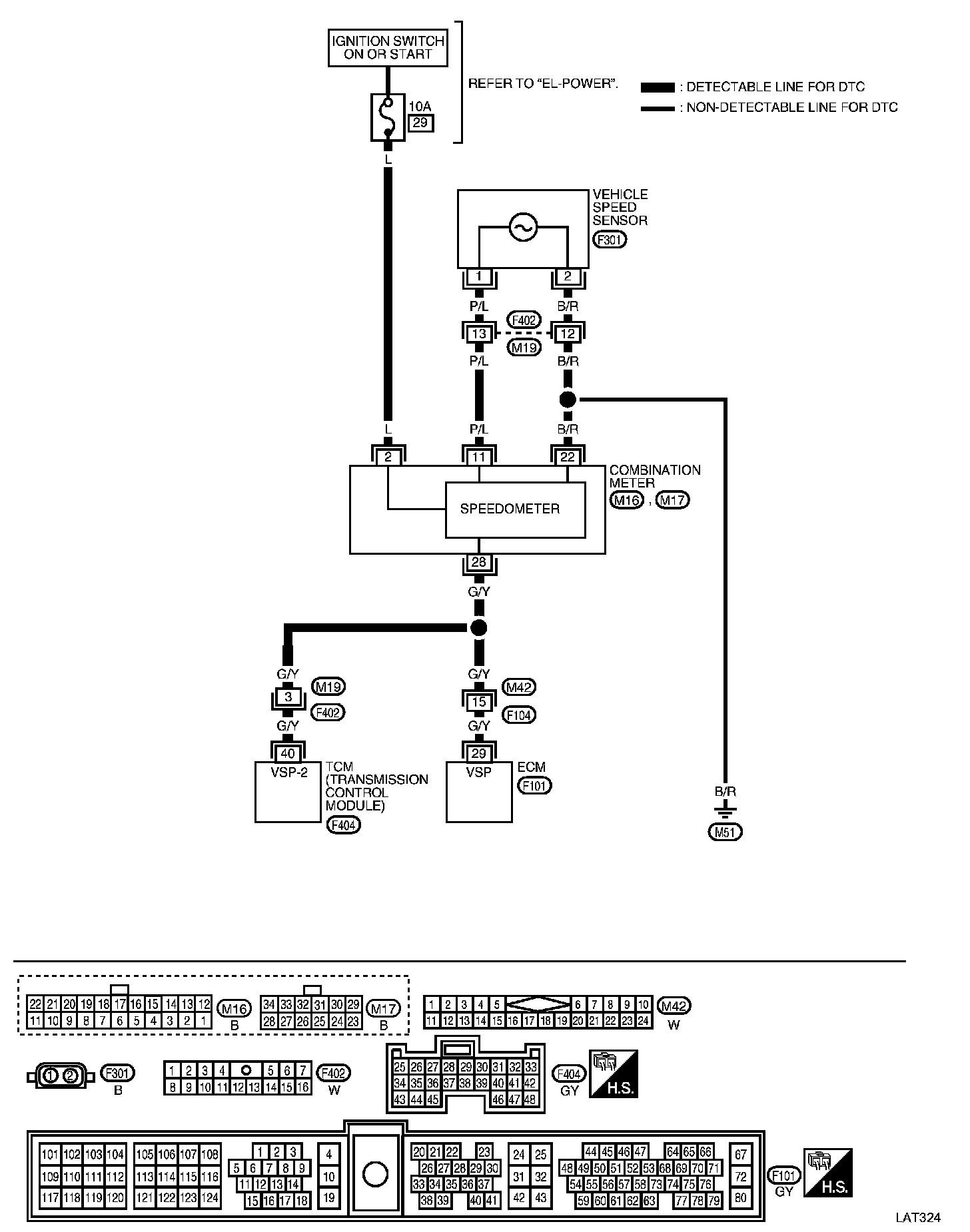

Wiring Diagram - AT - VSSMTR:

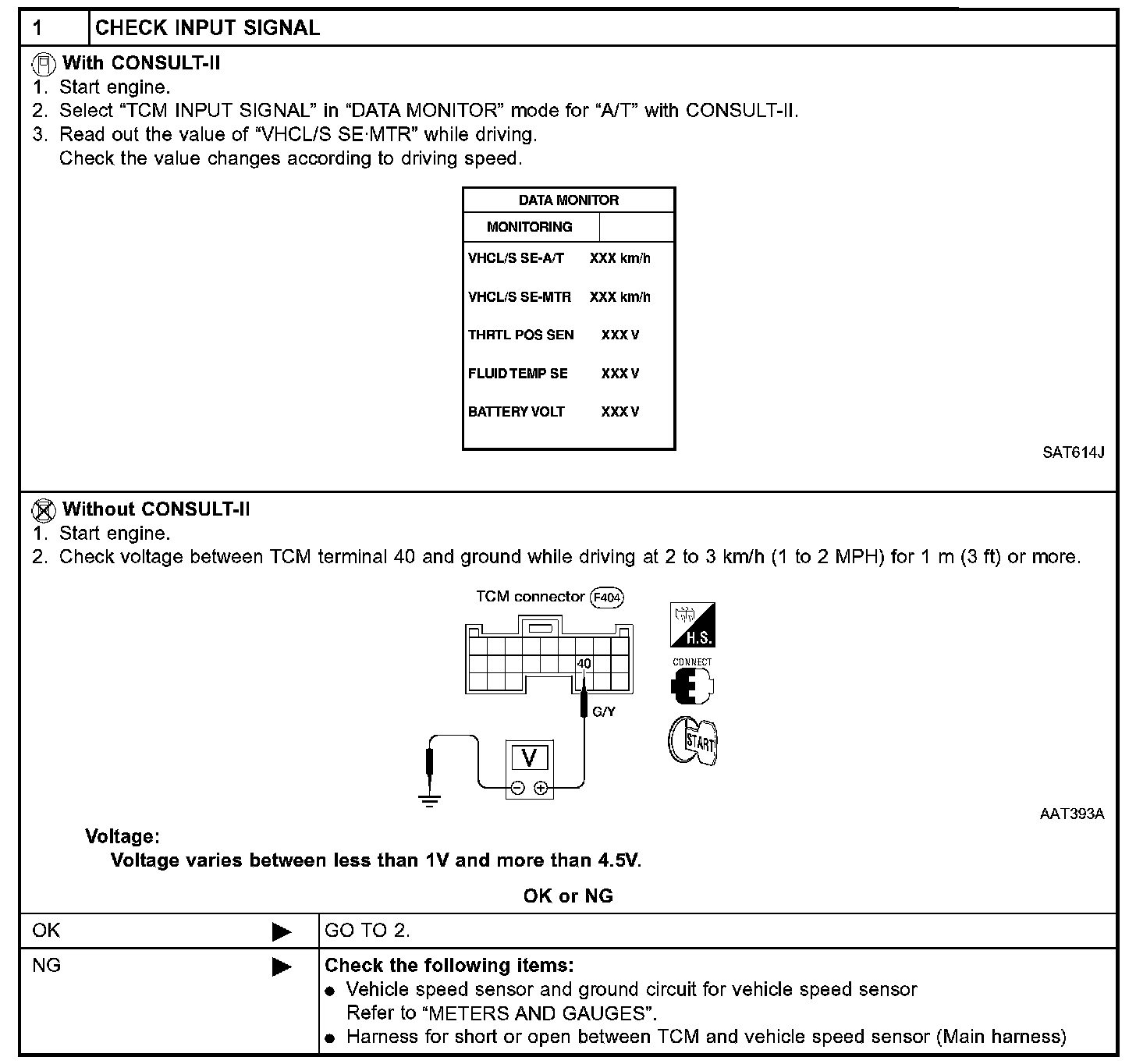

Diagnostic Procedure
