Symptom Chart

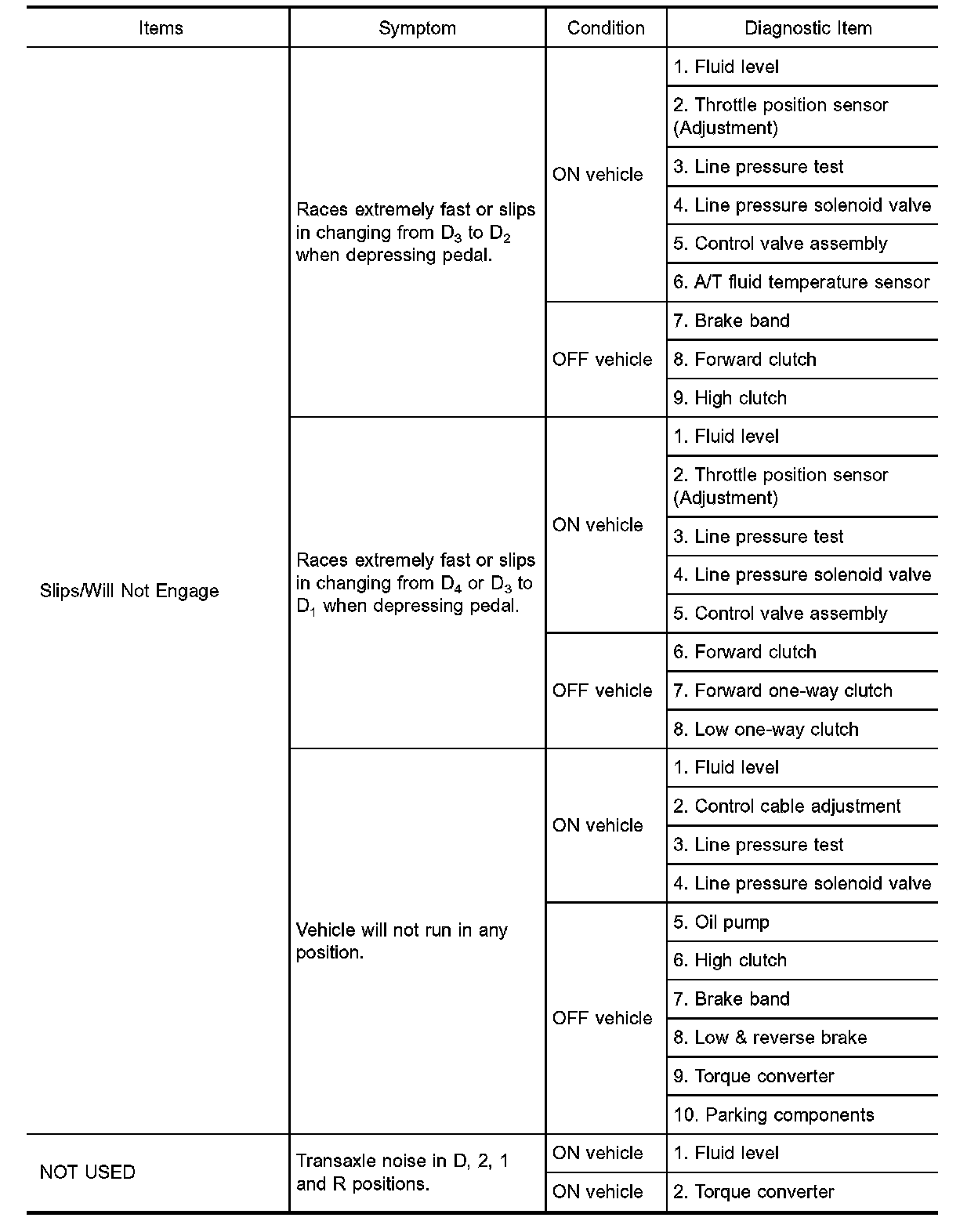

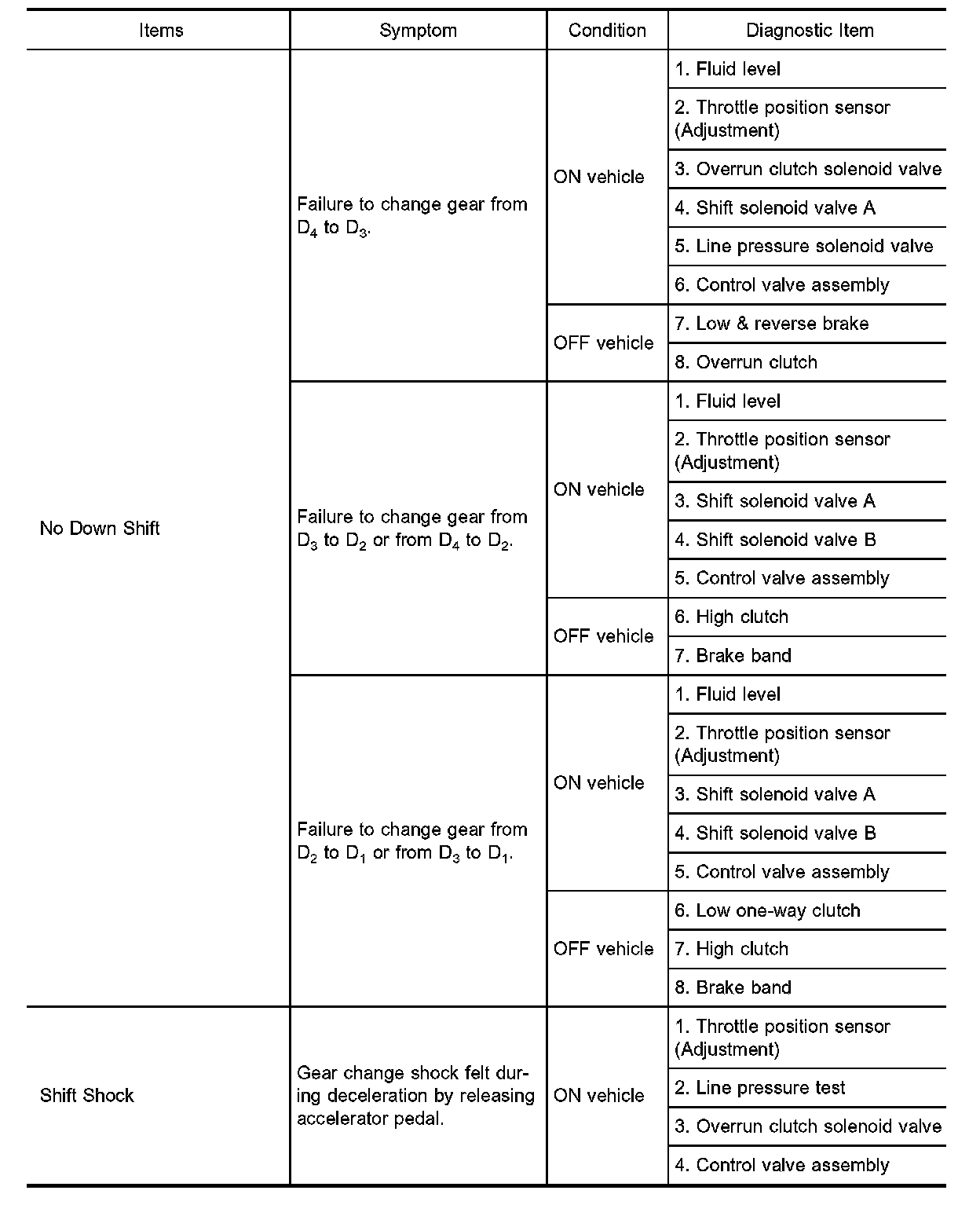

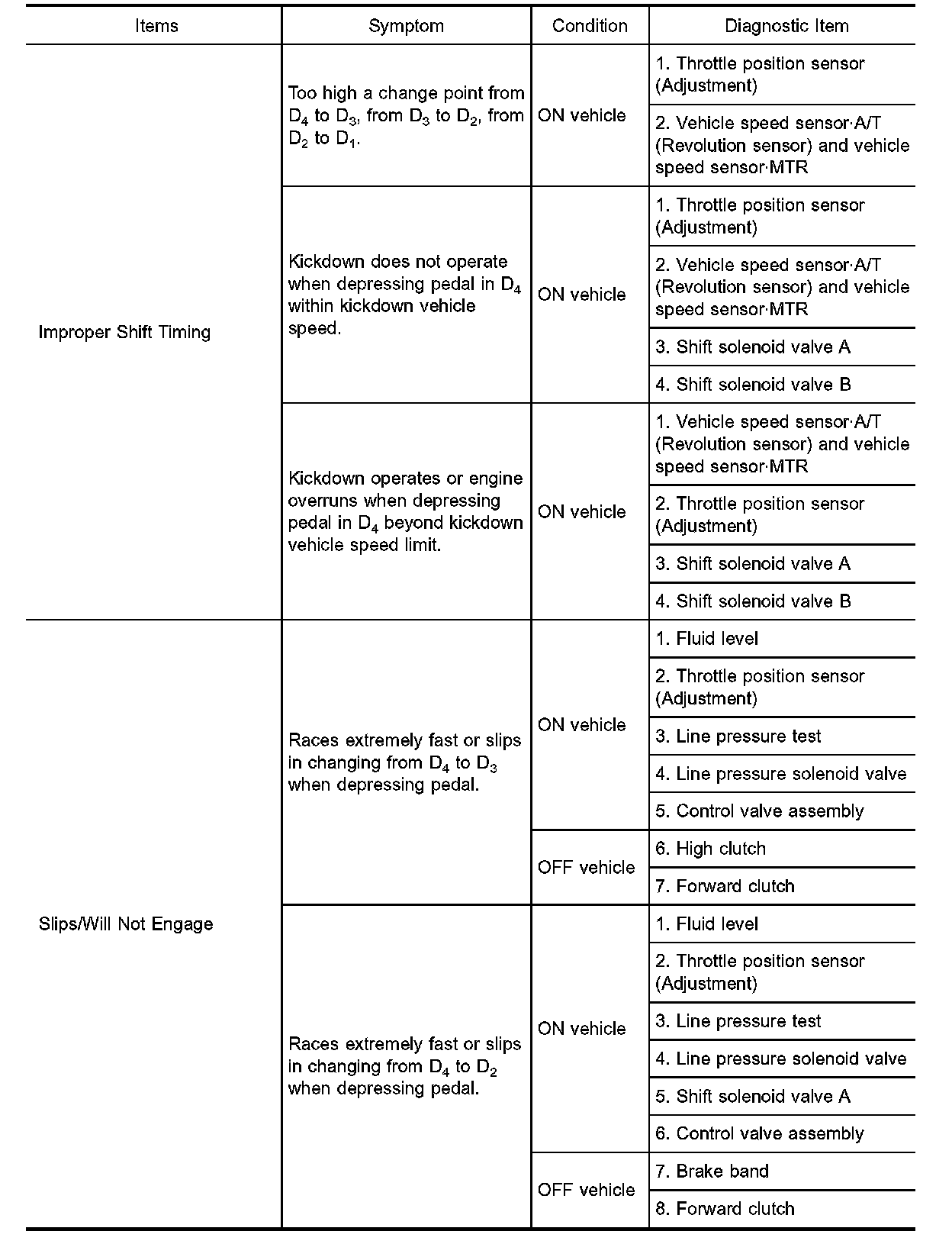

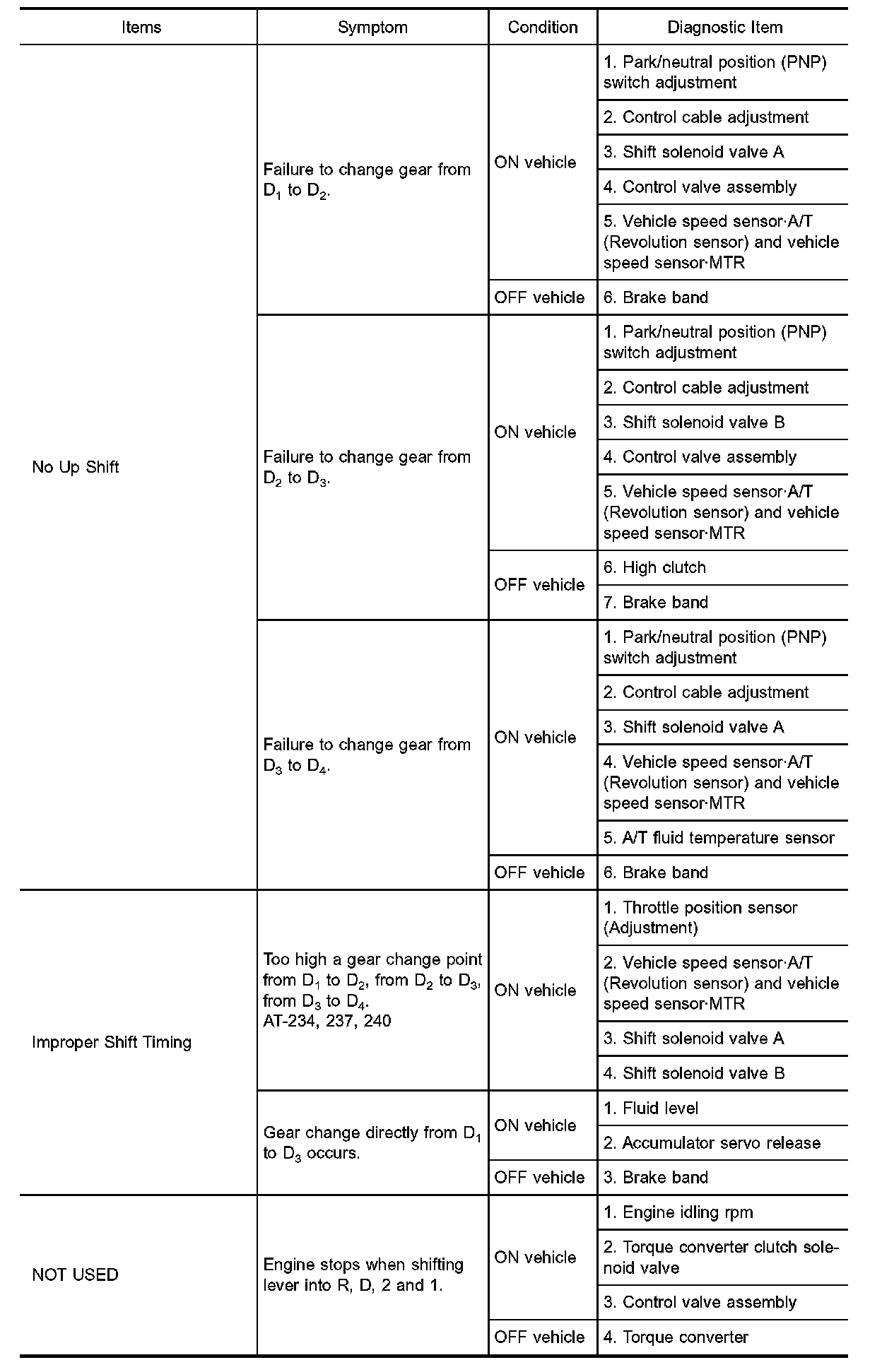

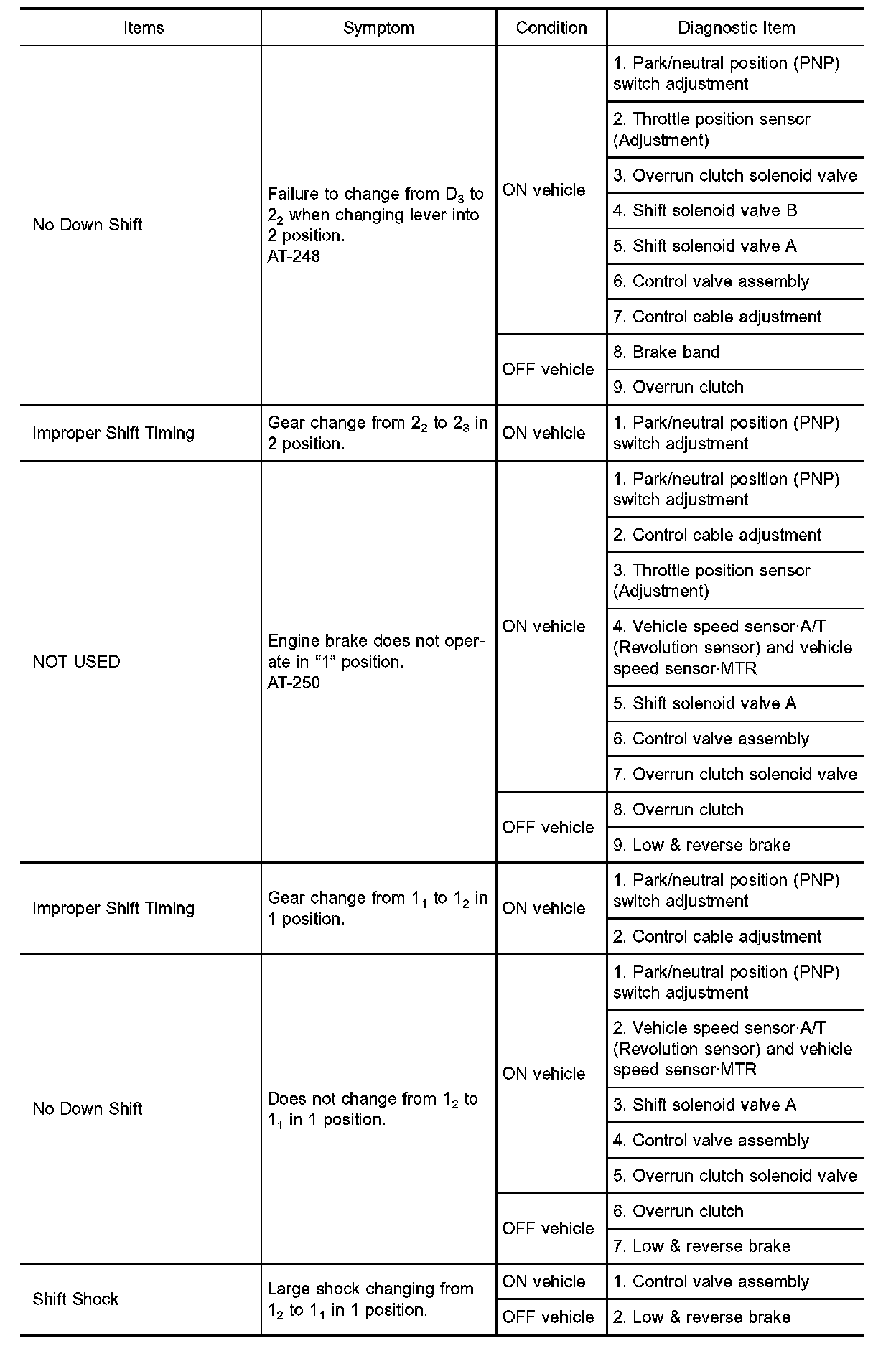

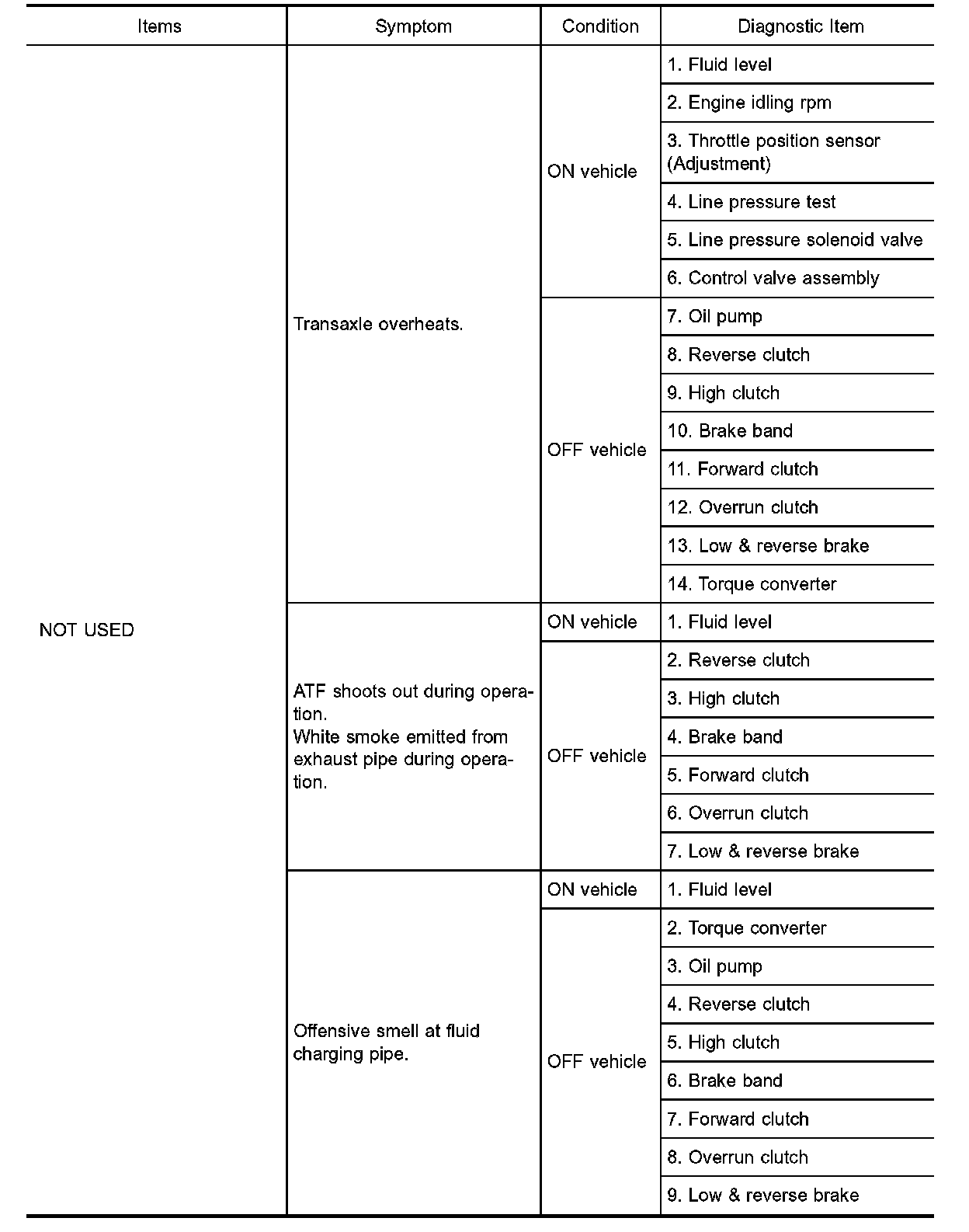

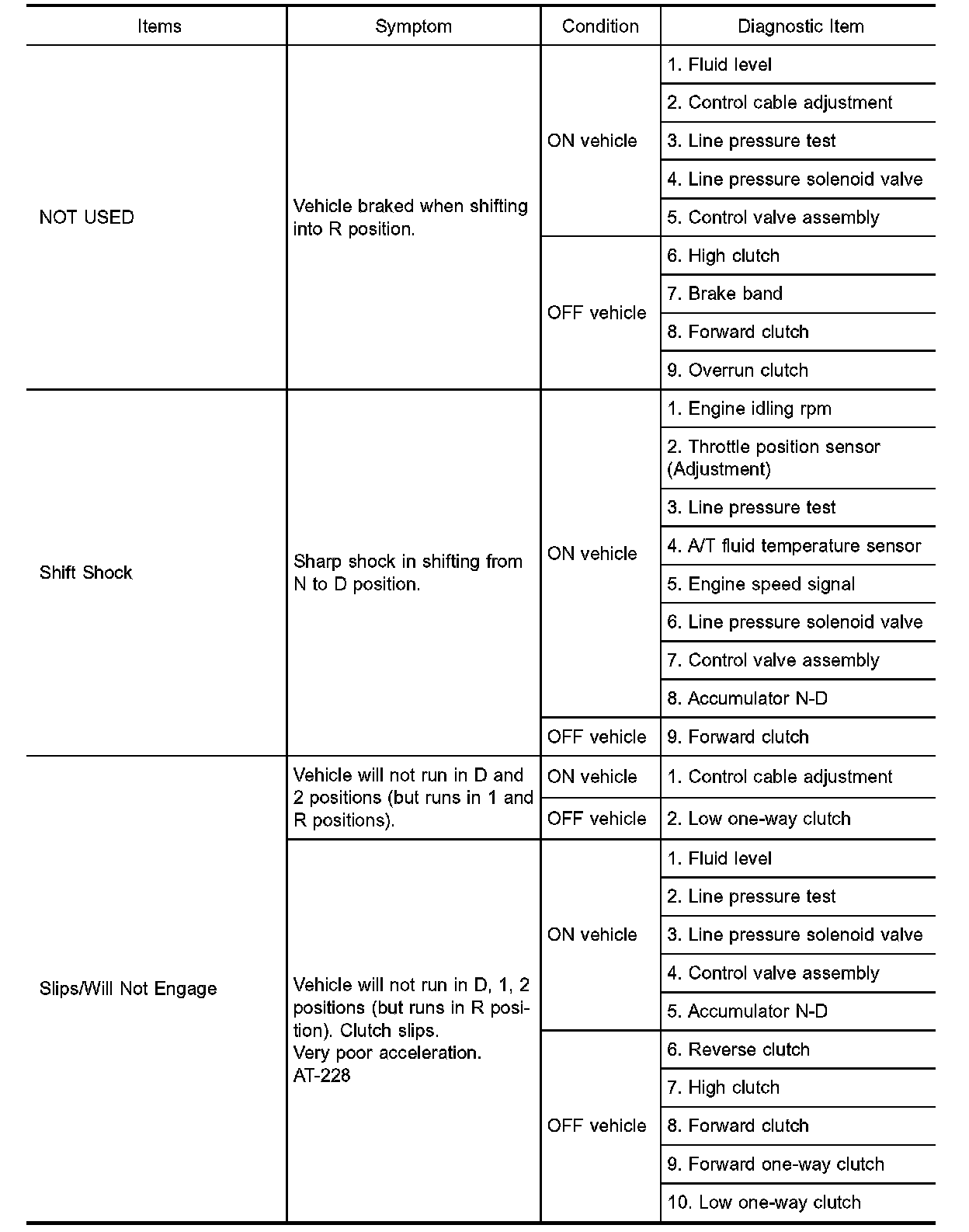

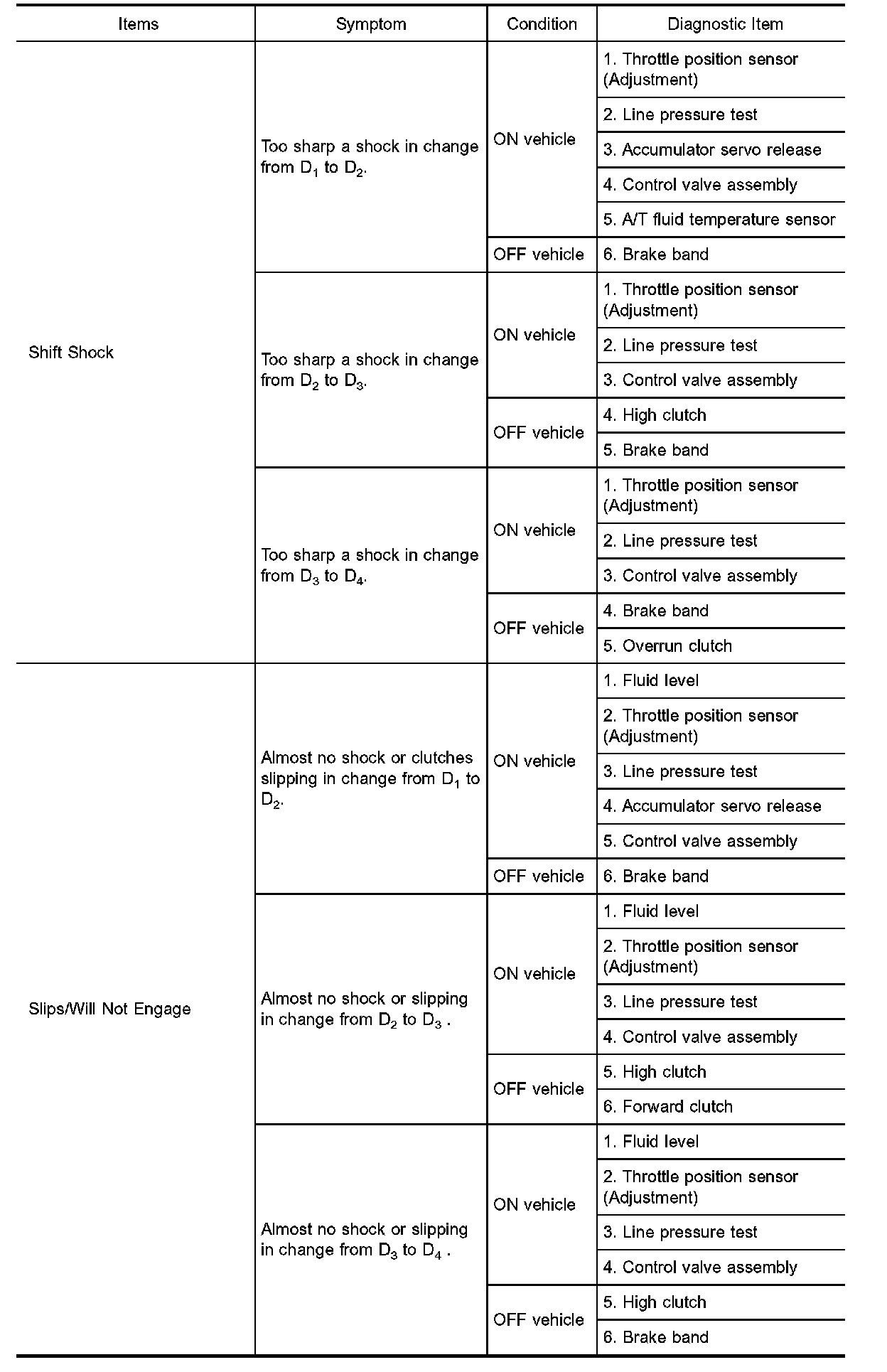

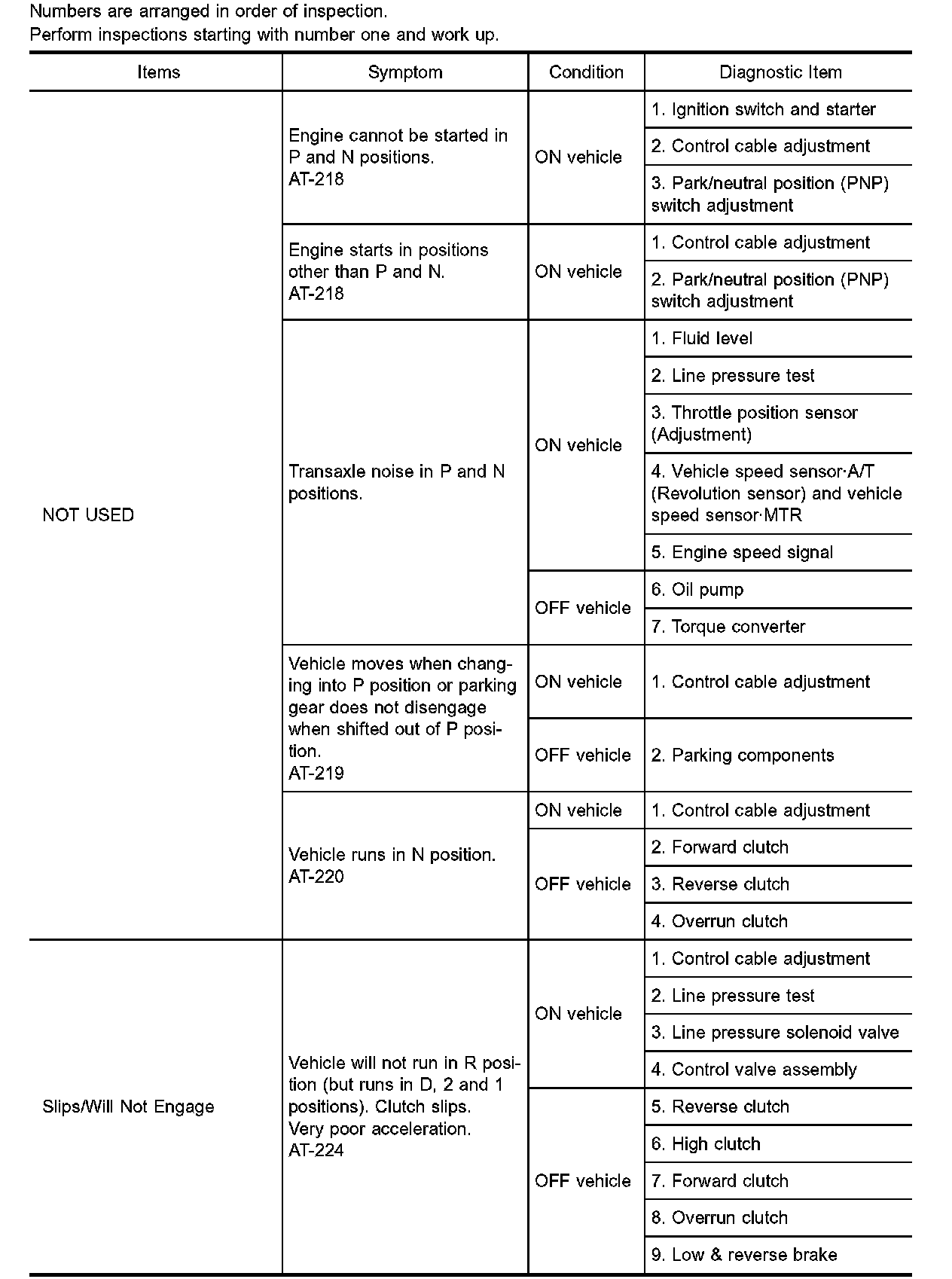

Trouble Diagnosis - General DescriptionSymptom Charts 1 0f 13:

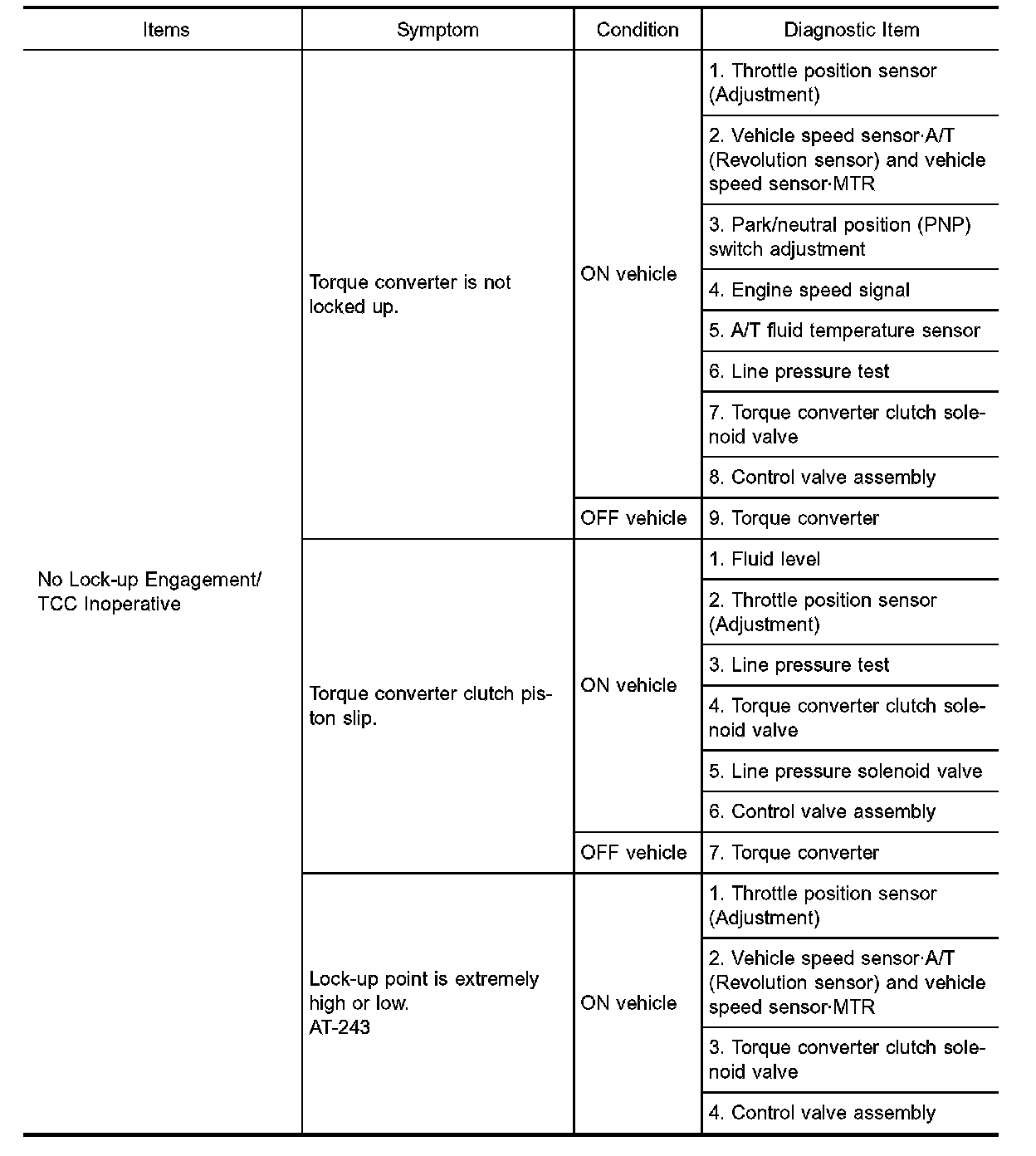

3 0f 13:
4 0f 13:
5 0f 13:
6 0f 13:
7 0f 13:
8 0f 13:
9 0f 13:
10 0f 13:
11 0f 13:
12 0f 13:
13 0f 13:
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
