Assembly
REPAIR FOR COMPONENT PARTSControl Valve Assembly
ASSEMBLY
1. Install upper, inter and lower body.
a. Place oil circuit of upper body face up. Install check balls in their proper positions.
b. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
c. Install reamer bolts f from bottom of upper body Using reamer bolts as guides, install separating plate and gaskets as a set.
d. Install pilot filter.
e. Place lower body as shown in illustration (side of inter body face up). Install check balls in their proper positions.
f. Install inter body on upper body using reamer bolts f as guides.
Be careful not to dislocate or drop check balls.
g. Install check balls and relief valve springs in their proper positions in lower body.
h. Install lower separating gasket, lower inter separating gasket and lower separating plate in order shown in illustration.
i. Install bolts e from bottom of lower body. Using bolts e as guides, install separating plate and gaskets as a set.
j. Temporarily install support plates on lower body
k. Install lower body on inter body using reamer bolts f as guides and tighten reamer bolts f slightly.
2. Install O-rings to solenoid valves and terminal body.
Apply ATF to O-rings.
Bolt Length And Number:

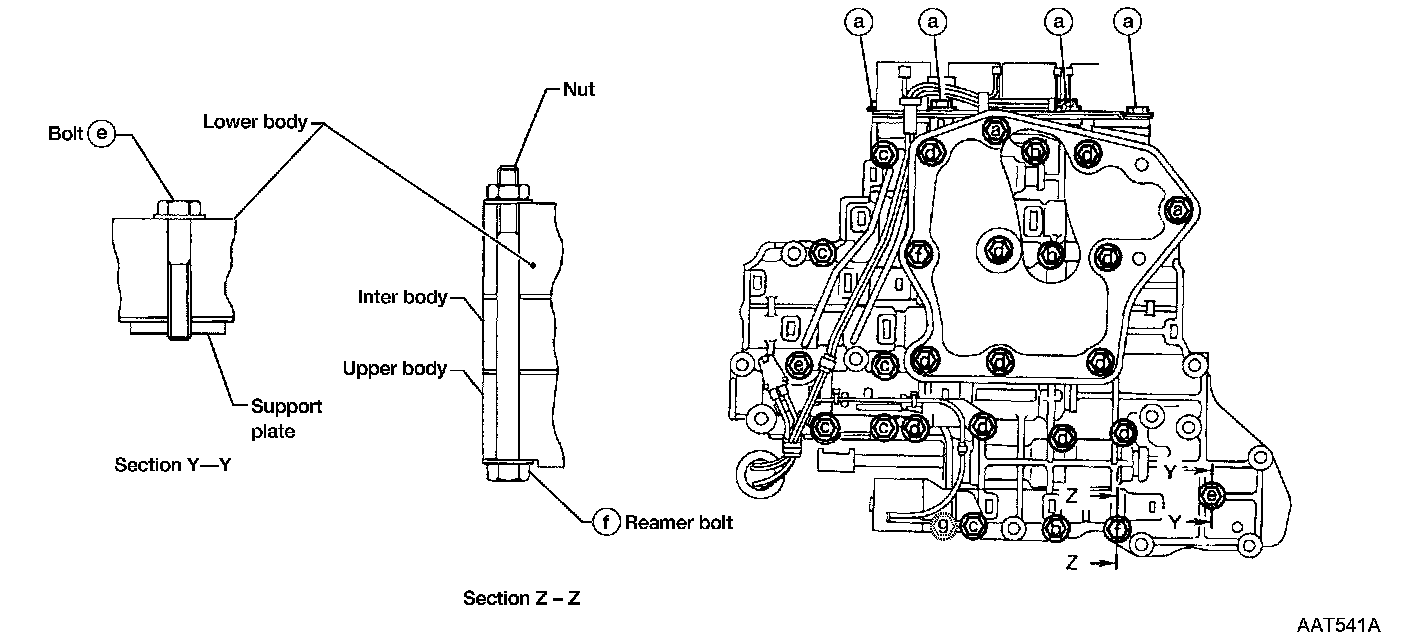

Bolt Location:
3. Install and tighten bolts.
a. Install and tighten bolts b to specified torque.
TORQUE:.......................7 - 9 Nm (0.7 - 0.9 kgf-cm, 61 - 78 inch lbs.)
b. Install solenoid valve assembly and line pressure solenoid valve to lower body
c. Set oil strainer, then tighten bolts a, c, d and nuts f to specified torque.
TORQUE:.......................7 - 9 Nm (0.7 - 0.9 kgf-cm, 61 - 78 inch lbs.)
d. Tighten bolts e to specified torque.
TORQUE:.......................3.4 - 4.4 Nm (0.35 0.45 kgf-cm, 30.4 - 39.1 inch lbs.)
