Disassembly

REPAIR FOR COMPONENT PARTS
Control Valve Assembly

Control Valve Assembly:

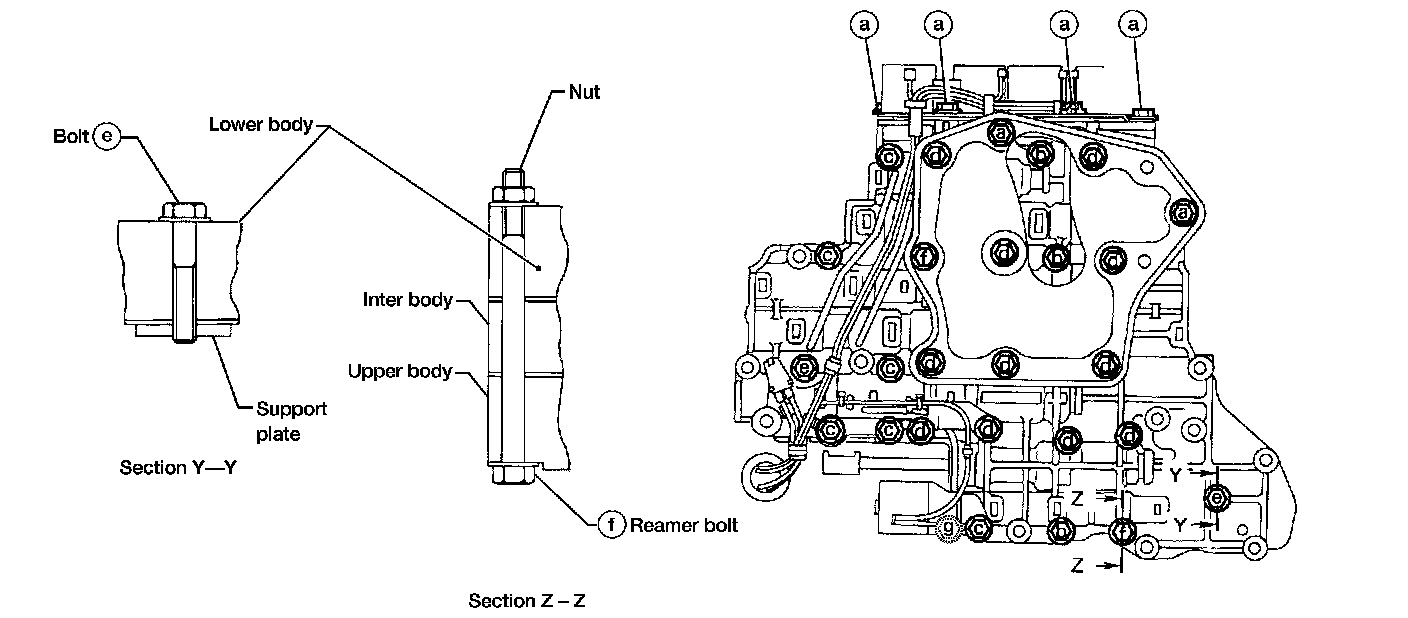

Bolt length, number and location:

Disassemble upper, inter and lower bodies:

DISASSEMBLY






1. Remove bolts a, d and nut f and remove oil strainer from control valve assembly






2. Remove solenoid valve assembly and line pressure solenoid valve from control valve assembly.






3. Remove O-rings from solenoid valves and terminal body.






4. Place upper body facedown, and remove bolts b, c and nut f.






5. Remove inter body from lower body






6. Turn over lower body, and remove accumulator support plate.






7. Remove bolts e, separating plate and separating gasket from lower body.
8. Remove check balls and relief valve springs from lower body
Be careful not to lose check balls and relief valve springs.






9. Remove inter body from upper body.






10. Check to see that check balls are properly positioned in inter body and then remove them.
Be careful not to lose check balls.





11. Check to see that check balls are properly positioned in upper body and then remove them.
Be careful not to lose check balls.
