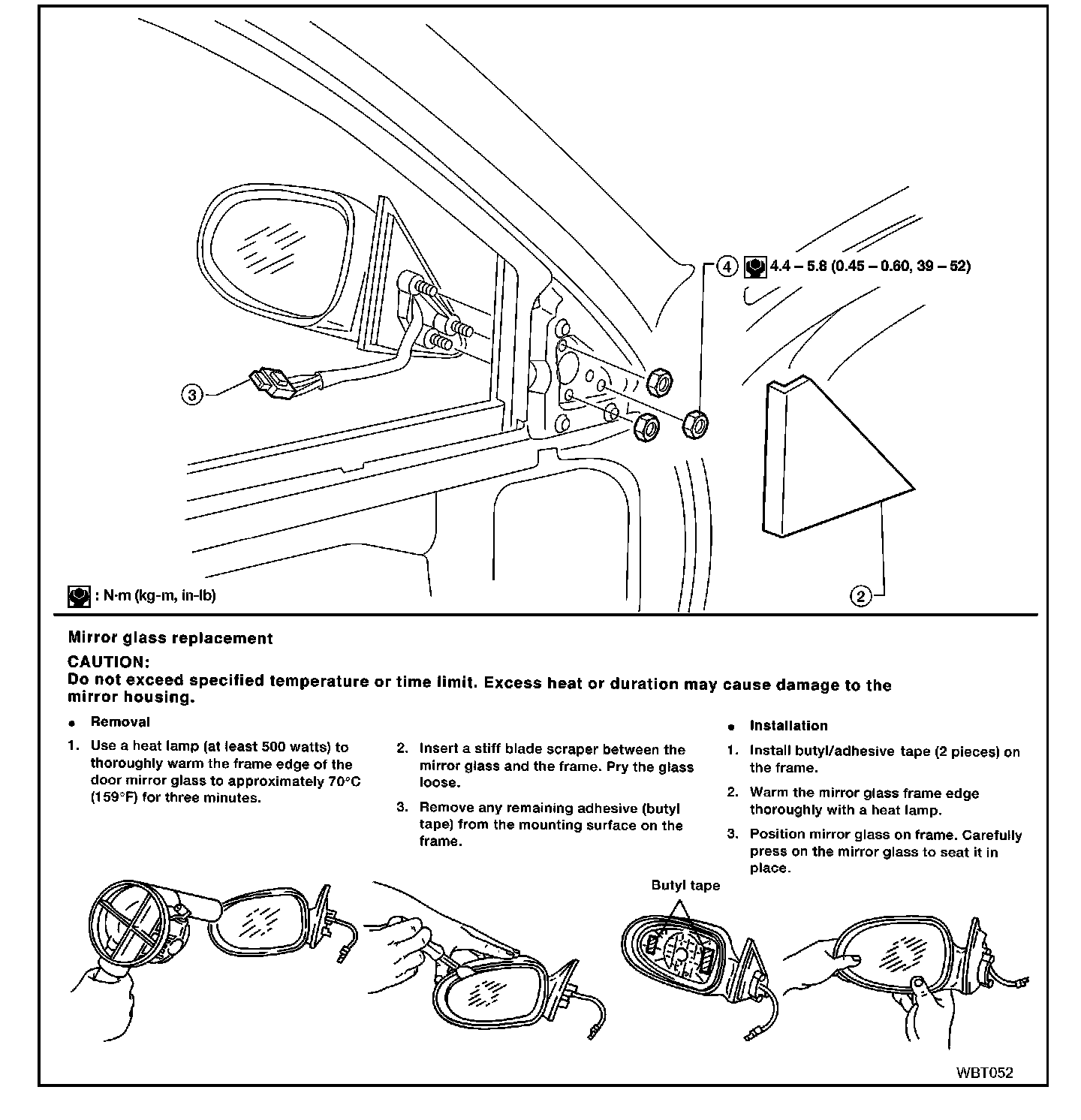

Door Mirror
Removal and InstallationCAUTION: Be careful not to scratch door mirror body.
1.
Remove door finisher. Refer to "Removal and Installation".
2.
Remove inner cover from front corner of door.
3.
Disconnect door mirror harness connector.
4.
Remove three nuts securing door mirror assembly.
