Sensor Rotor

Removal
1. Remove the drive shaft or rear wheel hub.





FRONT SENSOR ROTOR





REAR SENSOR ROTOR

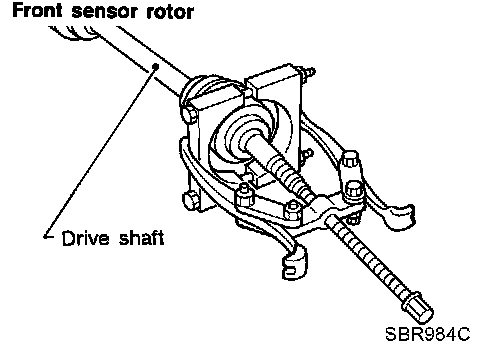

2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

Installation

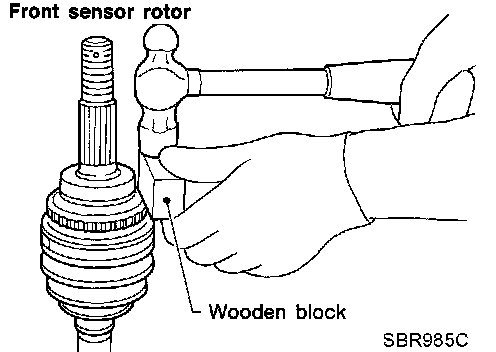

Install the sensor rotor. For front sensor rotor, use hammer and wooden block. For rear sensor rotor, use suitable drift and press.
^ Always replace sensor rotor with new one.





^ Pay attention to the dimension of rear sensor rotor as shown in figure.
Dimension h
Rear Disc: 1.5 - 2.5 mm (0.06 - 0.10 inch)
Rear Drum: 17.7 - 18.7 mm (0.70 - 0.74 inch)
