Initial Inspection and Diagnostic Overview
Component InspectionASCD BRAKE SWITCH 1.
Turn
ignition switch "OFF".
2.
Disconnect ASCD brake switch harness connector.
3.

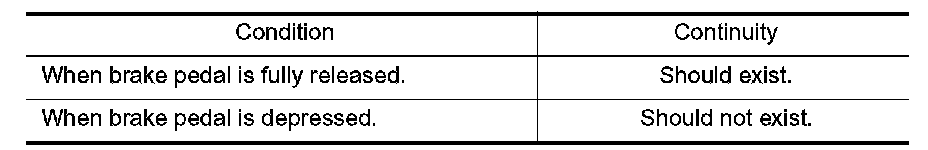

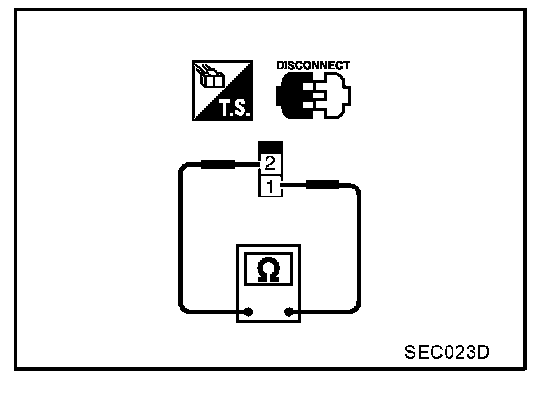

Check continuity between ASCD brake switch terminals 1 and 2 under the given conditions.
If NG, adjust ASCD brake switch installation, refer to "BRAKE PEDAL AND BRACKET", and perform step 3 again.
