Clutch Switch: Testing and Inspection
ASCD CLUTCH SWITCH (FOR M/T MODELS) 1.
Turn
ignition switch "OFF".
2.
Disconnect ASCD clutch switch harness connector.
3.

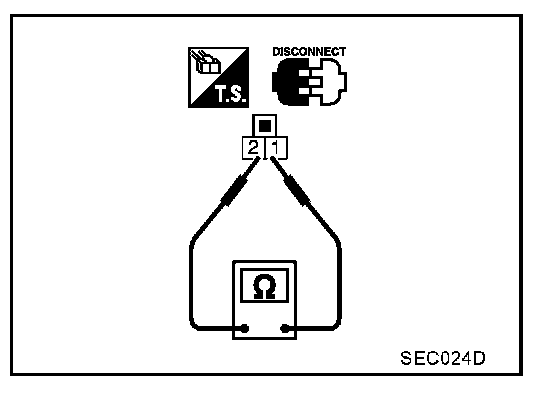

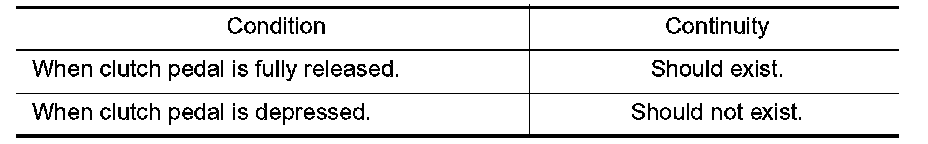

Check continuity between ASCD clutch switch terminals 1 and 2 under the given conditions.
If NG, adjust ASCD clutch switch installation, refer to "CLUTCH SYSTEM" , and perform step 3 again.
