Engine: Testing and Inspection

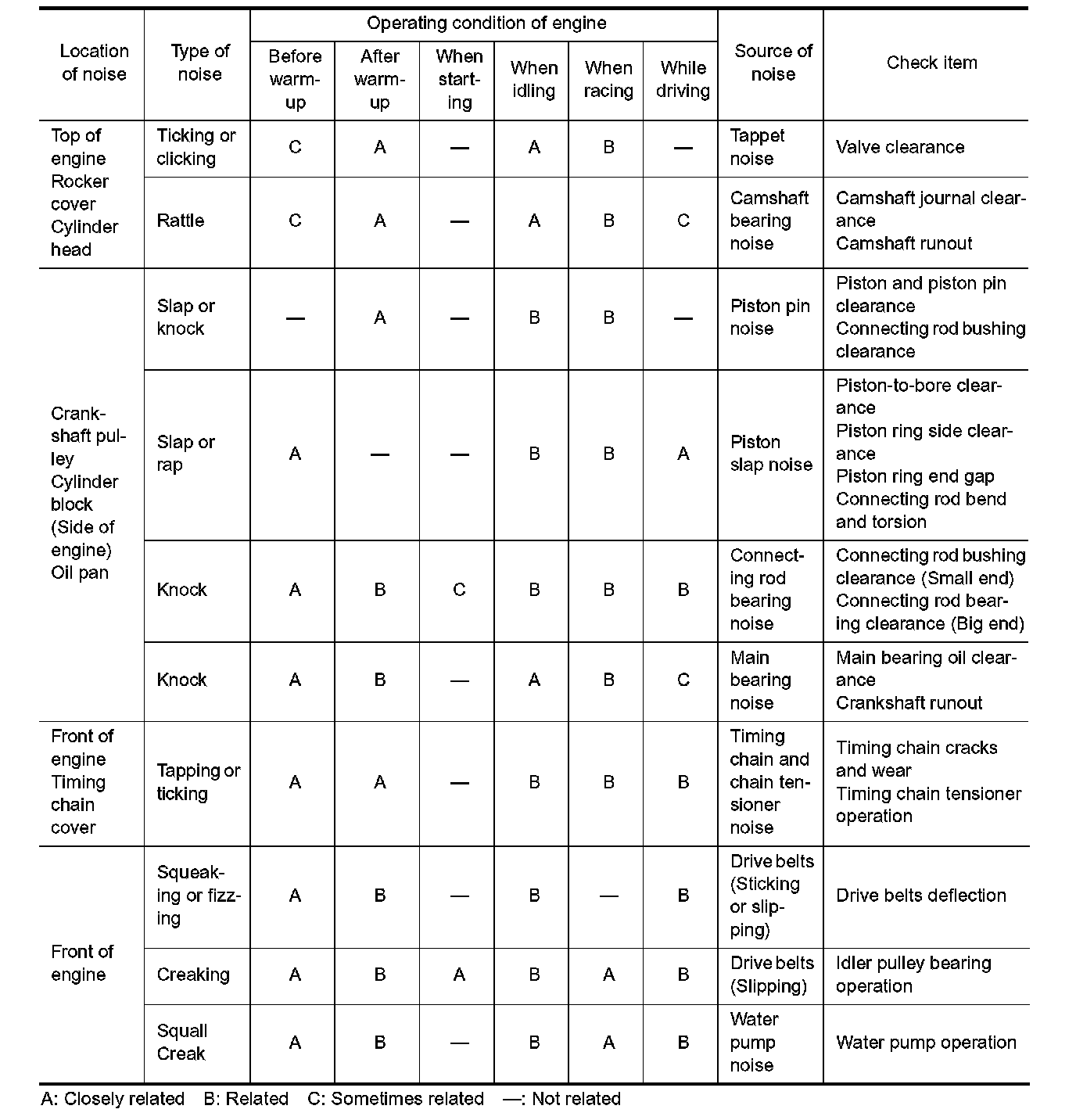

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING NVH Troubleshooting - Engine Noise Use the Chart Shown to Help You Find the Cause of the Symptom.
1.

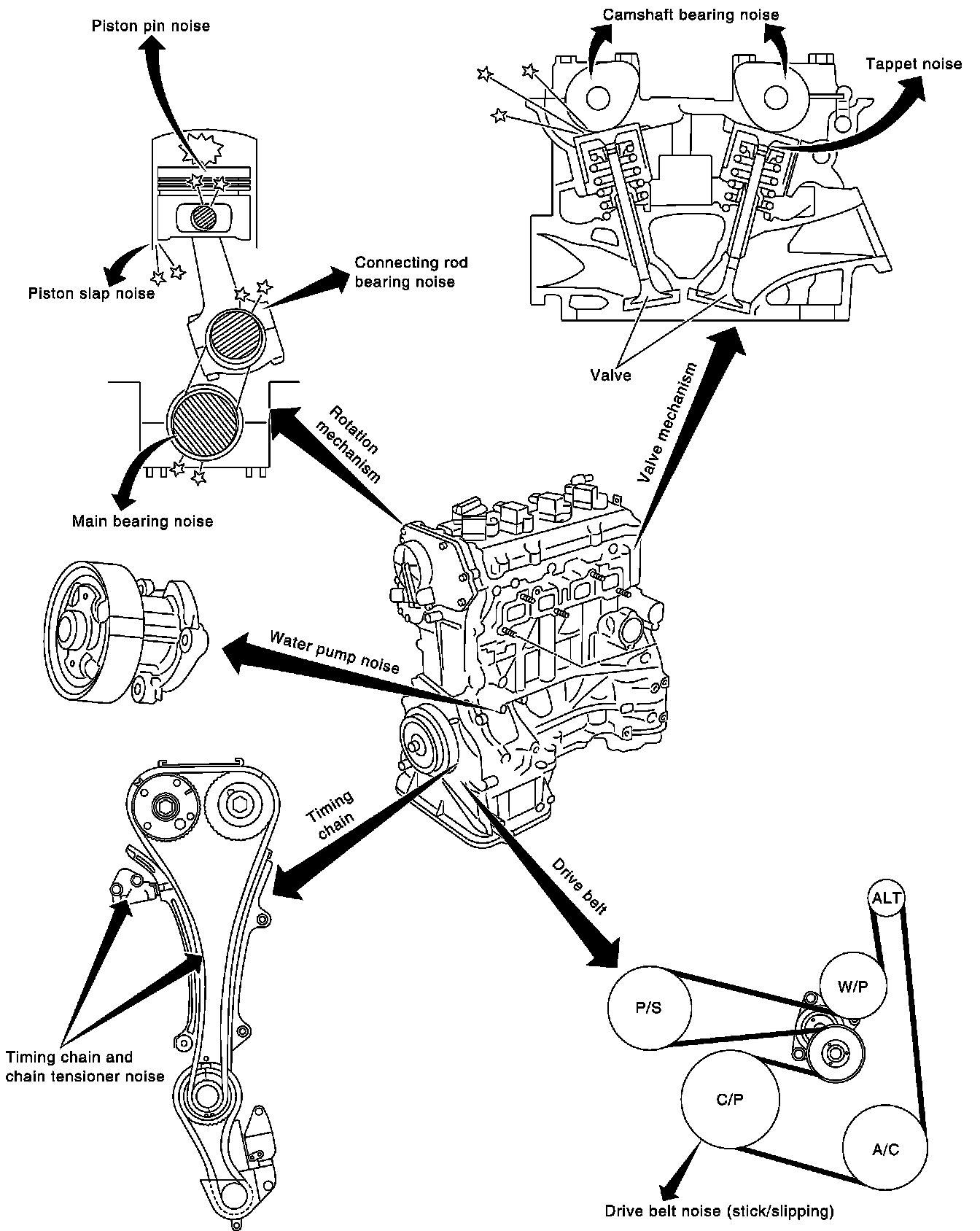

Locate the area where noise occurs.
2.
Confirm the type of noise.
3.
Specify the operating condition of engine.
4.
Check specified noise source.
If necessary, repair or replace these parts.
