Compressor Clutch: Specifications

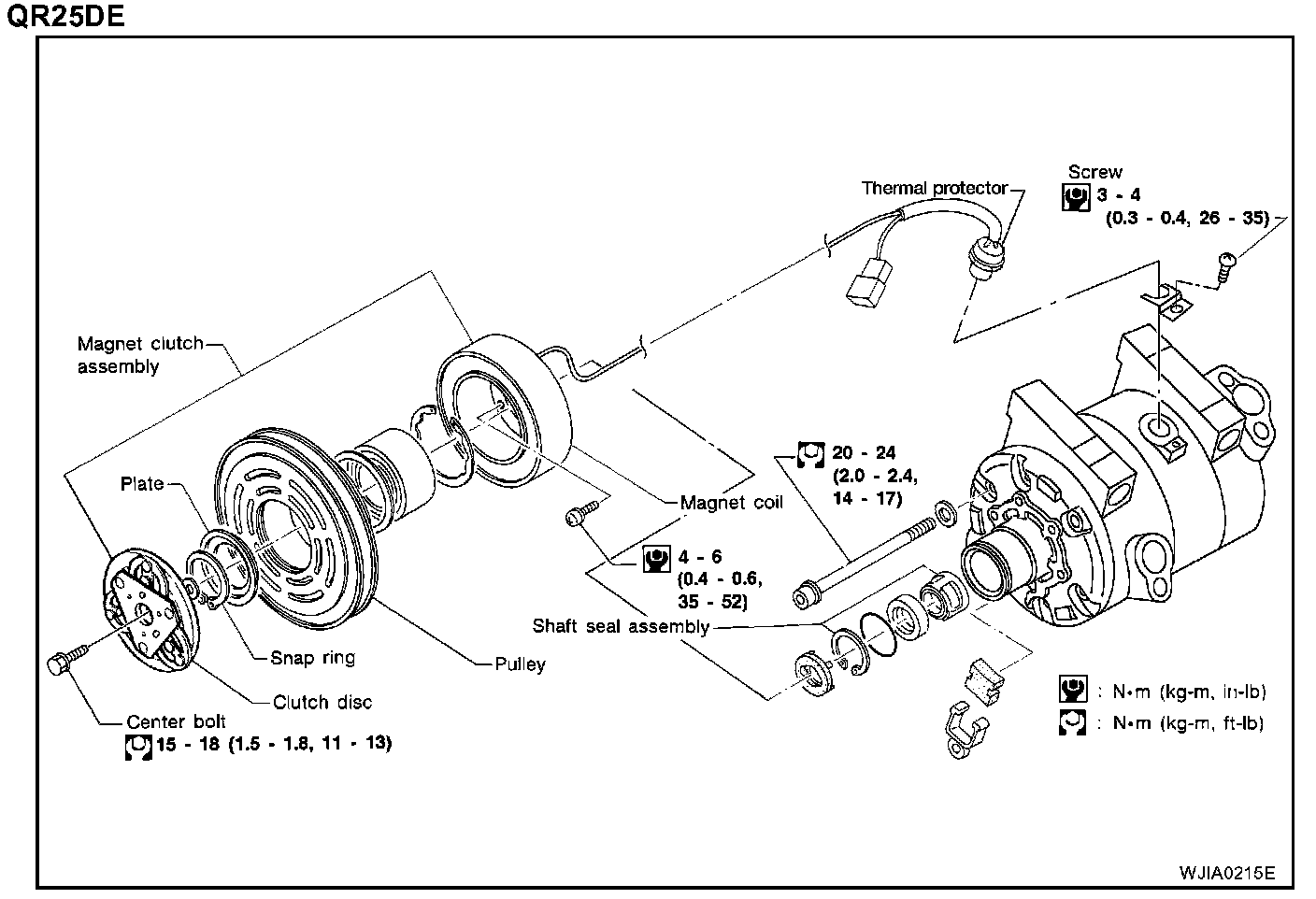

Magnet Clutch / QR25DE:






Magnet Clutch

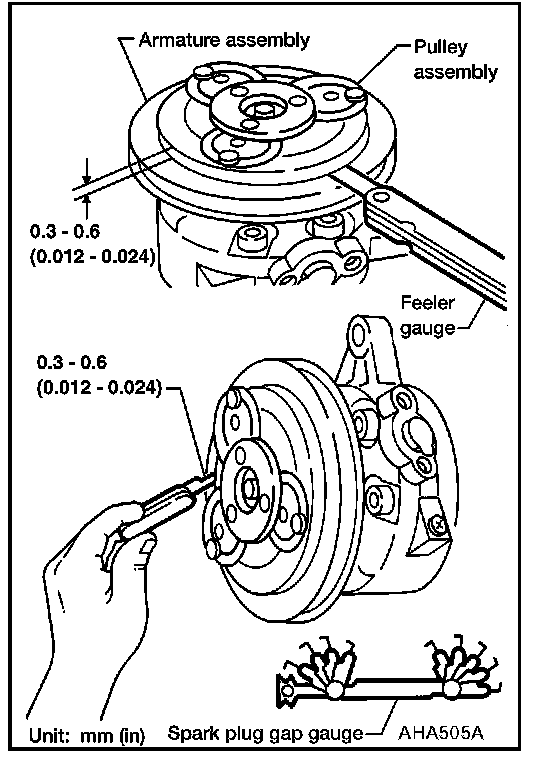

Clutch disc-pulley clearance mm (in) 0.3 - 0.6 (0.012 - 0.024)

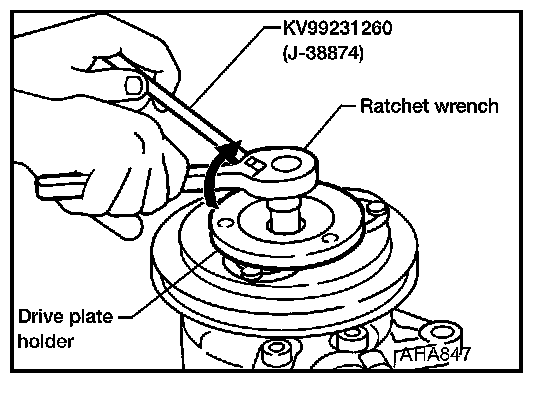

Center Bolt: 12 to 15 N.m (1.2 to 1.5 kg-m, 9 to 11 ft-lb)
