Cabin Air Filter / Purifier: Service and Repair

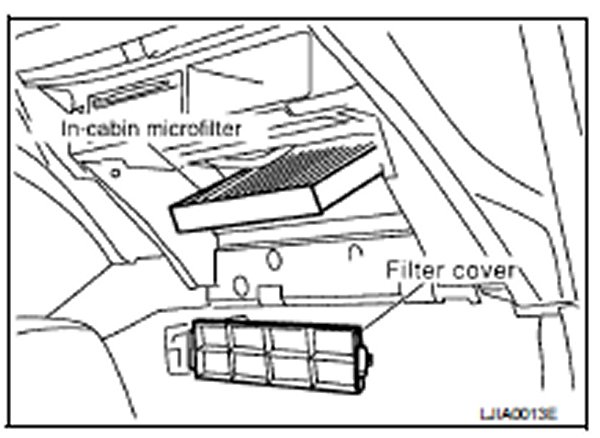

In-Cabin Microfilter Replacement.
1.
Remove glove box assembly.
2.
Remove in-cabin microfilter cover.
3.
Remove the in-cabin microfilter from blower unit.
4.
Replace with new in-cabin microfilter and reinstall cover on blower unit.
5.
Reinstall glove box assembly.
