Fluid - M/T: Testing and Inspection
Checking M/T Oil 1.
Check that oil is not leaking from transaxle or around it.
2.

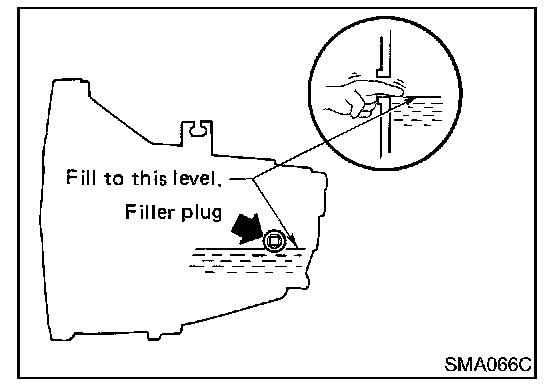

Check oil level.
Never start engine while checking oil level.
Filler plug
Tightening Torque : RS5F70A (QG18DE)
10 - 19 N.m (1.0 - 2.0 kg-m, 87 - 173 in-lb) Tightening Torque : RS5F51A, RS6F51A, (QR25DE)
30 - 39 N.m (3.1 - 4.0 kg-m, 23 - 28 lb-ft)
