Variable Valve Timing Solenoid: Testing and Inspection
Component InspectionINTAKE VALVE TIMING CONTROL SOLENOID VALVE 1.
Disconnect intake valve timing control solenoid valve harness connector.
2.

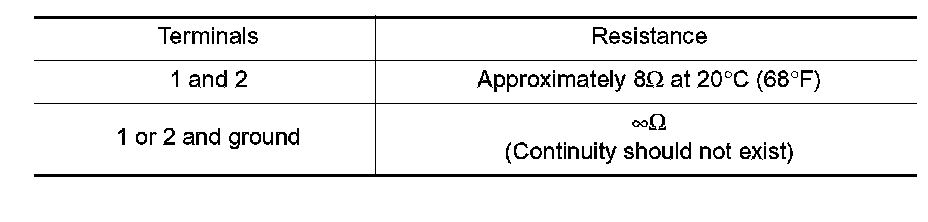

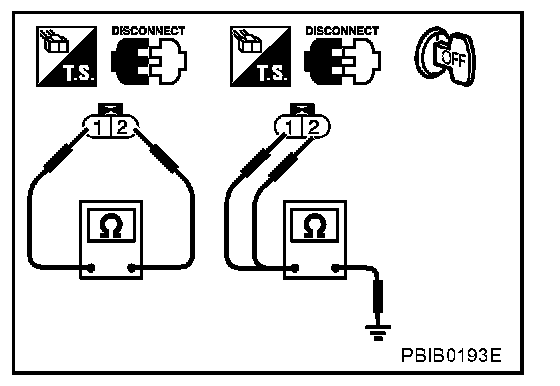

Check resistance between intake valve timing control solenoid valve terminals 1 and 2.
