Positive Crankcase Ventilation: Testing and Inspection

PCV (POSITIVE CRANKCASE VENTILATION) VALVE

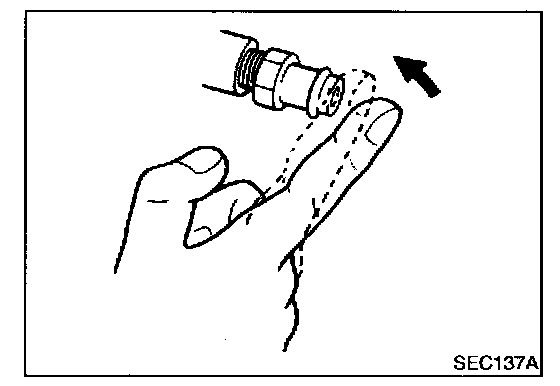

With engine running at idle, remove PCV valve from rocker cover. A properly working valve makes a hissing noise as air passes through it. A strong vacuum should be felt immediately when a finger is placed over valve inlet.




PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.

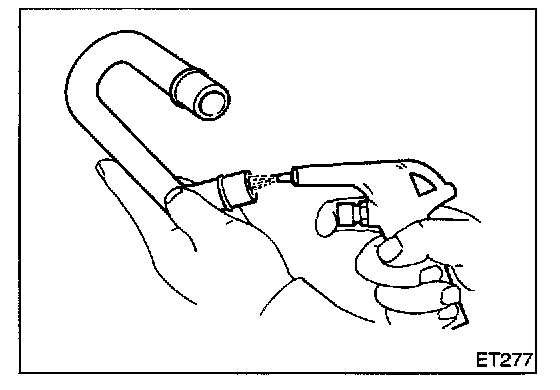

2. Disconnect all hoses and clean with compressed air. If any hose cannot be freed of obstructions, replace.
