Fuel Temperature Sensor: Testing and Inspection
Component InspectionFUEL TANK TEMPERATURE SENSOR 1.
Remove fuel level sensor unit.
2.

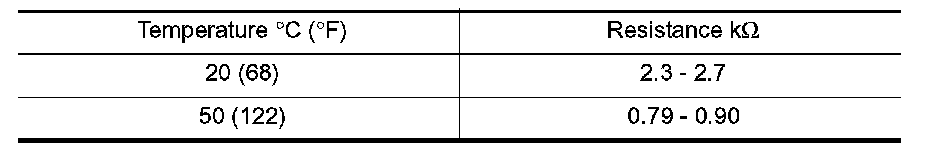

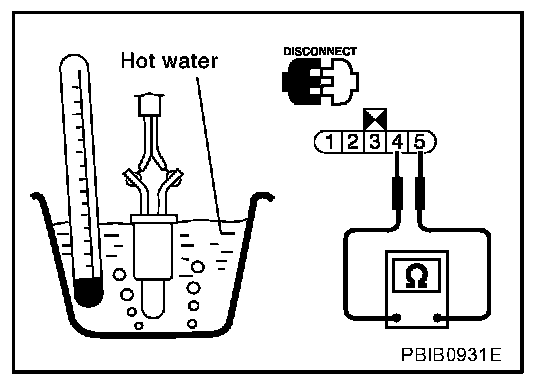

Check resistance between fuel level sensor unit and fuel pump terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.
If NG, replace fuel level sensor unit.
