Check the Current ECM Part Number (P/N)

Before beginning this Service Procedure, use CONSULT-II to make sure there are no DTCs stored in the ECM.

Repairs for stored DTCs must be done before performing the ECM reprogramming. Use ASIST for DTC diagnostic and repair information.

Repairs for stored DTCs are not related to this campaign.

Check the Current ECM Part Number (P/N)

1. With the Diagnostic Card (red/white card) in CONSULT-II and CONSULT-II turned "ON", print the ECM Part Number as follows:

[START (Nissan)] >> [ENGINE] >> [ECM PART NUMBER] >> [COPY]

2. Attach this printout to the Repair Order.

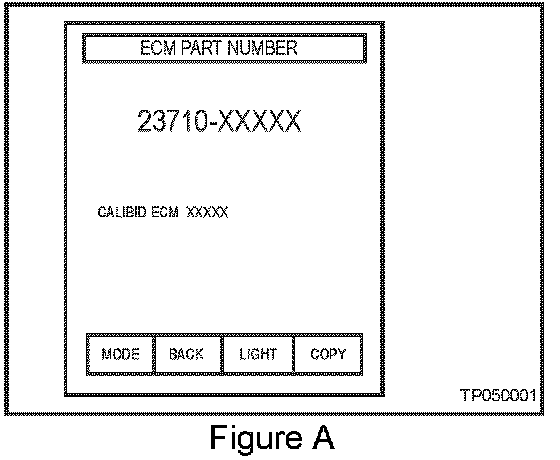

^ Figure A is an example of the ECM Part Number printout.

3. Using the ECM P/N printout:

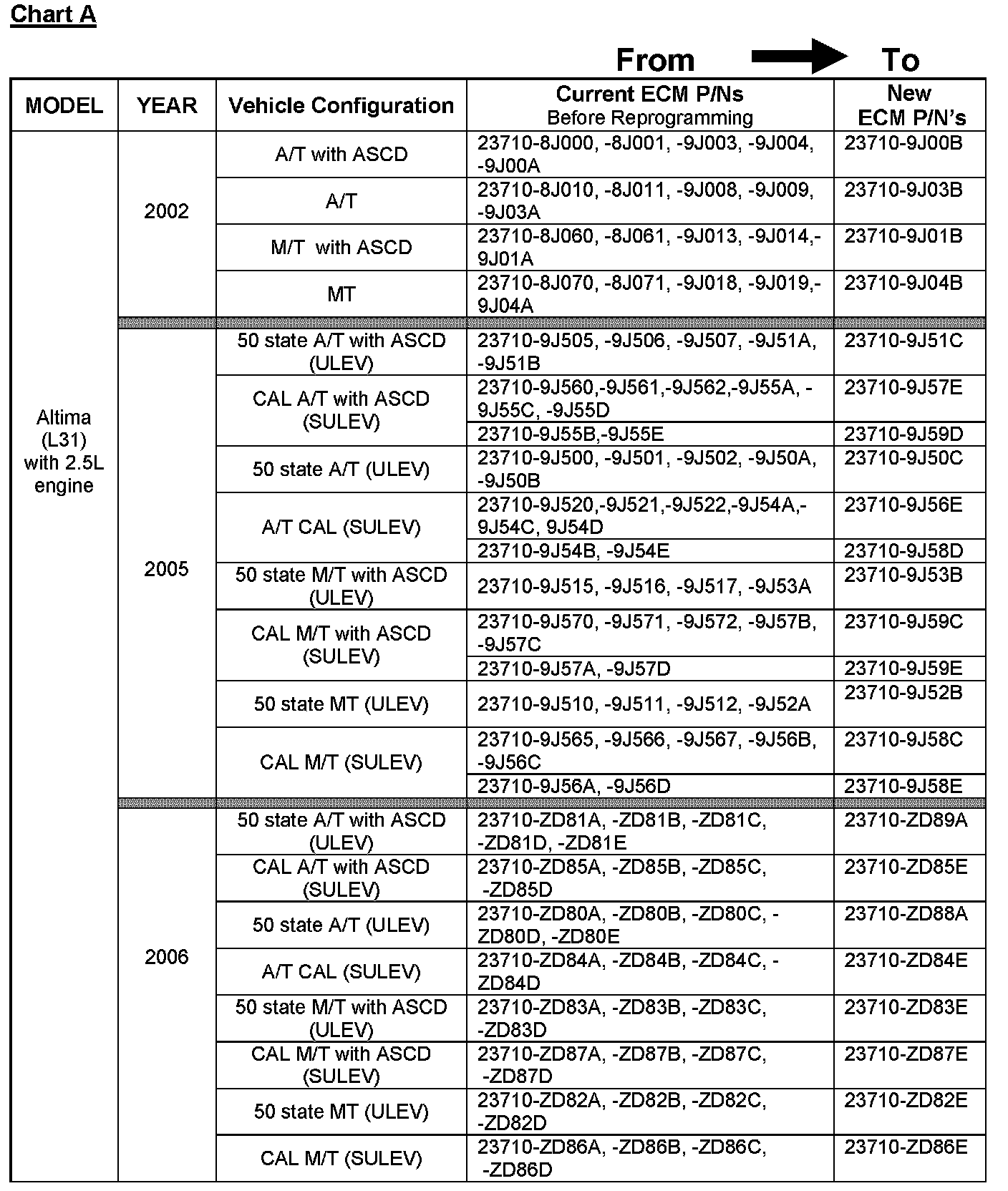

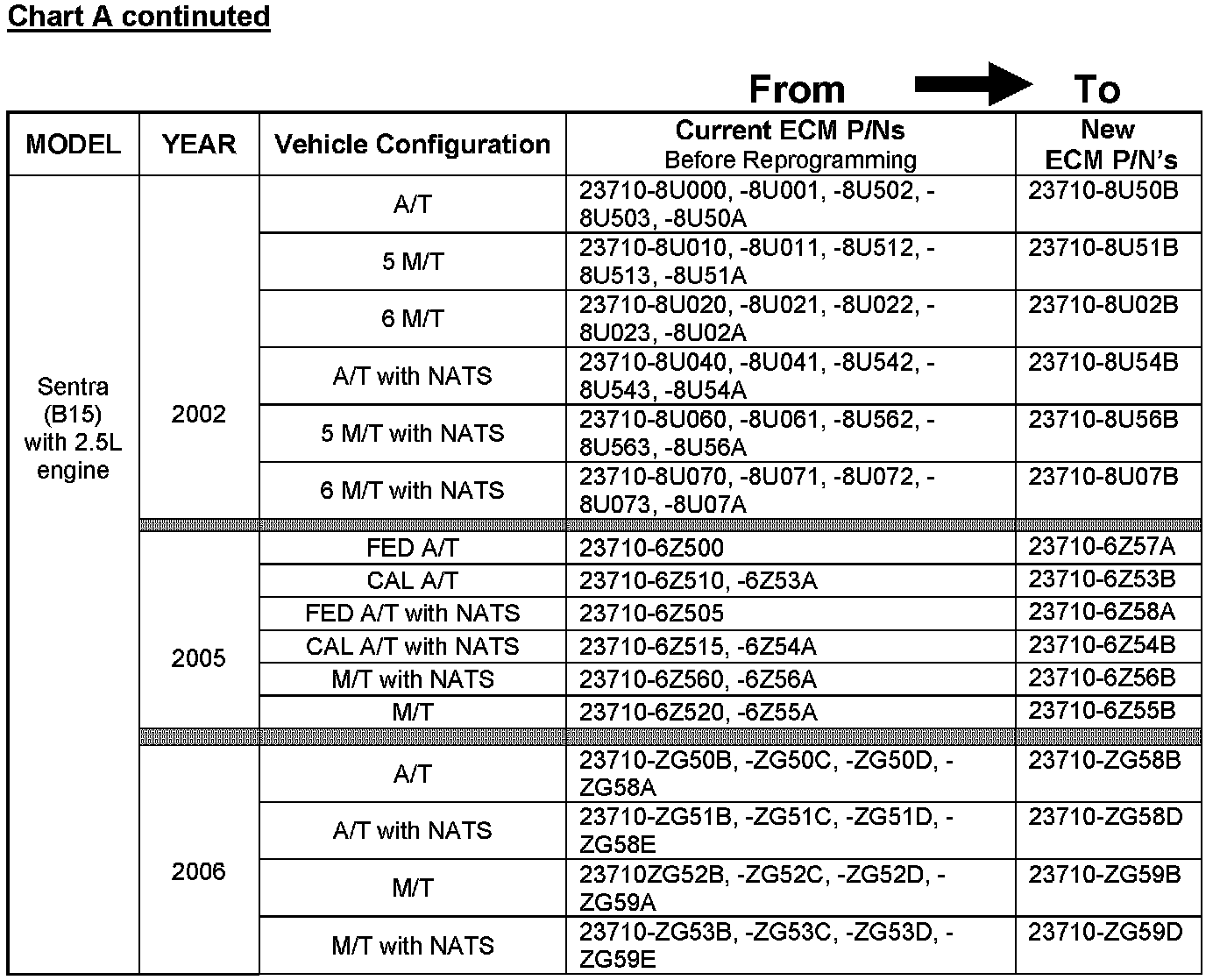

^ Compare your vehicle's ECM P/N to those shown under Current ECM P/N in Chart A.

A. If your vehicle's ECM P/N matches one of the Current ECM P/N's in the chart above:

^ Go to Reprogramming the ECM below..

B. If your vehicle's ECM P/N does not match one of the Current ECM P/N's in the chart above:

^ This campaign may not apply or has already been done.

^ Recheck Service Comm (campaign ID R0712) to confirm the vehicle you're working on is affected by this campaign.
