Vehicle Does Not Start From D1 ECSL

16. Vehicle Does Not Start From D1

SYMPTOM: Vehicle does not start from D1 on Cruise test-Part 2.

1. CHECK SELF-DIAGNOSTIC RESULTS

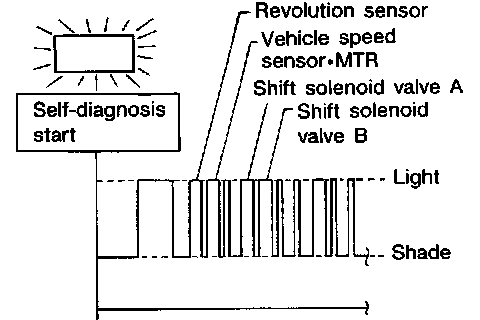

Does self-diagnosis show damage to vehicle speed sensor A/T (revolution sensor), shift solenoid valve A, B or vehicle speed sensor MTR after cruise test?
Yes or No
Yes >> Check damaged circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)", "DTC P0750 SHIFT SOLENOID VALVE A", "DTC P0755 SHIFT SOLENOID VALVE B" or "DTC VEHICLE SPEED SENSOR MTR".
No >>GO TO 2.

2. CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to "8. Vehicle Cannot Be Started From D1".
NG >> GO TO 3.

3. CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
