Alternator: Service and Repair

Removal
1. Disconnect the negative battery cable.
2. Remove the front/right-side engine undercover.
3. Remove the drive belt.
4. Disconnect the generator harness connectors.
5. Disconnect the engine ground wire from the top mount.
6. Remove the generator upper and lower mount bolts.

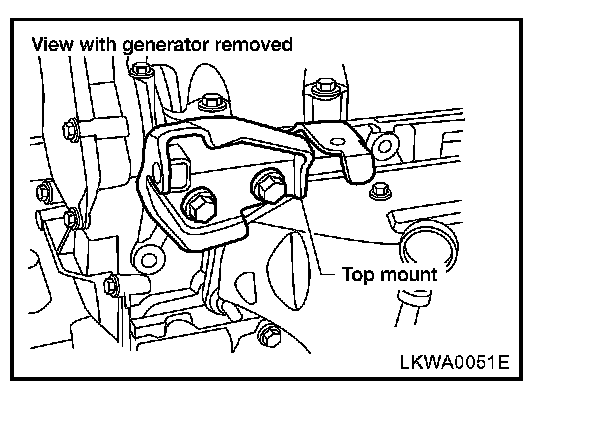

7. Set the generator aside and remove the generator top mount.
8. Slide the generator out and remove.

Installation
To install, reverse the removal procedure.
