Control Valve Lower Body

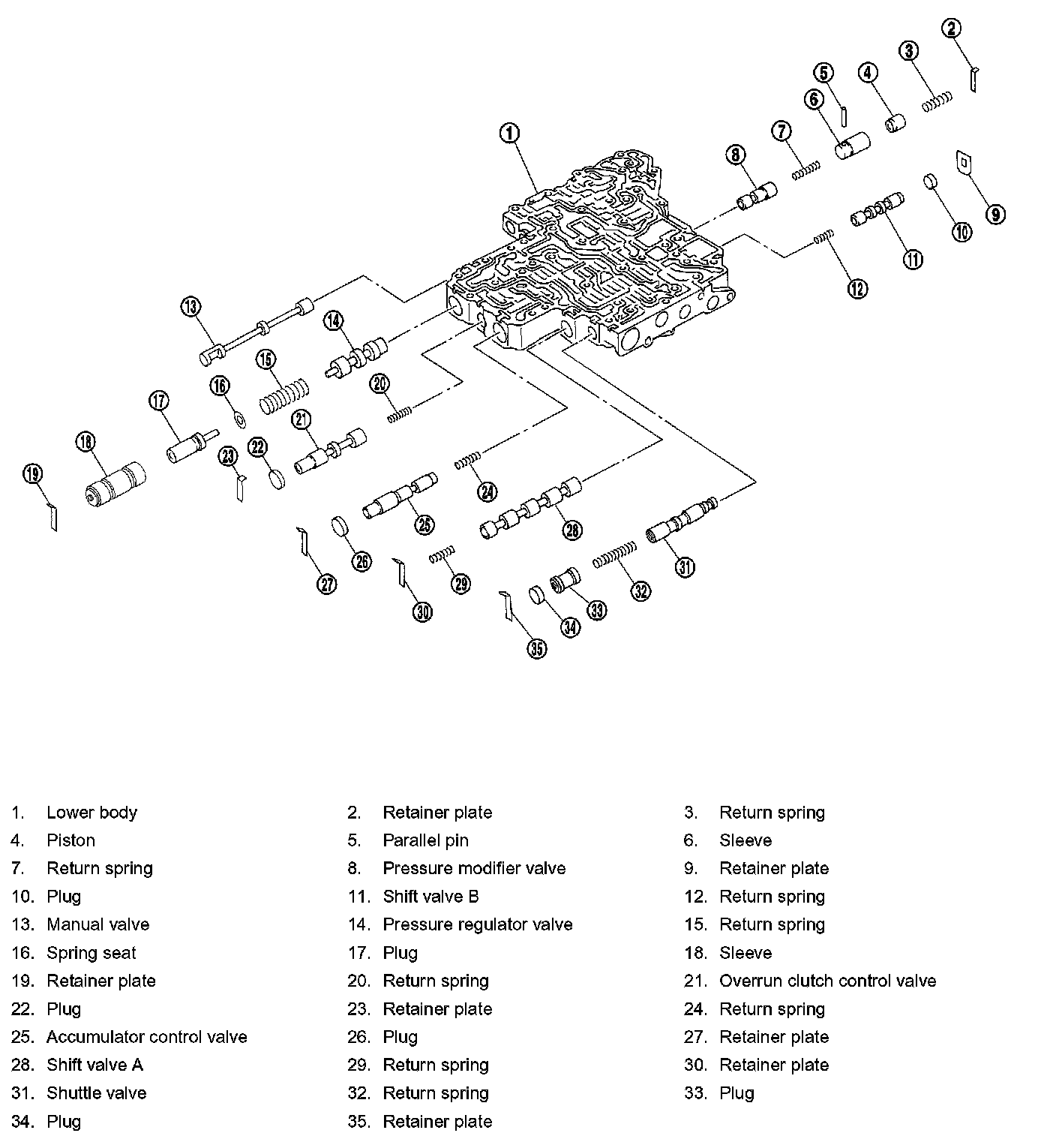

Control Valve Lower Body






Apply ATF to all Components before installation.

DISASSEMBLY





- Remove valves at retainer plate.

INSPECTION
Valve Springs

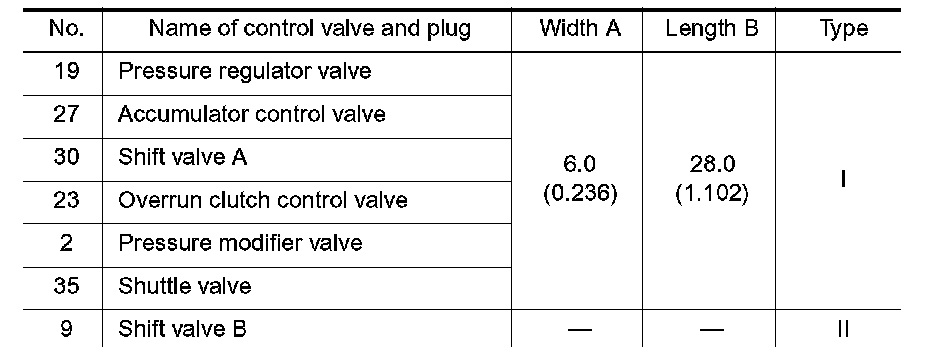

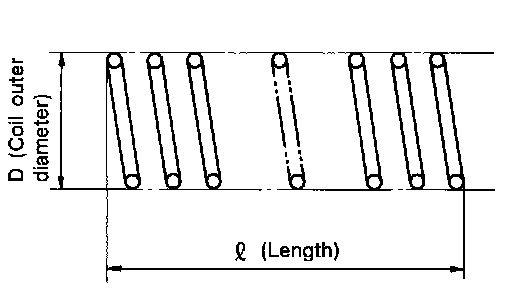

- Check each valve spring for damage or deformation. Also measure free length and outer diameter.
- Replace valve springs if deformed or fatigued.

Control Valves
- Check sliding surfaces of control valves, sleeves and plugs for damage.

ASSEMBLY





- Install control valves.








Retainer Plate (Lower Body)

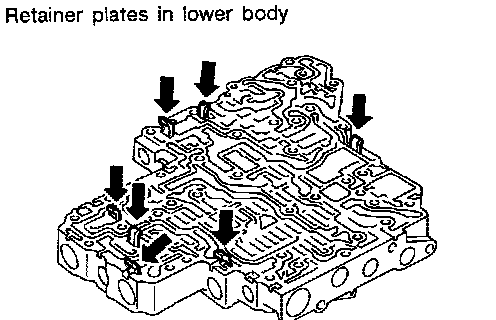

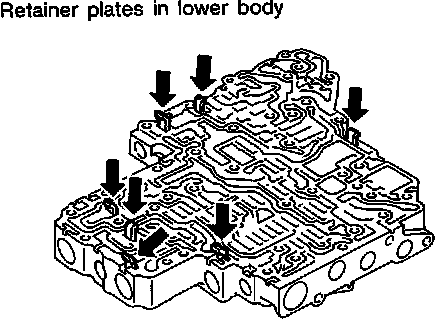

- Install proper retainer plates.
