RS5F51A

Manual Transmission - RS5F51A

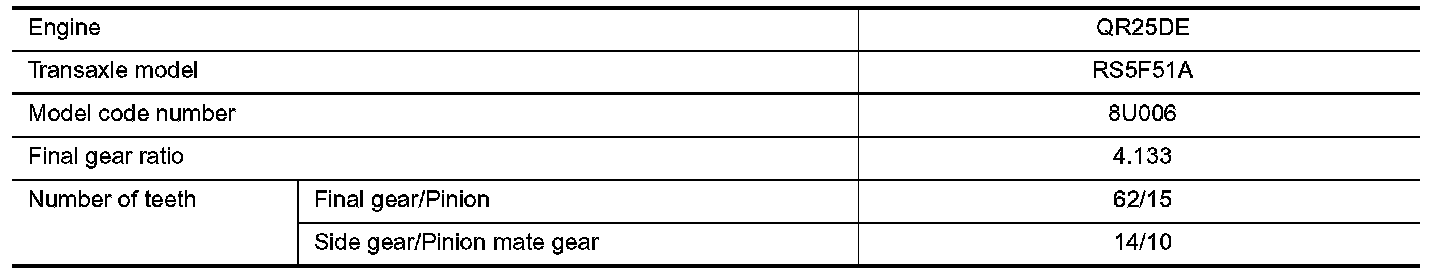

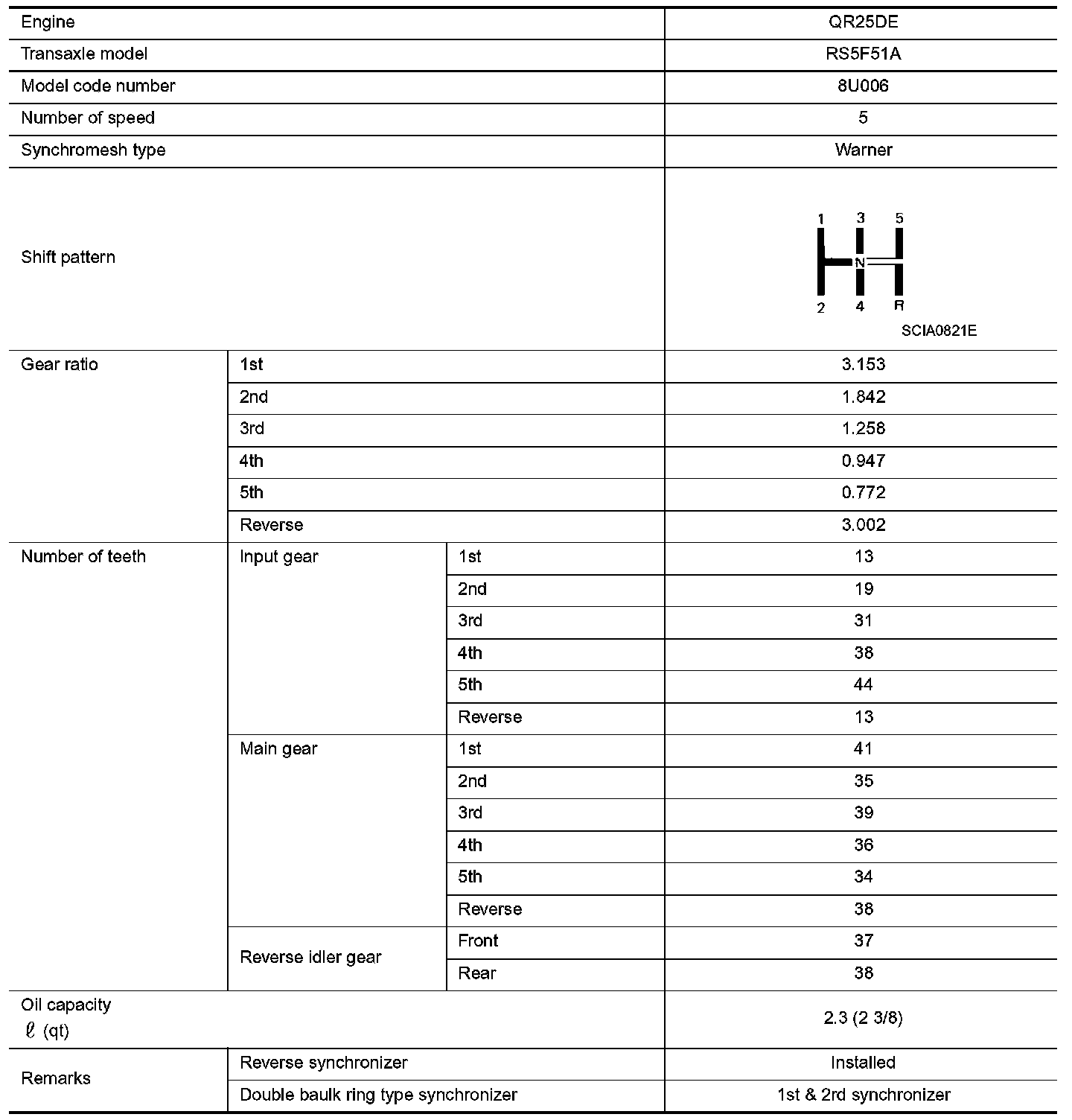

General Specifications





TRANSAXLE





FINAL GEAR

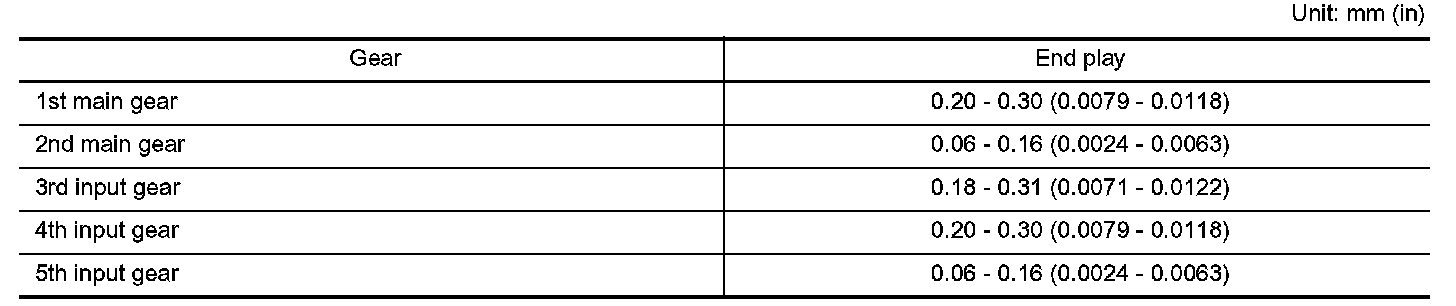

Gear End Play

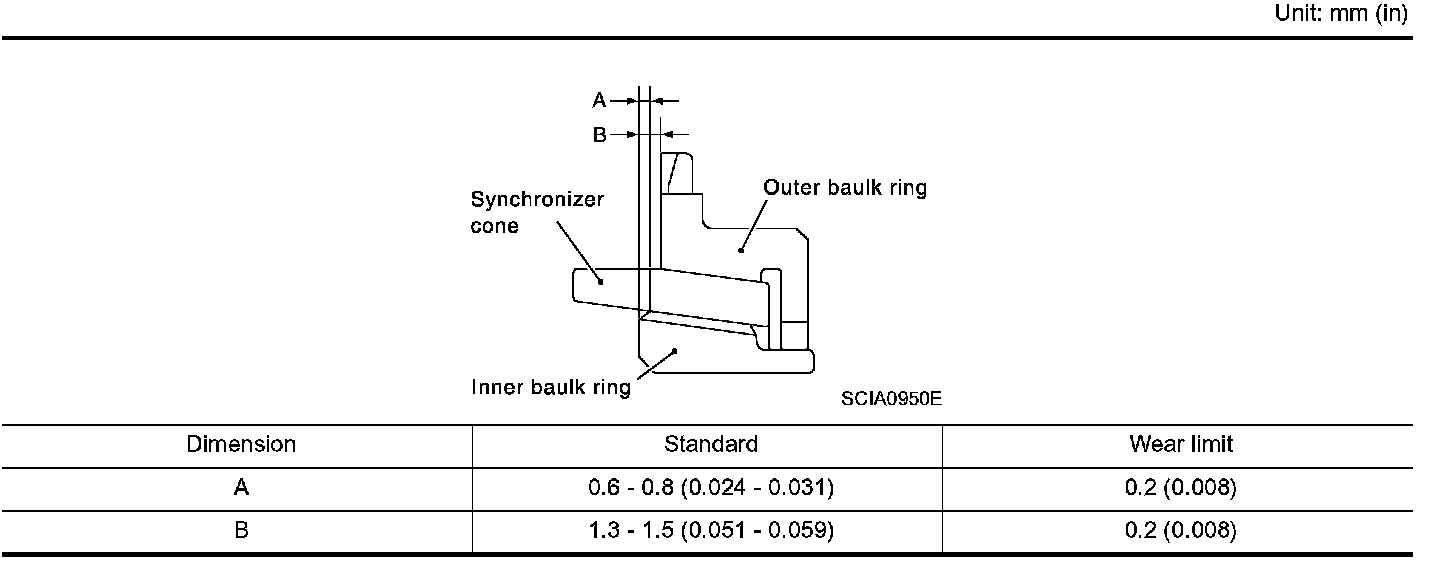

Clearance Between Baulk Ring and Gear

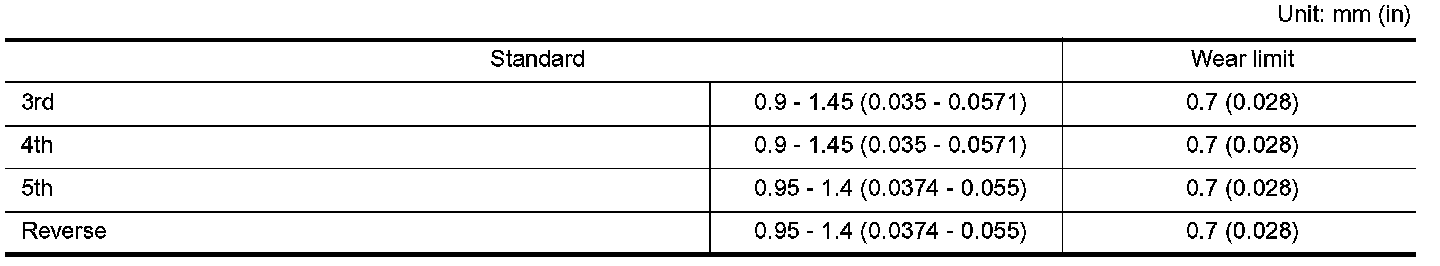

3RD, 4TH, 5TH & REVERSE BAULK RING





1ST AND 2ND DOUBLE BAULK RING

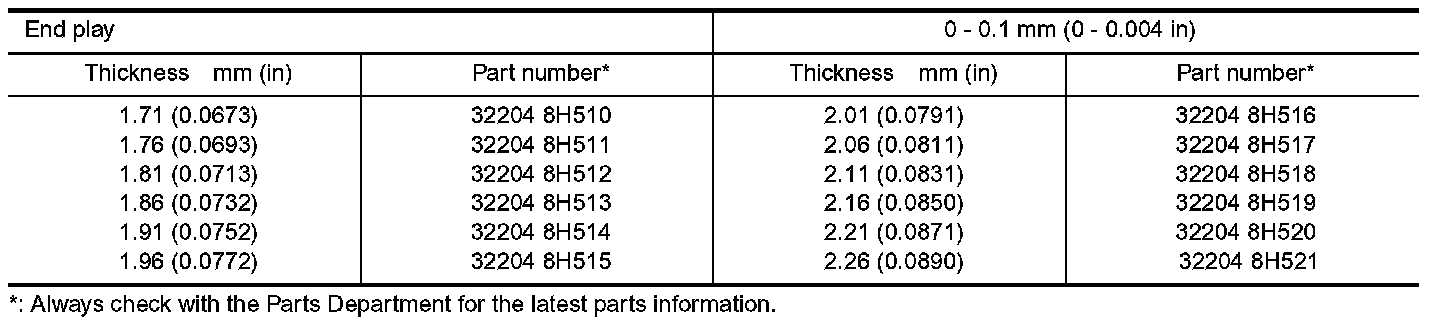

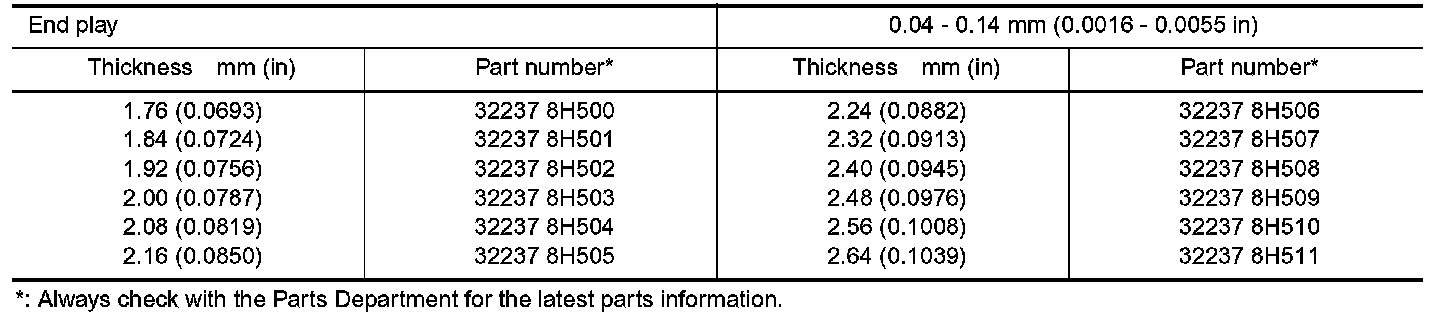

Available Snap Rings

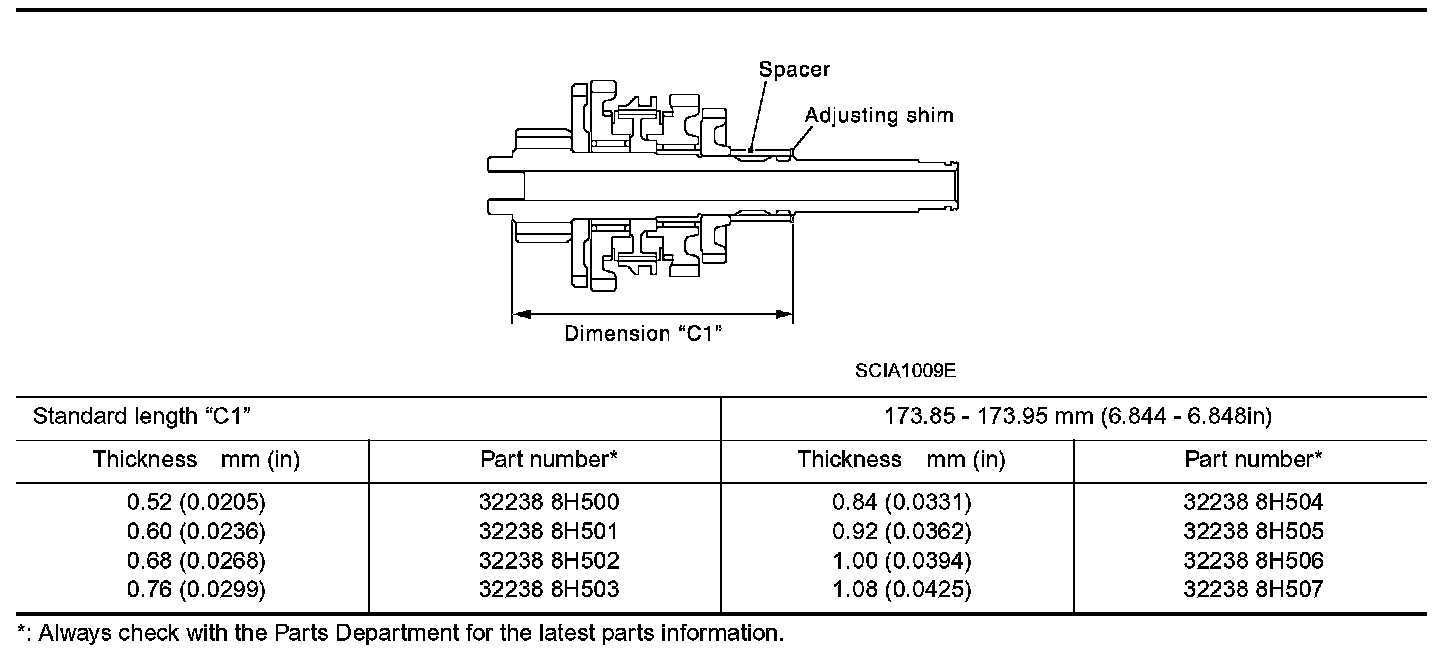

INPUT SHAFT SPACER





5TH MAIN GEAR





MAINSHAFT C-RING

Available Thrust Washers

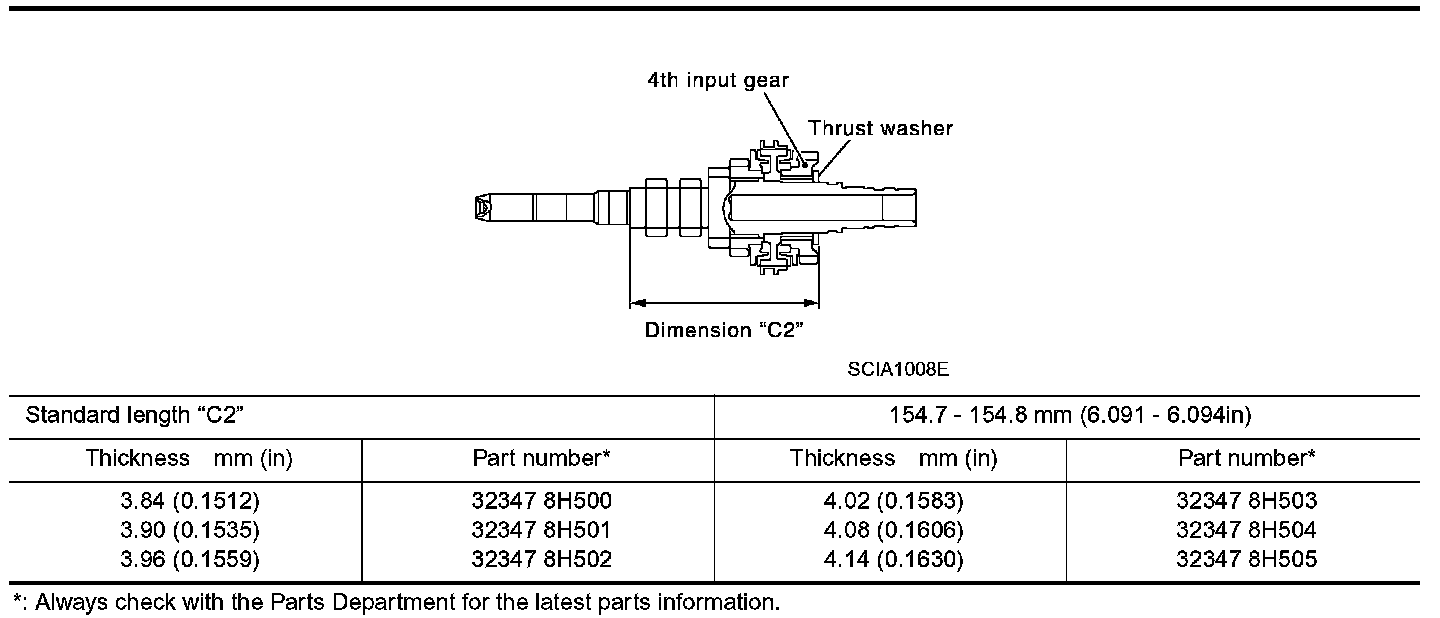

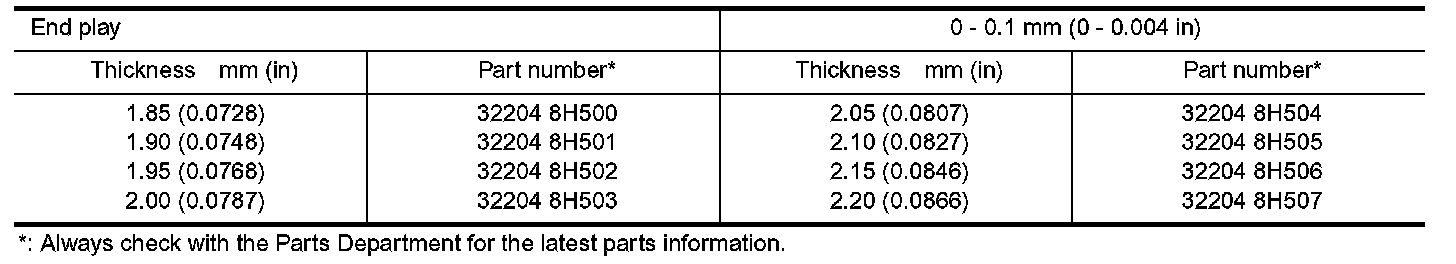

INPUT SHAFT THRUST WASHER

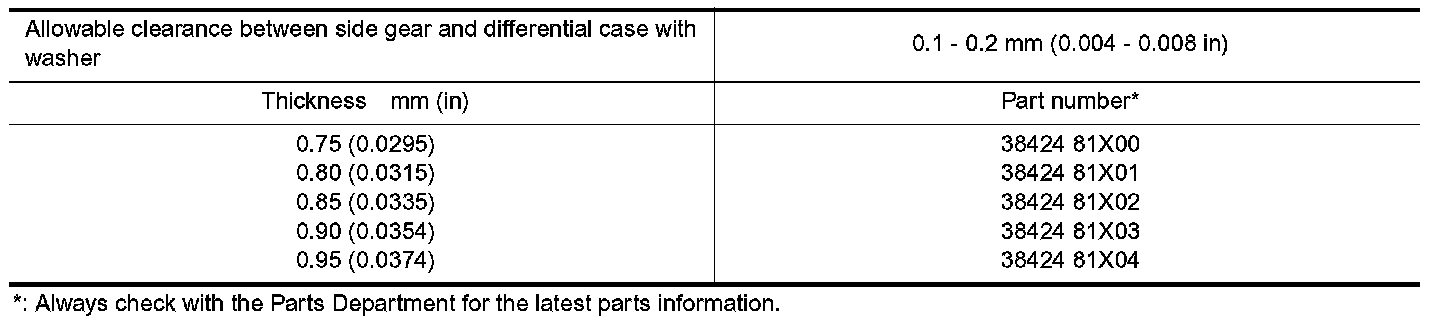

DIFFERENTIAL SIDE GEAR THRUST WASHER

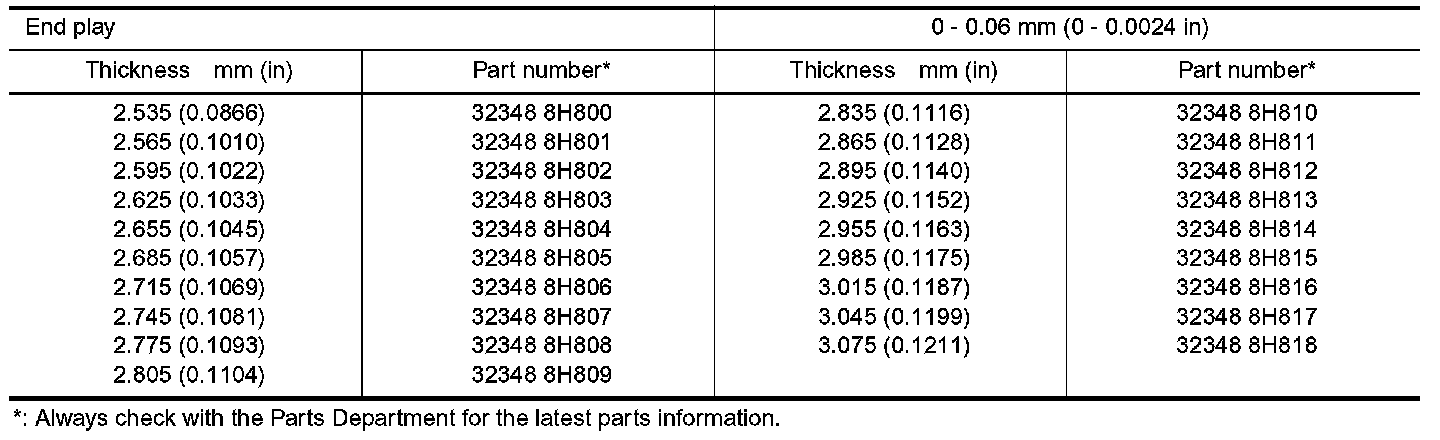

Available Adjusting Shims

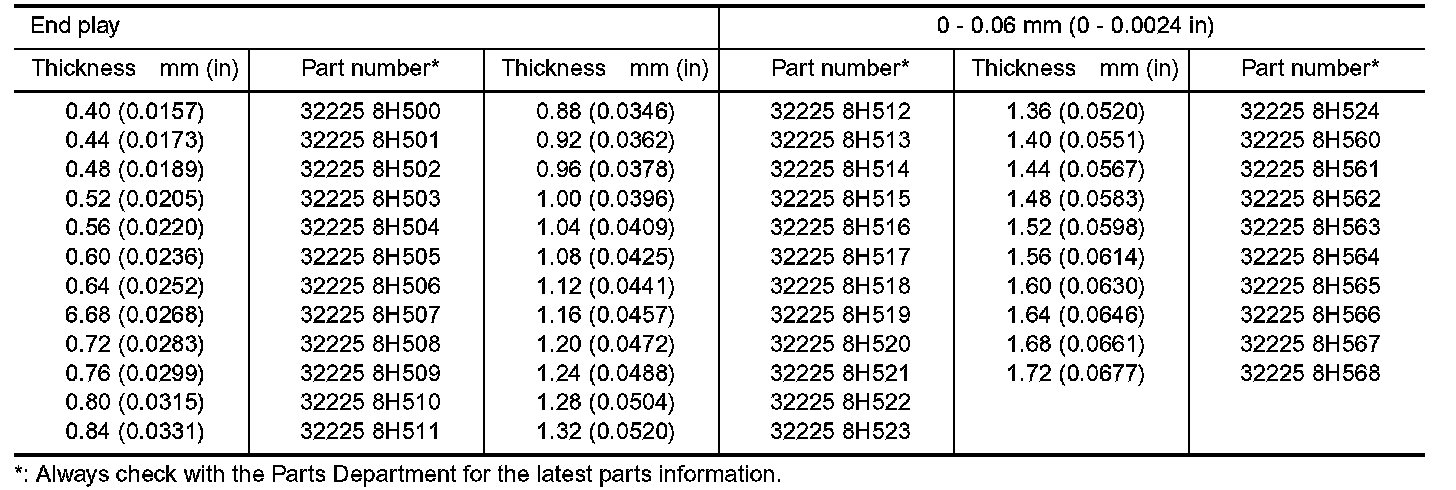

MAINSHAFT ADJUSTING SHIM





INPUT SHAFT REAR BEARING ADJUSTING SHIM





MAINSHAFT REAR BEARING ADJUSTING SHIM





REVERSE IDLER GEAR ADJUSTING SHIM

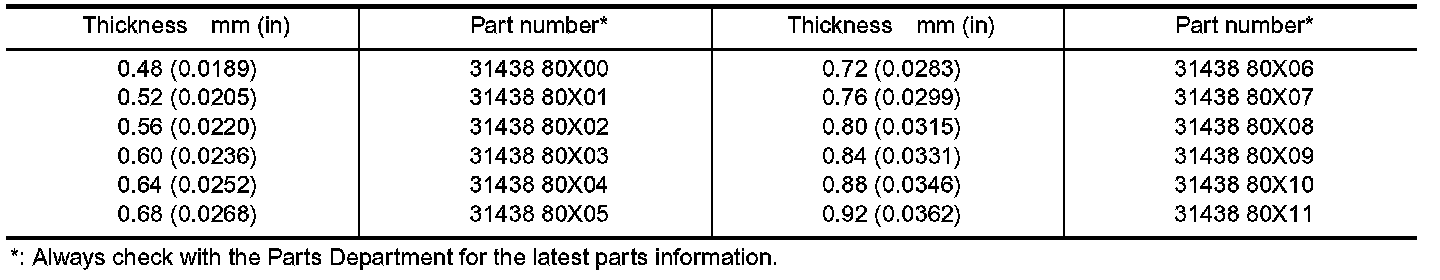

Available Shims
-Differential Side Bearing Preload and Adjusting Shim-





BEARING PRELOAD





DIFFERENTIAL SIDE BEARING ADJUSTING SHIM(S)
