Navigation Module: Service and Repair

Removal and Installation of NAVI control unit

REMOVAL




1. Remove center console.
2. Remove console cover (LH and RH).

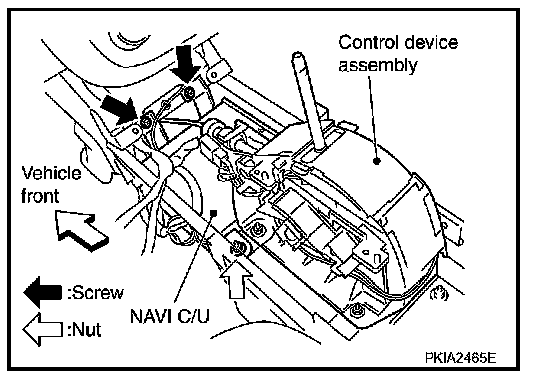

3. Remove control device assembly and remove NAVI control unit screws (2) and nut.
4. Disconnect NAVI control unit connector.

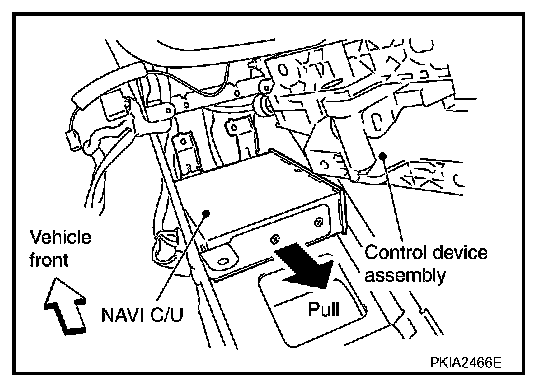

5. Pull NAVI control unit to a cock, then your side.

CAUTION: Cover unit with cloth avoid contact with console box bracket that may cause scratches or damages.

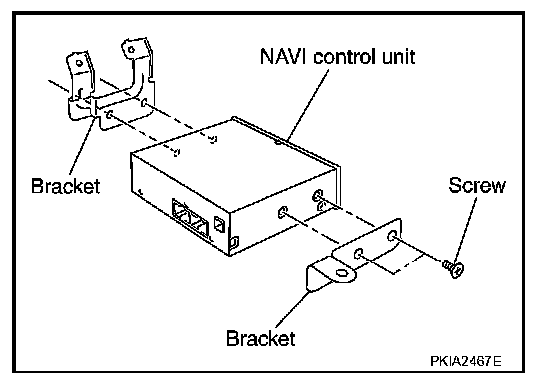

6. Remove screws (4) and remove bracket.

INSTALLATION
Install in the reverse order of removal.
