Auto Amp
AUTO AMPRemoval and Installation of Unified Meter and A/C Amp.REMOVAL 1.
Remove A/C and AV switch from audio unit. Refer to "Removal and Installation for A/C and AV Switch".
Service and Repair 2.

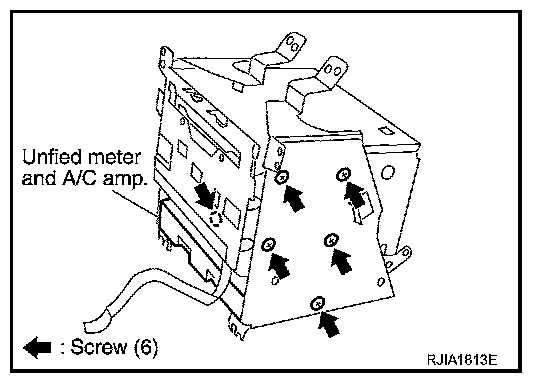

Remove the fixing screws, then remove the unified meter and A/C amp.
INSTALLATIONInstallation is basically the reverse order of removal.
