Interior Lighting - Courtesy Lamps Inoperative

Classification:
EL03-004

Reference:
NTB03-012

Date:
February 6, 2003

2003 MURANO; INTERIOR COURTESY LAMPS INOPERATIVE

APPLIED VEHICLE:
2003 Murano (Z50)

APPLIED DATE:
Built before November 25, 2002

APPLIED VIN(S):
Built before JN8AZ08T(*)3W103076, or JN8AZ08W(*)3W207958

IF YOU CONFIRM:

The interior "courtesy lamps" are inoperative on an applied vehicle,

NOTE:
Courtesy lamps include map/dome and vanity lights.

DETERMINE IF:

The Body Control Module (BCM) needs to be replaced.

ACTIONS:

^ Follow the service procedure in this bulletin to diagnose the incident.

^ If necessary, replace the BCM with the part number listed in the Parts Information.

NOTE:
Before starting this Service Procedure, collect all vehicle keys and remote controls from the customer. If BCM replacement is needed, all the vehicle keys and remotes will need to be programmed into the new BCM.





PARTS INFORMATION

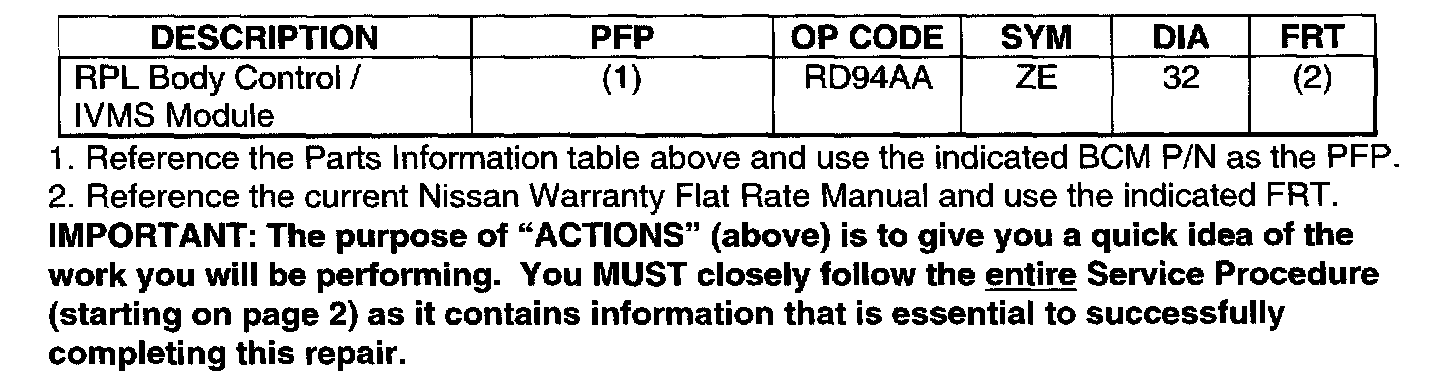

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding shown.

SERVICE PROCEDURE

1. Verify the incident.

2. Write down the radio presets for later "reprogramming" back into the radio.

3. Shut all the windows completely (if open).

4. Shut the sunroof completely (if open).

5. Disconnect the negative battery terminal and wait 5 minutes.

6. Re-connect the negative battery terminal.

7. Determine the need for BCM replacement as follows:

^ If the lights work now, BCM replacement is required to ensure that the incident is resolved. Replace the BCM with the one listed in the Parts Information section of this bulletin.

IMPORTANT:
If the courtesy lamps work now, steps 1 through 6 (above) took care of it only temporarily. There is no way to ensure that the incident is permanently resolved, so replacing the BCM is necessary.

^ If the courtesy lamps don't work after steps 1-6, this bulletin does not apply. See the "LT Lighting System" Section in the "K Electrical" chapter of the 2003 Murano ESM.

8. "Re-register" all the vehicle keys to the new BCM. This is explained in Nissan Technical Bulletin NTB02-071A.

9. "Re-register" all the vehicle remote controls. This is explained in the "BL Body, Lock and Security System" Section in the "BL Body" chapter of the 2003 Murano ESM.

10. "Re-program" the radio presets you wrote down in step 1.
