System Specifications

REAR FINAL DRIVE ASSEMBLY:



REAR FINAL DRIVE ASSEMBLY:



REAR FINAL DRIVE / GENERAL SPECS:

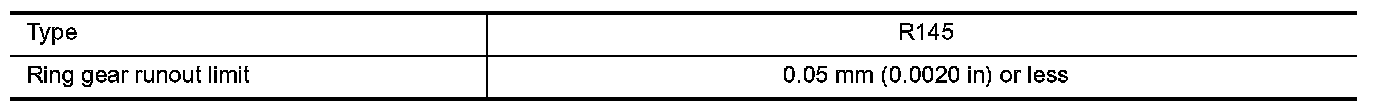

REAR FINAL DRIVE / RING GEAR RUNOUT:

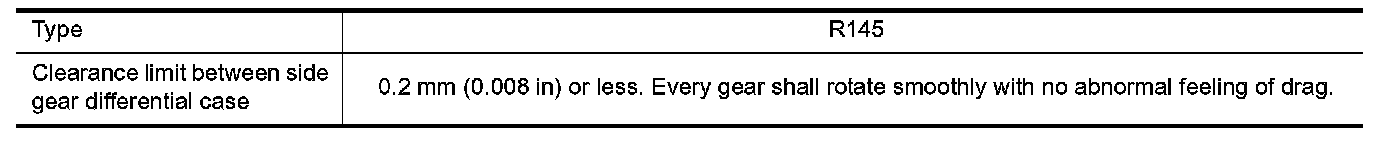

REAR FINAL DRIVE / SIDE GEAR ADJUSTMENT:

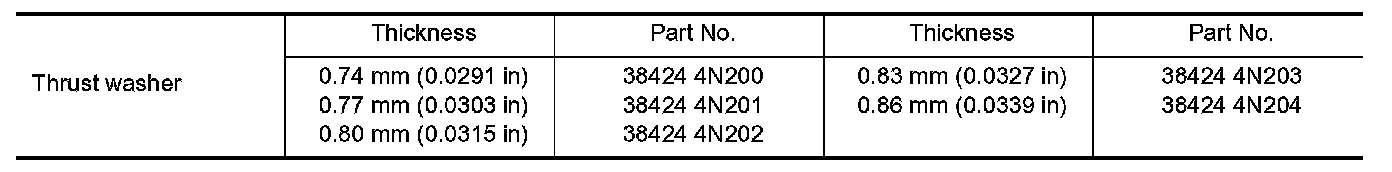

REAR FINAL DRIVE / AVAILABLE SIDE GEAR THRUST WASHERS:

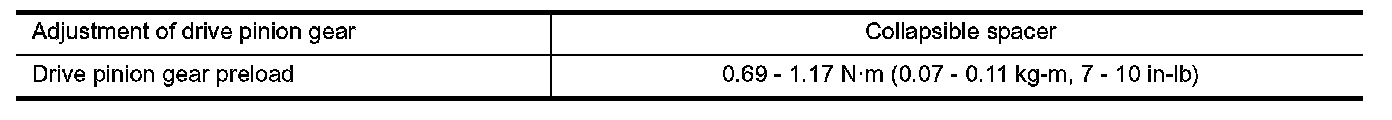

REAR FINAL DRIVE / DRIVE PINION ADJUSTMENT:



REAR FINAL DRIVE / AVAILABLE DRIVE PINION ADJUSTING SHIM:

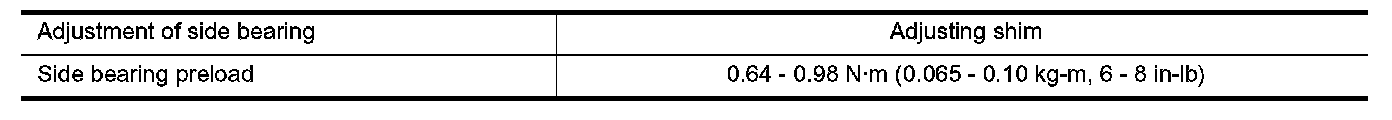

REAR FINAL DRIVE / SIDE BEARING PRELOAD ADJUSTMENT:

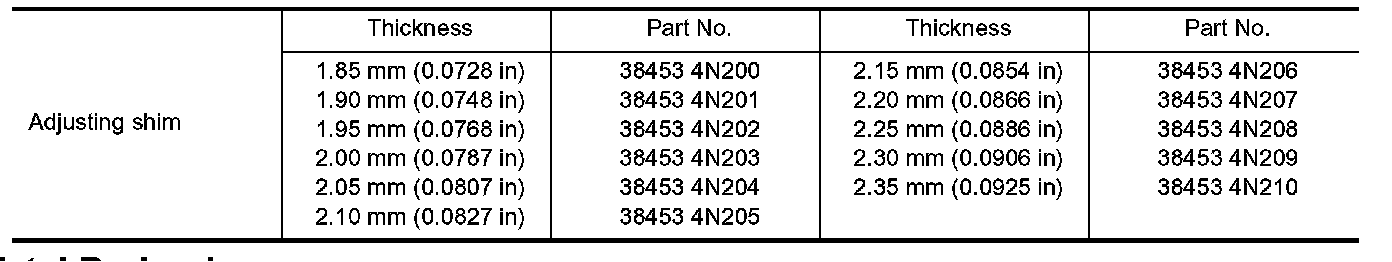

REAR FINAL DRIVE / AVAILABLE SIDE BEARING ADJUSTING SHIM:

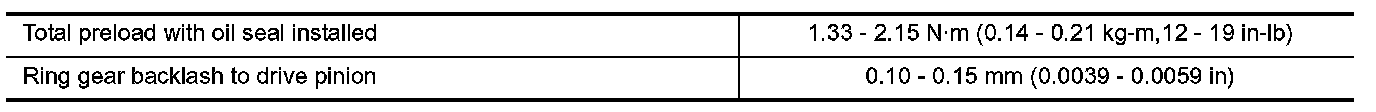

REAR FINAL DRIVE / TOTAL PRELOAD:
