General Specifications

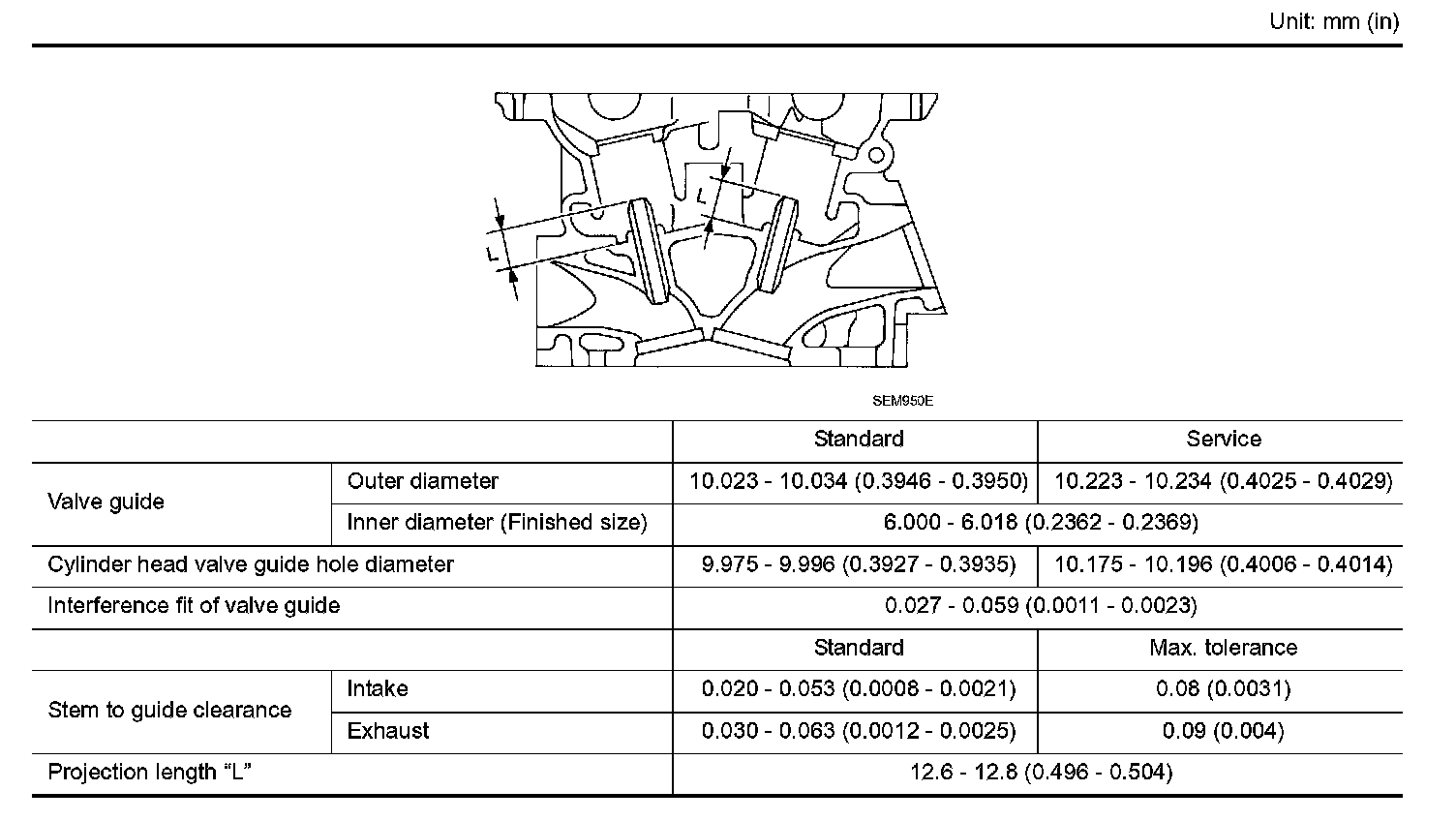

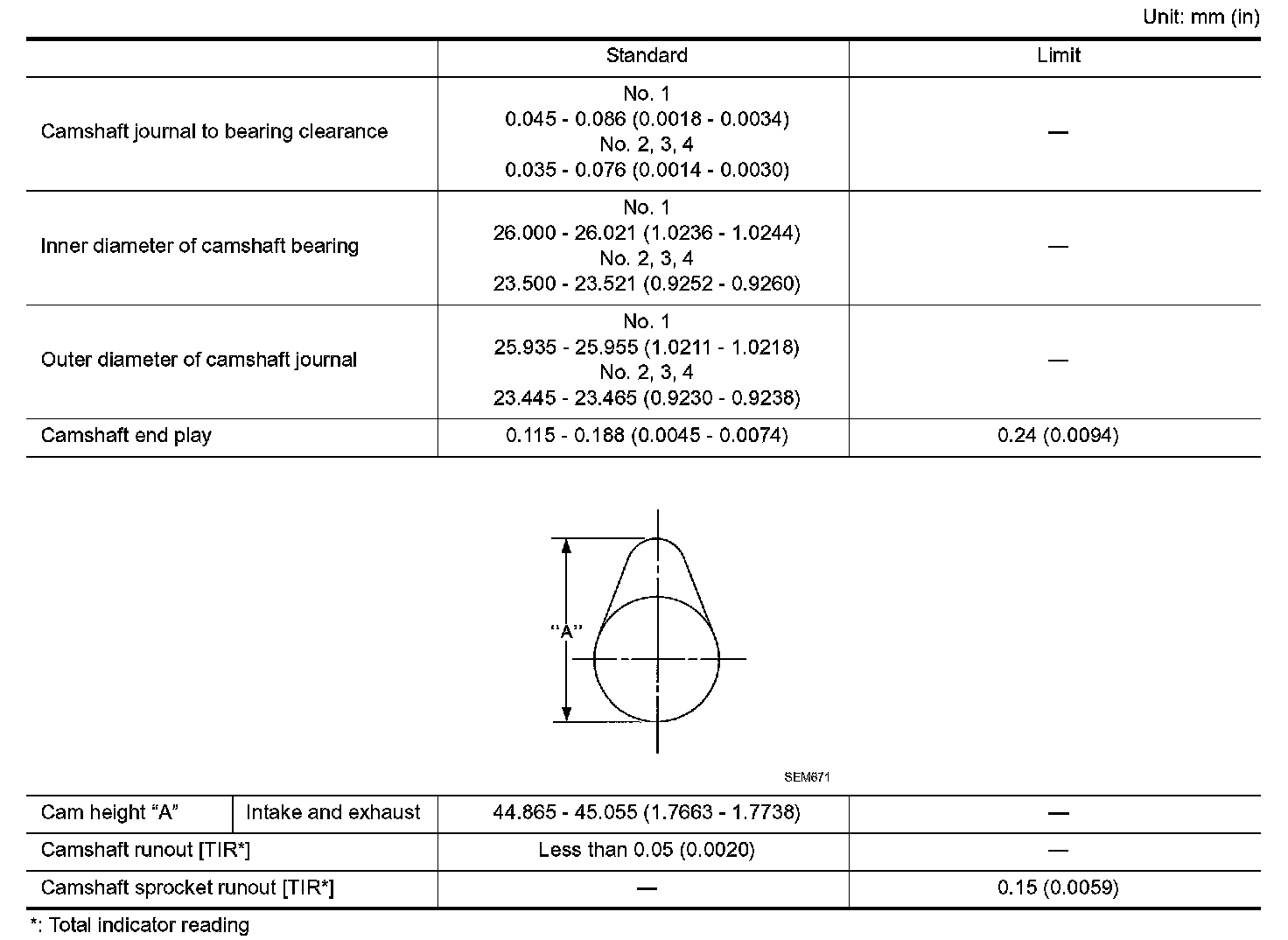

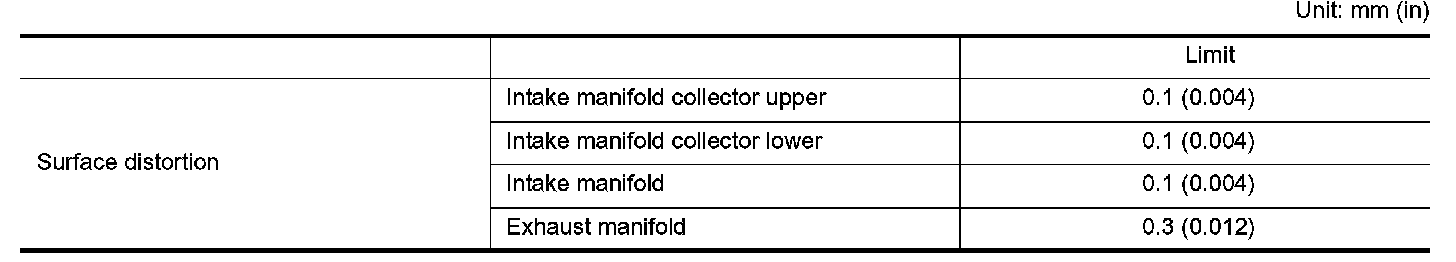

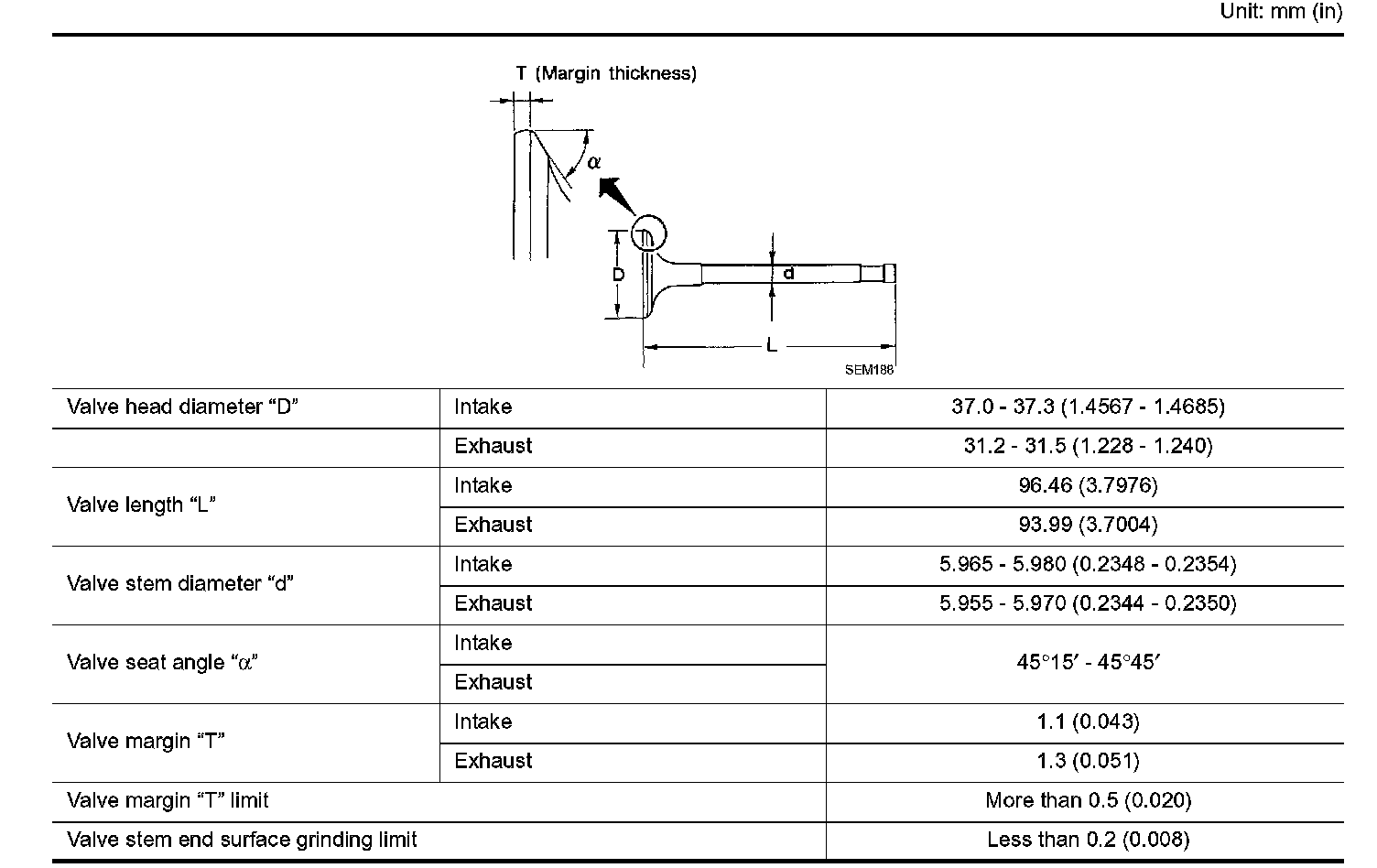

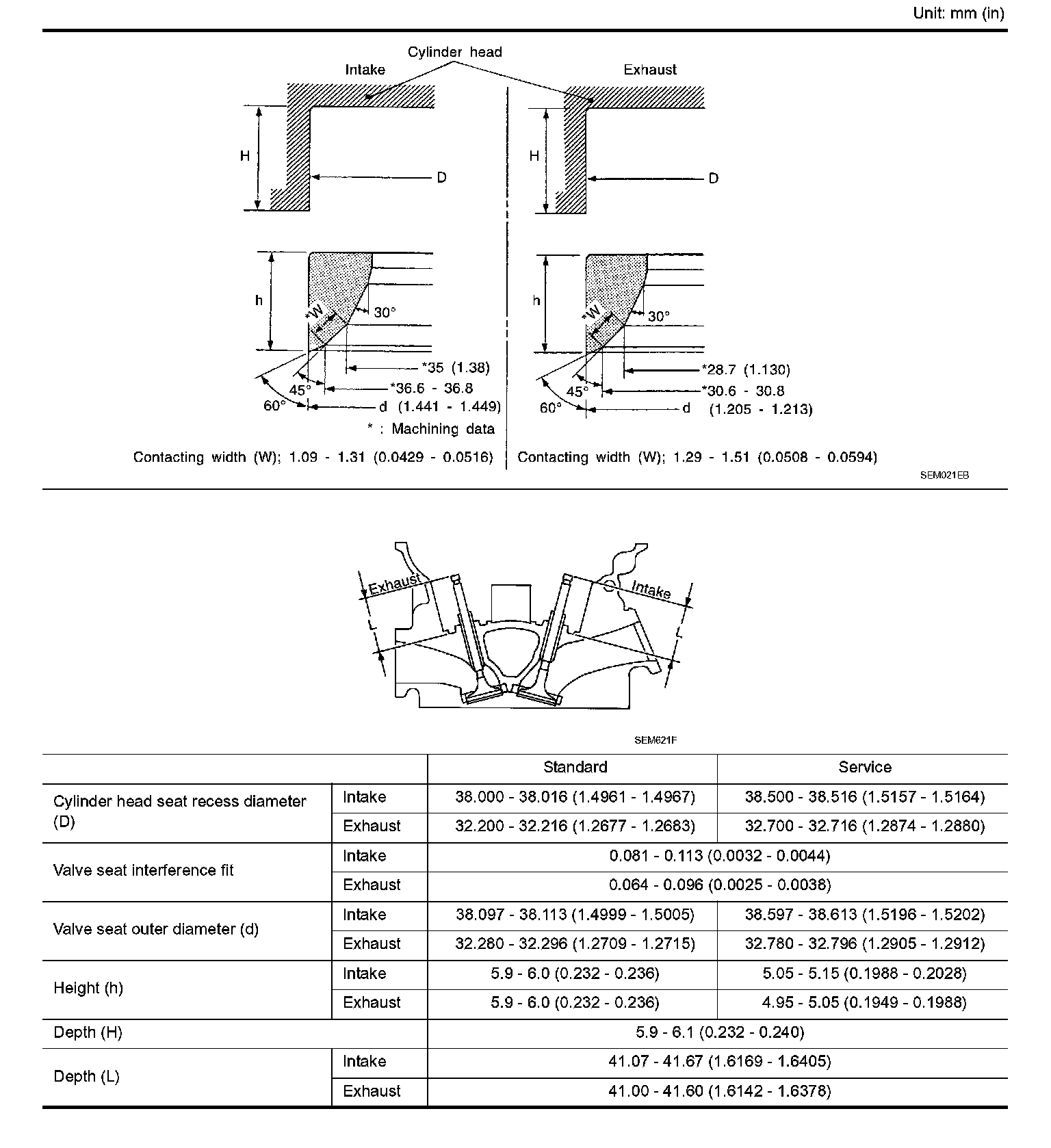

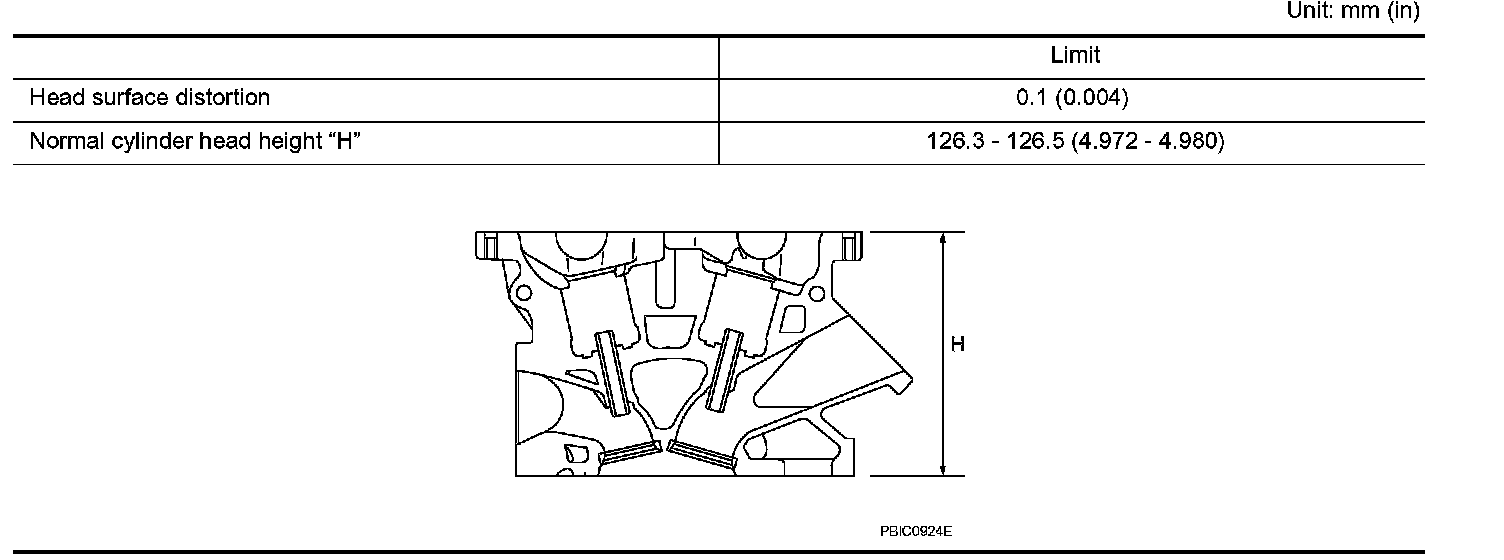

INTAKE MANIFOLD COLLECTOR, INTAKE MANIFOLD AND EXHAUST MANIFOLD CYLINDER HEAD VALVE Valve Dimensions Valve Clearance Valve Spring Valve Lifter Available Valve Lifter Valve Guide Valve Seat CAMSHAFT AND CAMSHAFT BEARING 1 Of 2:
2 Of 2:

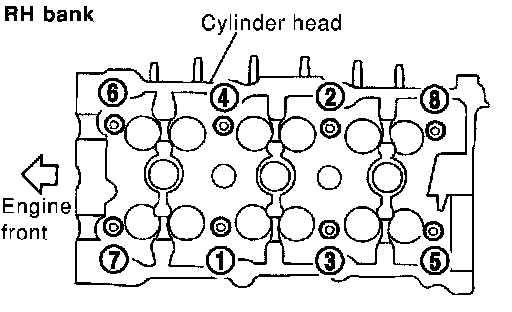

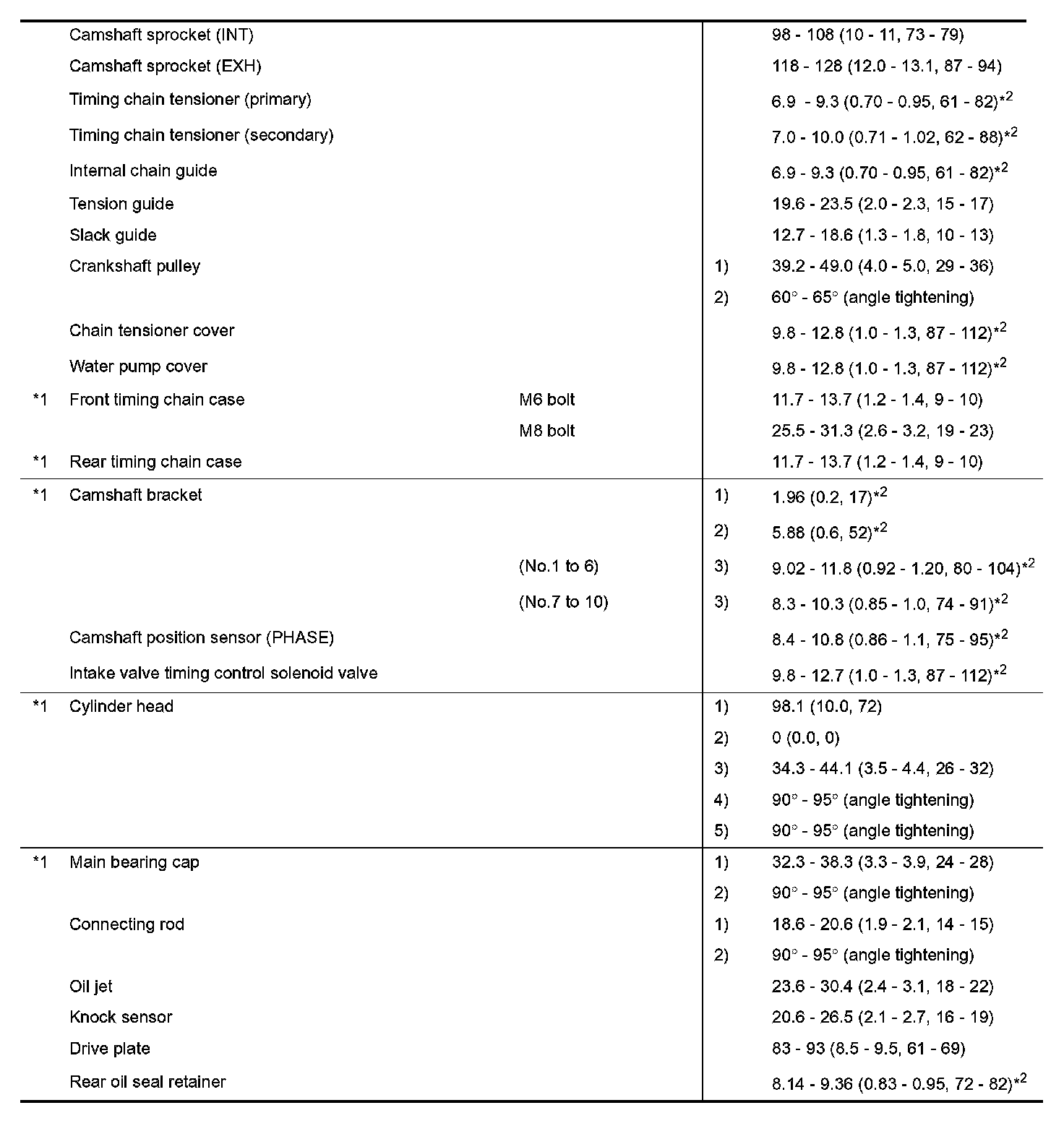

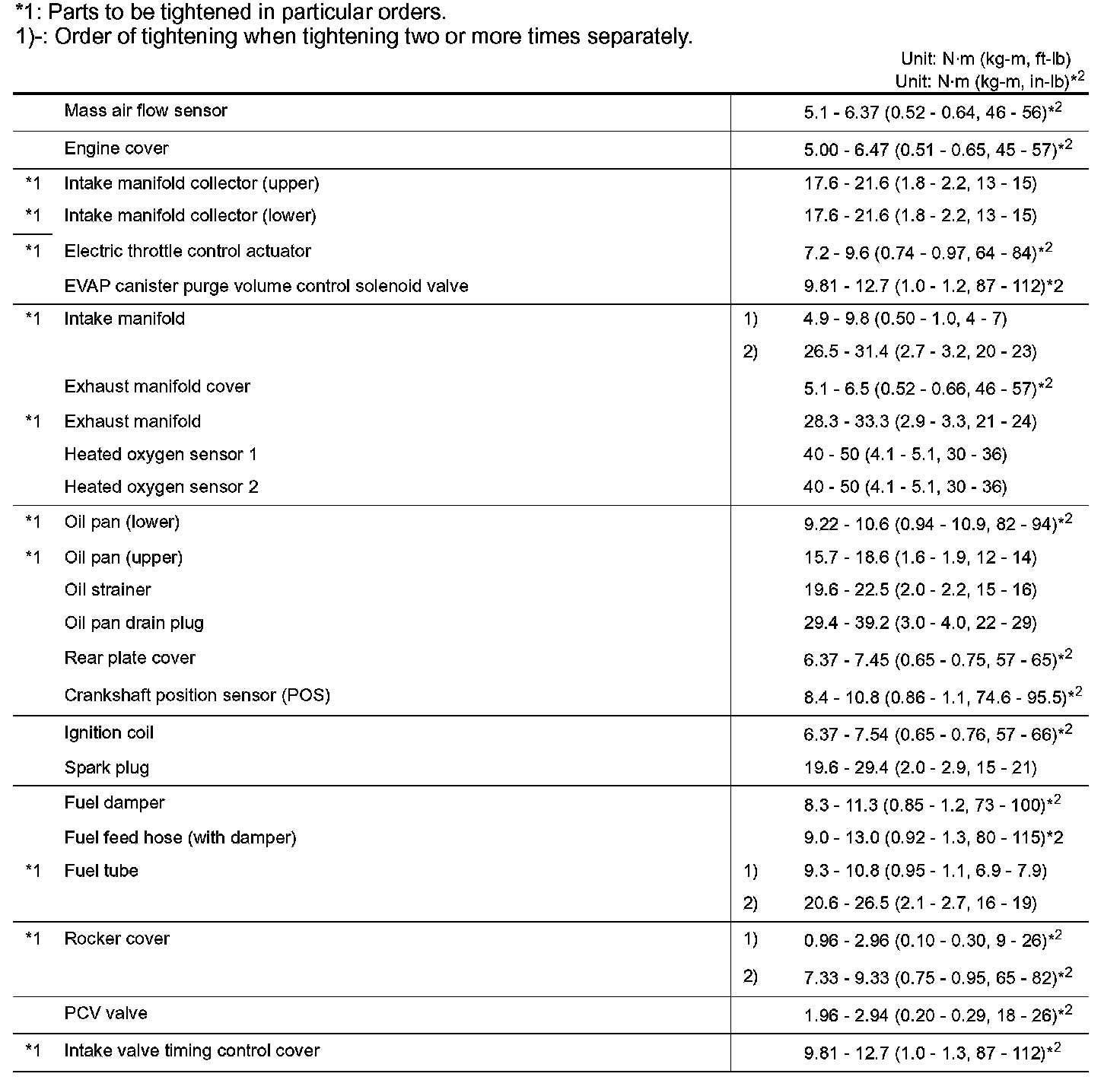

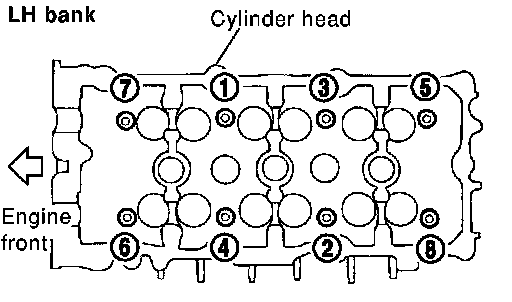

Tightening torque Head Bolt Sequence Cylinder head tightening sequence
For other Tightening Specifications please refer to procedures
