Auto Amp. Terminals and Reference value










Auto Amp. Terminals and Reference Value

INSPECTION OF AUTO AMP.
- Measure voltage between each terminal and body ground by following "AUTO AMP. INSPECTION TABLE".




- Pin connector terminal layout


AUTO AMP. INSPECTION TABLE

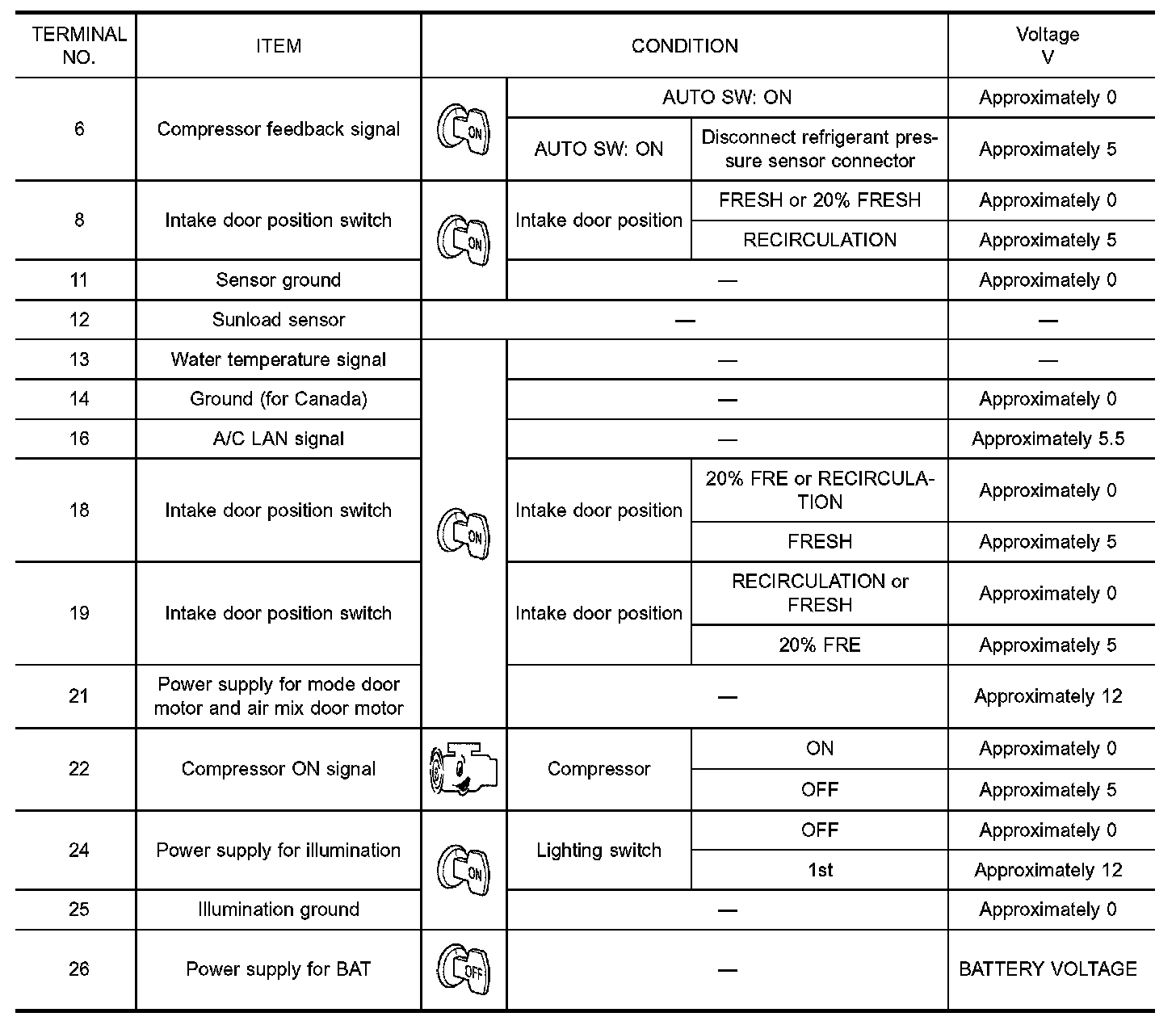

Auto Amp. Inspection Table Part 1:

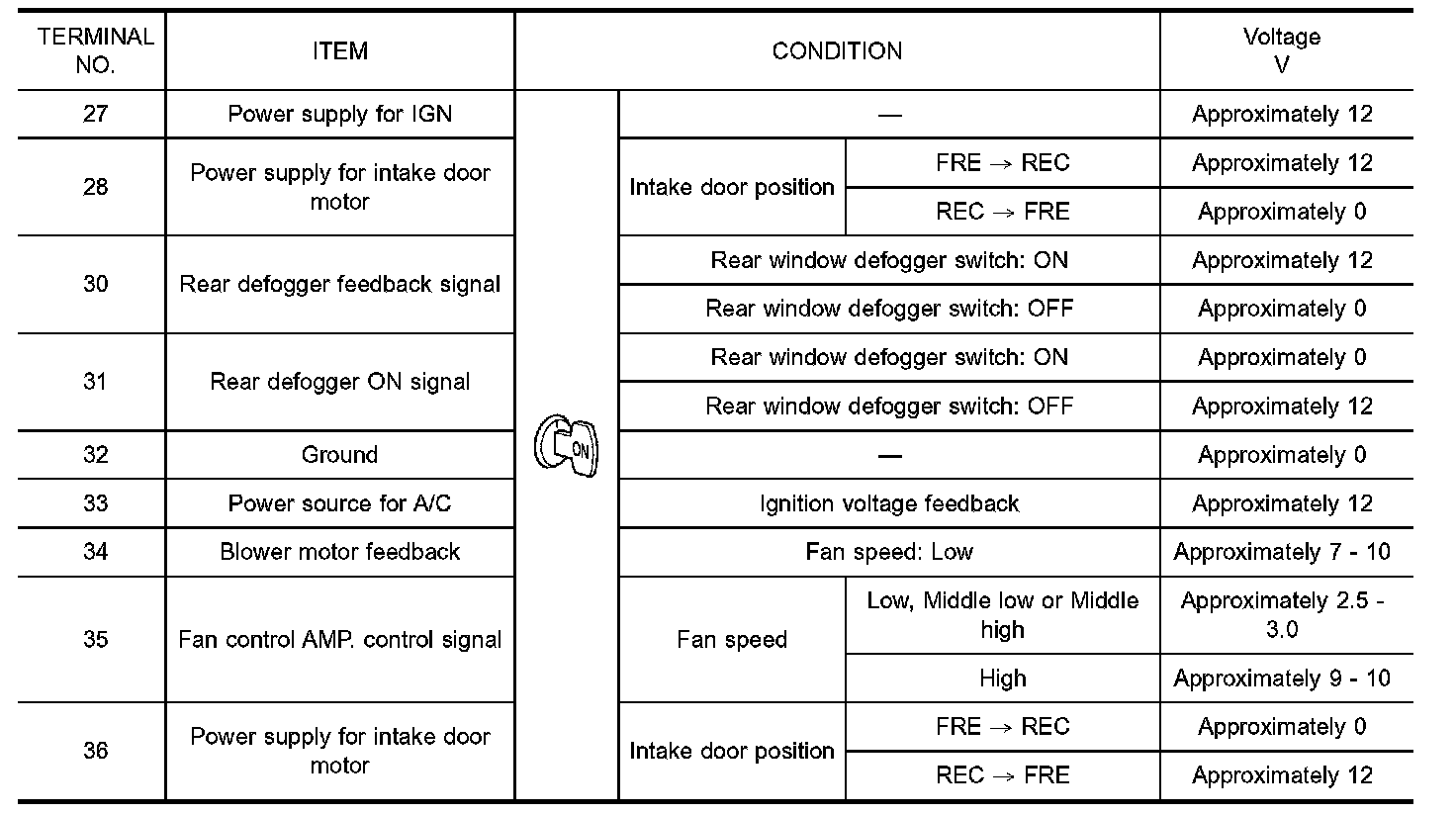

Auto Amp. Inspection Table Part 2:




Auto Amp. Inspection Table Part 3:




Without Navigation System

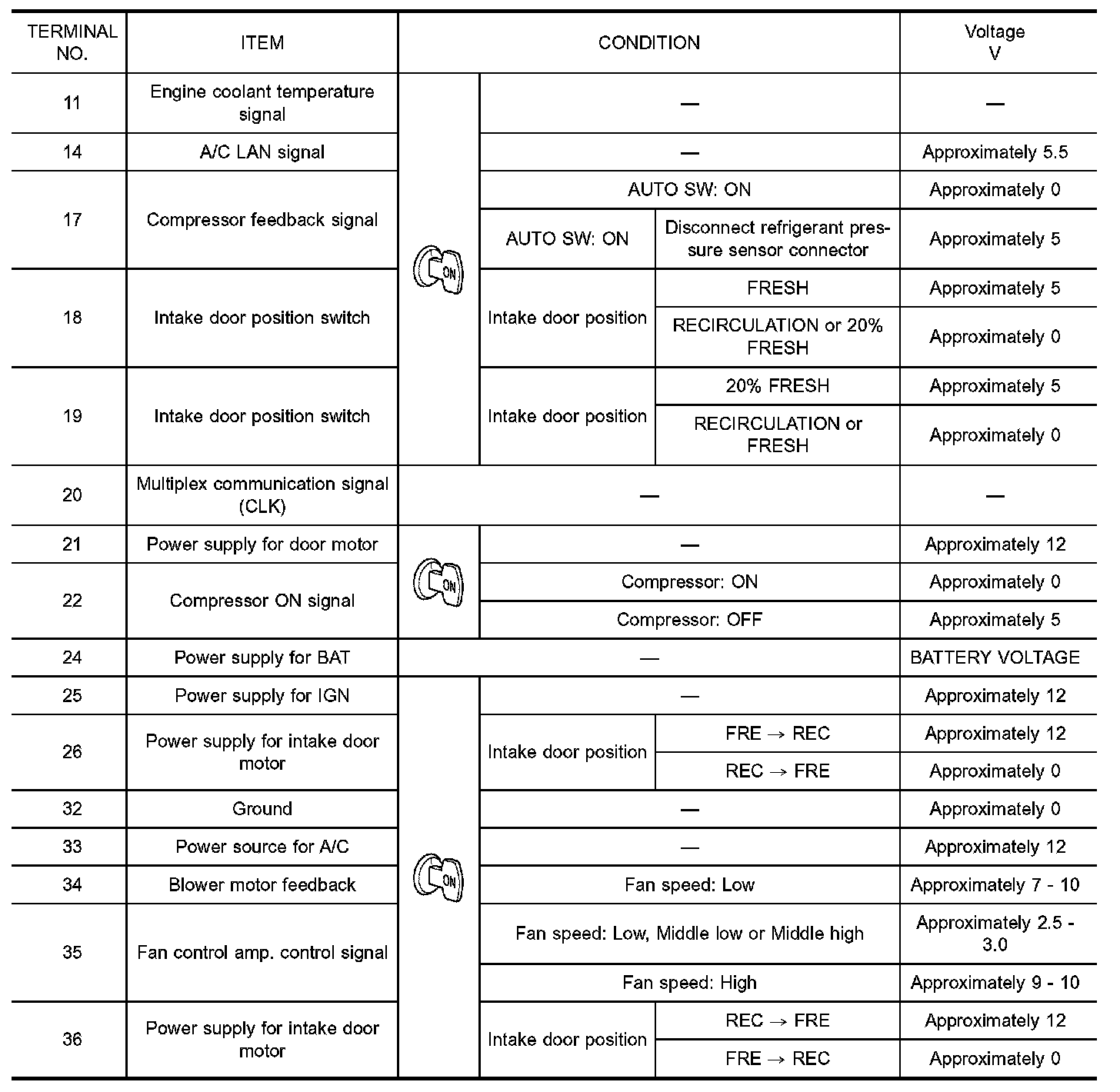

Auto Amp. Inspection Table Part 4:




Auto Amp. Inspection Table Part 5:




With Navigation System
