Intake Manifold

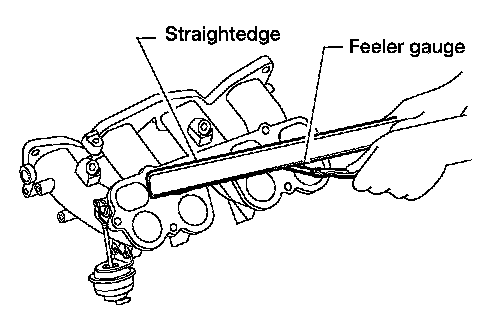

Surface distortion
Intake manifold collector 0.1 mm (0.004 in)
Intake manifold 0.1 mm (0.004 in)

Intake Manifold Sequence:








Intake manifold bolts








Intake manifold collector bolts
