Alternator: Service and Repair
Removal and Installation Removal 1.
Remove engine undercover.
2.
Remove RH side splash shield.
3.
Disconnect harness connectors.
4.
Loosen adjustment bolt and remove belt.
5.

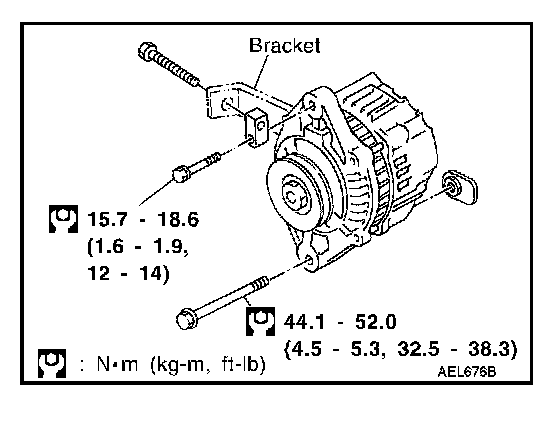

Remove two generator bolts and generator.
Installation To install, reverse the removal procedure.
