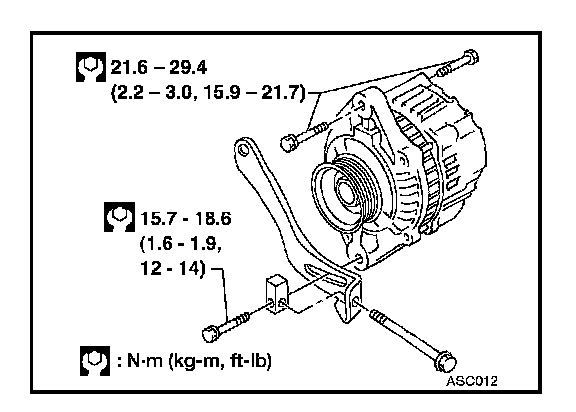

Alternator: Service and Repair
Removal and Installation Removal 1.
Disconnect harness connectors.
2.
Remove engine undercover.
3.
Loosen adjustment bolt and remove belt.
4.
Remove three generator bolts and generator.
Installation To install, reverse the removal procedure.
