Scan Tool Testing and Procedures
CONSULT-II Application Items"MULTI REMOTE CONT SYS"

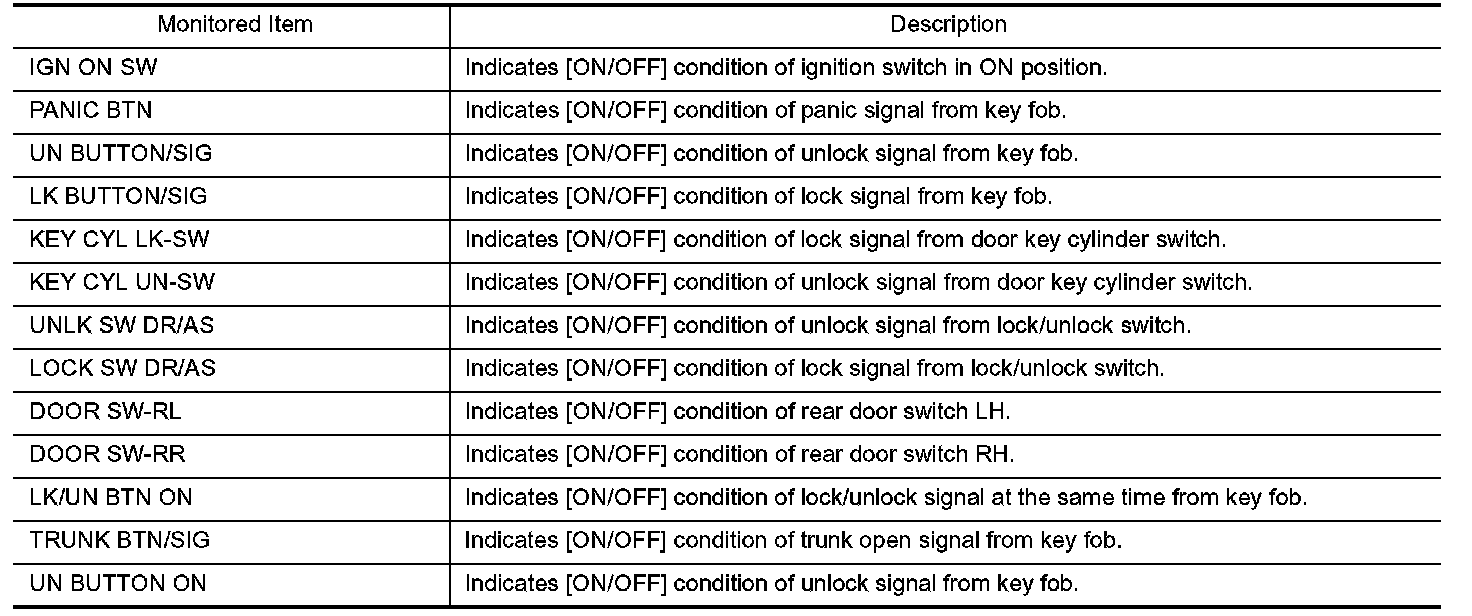

Data Monitor Part 1:
Data Monitor Part 2:

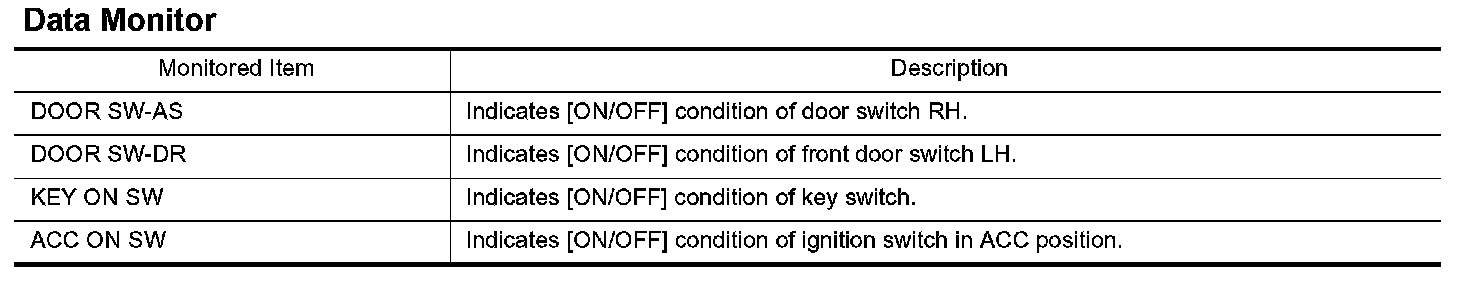

Data Monitor
Active Test:
Active Test

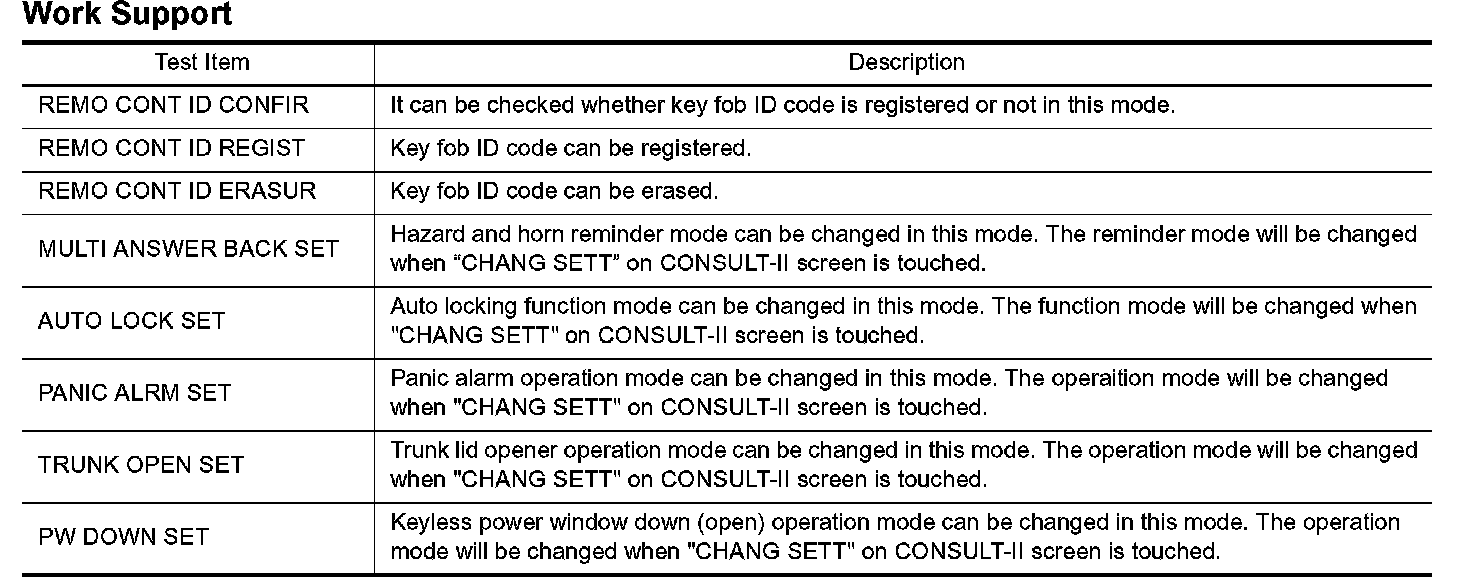

Work Support:
Work Support

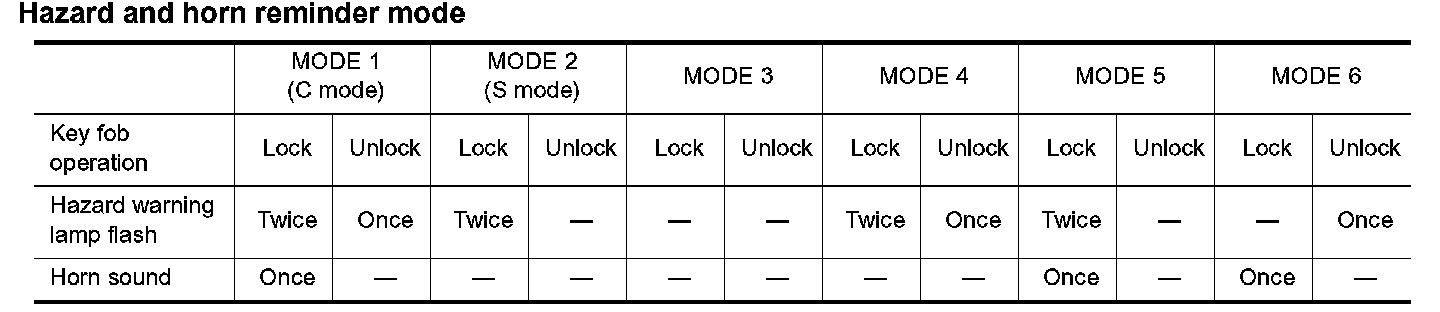

Hazard And Horn Reminder Mode:
Hazard and horn reminder mode

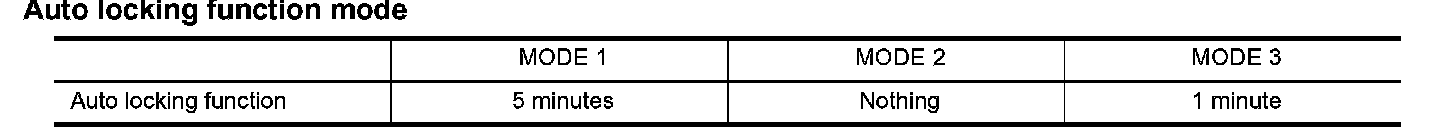

Auto Locking Function Mode:
Auto locking function mode

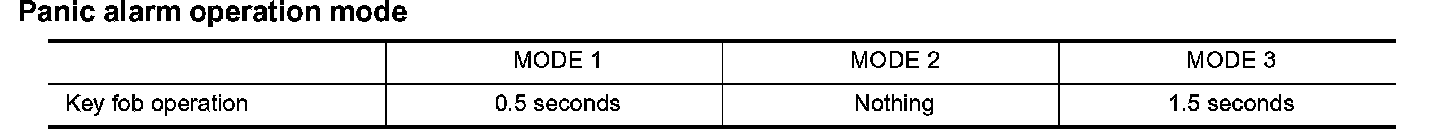

Panic Alarm Operation Mode:
Panic alarm operation mode

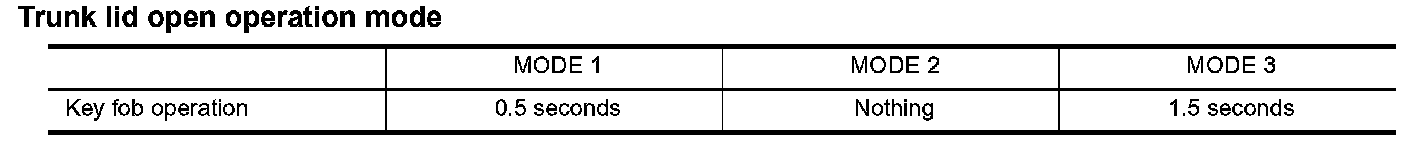

Trunk Lid Open Operation Mode:
Trunk lid open operation mode

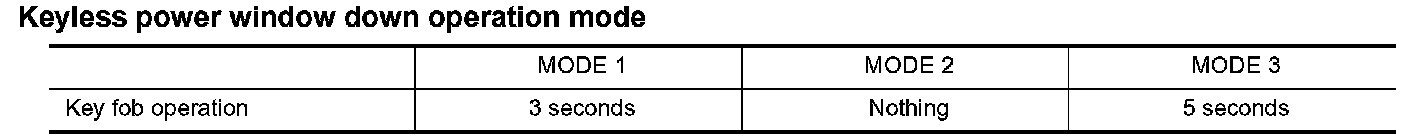

Keyless Power Window Down Operation Mode:
Keyless power window down operation mode
