Cruise Control Switch: Testing and Inspection

Component Inspection

ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable).

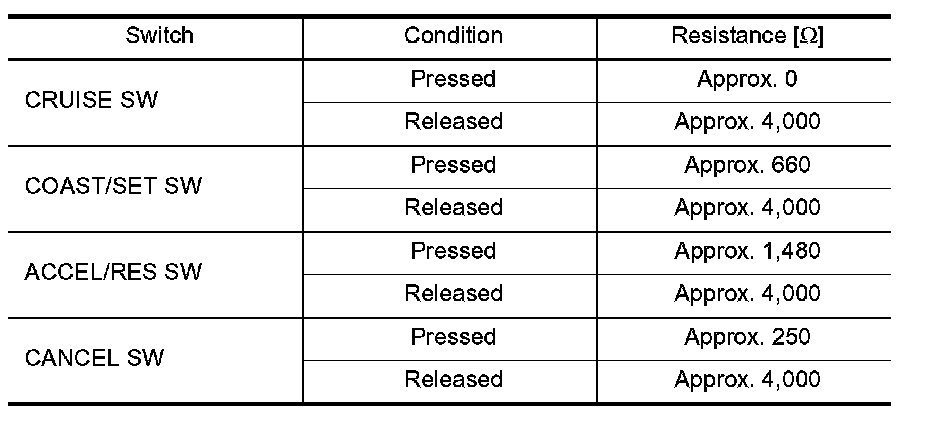

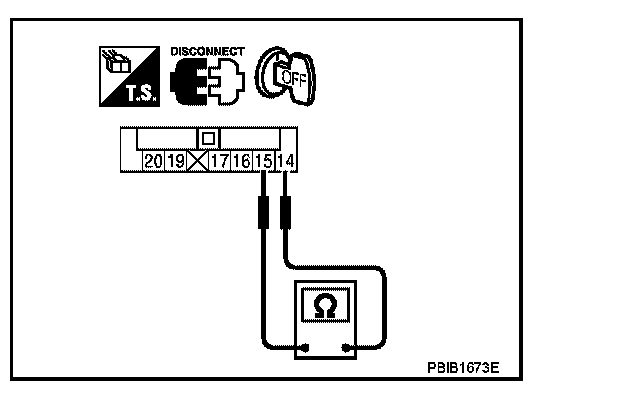

2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.
