Solar Sensor: Service and Repair

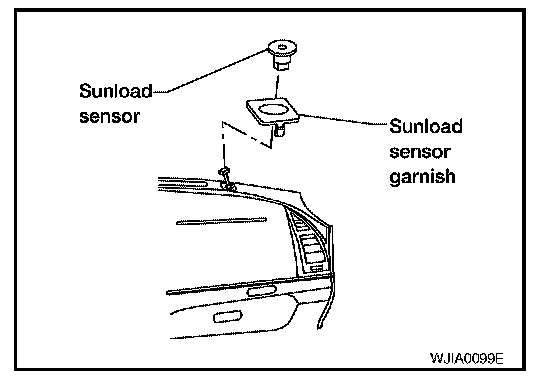

SUNLOAD SENSORRemoval and InstallationREMOVAL 1.
Remove the sunload sensor garnish.
2.
Disconnect the connector.
3.
Release the sunload sensor tabs and then remove it from the garnish.
INSTALLATIONInstallation is the reverse order of removal.
