Basic Operation

CONSULT-II BASIC OPERATION

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

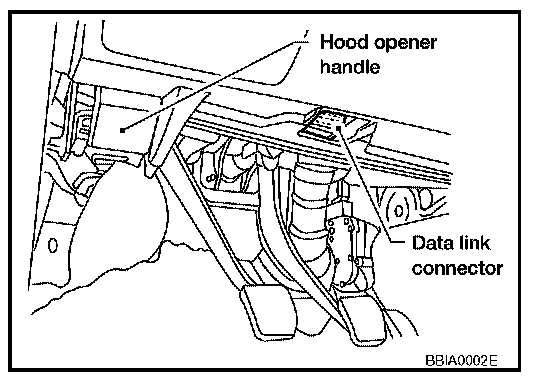

1. With the ignition switch OFF, connect CONSULT-II and "CONSULT-II converter" to the date link connector, and turn the ignition switch ON.

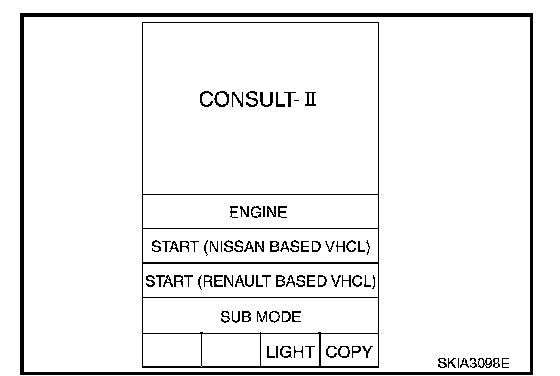

2. Touch "START (NISSAN BASED VHCL)".

3. Touch "BCM" on "SELECT SYSTEM" screen.
