CAN Communication

System Description
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Many electronic control units are equipped onto a vehicle, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring. Each control unit transmits/receives data but selectively reads required data only.

CAN System Type:

CAN System Type

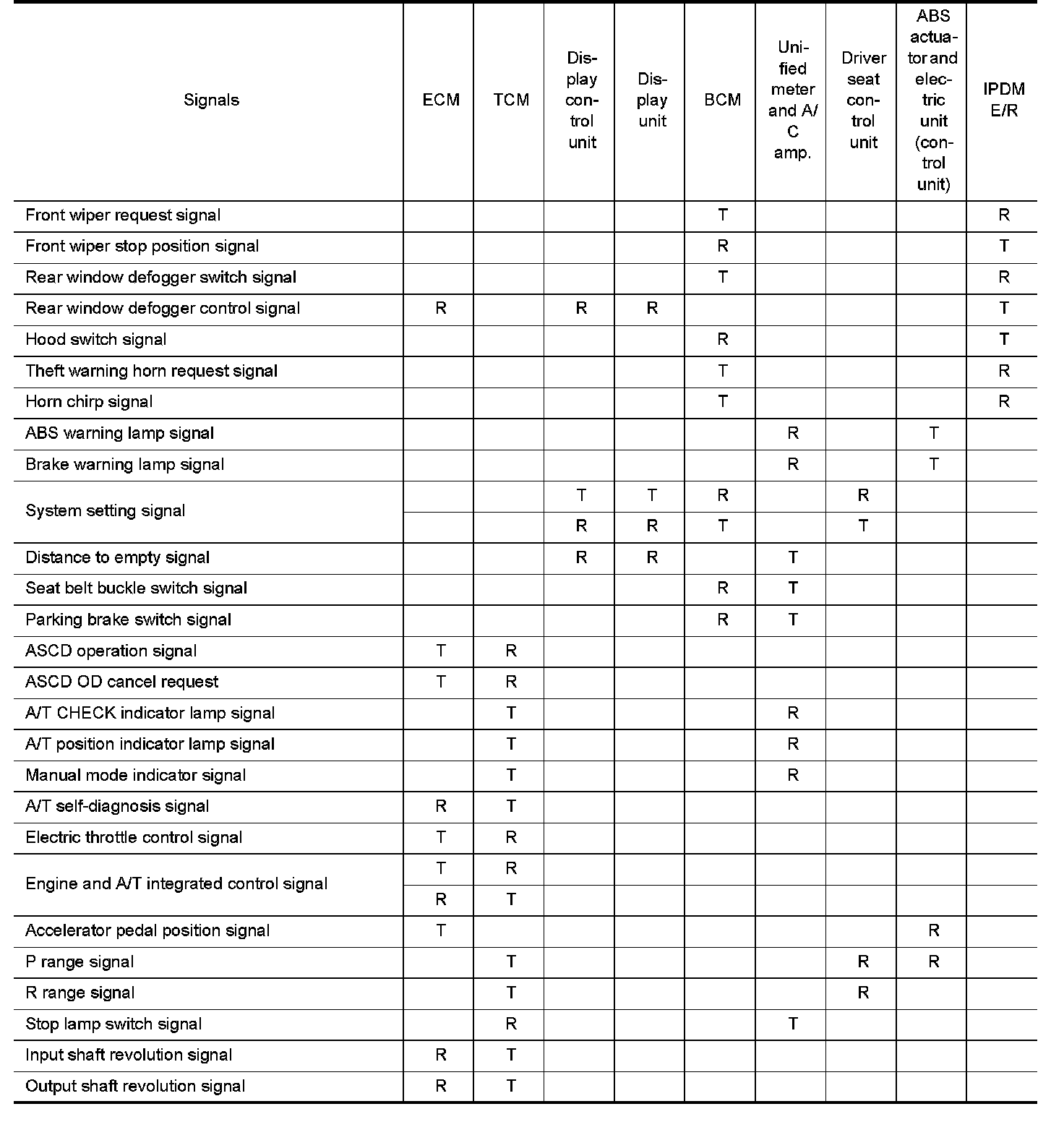

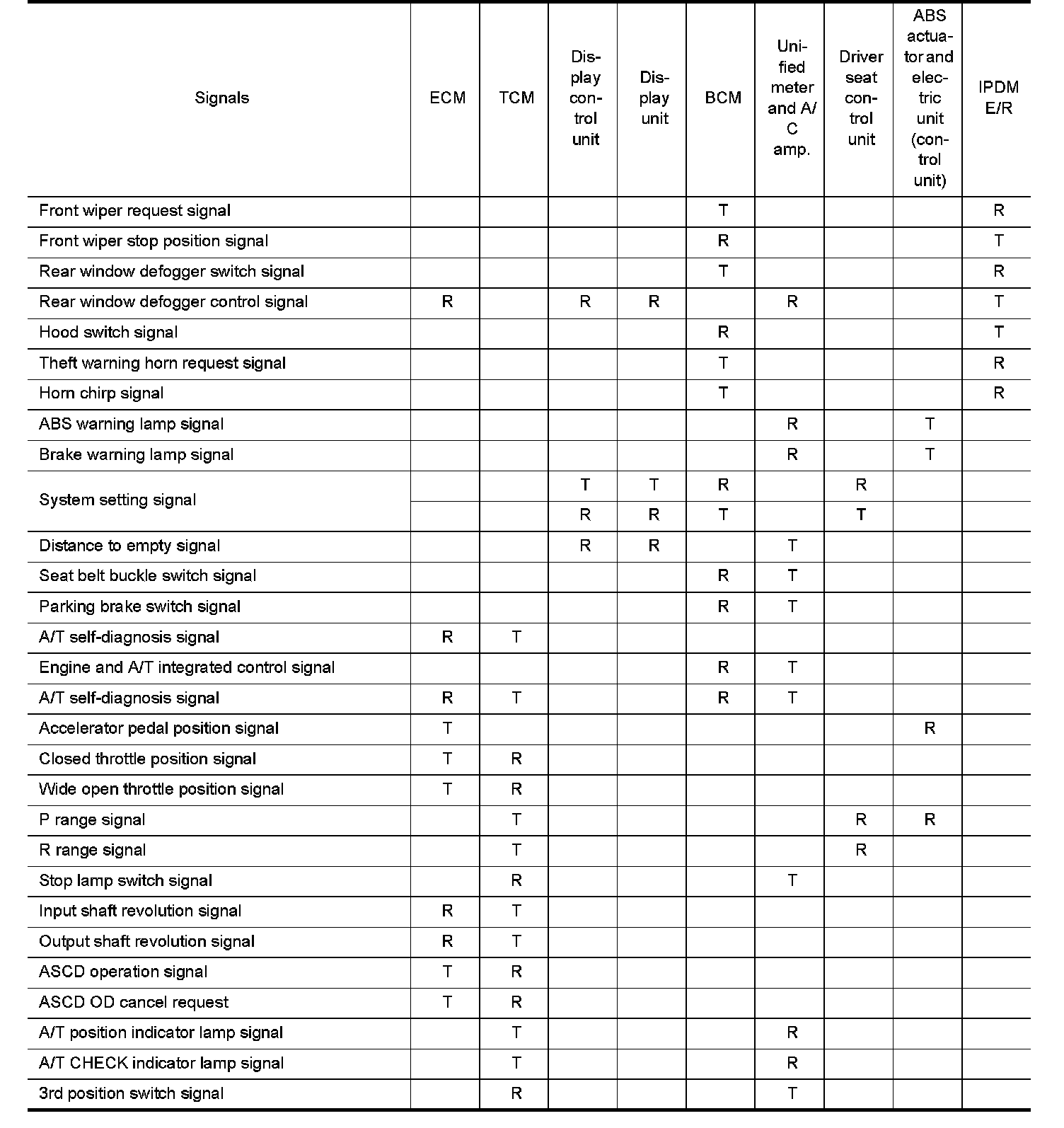

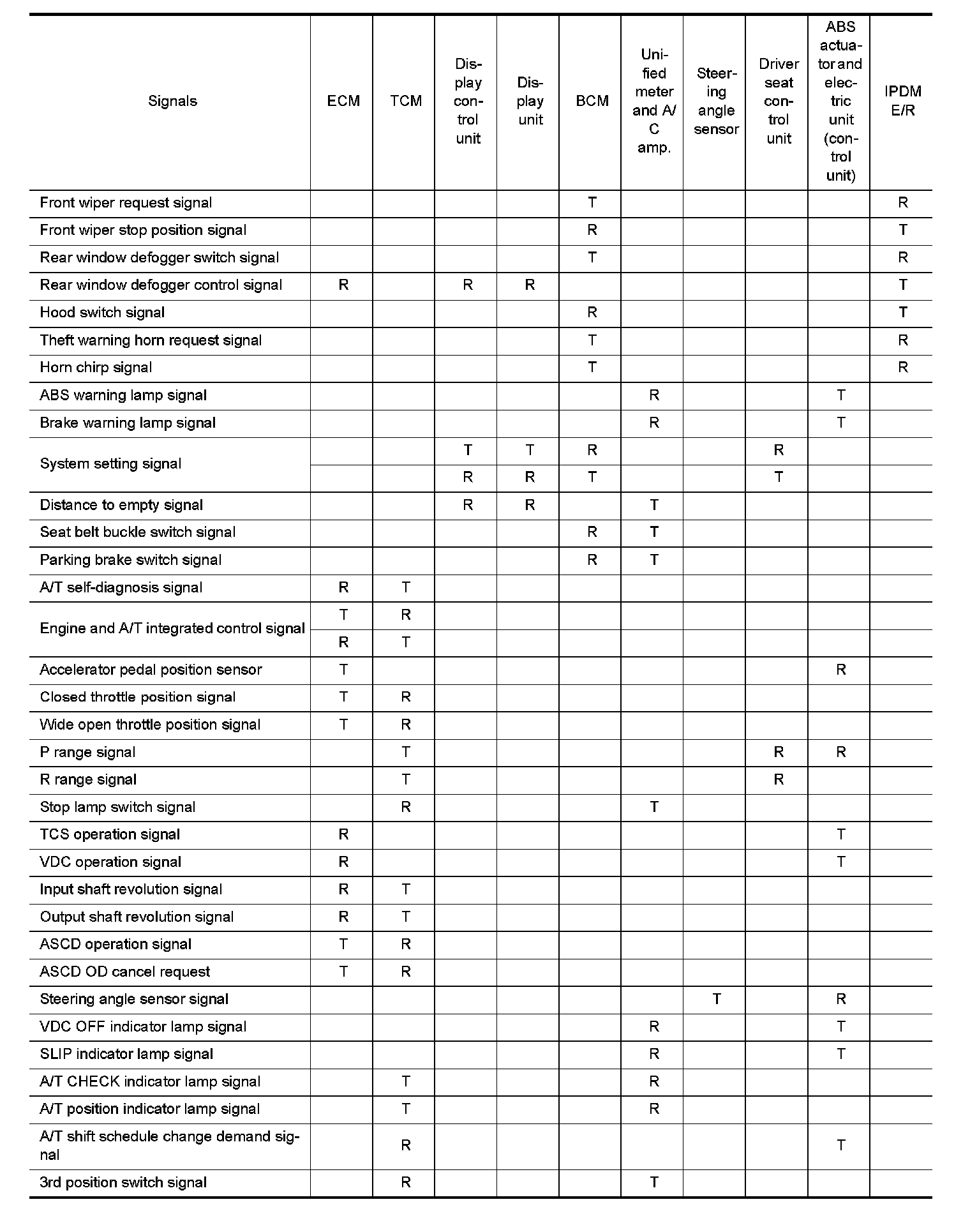

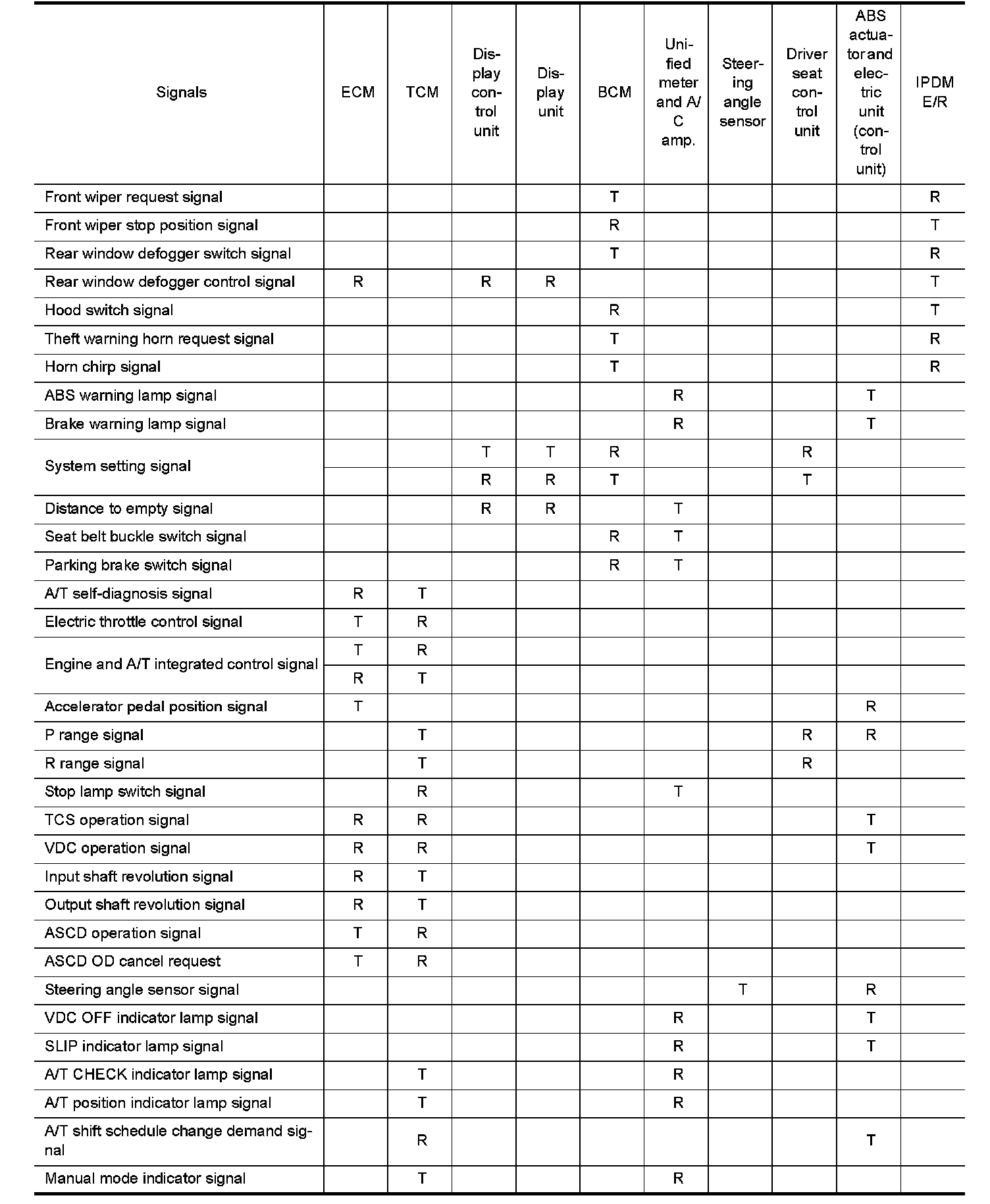

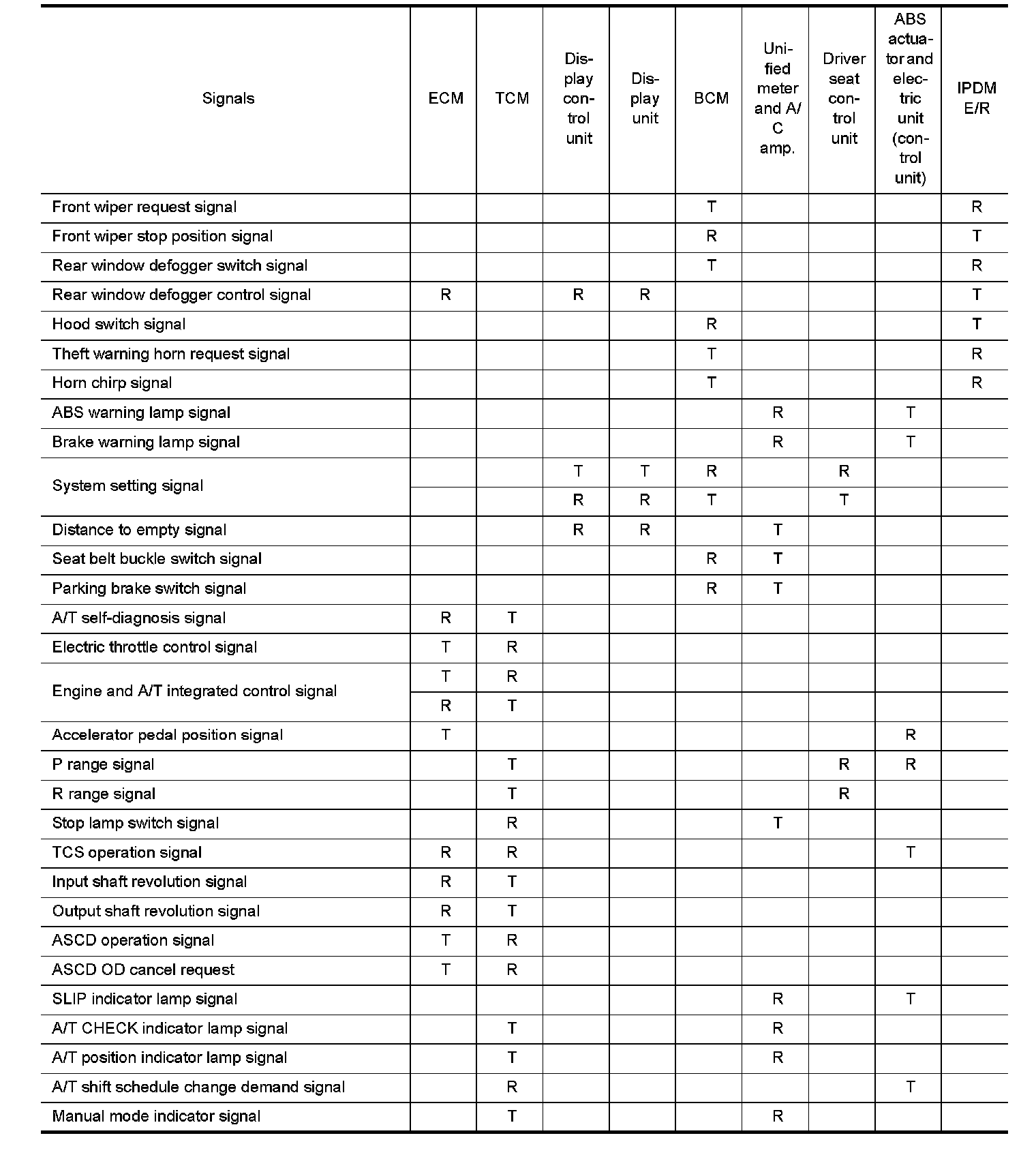

Input/Output Signal Chart

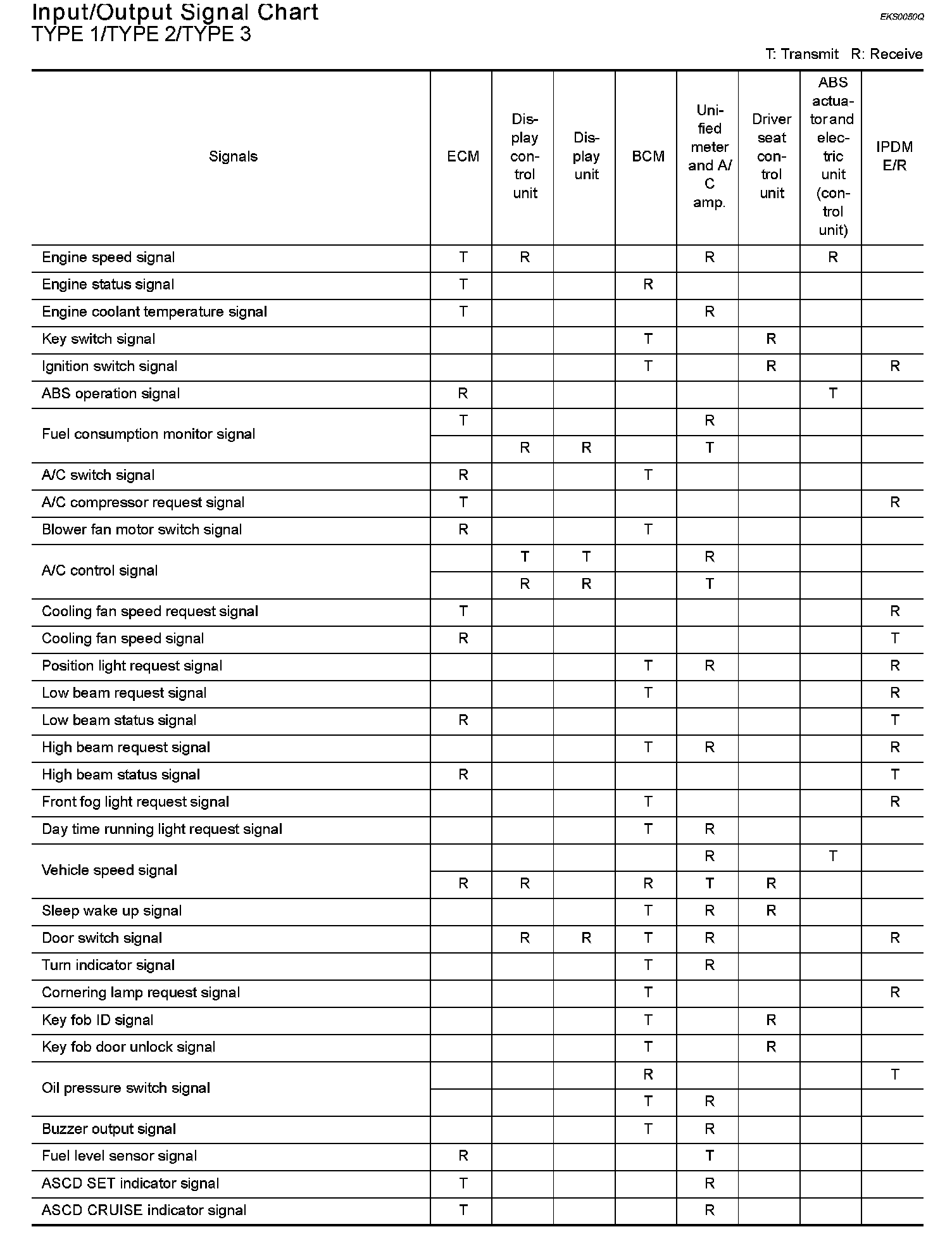

TYPE 1/TYPE 2/TYPE 3

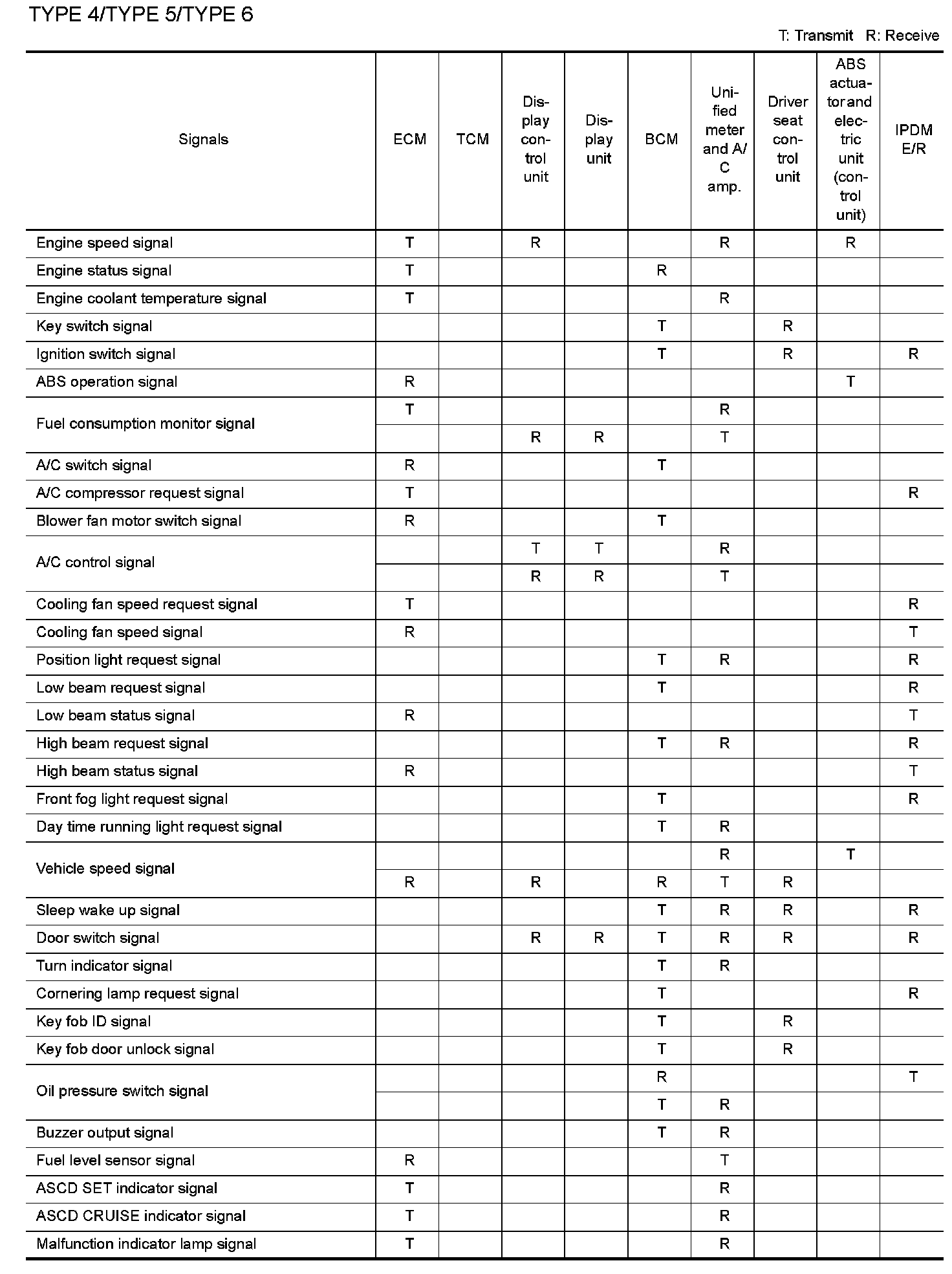

TYPE 4/TYPE 5/TYPE 6

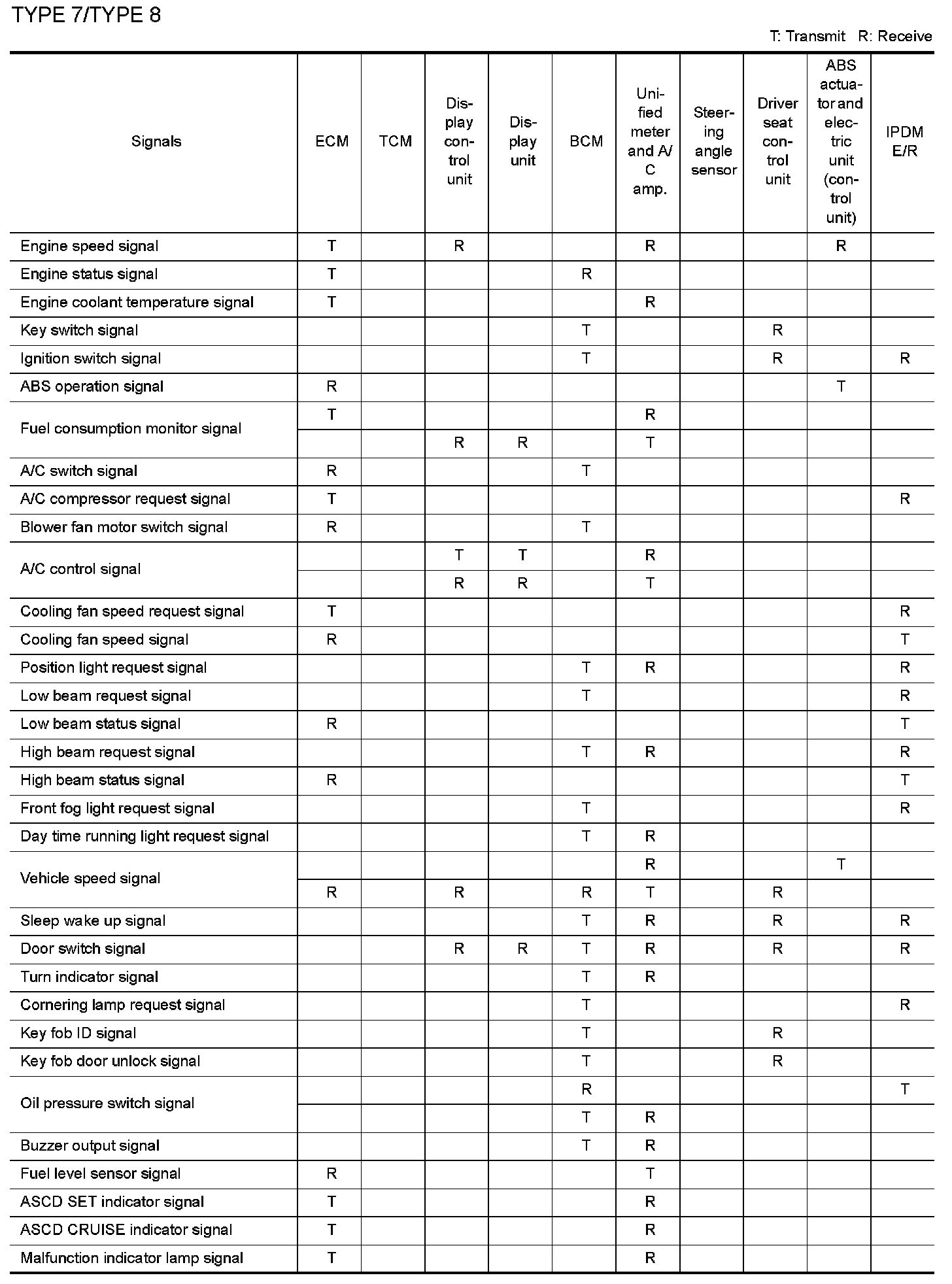

TYPE 7/TYPE 8

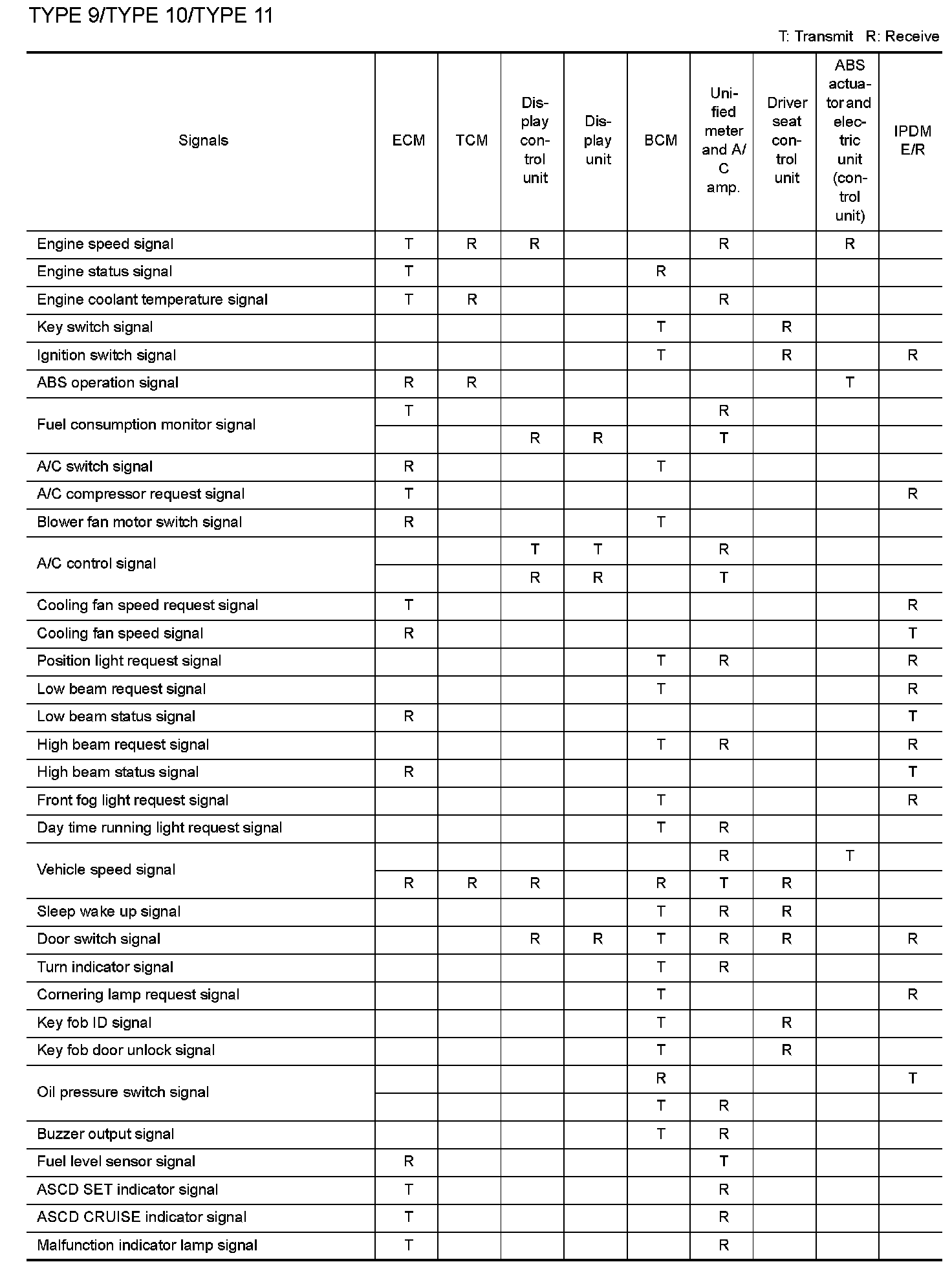

TYPE 9/TYPE 10/TYPE 11

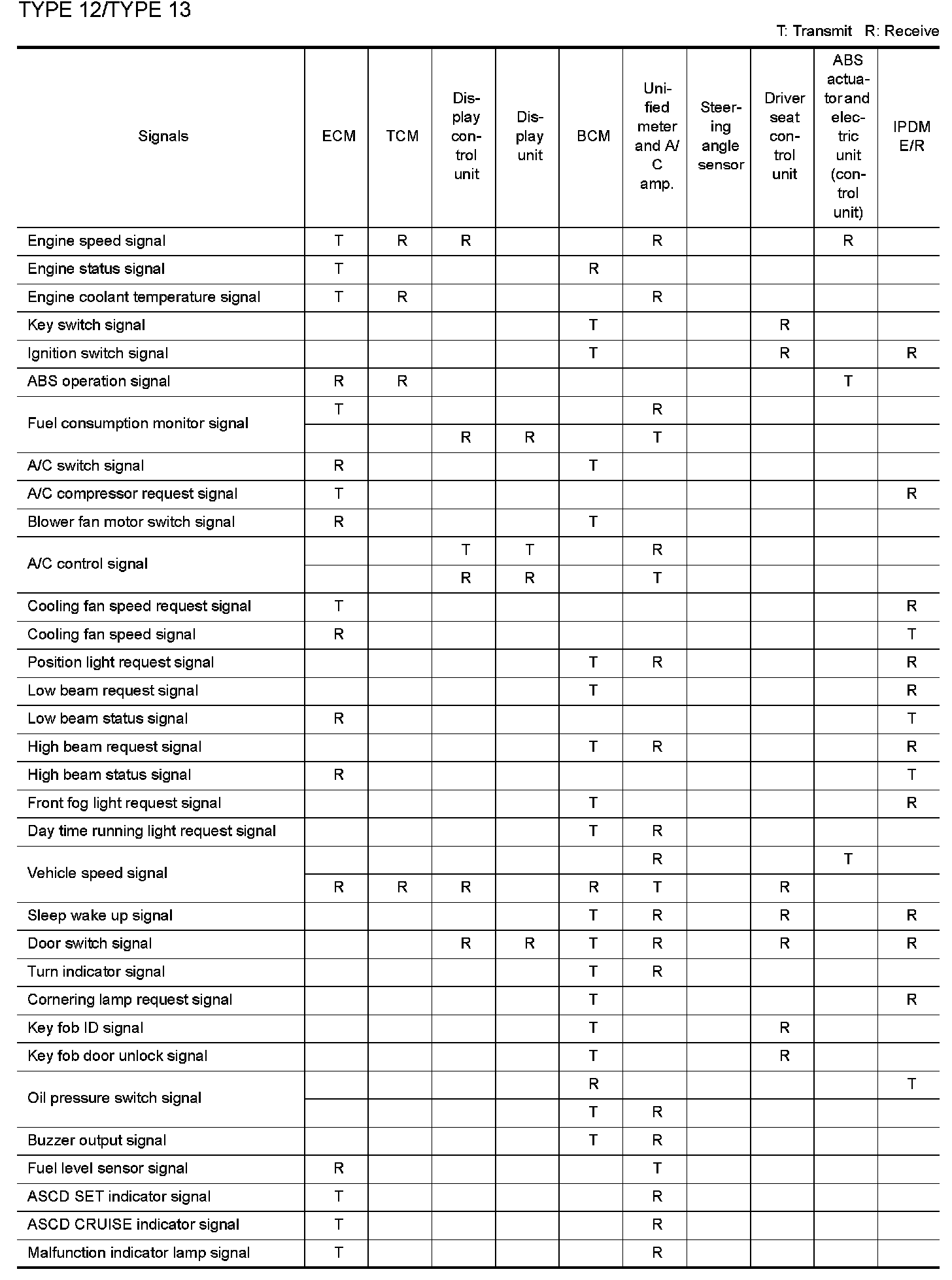

TYPE 12/TYPE 13

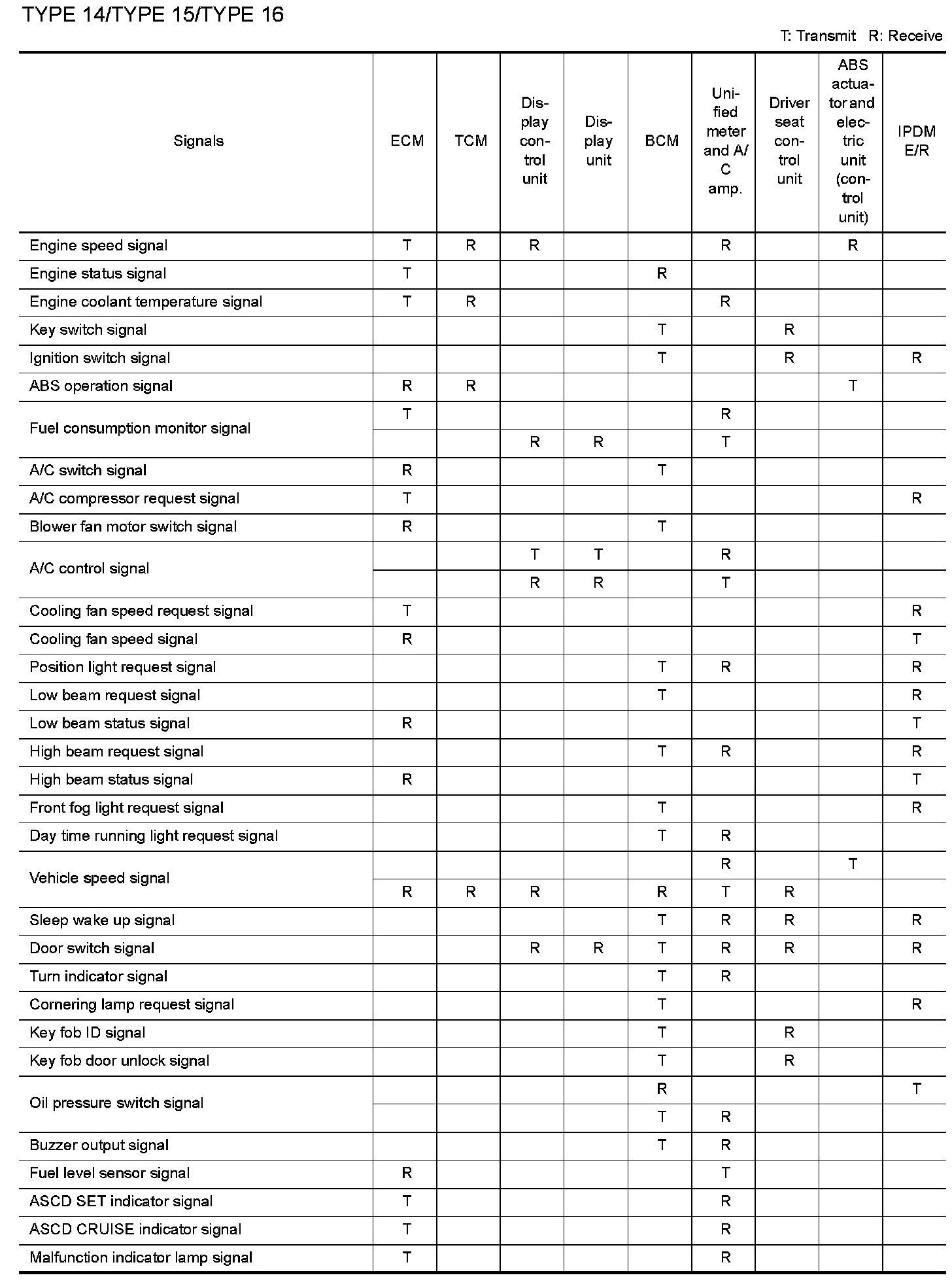

TYPE 14/TYPE 15/TYPE 16
