RE5F22A

Park/Neutral Position (PNP) Switch Adjustment





1. Remove battery and bracket.
2. Remove cable from range lever.
3. Set range lever in neutral position.
4. Remove range lever and install alignment tool (J45404).
5. Loosen Park/Neutral Position (PNP) switch bolts.

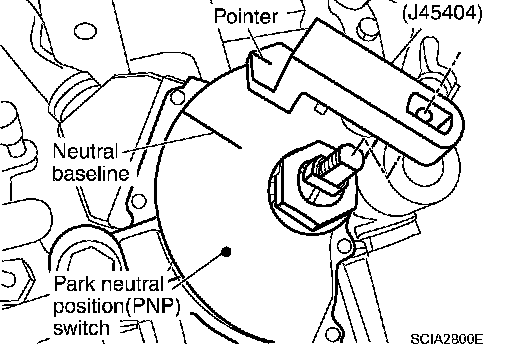

6. Adjust Park/Neutral Position (PNP) switch so that alignment tool (J45404) pointer aligns with neutral base line on Park/Neutral Position (PNP) switch body.





7. Tighten Park/Neutral Position (PNP) switch bolts.
8. Reinstall range lever and cable.
9. Adjust control cable.
10. Reinstall battery and bracket.
11. Check continuity of Park/Neutral Position (PNP) switch.
