Ignition Timing: Testing and Inspection
IGNITION TIMINGMethod A 1.

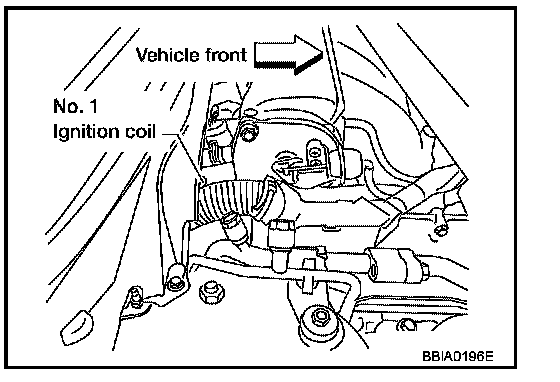

Slide the harness protector off ignition coil No.1 to clear the wires.
2.
Attach timing light to the ignition coil No.1 wires.
3.

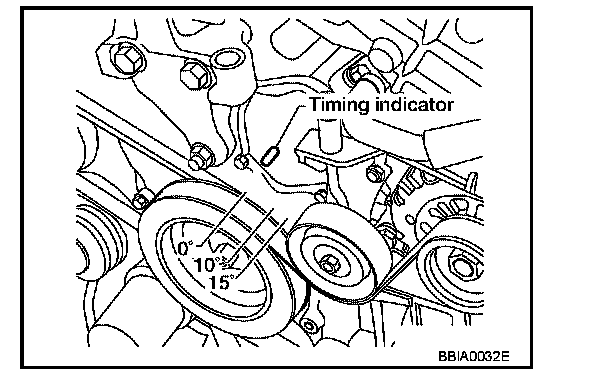

Check
ignition timing.
Method B 1.
Remove No.1 ignition coil.
2.

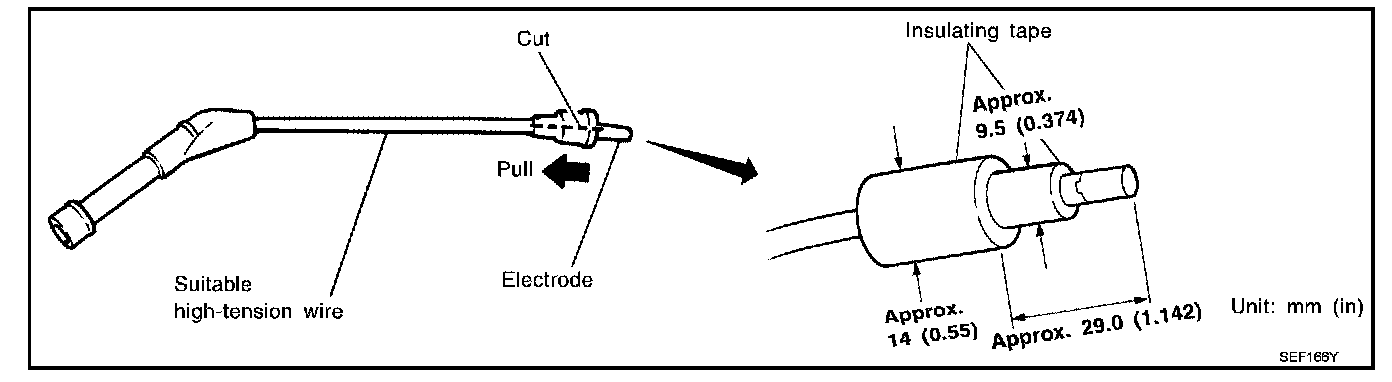

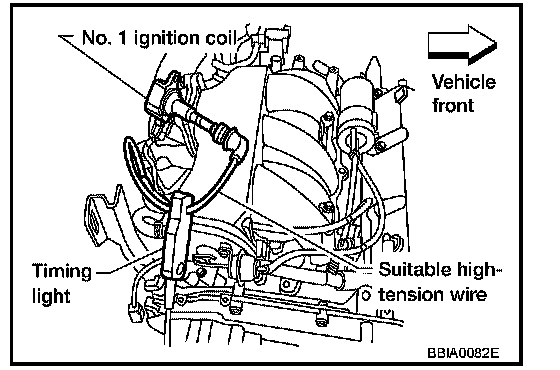

Connect No.1 ignition coil and
spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
3.

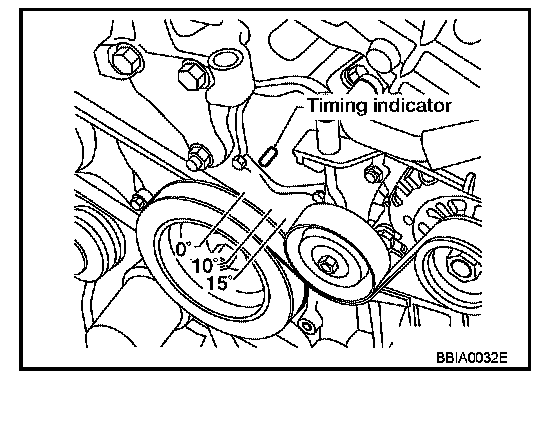

Check
ignition timing.
