Timing Chain

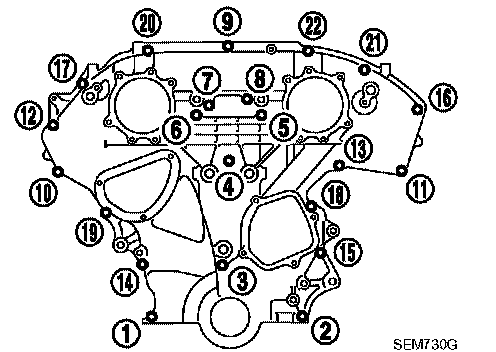

Front Timing Chain Case:
Front
timing chain case bolts.
1, 2
25.5 - 31.4 Nm (2.6 - 3.2 kgf-cm, 18.8 - 23.1 ft. lbs.)
3 -22
11.8 - 13.7 Nm (1.2 - 1.4 kgf-cm, 8.7 - 10.1 ft. lbs.)
Rear Timing Chain Case:
Rear
timing chain case
12 - 13 Nm (1.2 - 1.4 kgf-cm, 9 -10 ft. lbs.)
