Data Monitor

DATA MONITOR
Operation Procedure
1. Touch "ABS", "DATA MONITOR" in order on CONSULT-II screen. If "ABS" is not indicated, go to "CONSULT-II Data Link Connector (DLC) Circuit". Diagnostic Aids

CAUTION: When "START (NISSAN BASED VHCL)" is touched immediately after starting engine or turning on ignition switch, "ABS" might not be displayed in system selection screen. In this case, repeat the operation from step 2.

2. Return to Monitor Item Selection screen, and touch "ECU INPUT SIGNALS", "MAIN SIGNALS" or "SELECTION FROM MENU".


Refer to Refer to the Data Monitor - Display Item List.

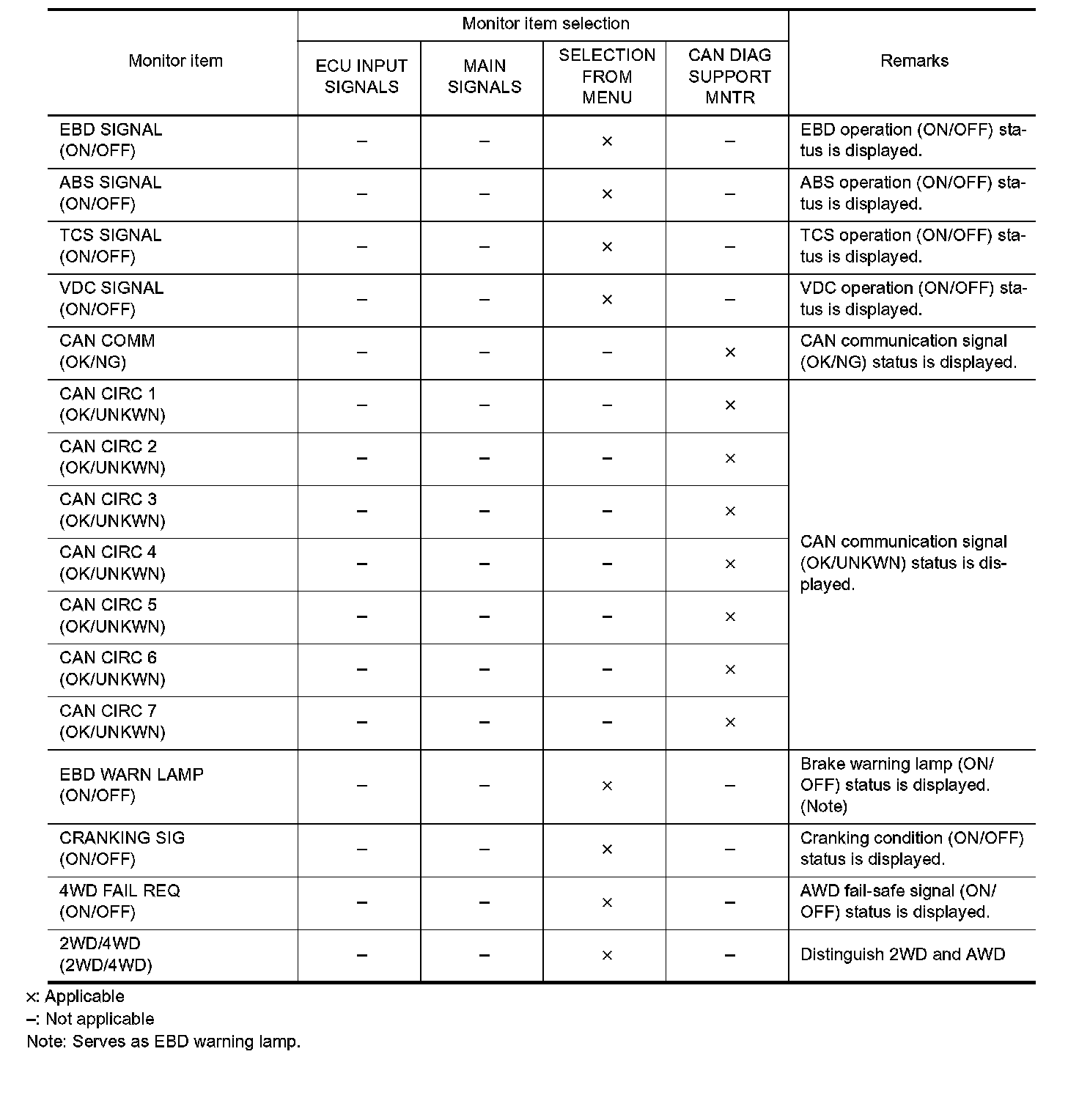

DATA MONITOR - VDC/TCS/ABS DISPLAY ITEM LIST (1 Of 3):

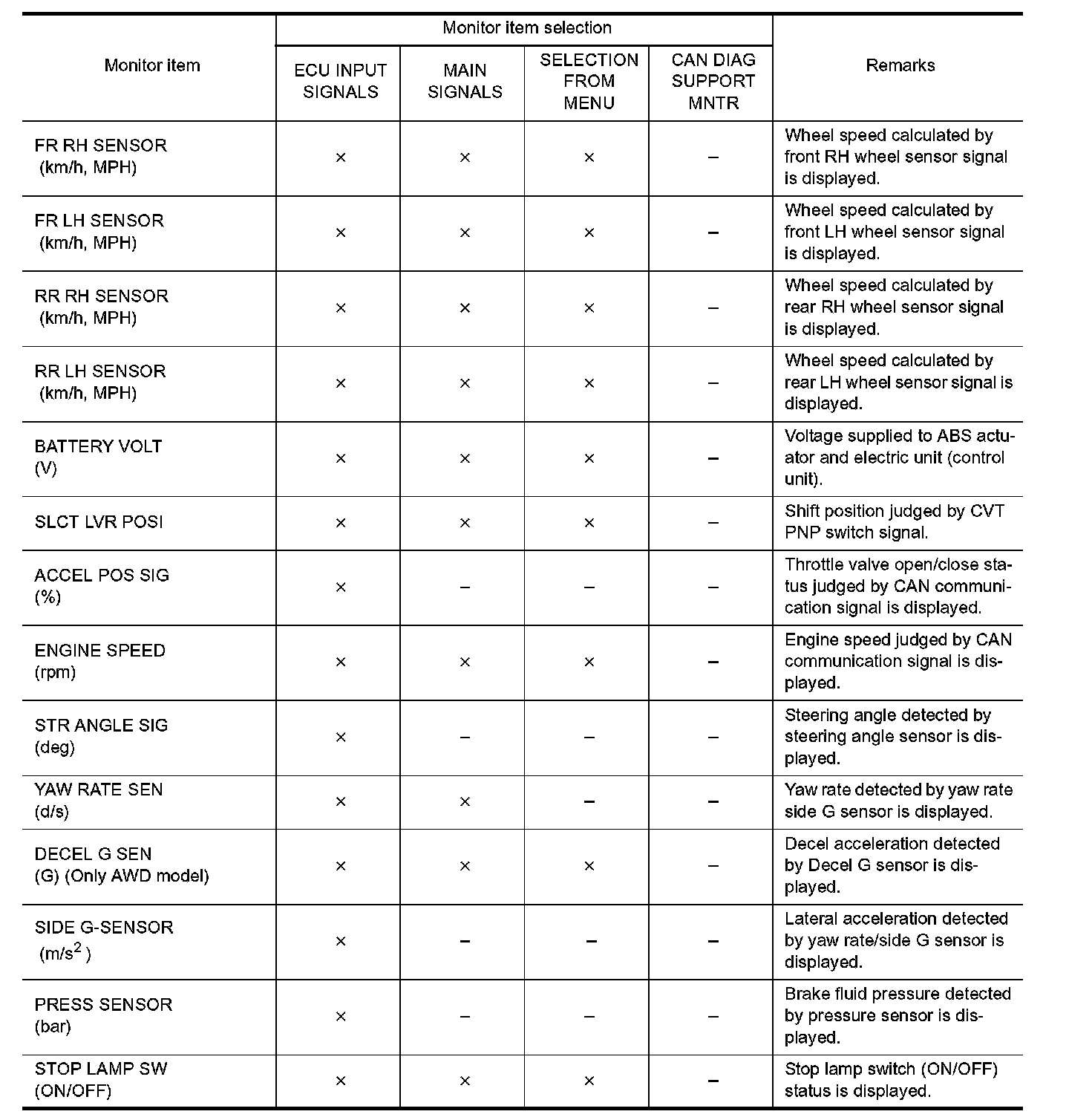

DATA MONITOR - VDC/TCS/ABS DISPLAY ITEM LIST (2 Of 3):

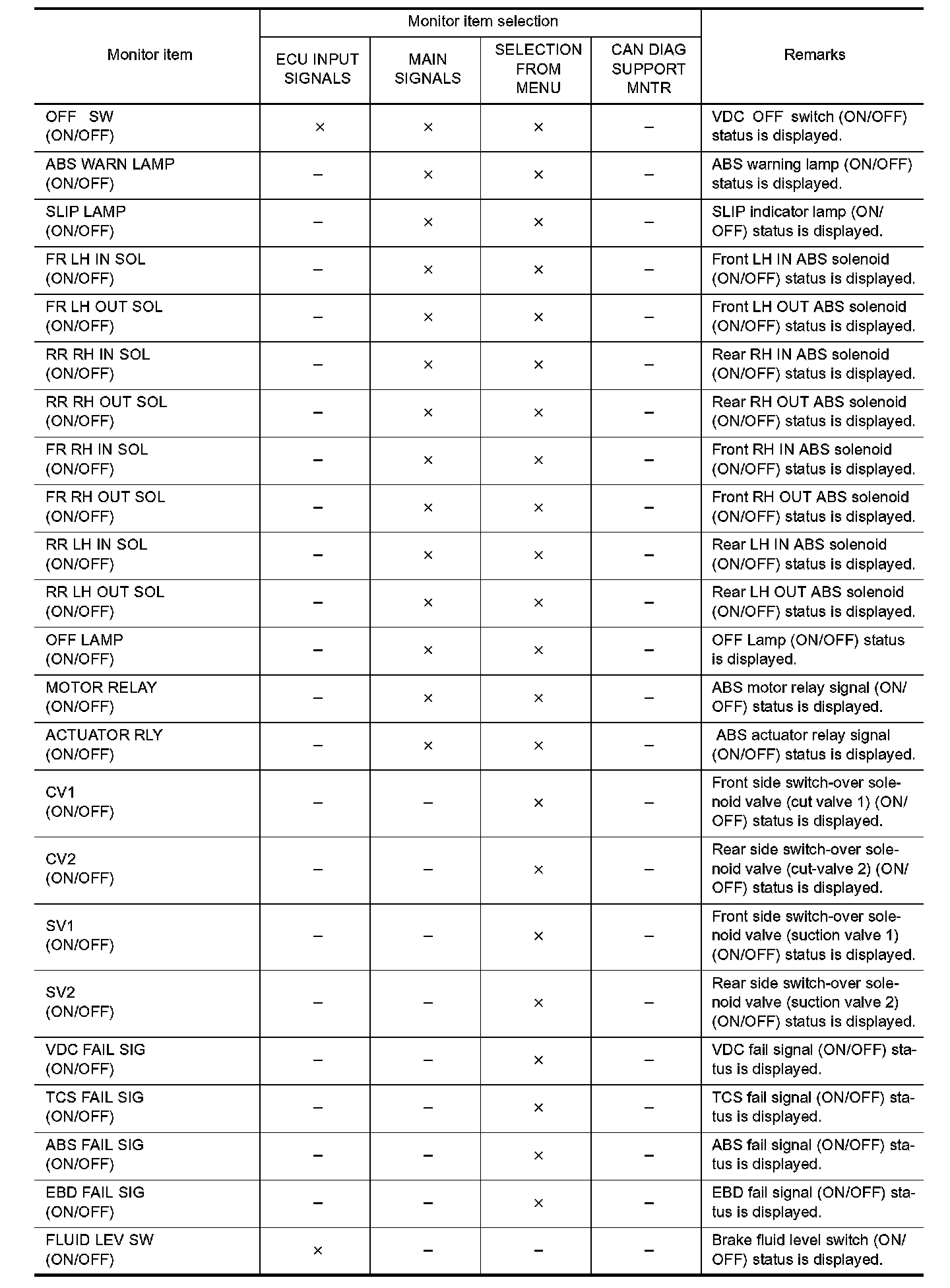

DATA MONITOR - VDC/TCS/ABS DISPLAY ITEM LIST (3 Of 3):

3. When "START" is touched, data monitor screen is displayed.
