Normal Scan Tool Values

Control Unit Input/Output Signal Standard
REFERENCE VALUE FROM CONSULT-II

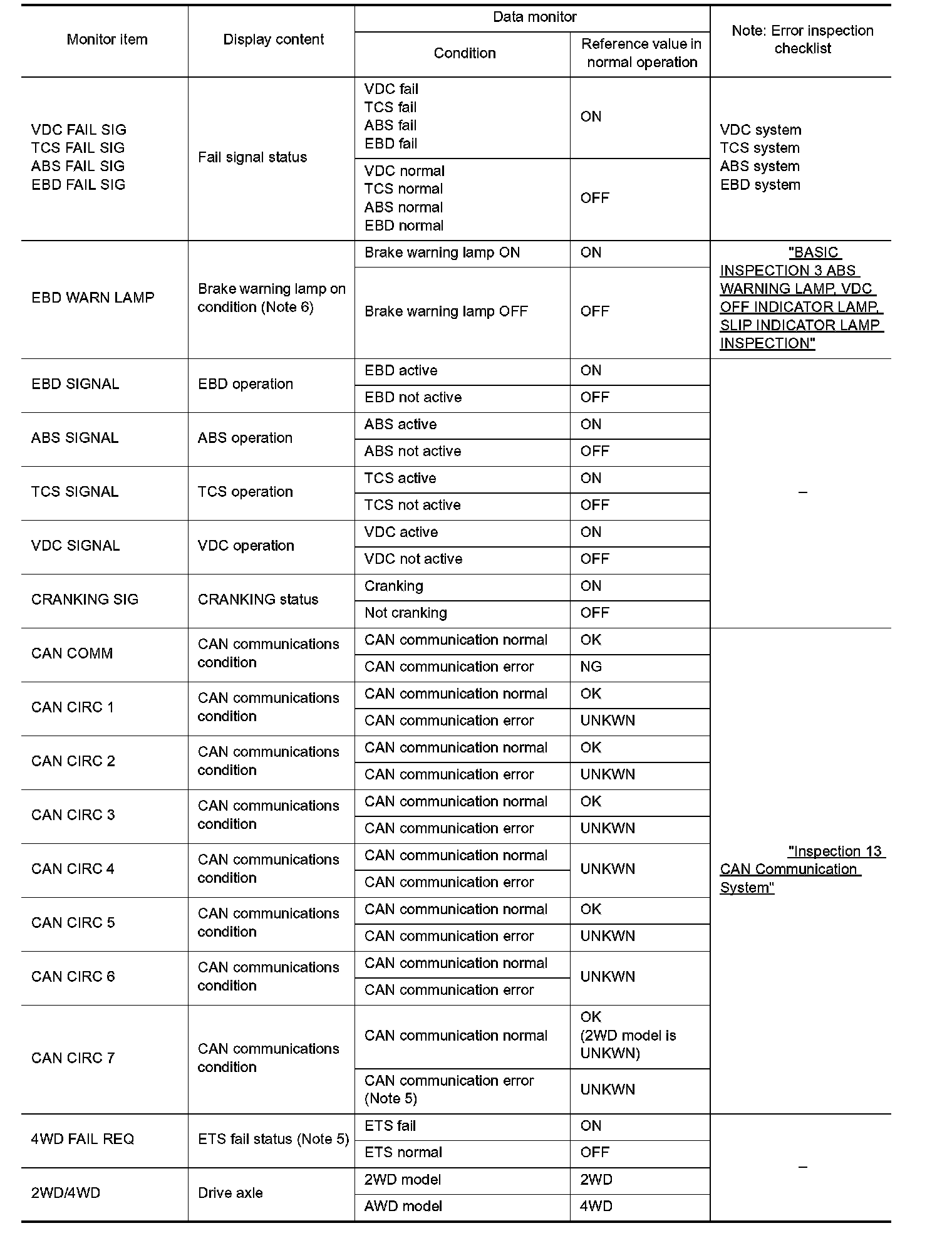

VDC/TCS/ABS CONTROL UNIT INPUT/OUTPUT SIGNAL STANDARD - REFERENCE VALUE FROM CONSULT-II (1 Of 3):

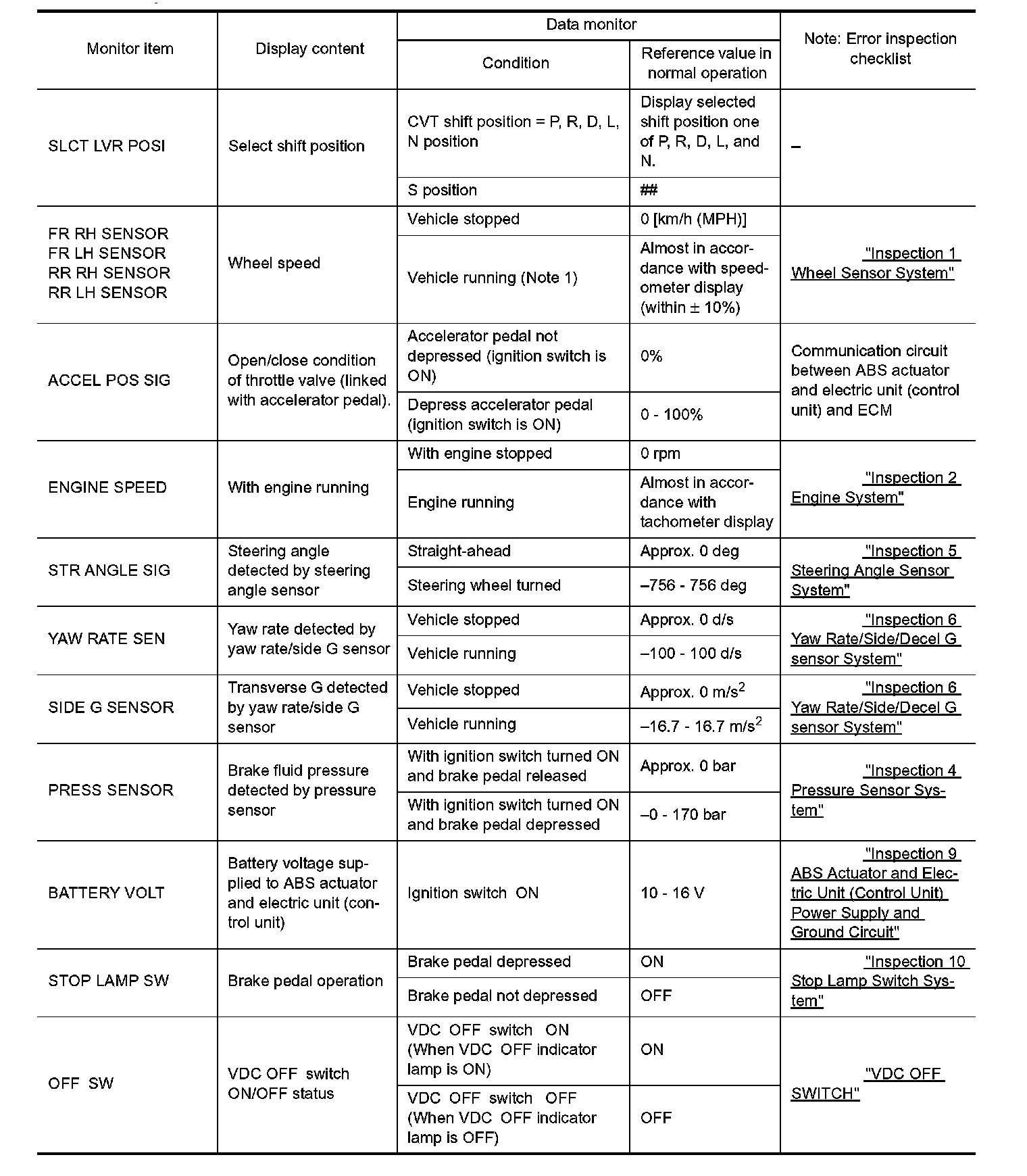

VDC/TCS/ABS CONTROL UNIT INPUT/OUTPUT SIGNAL STANDARD - REFERENCE VALUE FROM CONSULT-II (2 Of 3):

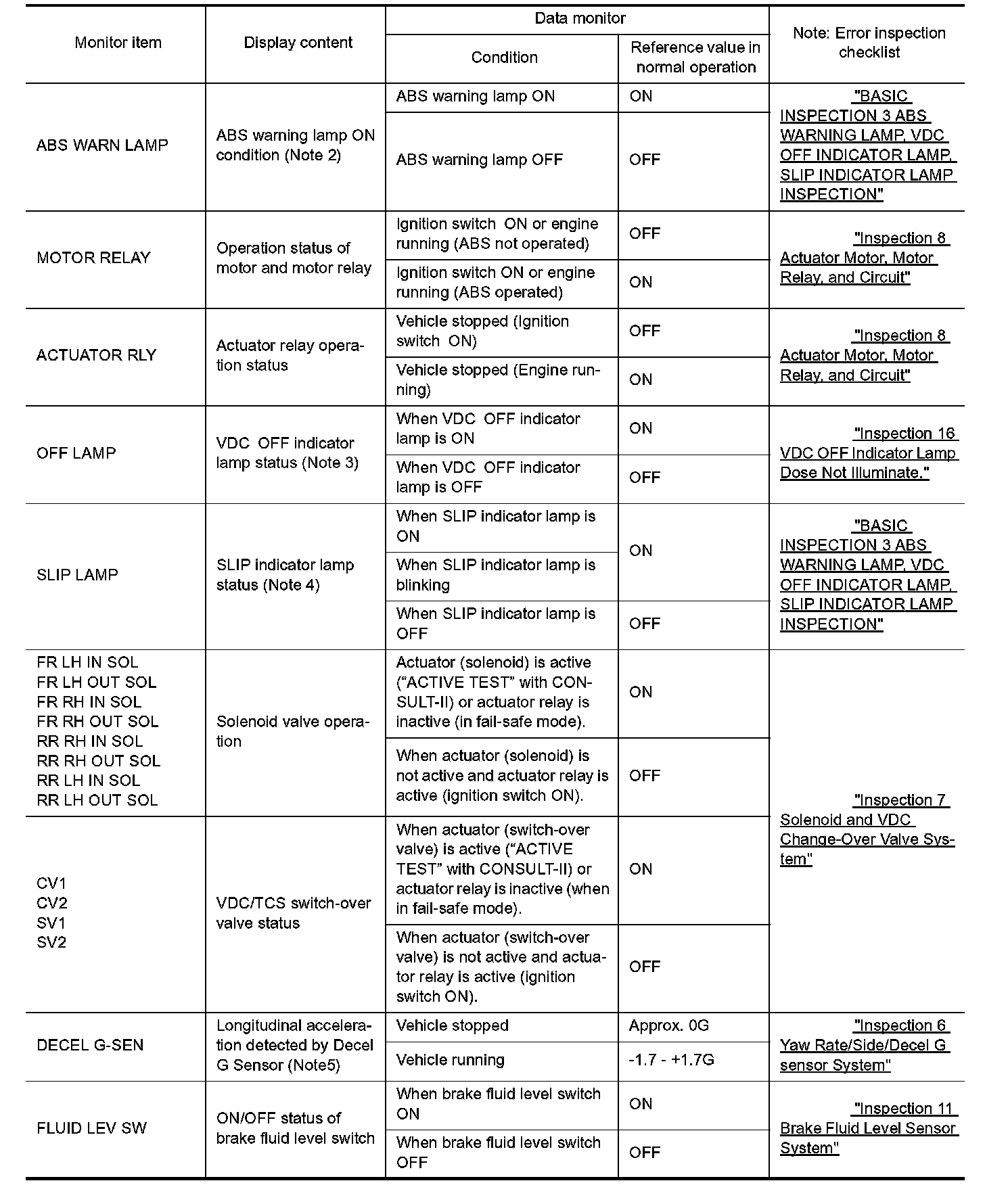

VDC/TCS/ABS CONTROL UNIT INPUT/OUTPUT SIGNAL STANDARD - REFERENCE VALUE FROM CONSULT-II (3 Of 3):

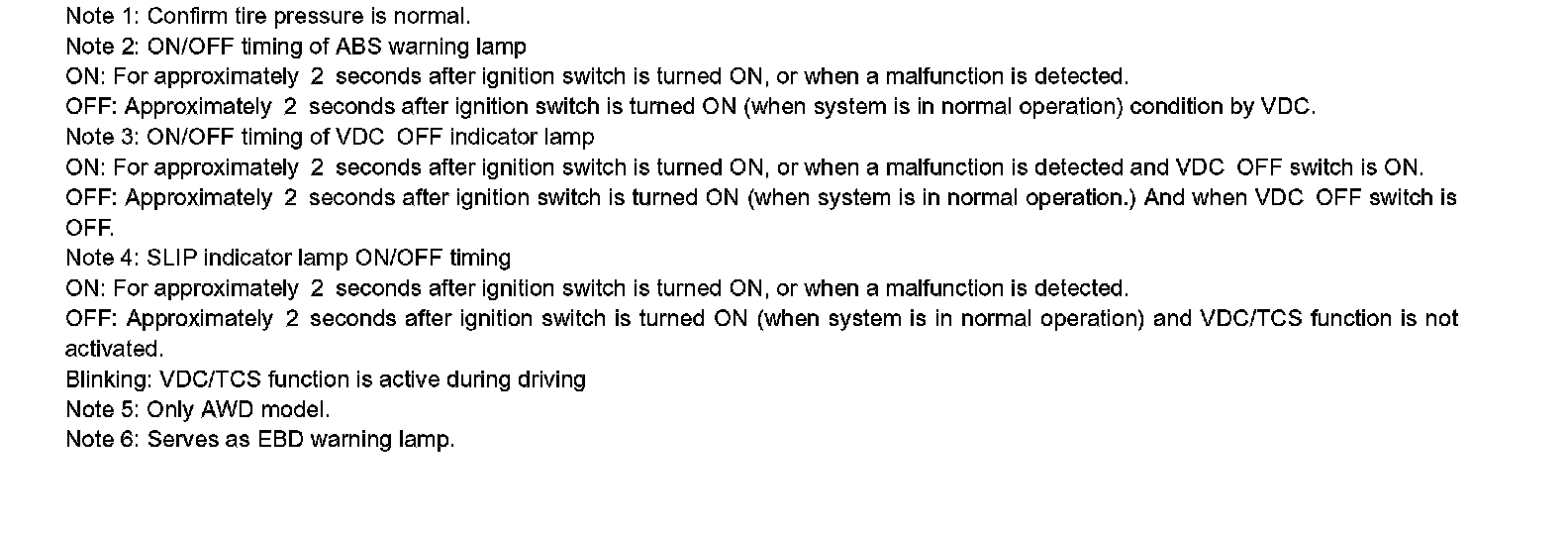

VDC/TCS/ABS CONTROL UNIT INPUT/OUTPUT SIGNAL STANDARD - REFERENCE VALUE FROM CONSULT-II - NOTES:






CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short - circuited.
